Orthogonal Y-axis Turning and Milling Machine Tool

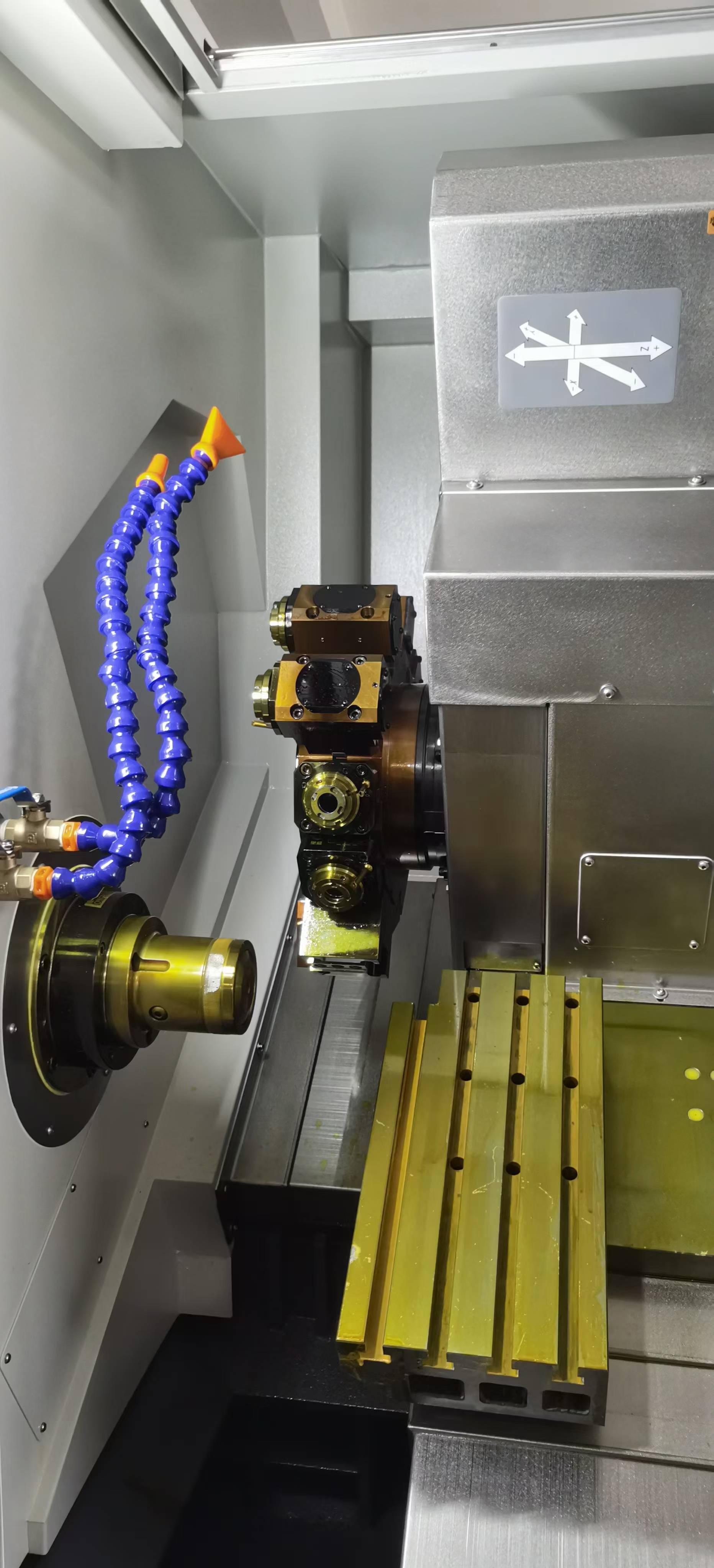

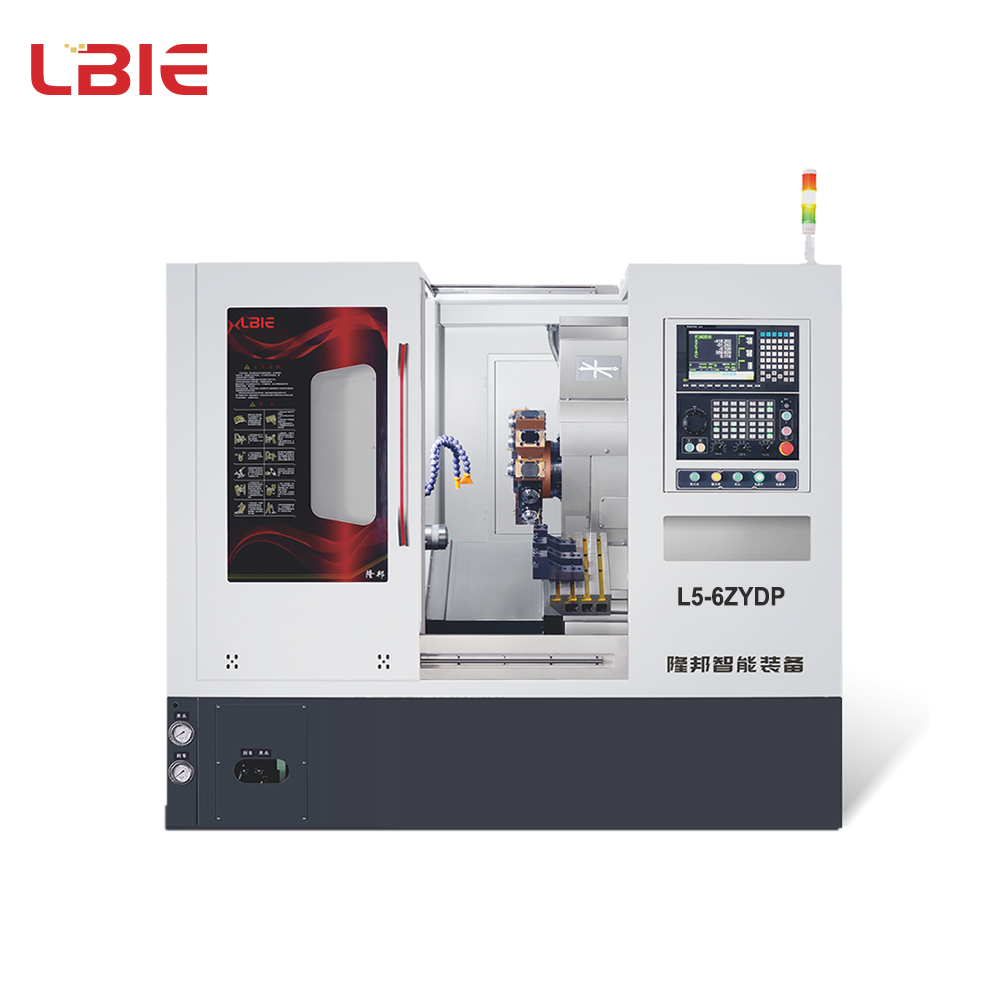

The L5-6ZYDP is a sophisticated and precise CNC lathe that is capable of orthogonal Y-axis turning and milling composite and has been specifically developed to cater to the high-efficiency and high-precision processing requirements of complicated parts of the automobile, aerospace, and precision machinery industries. Being a professional CNC machine tool, it combines the capabilities of turning, milling, drilling, and tapping into a single unit, thereby facilitating one-time clamping and complete processing of complex workpieces, which in turn significantly reduces the production cycle and enhances the processing accuracy.
Parameter Table
| # | Parameter | Unit | L5-6ZYDP Orthogonal Y-axis Turning and Milling Machine Tool | |||
| 1 | Max. Turning Diameter | mm | Φ300 | |||
| 2 | Max. Machining Length | mm | 200 | |||
| 3 | Max. Swing Diameter over bed | mm | Φ400 | |||
| 4 | Max. Swing Diameter Over slide | mm | Φ140 | |||
| 5 | Bar Feeding Diameter | mm | <Φ46 | |||
| 6 | Spindle Bore | mm | Φ56 | |||
| 7 | Max. Spindle Speed | RPM | 5000 | |||
| 8 | X-axis Travel | mm | 800 | |||
| 9 | Y-axis Travel | mm | 80 | |||
| 10 | Z-axis Travel | mm | 300 | |||
| 11 | Rapid Feedrate | m / min | 22 | |||
| 12 | Max. Driven Tool Speed | RPM | 4000 | |||
| 13 | Voltage (3phase) | V | 380±10% | |||
| 14 | Electric Frequency | Hz | 50 | |||
| 15 | Power | kW | 24 | |||
| 16 | Weight | kg | 3000 | |||
| 17 | Size (Length × Width × Height) | mm | 2200 × 1750 × 2000 | |||
| # | Configuration Table | |||||
| 1 | CNC | ☐ FANUC 0I-TF PLUS (3B) | ☐ Siemens 828D (With Shop Turn/Mill Function) | ☐ SYNTEC 22TB | ||
| C-axis Rated Power / Torque of the Servo Motor | □ 7.5kW / 59.7Nm (Standard) □ 11kW / 105Nm (Optional) | □ 9kW / 57Nm (Standard) □ 11kW / 105Nm (Optional) | □ 7.5kW / 49Nm (Standard) □ 11kW / 72Nm (Optional) | |||
| X-axis Rated Power / Torque of the Servo Motor | 1.8kW / 11Nm | 2.2kW / 12Nm | 2.4kW / 11Nm | |||
| Y-axis Rated Power / Torque of the Servo Motor | 1.8kW / 11Nm | 2.2kW / 12Nm | 2.4kW / 11Nm | |||
| Z-axis Rated Power / Torque of the Servo Motor | 1.8kW / 11Nm | 2.2kW / 12Nm | 2.4kW / 11Nm | |||
| Driven Tool Rated Power / Torque of the Servo Motor | 2.7kW / 12Nm | 2.2kW / 12Nm | 5.5kW 17.5Nm (Water Coolant Motor) | |||
| 2 | Spindle | Brand | Type / Spec | |||
| ☐ LBIE Belt Spindle (OEM by HAOZHI) (Standard) ☐ Guangzhou HAOZHI Motor Spindle (Optional) ☐ Taiwan KENTURN Belt Spindle (Optional) | A2-5 | |||||
Details Display

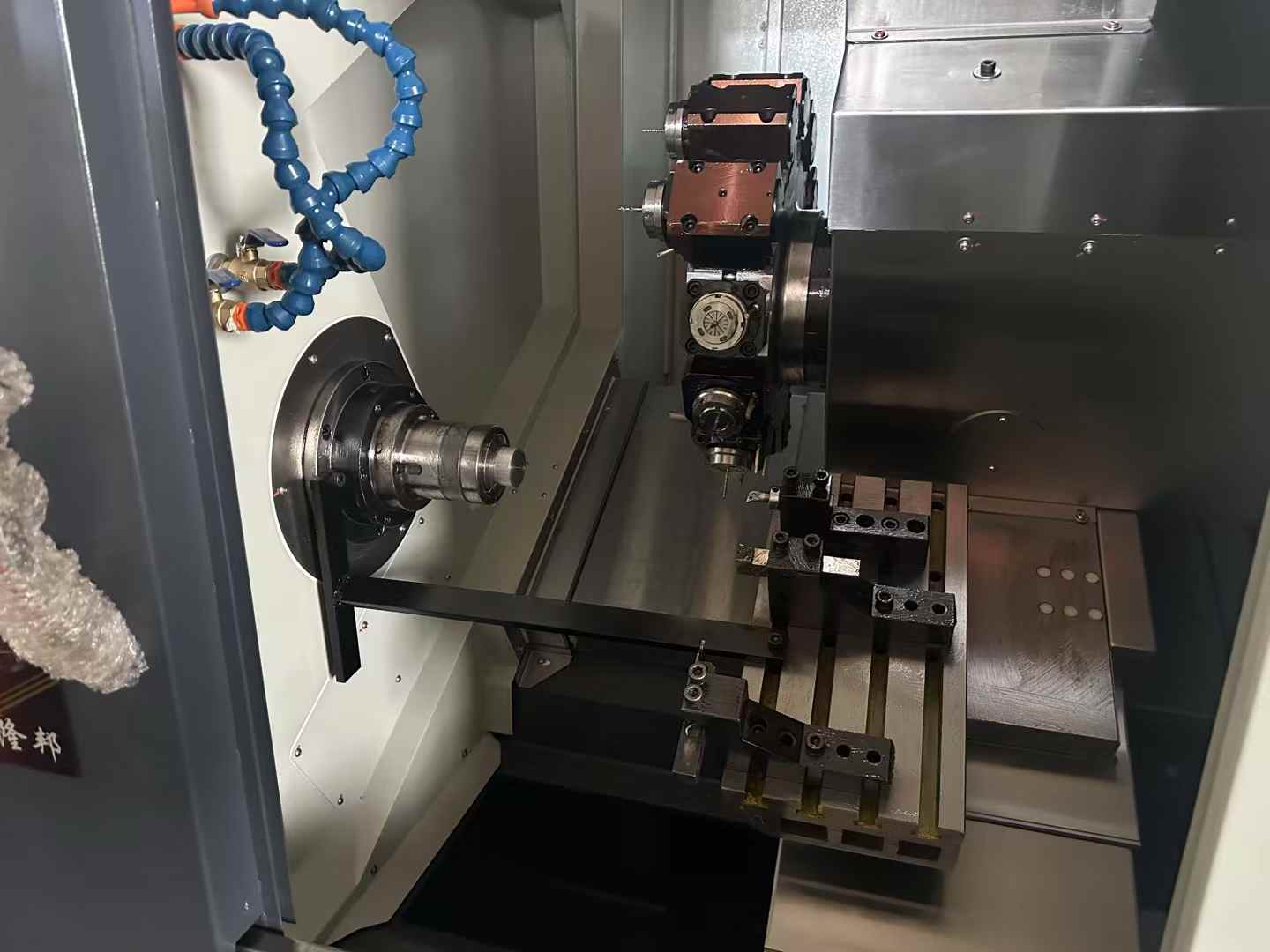

Spindle

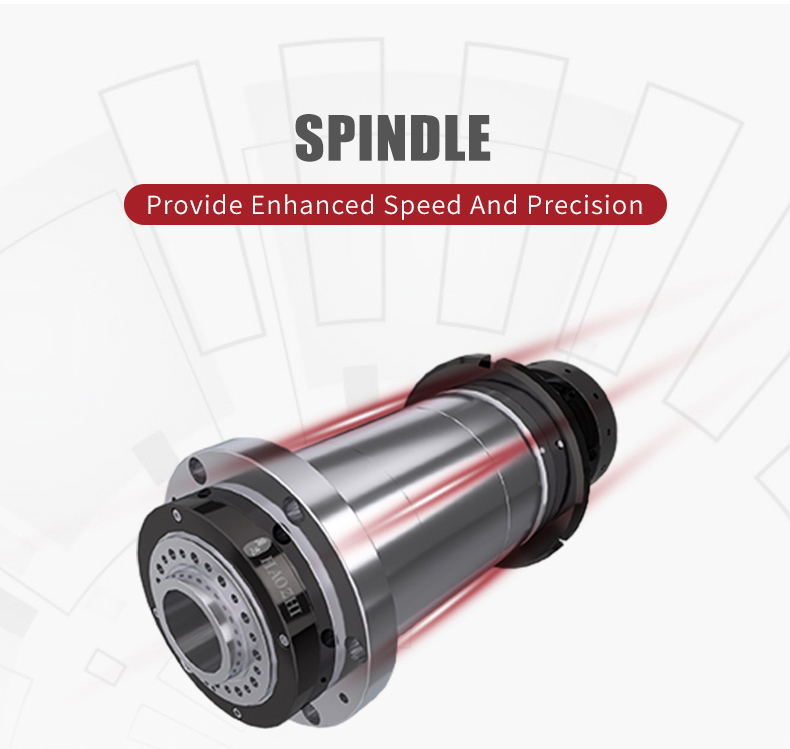

The A2-5 belt spindle system is a major feature of this CNC lathe machine. For the standard version, HAOZHI is the OEM, whereas Guangzhou HAOZHI motor and Taiwan KENTURN belt spindle are the optional ones for different processing needs.
It has a maximum spindle speed of 5000RPM and a large spindle bore of Φ56mm, which means it can provide you with strong cutting power, stable rotation accuracy, and excellent rigidity simultaneously, which are necessary for highly efficient turning and milling of multiple kinds of shaft and disc parts. Moreover, it will serve to guarantee the continuous production of high-precision output for the CNC machine tool.
Lead Screw

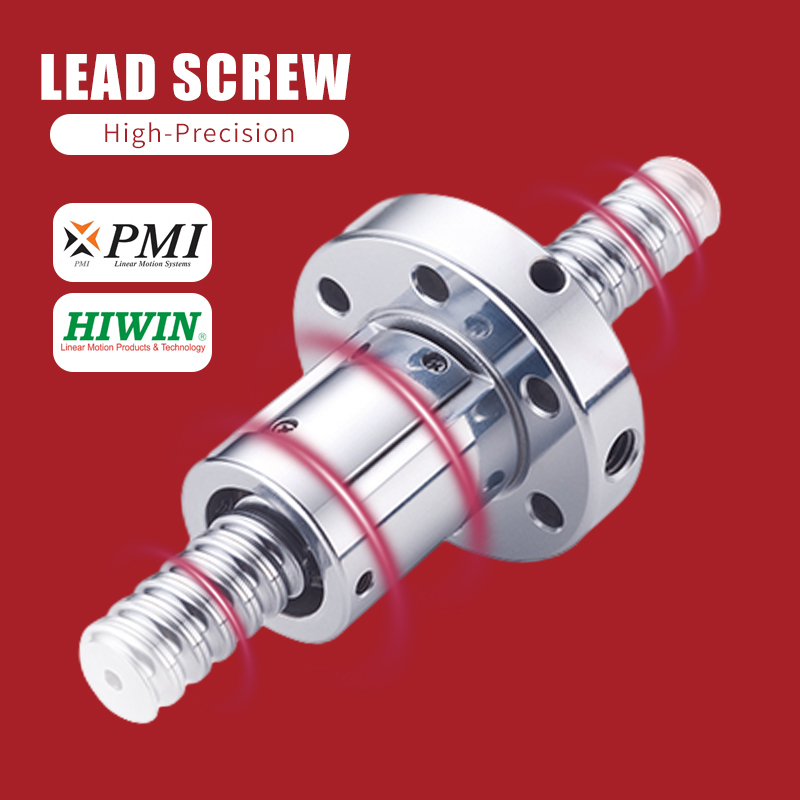

The X/Z axes of this CNC lathe are equipped with high-quality lead screws produced by HIWIN/PMI/NSK, having a specification of 32. On top of this, the lead screws go through a very precise grinding process to ensure a very small backlash and a very high transmission efficiency. As a result, the feed system can be precisely controlled to a very high degree, which not only results in a very good surface quality of the workpieces but also helps to keep the workpiece dimensions within the required tolerances very effectively. Thus, a CNC lathe with these lead screws will definitely be able to carry out very accurate machining operations.

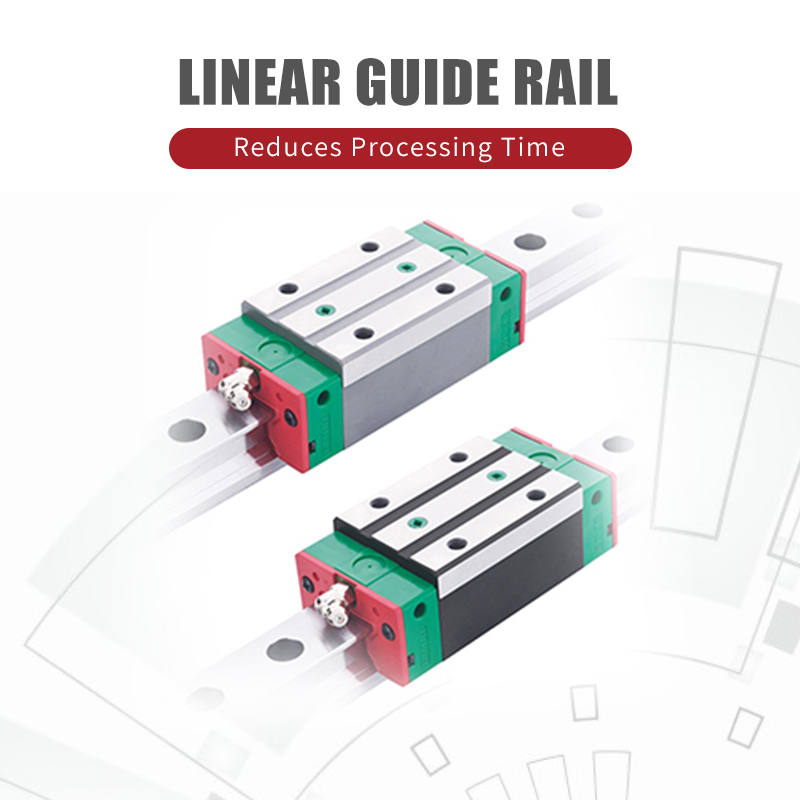

TLiner Guide Rail
The CNC lathe uses very accurate linear guide rails of the best quality brands like HIWIN, PMI, and Rexroth. The 35 roller guide rail style with additional rollers is capable of carrying a large load, it is very stiff, and its movement is very smooth. It significantly reduces the friction and wear that occur when the machine is running at high speed. In the end, the positioning accuracy of the X/Z axes is stable for a long time, accompanied by the high-precision machining of the CNC machine tool.
System

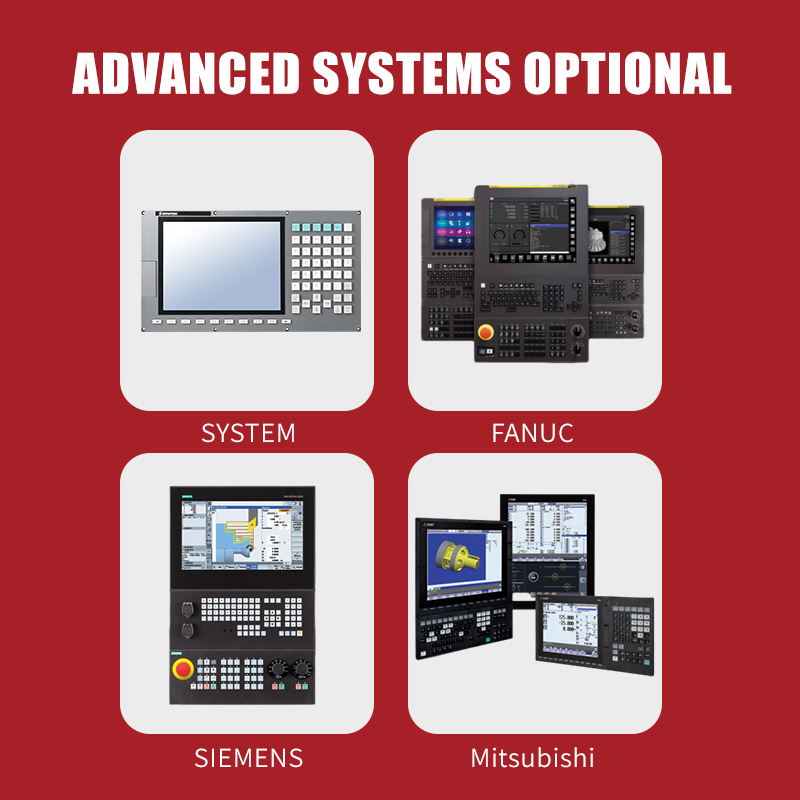

Our CNC milling and turning machines can accommodate a variety of control systems such as FANUC, Siemens, and Syntec, so it is up to users to pick the platform that best suits their operation styles and application needs. All CNC systems offer easy-to-understand programming, very fast data processing, and excellent integration with automated production environments to give users precision, reliability, and versatility in machining operations.
