Metal‍‌‍‍‌‍‌‍‍‌ CNC Lathe Machine equipped with CNC Milling and CNC Turning

Highly accurate CNC machining of defense parts

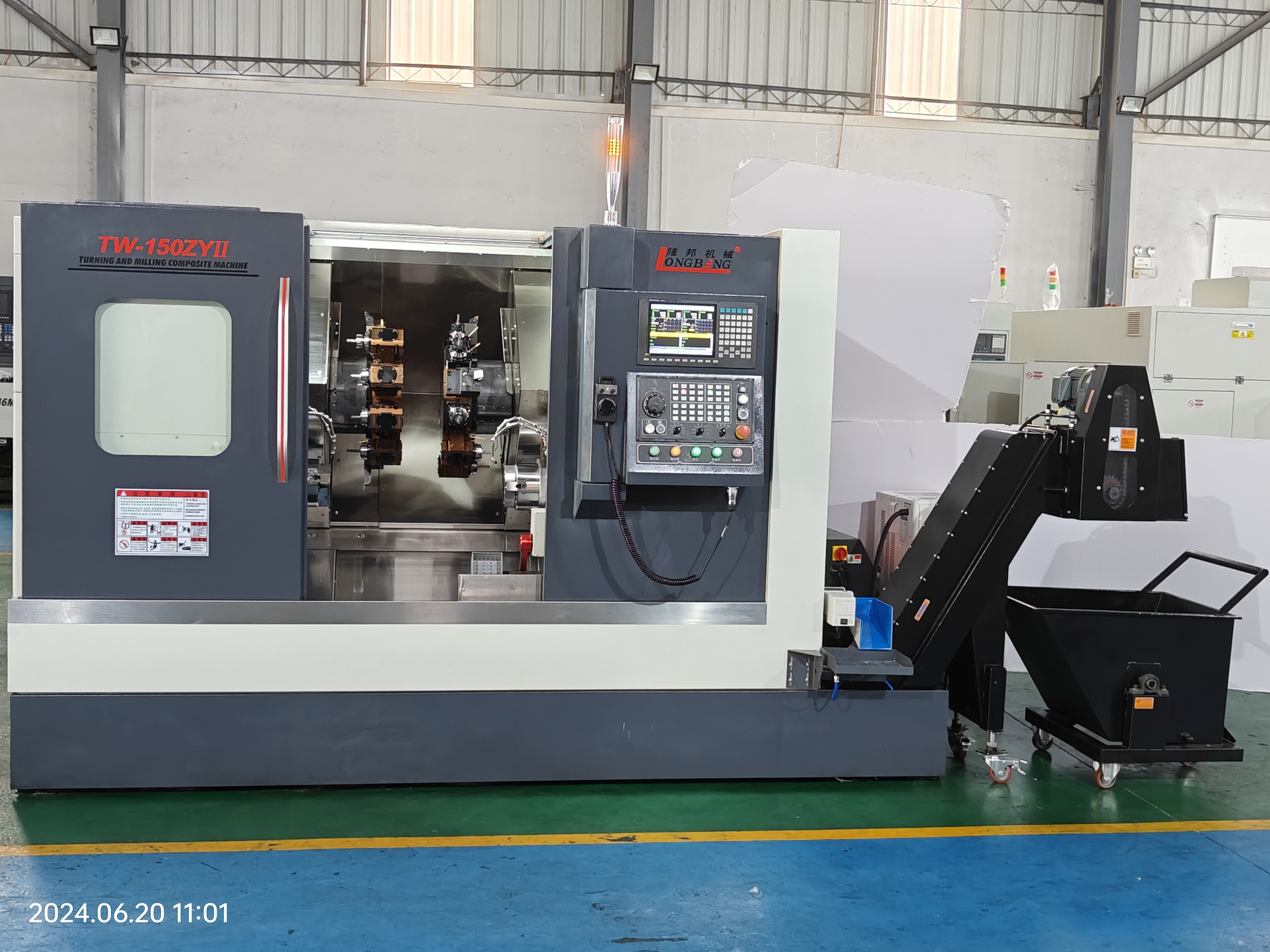

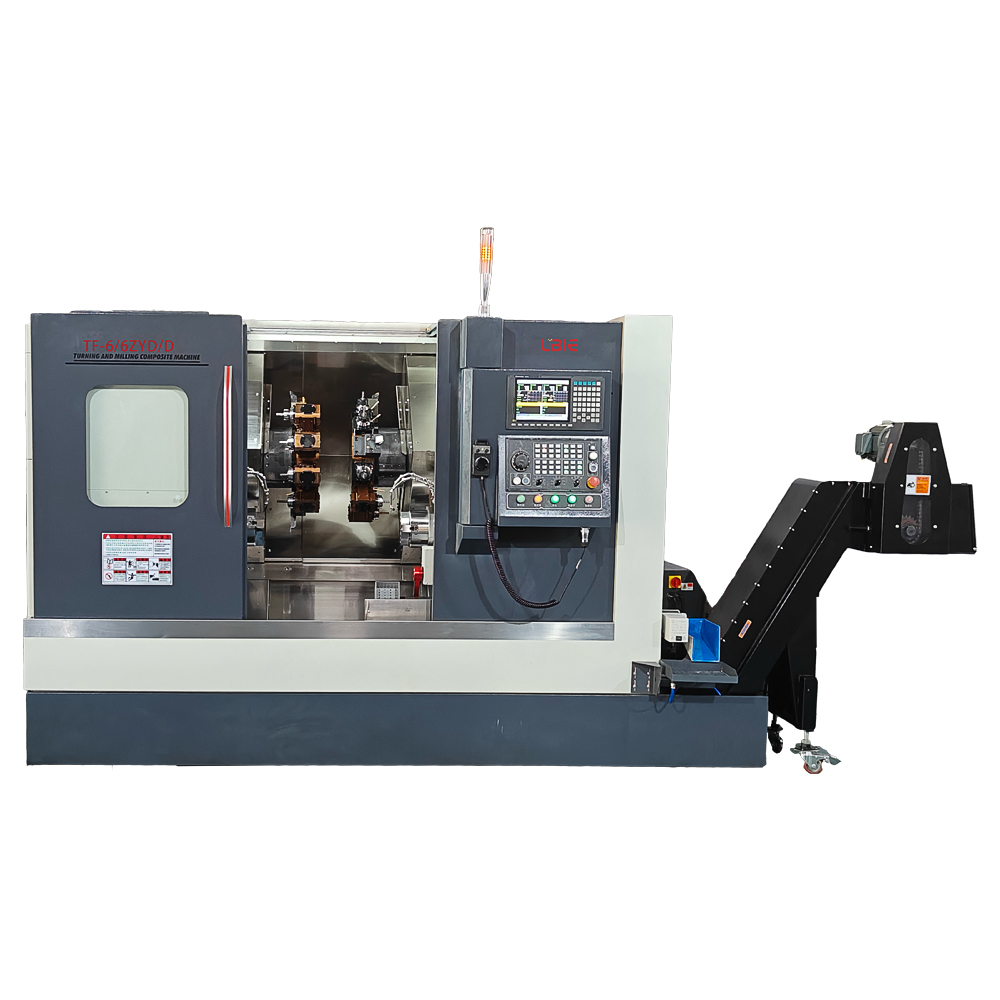

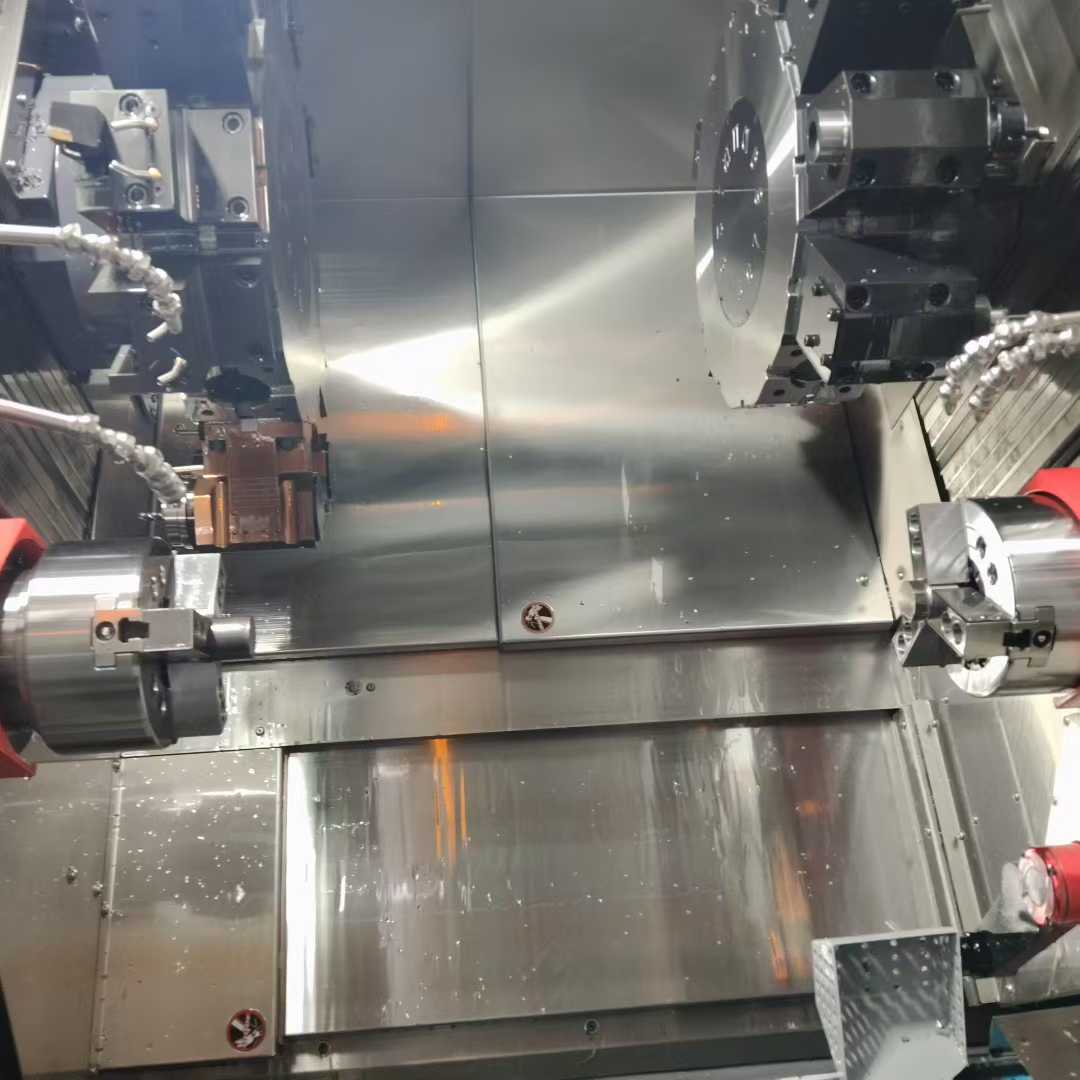

Dual-spindle, dual-turret parallel CNC lathe for aerospace parts—very precise Turning Milling Center and state-of-the-art CNC lathe center manufactured on a robust machine center ‍‌‍‍‌‍‌‍‍‌platform.

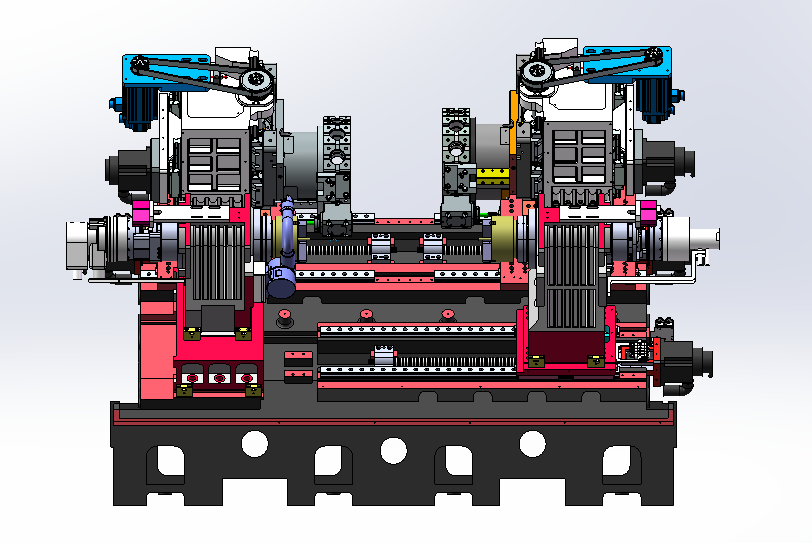

Dual-Spindle‍‌‍‍‌‍‌‍‍‌ & Dual-Turret Compound Machining: This powerful CNC lathe has two separate A2-5 spindles (both 5000RPM max speed) and two turrets, which can work simultaneously on the front and back sides of a workpiece. This facility to work on both sides at once greatly reduces the time for clamping and increases the production efficiency, making it a high-end CNC machine tool for mass producing complex parts.

Multi-Axis Precision Motion System: It operates with a 6-axis linkage (X1/X2/Y1/Y2/Z1/Z2/B) along with an orthogonal Y-axis design that enables off-centering, contouring, and eccentric machining. It provides extremely tight tolerances and always maintains quality for complicated workpieces, thus being an excellent choice for making automotive, aerospace, and precision ‍‌‍‍‌‍‌‍‍‌components.

Flexible‍‌‍‍‌‍‌‍‍‌ & Powerful Servo Configuration: The shaft is fitted with a servo motor of various capacities according to the customer's wish. The driven tool can have a high-speed spindle motor up to 4000RPM. It meets different kinds of cutting, from high-speed finishing to heavy-duty roughing, and stable working performance even after the materials are steel, aluminum, and alloys.

Premium Global Core Components: The frame is made of world-famous linear guide rails (HIWIN/PMI/Rexroth), lead screws (HIWIN/PMI), and high-precision bearings (NSK/NTN), matched with the Guangzhou HAOZHI motor spindle. As a result, the CNC machine tool can keep its geometric accuracy, thermal stability, and low failure rate for a long ‍‌‍‍‌‍‌‍‍‌time.

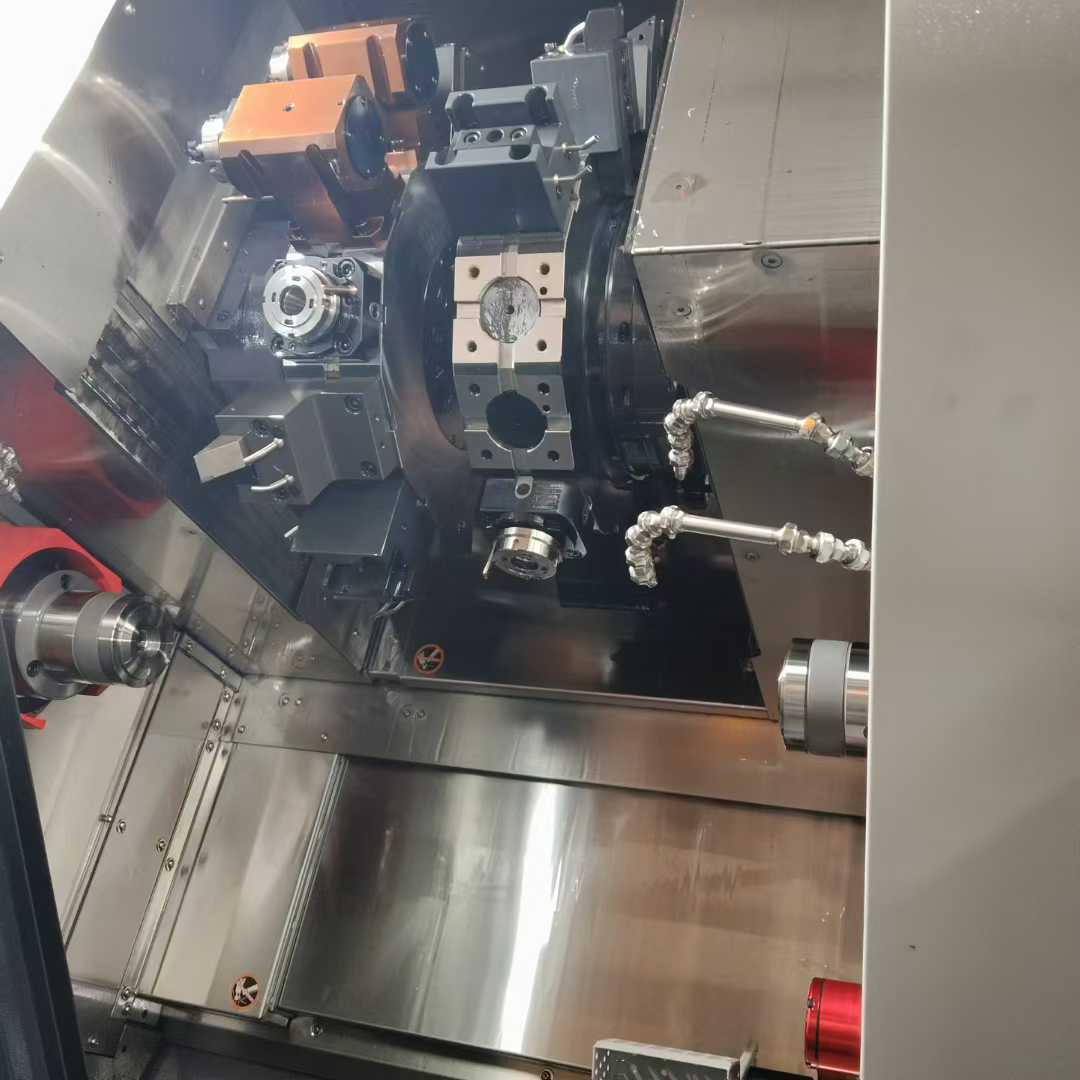

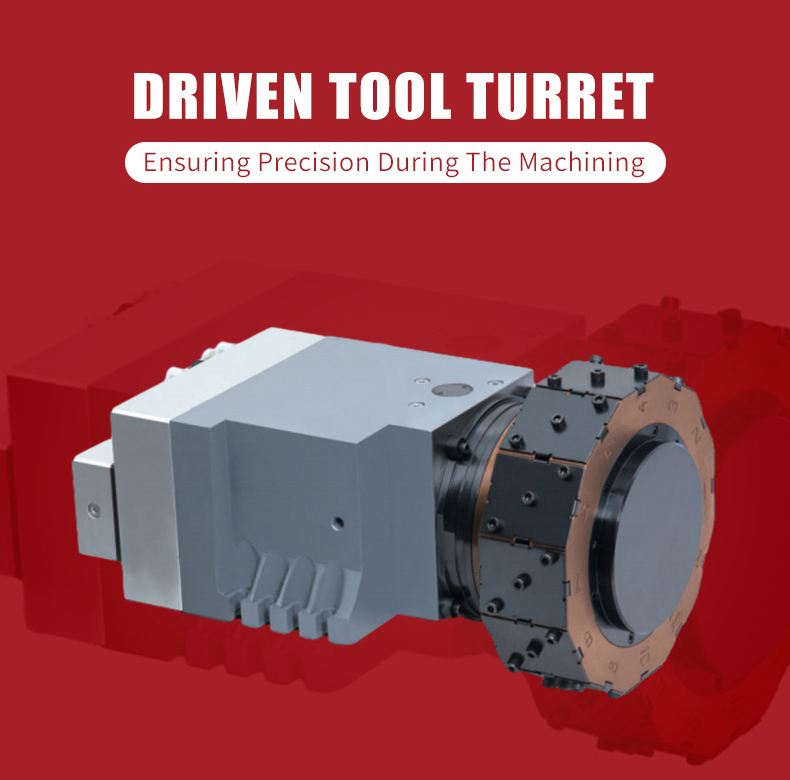

Turret

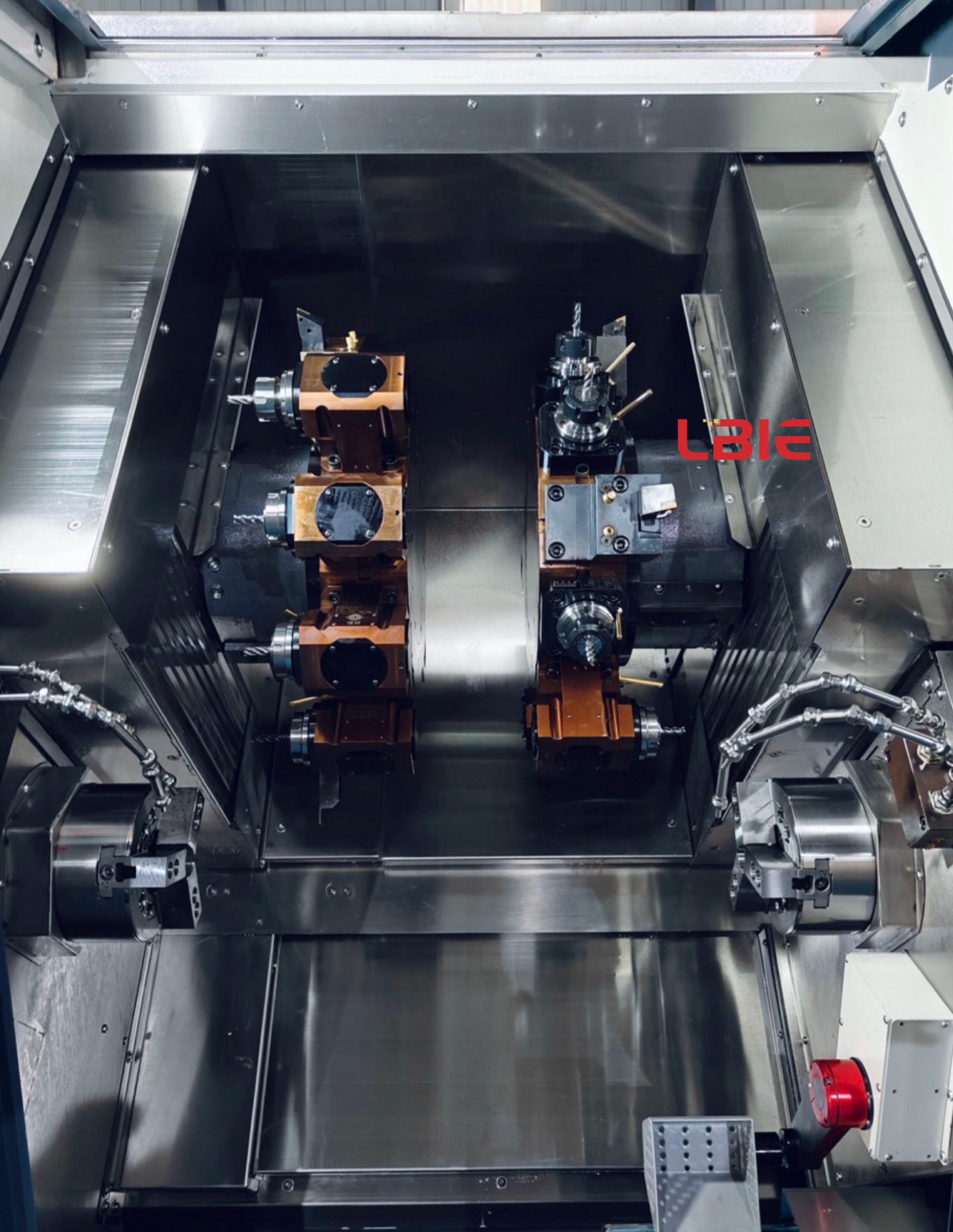

The‍‌‍‍‌‍‌‍‍‌ two-turret configuration of this CNC lathe is powered by high-force servo motors, with optional water-cooled driven tools (max power & torque 5.5kW/17.5Nm). Thanks to it, tool changes can be done quickly and accurately. Along with rigid clamping, this allows for simultaneous machining on both spindles. As a result, the auxiliary time is greatly reduced, and the production efficiency of the CNC lathe is increased ‍‌‍‍‌‍‌‍‍‌significantly.

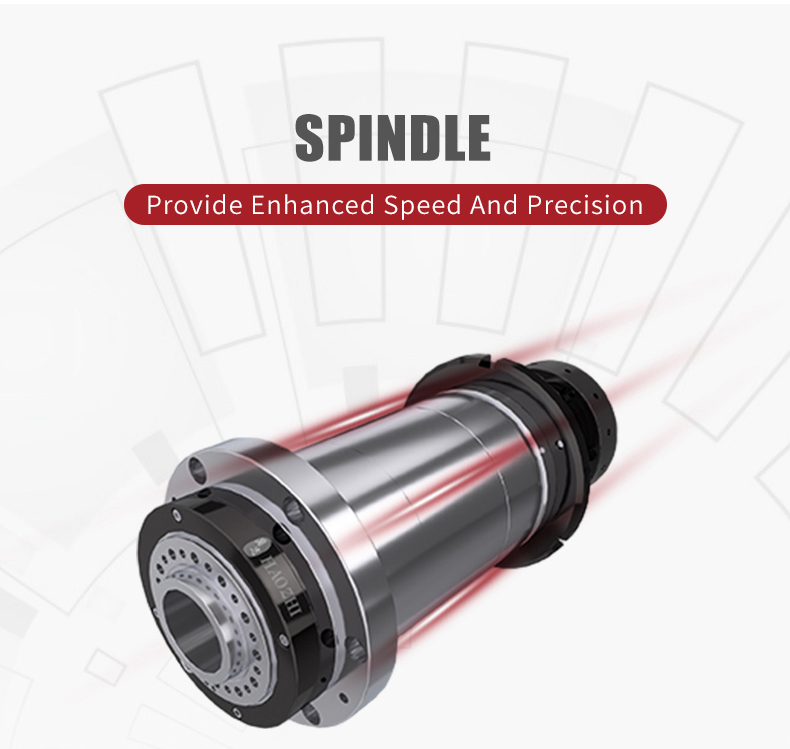

Spindle

This‍‌‍‍‌‍‌‍‍‌ CNC lathe is equipped with two identical Guangzhou HAOZHI A2-5 motor spindles, each having a maximum speed of 5000RPM and a diameter of 56mm spindle bore.

The dual-spindle arrangement can perform synchronous front/back machining, which not only gives the machine a powerful cutting force but also helps in maintaining very precise and stable rotation, as well as excellent thermal stability.

At the same time, it guarantees a high and consistent level of quality output for the CNC machine in continuous ‍‌‍‍‌‍‌‍‍‌production.

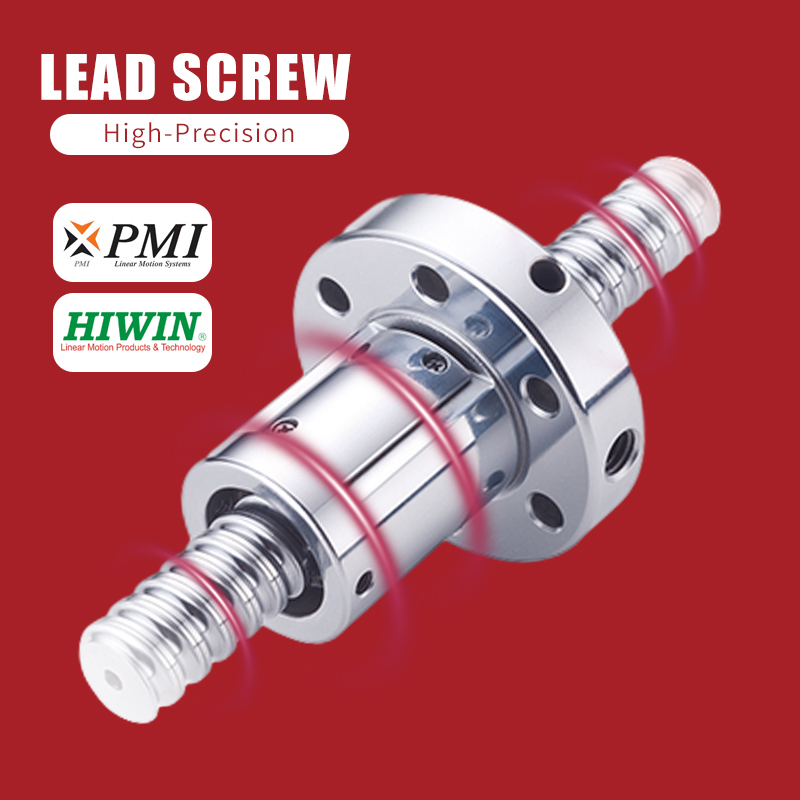

Lead Screw

This‍‌‍‍‌‍‌‍‍‌ CNC lathe is fitted with precision-ground lead screws (spec 32) that are supplied by HIWIN/PMI, and this makes it possible to accomplish minimal backlash and high transmission efficiency.

The lead screws perform accurate and repeatable positioning of all axes, which will have a positive impact on the dimensional accuracy and surface finish of the workpiece. This is in line with the demand for high-precision CNC lathe ‍‌‍‍‌‍‌‍‍‌machining.

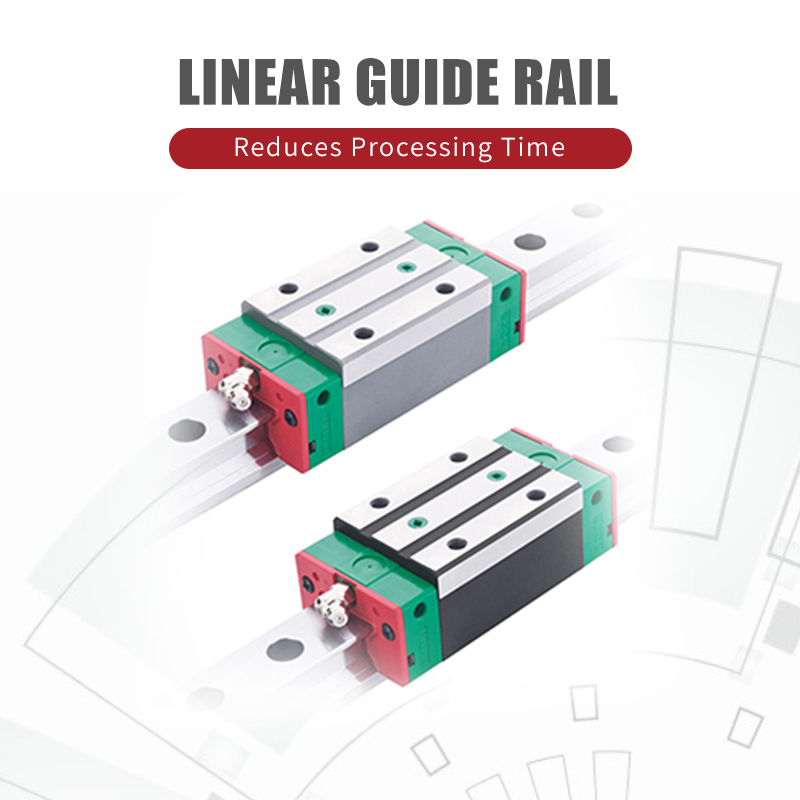

Linear Guide Rail

The‍‌‍‍‌‍‌‍‍‌ high-rigidity linear slides are used for the X-axis and Z-axis,and the track span is optimally calculated, resulting in low resistance, high precision, and the possibility of 22 m/min speed. The efficiency of work is improved, and processing time is ‍‌‍‍‌‍‌‍‍‌shortened.

1.‍‌‍‍‌‍‌‍‍‌ Professional Manufacturing Strength

LBIE is recognized as a high-tech national company that covers all aspects from R&D, manufacturing, marketing, to after-sales service, and is mainly focusing on high-end CNC machine tools. Established in 2007, it relocated to Nansha, Guangzhou, in 2011, and the new plant was set up in Shunde, Guangdong, in 2021.

2. Technological Innovation

By means of a team of expert elites, LBIE has achieved continuous technological breakthroughs in turn-mill composite machine tools, developed models such as 4+4 turn-mill composite machine tools and the TS series, which give customized solutions for aerospace, auto parts, and other ‍‌‍‍‌‍‌‍‍‌industries.

3.‍‌‍‍‌‍‌‍‍‌ Efficient Production & Stable Delivery

Our factory, located on a site measuring 40,000 square meters, has the capability to produce 150 machine tools per month. Normally, the delivery timeline is 35-40 days, but it can be changed depending on stock or urgent orders.

4. Authoritative Certifications

Listed as a high-technology company at the national level, we have successfully undergone the certification process of ISO9001, CE, EAC, and other global ‍‌‍‍‌‍‌‍‍‌standards.

5.‍‌‍‍‌‍‌‍‍‌ Global Layout

Our main offerings are precision CNC turn-mill composite machines, CNC lathes, and other such equipment, along with tailored automated production line solutions. Our products find their way to Asia, Europe, the Americas, and other parts of the world.

6. Full-Cycle After-Sales Service

Following the principle "Quality First, Integrity Service," we offer comprehensive after-sales support (installation, training, maintenance, etc.) and 7×24-hour online technical support. Besides, we invite our customers to join hands with us in industry-university-research integration to deliver outstanding results ‍‌‍‍‌‍‌‍‍‌together.

In‍‌‍‍‌‍‌‍‍‌ 2007, we started a company which mainly developed, produced, and provided after-sales support of lathe and milling machines.

In 2009, we were the first in China to invent a 4+4 live tool turning and milling machine.

In 2014, a breakthrough was made in the technology of interpolated Y-axis turning and milling machine tool.

In 2022, we released a turning and milling composite machine tool with double spindle and double turret.

Nowadays, we have rich industry experience of over 15 years, production qualification certificated as well, and capacity to provide nuclear energy, aerospace, automotive, home appliances and other fields with service. We would like to get in touch with worldwide agents for introducing high-quality Chinese CNC machine tools to customers around the ‍‌‍‍‌‍‌‍‍‌globe.

Premium CNC Machinery

The‍‌‍‍‌‍‌‍‍‌ exhibits are presenting our latest CNC machinery, including our machine tools. Our machine tools mainly include large gantry milling centers, high-precision milling heads of Okuma, and 5-axis link machining systems. This sophisticated equipment provides great mechanical strength, stability, and extremely high accuracy of machining, so it can be used quite intensively to make large and complex pieces that require very strict tolerances. They are installed with different well-known control systems and a user-friendly operation interface. It makes them perfect for industries such as aerospace, automotive, molding, and heavy machinery manufacturing, which guarantees good and reliable performance as well as high production efficiency of various industrial ‍‌‍‍‌‍‌‍‍‌processes.

Laser Interferometer

Accuracy Compensation

CMM

Accuracy Detection

Quality Inspection & Precision Assurance

Accuracy Detection

We‍‌‍‍‌‍‌‍‍‌ use top-of-the-line laser interferometer technology in our CNC machine tools for the purpose of precision accuracy compensation. By means of extremely accurate measurements and thorough data analysis, we manage to address positioning errors, geometric errors, and thermal errors. This way, even after a long time of operation, machining accuracy remains stable and reliable.

At LBIE, full-process quality control is strictly implemented, where professional inspection teams check every component, system, and process comprehensively. We produce CNC machine tools that are compliant with global quality standards, thereby ensuring you will get consistent precision and reliable performance in your ‍‌‍‍‌‍‌‍‍‌production.

CIMT 2025

LBIE CNC Lathe Exhibition

Two Spindle Lathe

Customers visited our booth.

CIMT 2025 LBIE Exhibition Review

METALLOOBRABOTKA 2025

"Metalworking" Minsk, Belarus

Overseas Exhibitions

We've‍‌‍‍‌‍‌‍‍‌ showcased our CNC machine tool offerings at international exhibitions held in Russia, Belarus, Malaysia, Uzbekistan, and other countries where our products have been warmly received by global ‍‌‍‍‌‍‌‍‍‌customers.

1.Stretch Wrapping

2.Vacuum packaging

3.Strong Plywood Packing

4.Waterproof Top

5.Client's goods package

6.Client's good package

CNC Lathe Packaging Instructions

To‍‌‍‍‌‍‌‍‍‌ ensure the safe arrival of your machine, our CNC lathe undergoes a multi-layer protective packaging process as outlined below:

First, the lathe is completely wrapped with stretch film so as to avoid dust and scratches.

Secondly, it is vacuum-packed to keep it from getting wet during transport.

Thirdly, after vacuum packaging, the lathe is immobilized with load straps to prevent shifting.

Lastly, it is encased in a sturdy plywood box.

The surface of the plywood box is also sealed with a waterproof film so that no rain or moisture can get inside, and the machine is in perfect condition upon ‍‌‍‍‌‍‌‍‍‌delivery.

Quality Assurance & Global Certifications

Quality‍‌‍‍‌‍‌‍‍‌ is the very foundation of LBIE. We have the pleasure of sharing with you that we hold the following certifications:

ISO 9001 (International Quality Management System)

CE Certification (European Conformity)

EAC (Eurasian Conformity)

Head to the Consulting Section to learn more. Each of these certifications guarantees that every machine not only measures up to stringent safety and performance standards at the global level but also meets ‍‌‍‍‌‍‌‍‍‌them.
