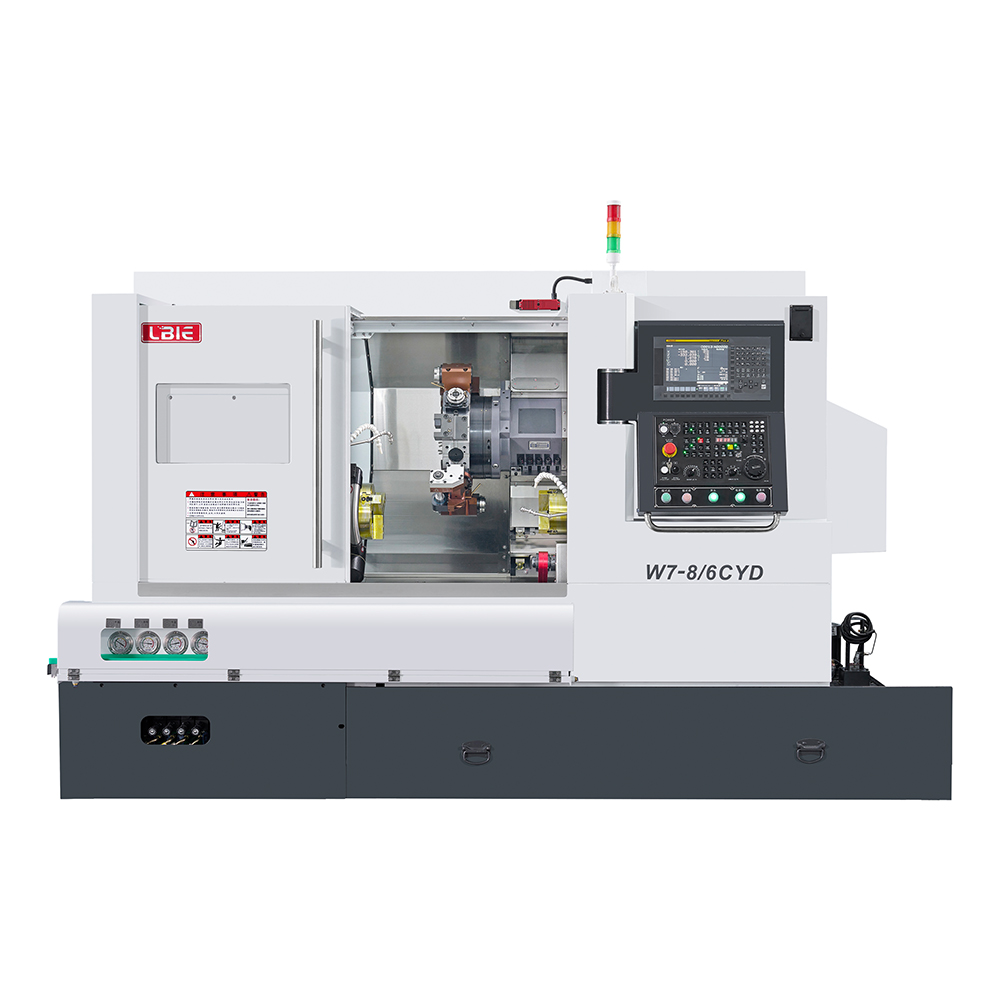

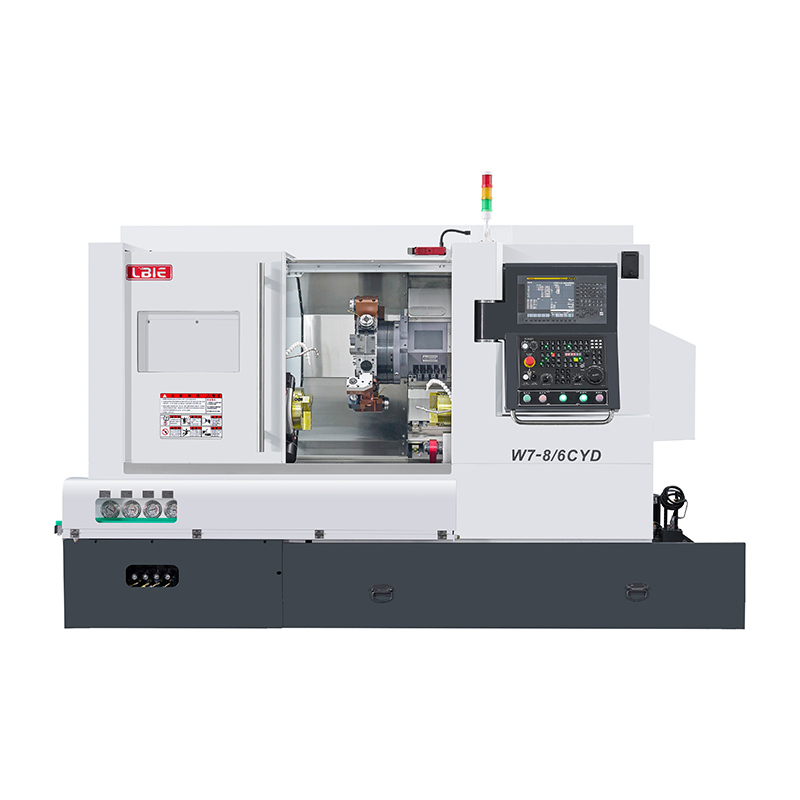

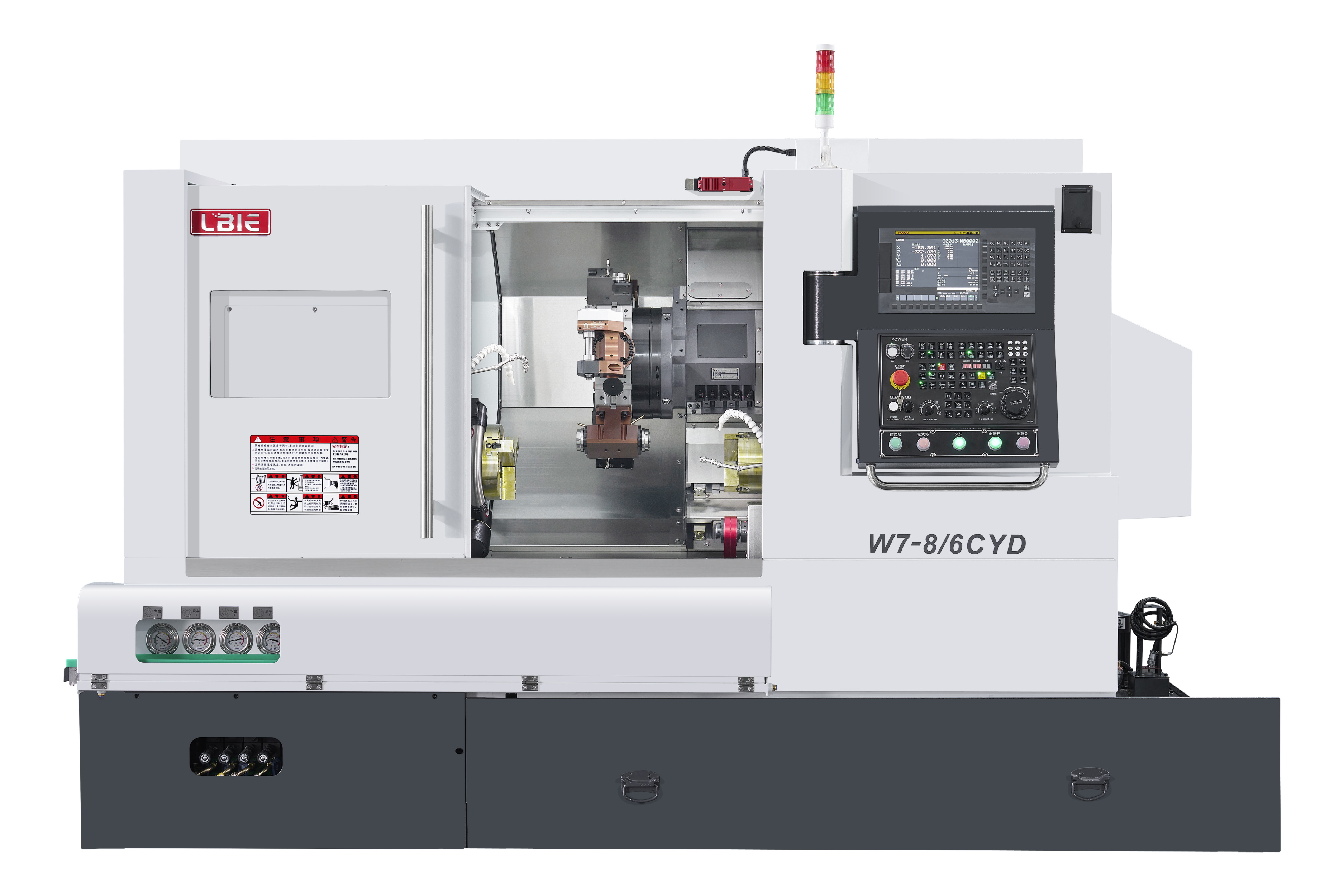

Dual Spindle CNC Lathe Machine for Metal with Milling and Turning
W7-8/6CYD is a dual-spindle CNC lathe that is capable of high precision spindle docking, which effectively eliminates the errors that come with re-clamping and results in higher machining accuracy. This machine can do turning, milling, and composite processing as it is furnished with a rigid BMT turret and an independent Y-axis. Also, the strong bed structure, quick response, and long-lasting precision stability make this machine perfect for the large-scale production of high-precision shaft and disc parts. It literally increases production efficiency and final product yield, and at the same time, it can perfectly meet the requirements of precision manufacturing on the highest level.
Parameter Table
| # | Parameter | Unit | W7-8/6CYD Double Spindle Interpolated Y-axis Turning and Milling Machine Tool | |||
| 1 | Max. Turning Diameter | mm | Φ300 | |||
| 2 | Max. Machining Length | mm | 550 | |||
| 3 | Max. Swing Diameter over bed | mm | 1st Spindle: Φ500; 2nd Spindle: Φ220 | |||
| 4 | Max. Swing Diameter Over slide | mm | Φ220 | |||
| 5 | Bar Feeding Diameter | mm | 1st Spindle: <Φ52; 2nd Spindle: <Φ46 | |||
| 6 | Spindle Bore | mm | 1st Spindle: Φ66; 2nd Spindle: Φ56 | |||
| 7 | Max. Spindle Speed | RPM | 1st Spindle: 4500; 2nd Spindle: 5000 | |||
| 8 | X-axis Travel | mm | 220 | |||
| 9 | Y-axis Travel | mm | 110 | |||
| 10 | Z-axis Travel | mm | 600 | |||
| 11 | Tailstock Travel | mm | 610 | |||
| 12 | Rapid Feedrate | m / min | 22 | |||
| 13 | Max. Driven Tool Speed | RPM | 4000 | |||
| 14 | Voltage (3phase) | V | 380±10% | |||
| 15 | Electric Frequency | Hz | 50 | |||
| 16 | Power | kW | 35 | |||
| 17 | Weight | kg | 4500 | |||
| 18 | Size (Length × Width × Height) | mm | 3250 × 1700 × 1900 (Excluding Chip Conveyor) | |||
| # | / | Configuration Table | ||||
| 1 | CNC Control System | □ FANUC 0I-TF PLUS (3B) | □ Siemens 828D (With Shop Turn/Mill Function) | □ SYNTEC 22TB | ||
| Main-spindle Rated Power / Torque of the Servo Motor | ☐ 11kW / 105Nm (Belt Spindle) (Standard) ☐ 15kW / 143Nm (Belt Spindle) (Optional) ☐ 15kW / 95Nm (Motor Spindle) (Optional) | ☐ 12kW / 115Nm (Belt Spindle) (Standard) ☐ 15kW / 95Nm (Motor Spindle) (Optional) | ☐ 15kW / 98Nm (Belt Spindle) (Standard) ☐ 15kW / 95Nm (Motor Spindle) (Optional) | |||
| Sub-spindle Rated Power / Torque of the Servo Motor | 11kW / 52Nm (HAOZHI Motor Spindle) | 11kW / 52Nm (HAOZHI Motor Spindle) | 11kW / 52Nm (HAOZHI Motor Spindle) | |||
| X-axis Rated Power / Torque of the Servo Motor | 1.8kW / 11Nm | 2.2kW / 12Nm | 2.4kW / 11.5Nm | |||
| Y1-axis Rated Power / Torque of the Servo Motor | 1.8kW / 11Nm | 2.2kW / 12Nm | 3.1kW / 15Nm | |||
| Z-axis Rated Power / Torque of the Servo Motor | 1.8kW / 11Nm | 2.2kW / 12Nm | 2.4kW / 11.5Nm | |||
| B-axis Rated Power / Torque of the Servo Motor | 1.8kW / 11Nm | 2.2kW / 12Nm | 2.4kW / 11.5Nm | |||
| Driven Tool Rated Power / Torque of the Servo Motor | 2.7kW / 12Nm | 3.6kW / 22Nm | 5.5kW / 17.5Nm (Water Coolant Motor) | |||
| 2 | \ | Brand | Type / Spec | |||
| 1st Spindle | ☐ LBIE Belt Spindle (OEM by HAOZHI)(Standard) ☐ Taiwan KENTURN Belt Spindle (Optional) ☐ Guangzhou HAOZHI Motor Spindle (Optional) | ☐ A2-6 (Standard) ☐ A2-6(65) (Spindle Bore: Φ79mm; Bar Feeding Diameter: <Φ65) (Optional) ☐ A2-8 (Spindle Bore: Φ86mm; Bar Feeding Diameter: <Φ75, Match 10inches Chuck;Recommended to Upgrade the Motor) (Optional) | ||||
| 2nd Spindle | Guangzhou HAOZHI Motor Spindle | ☐ A2-5 (Standard) ☐ A2-6 (Spindle Bore: Φ66mm; Bar Feeding Diameter: <Φ52; Match 8inches Chuck; Recommended to Upgrade the Motor) (Optional) | ||||

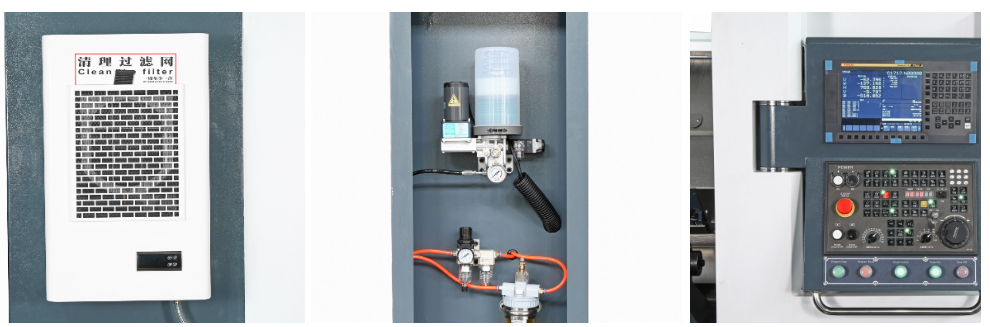

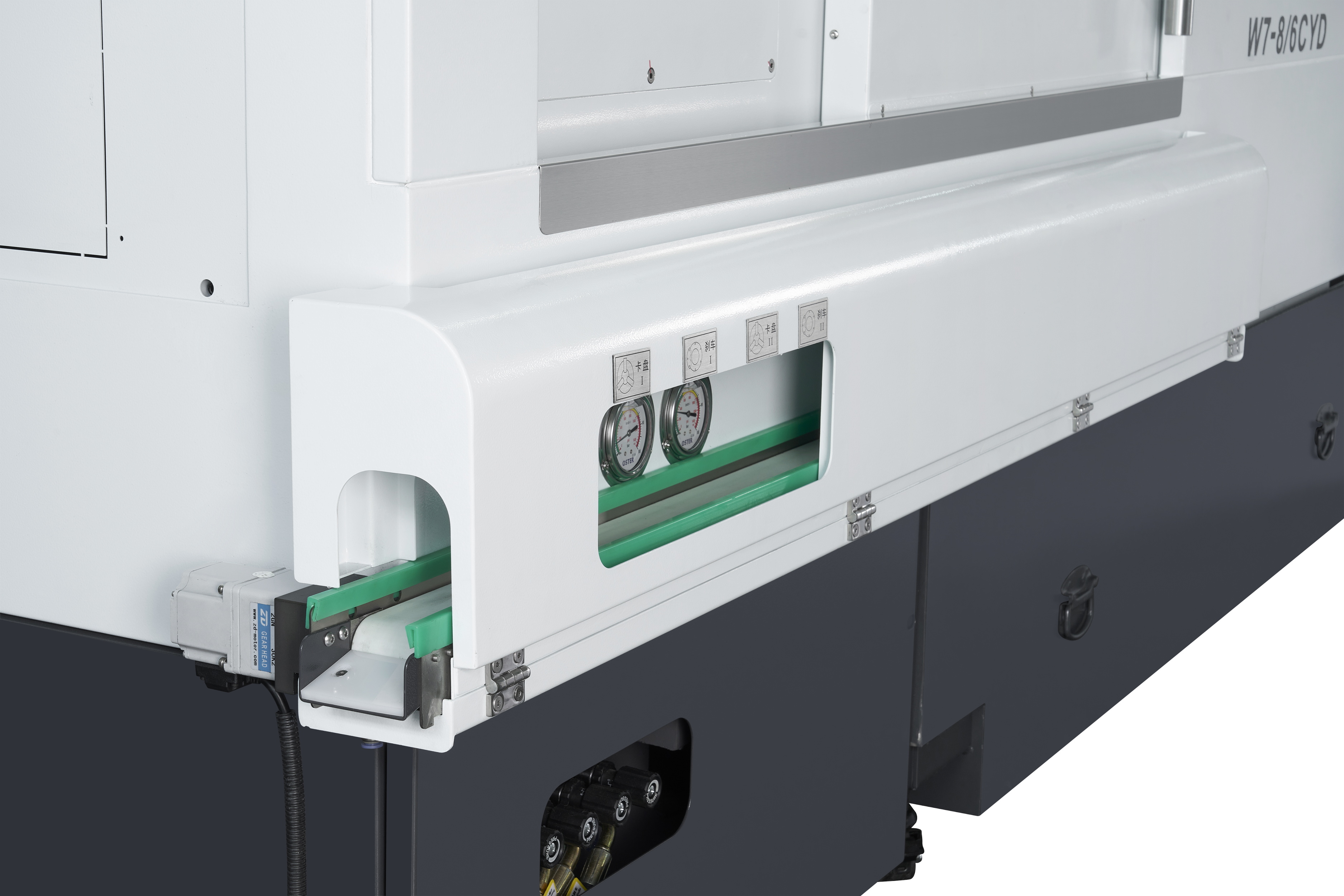

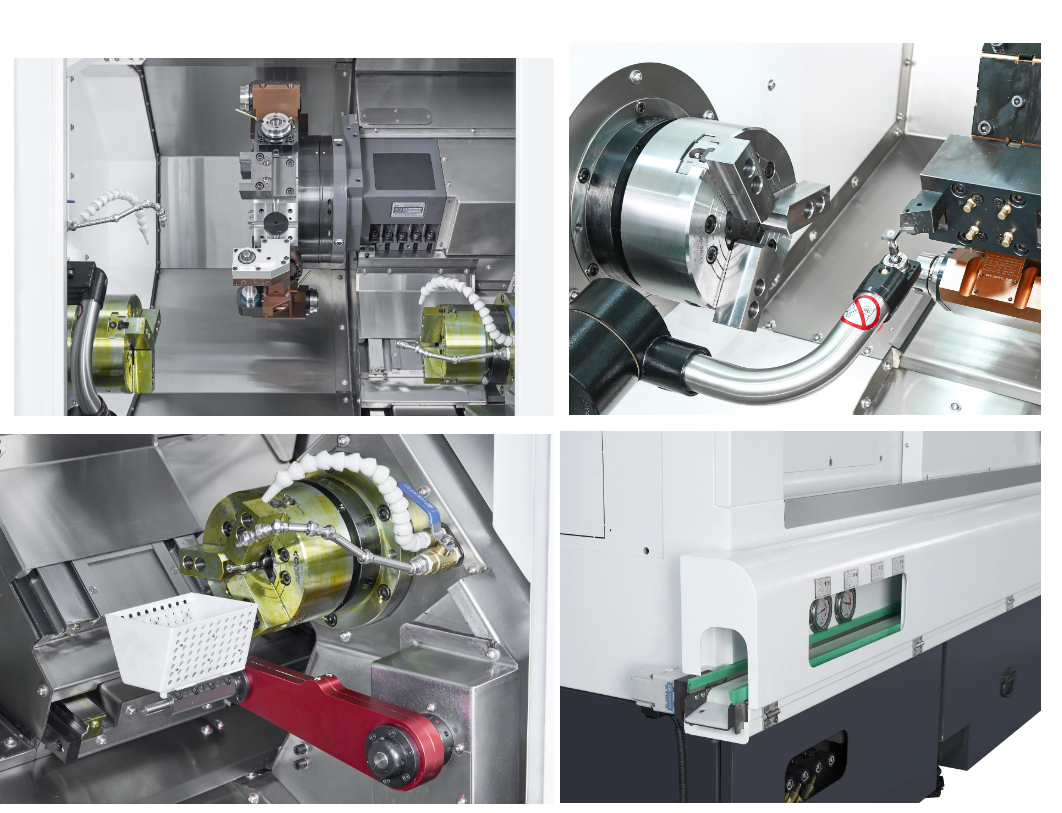

Details Display

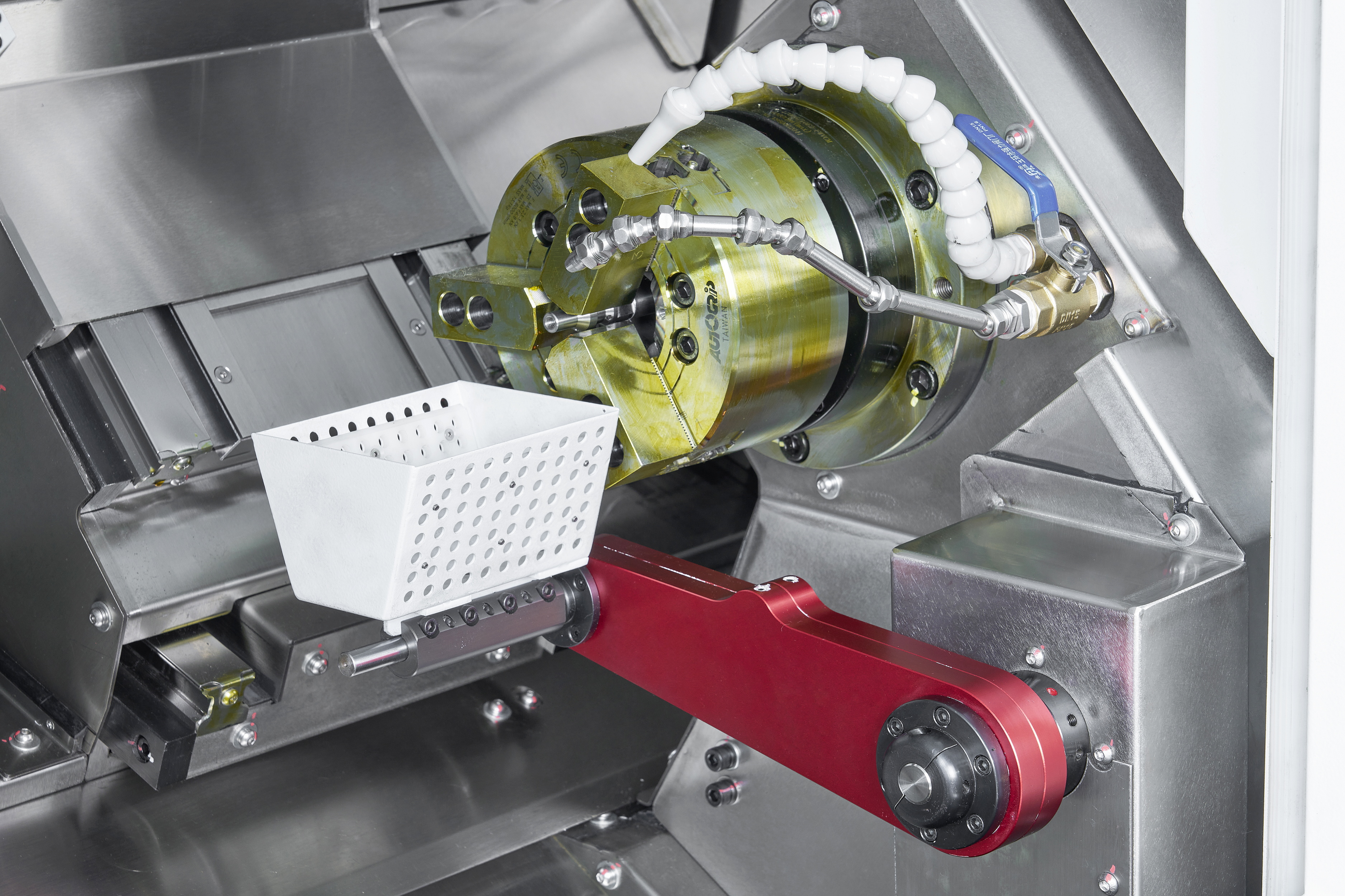

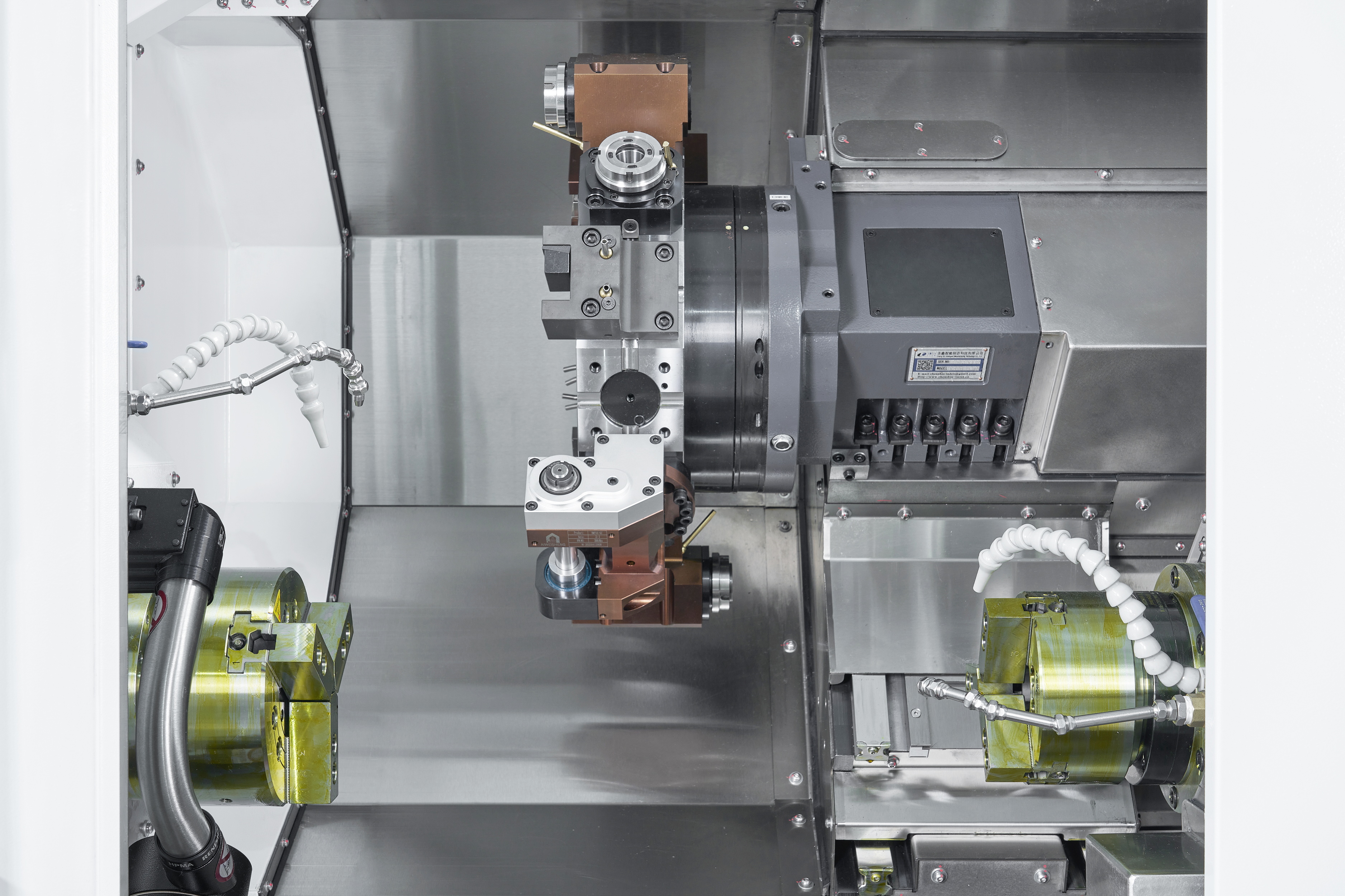

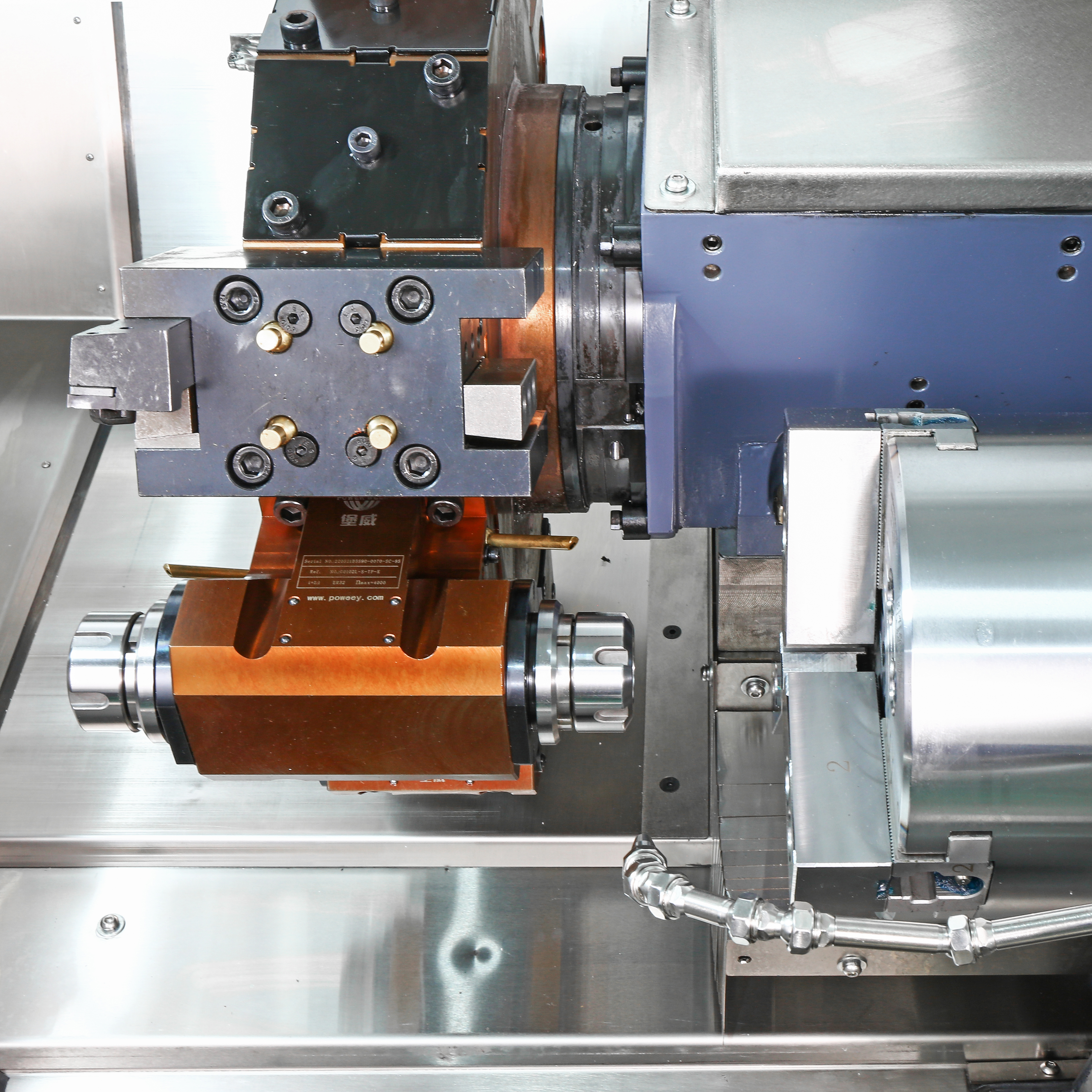

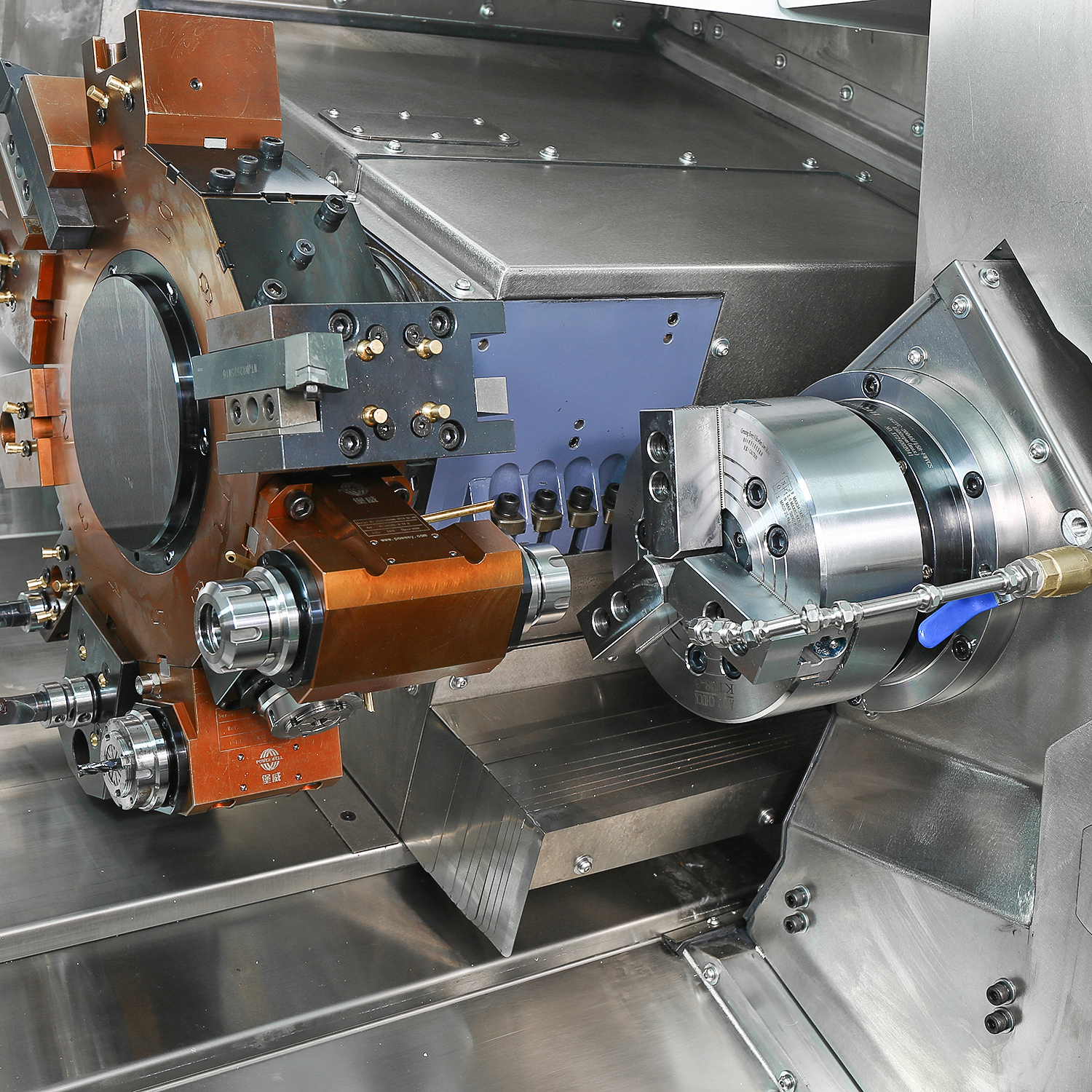

Dual Spindle with High Precision: 15kW main spindle + 11kW sub-spindle, speed max 5000RPM, large bore options for effective dual-spindle turn-mill machining.

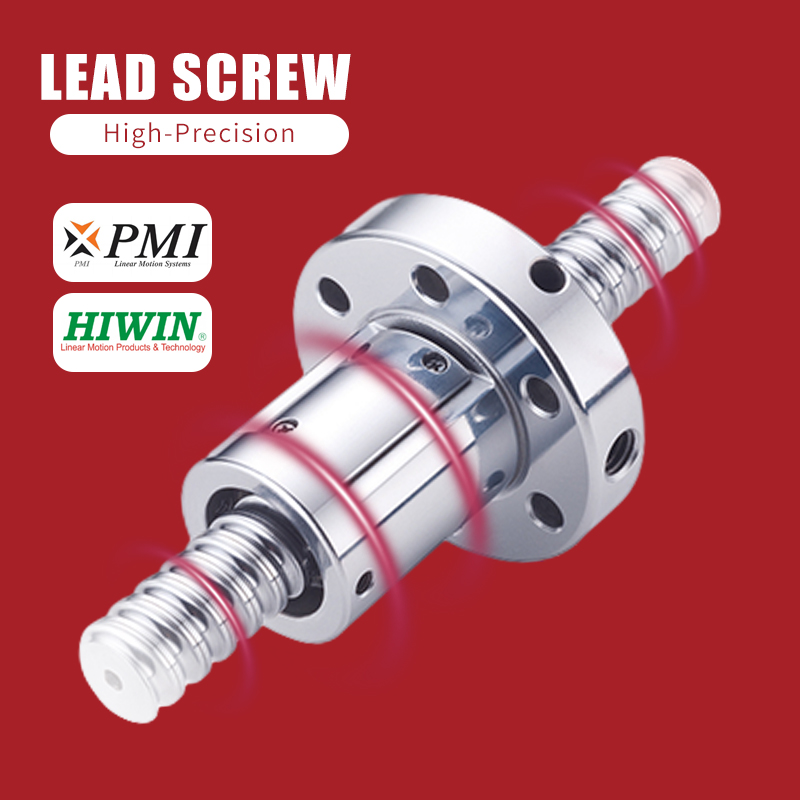

High-Precision Lead Screw System: Top-quality ball screws are adopted in all axes to ensure accurate positioning, fast response, and stable performance for the complicated Y-axis machining.
Superior Rigidity: The blade guide, which is glued, is a rigid structure capable of holding heavy cutting forces and high-speed machining with little to no vibration, resulting in the highest level of precision.
Smooth & Efficient Motion: The low-friction design is capable of a fast feed rate of 22m/min, leading to shorter cycle times and higher procedure output.
Long-Term Reliability: Constructed from top-grade materials and with precise manufacturing, having a great resistance to wear and great accuracy retention over time.

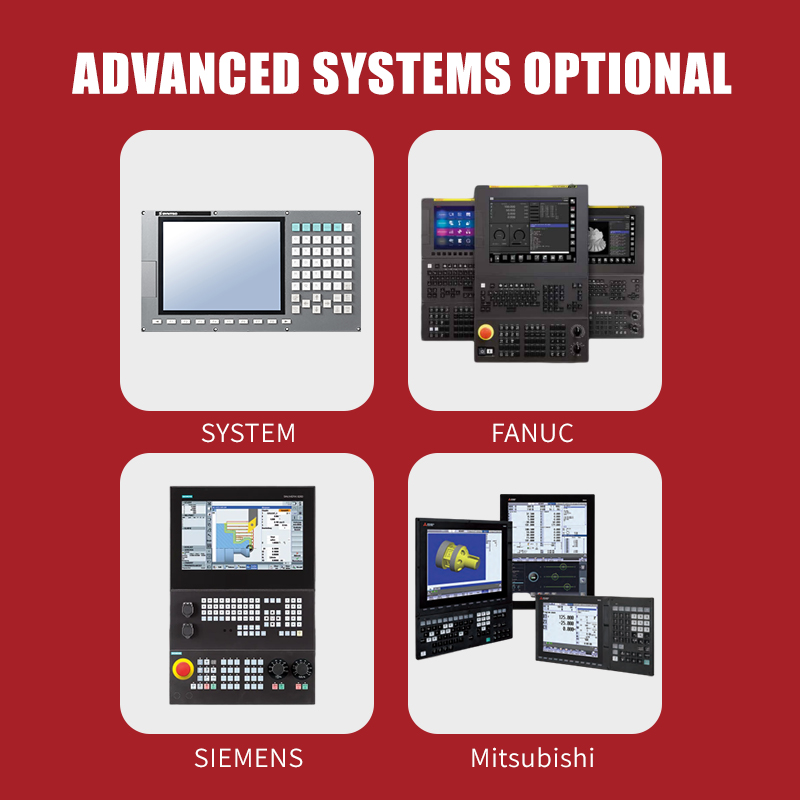

Flexible CNC Control Options: FANUC, Siemens 828D, or SYNTEC systems, offering simple operation, accurate motion control, and dependable equipment performance for complex Y-axis turn-mill machining.

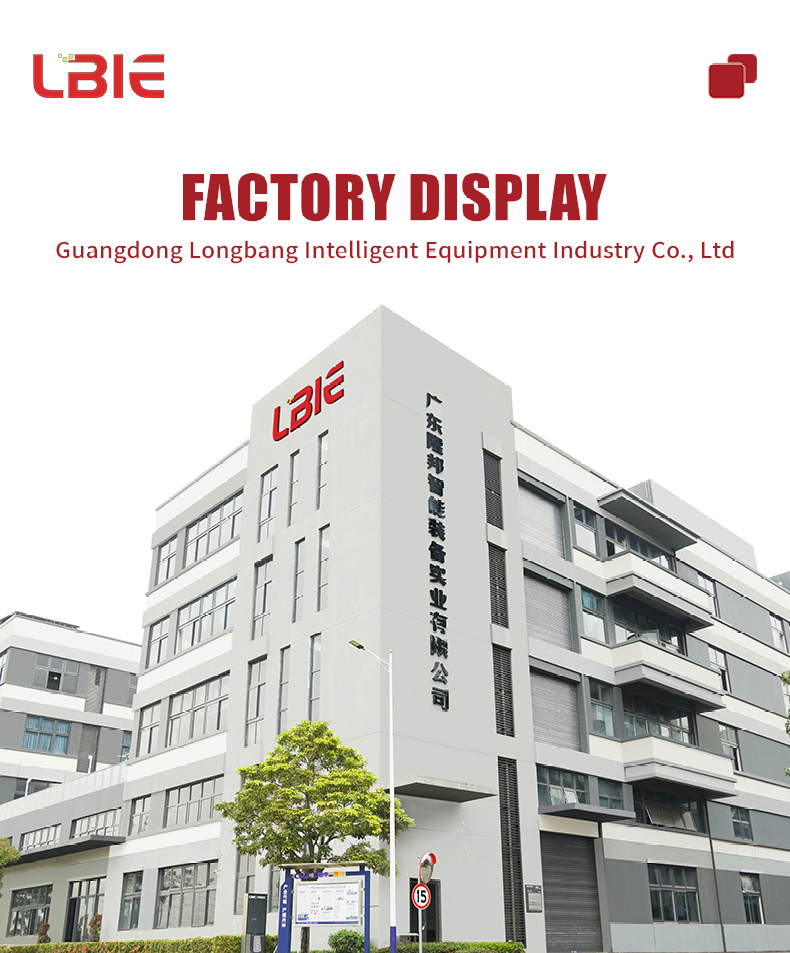

About Us
With a slogan "Quality First, Integrity Service", we carry out one-stop after-sales service (installation, training, maintenance, etc.) and 7×24-hour online technical support. Through industry-university-research integration, customers can be empowered to reach a situation where all parties are winners.
2007：Established a company that specialized in R&D, production, sales, and service of turning and milling machine tools.
2009：Delivered the first 4+4 live tool turning and milling machine tool in China.
2014：Achieved the first Y Z-axis interpolated turning and milling machine tool in China.
2022：Unveiled a dual spindle dual turret turning and milling composite machine tool.
Today：With an industry experience of more than 15 years, authorized production qualification, and service covering nuclear energy, aerospace, automotive, home appliances, etc., we are keen on finding global agents who will bring the high-quality Chinese CNC machine tools to worldwide customers.

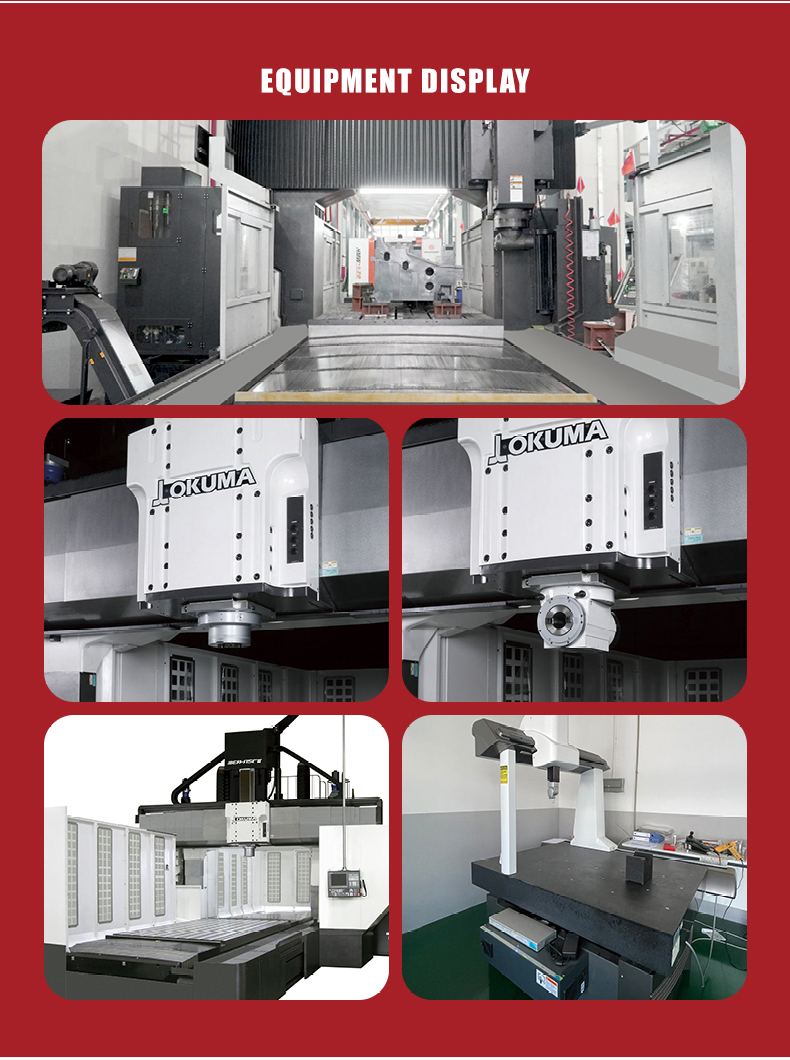

Premium CNC Machinery
Here we have our most advanced CNC machining equipment on display, which includes large-format gantry machining centers, Okuma high-precision milling heads, and 5-axis linkage machining systems. These sophisticated machines feature outstanding rigidity, stability characteristics, and ultra-high machining accuracy. They allow the processing of large, complicated workpieces with the strictest tolerance requirements in a very efficient manner. Furnished with world-famous control systems and smart operation interfaces, they are perfect for aerospace, automotive, mold, and heavy machinery manufacturing, providing excellent performance and production efficiency for various industrial applications.
Laser Interferometer
Accuracy Compensation
CMM
Accuracy Detection

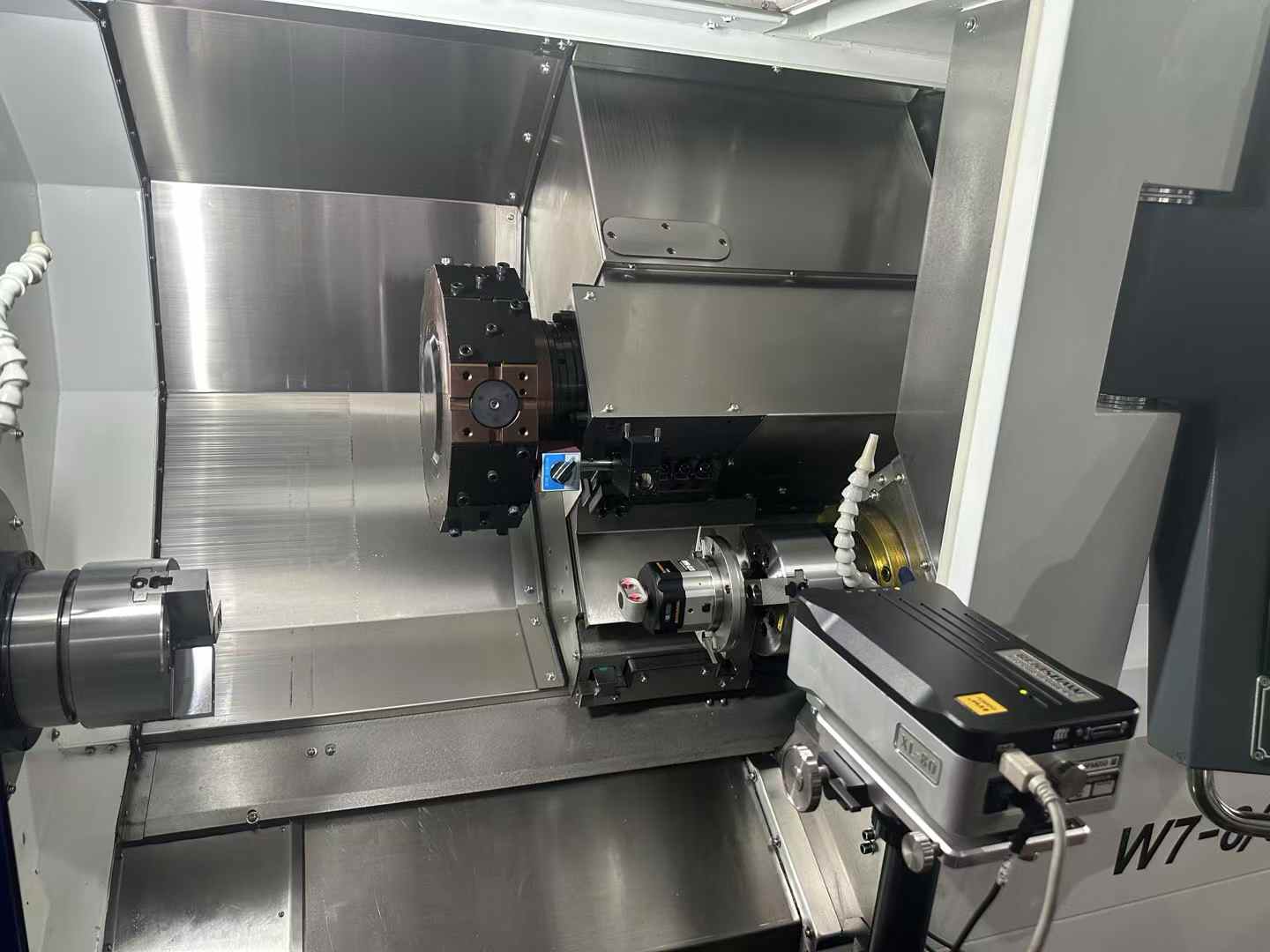

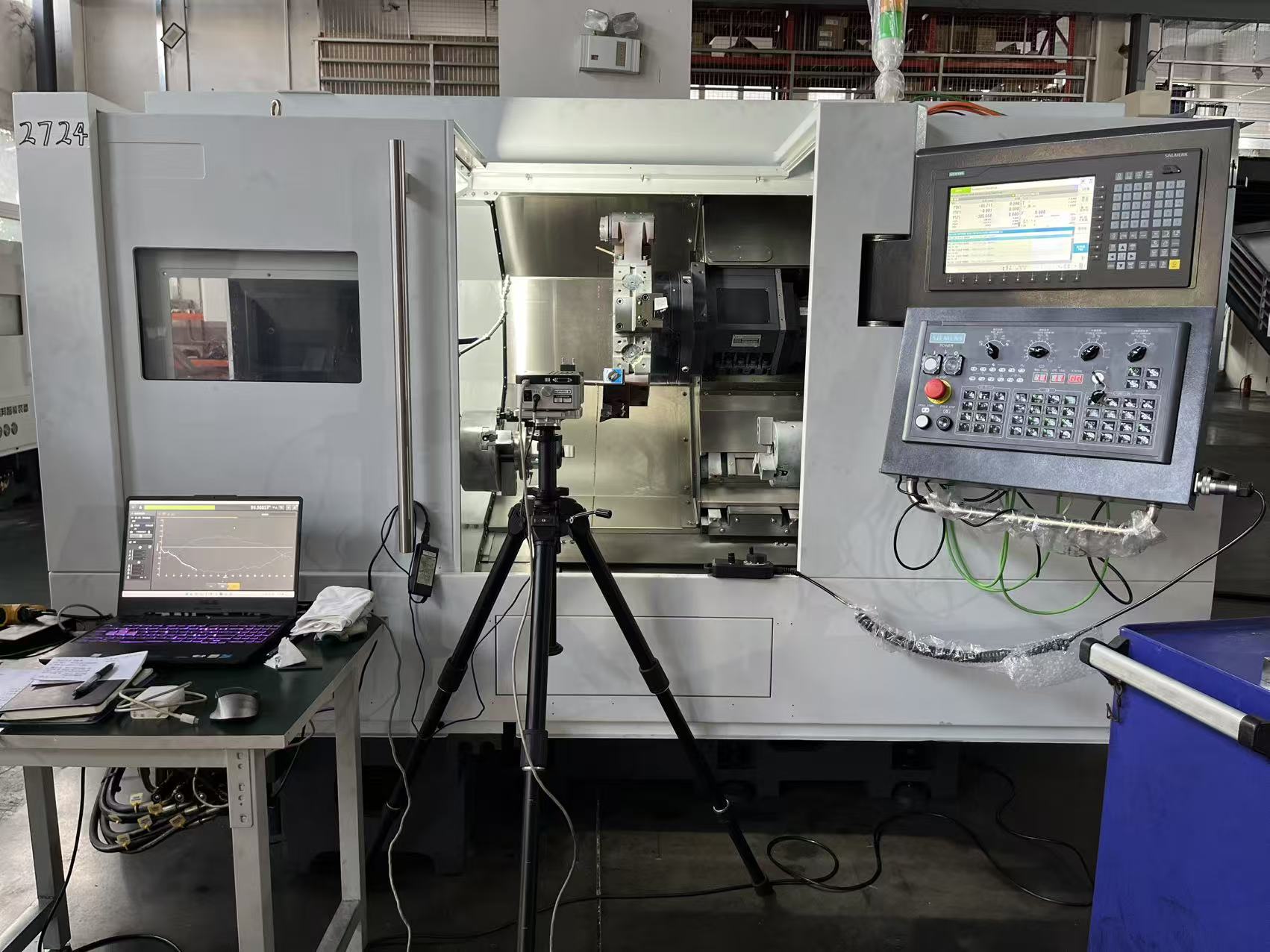

Using laser interferometer technology, our CNC machine tools can compensate very accurately.
After very exact measurement and data analysis, we have been able to correct positioning errors, geometric and thermal errors, making the machining accuracy stable and reliable even after long operations.
LBIE carries out full-process quality control. Professional teams inspect every component, system, and process at great length. We give you CNC machine tools that meet worldwide quality standards, giving you the same precision and reliability over and over for your production.

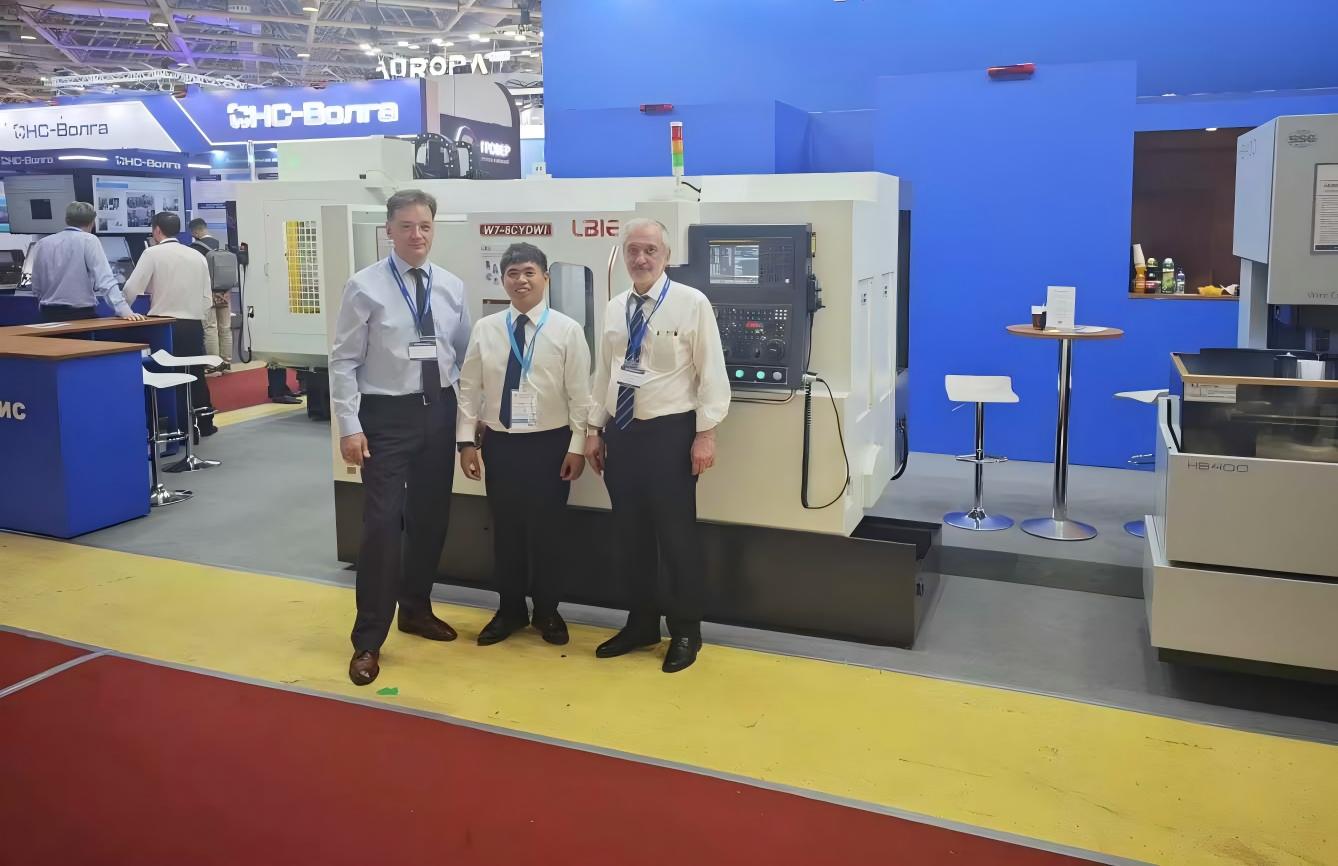

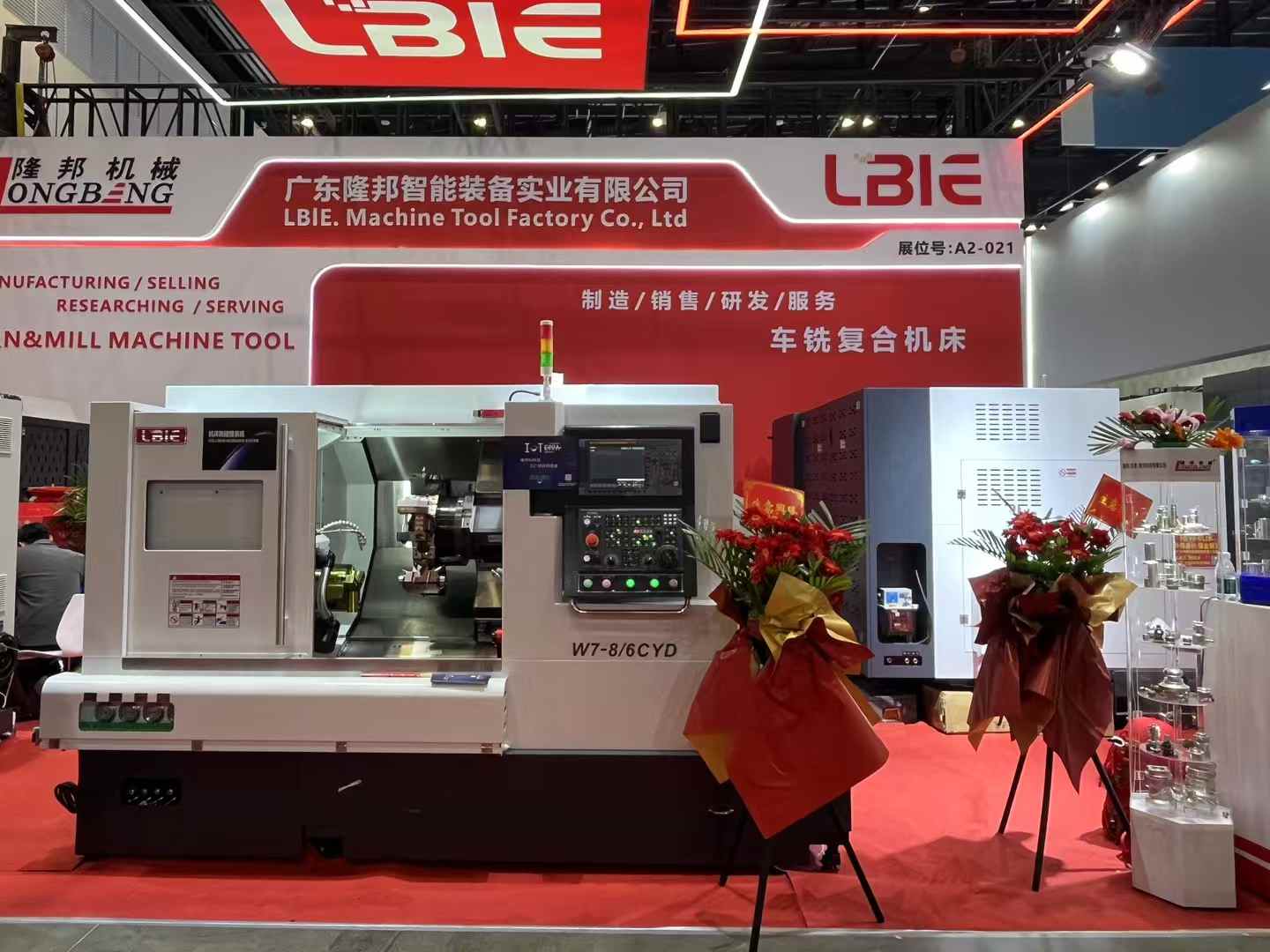

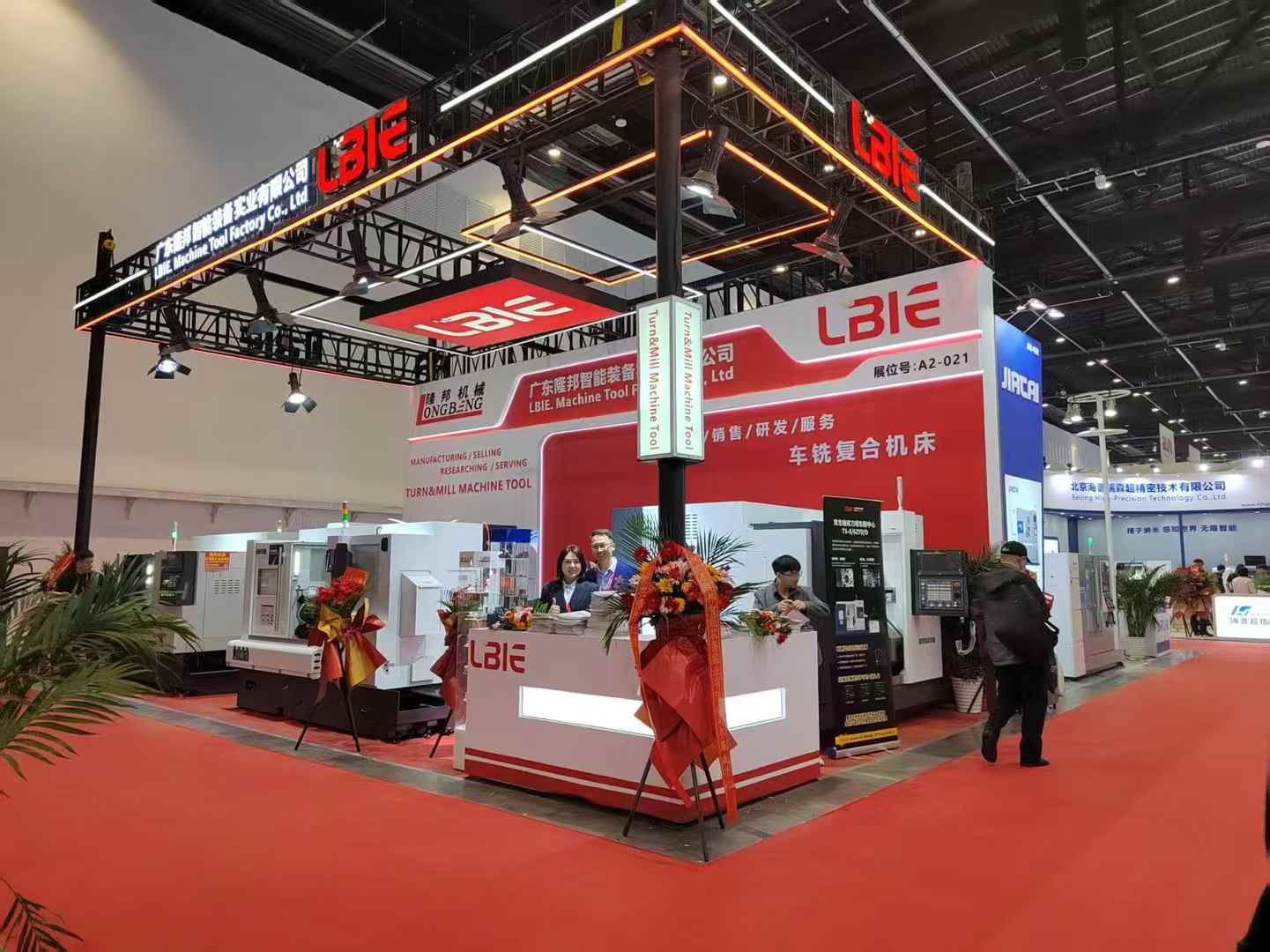

CIMT 2025
LBIE CNC Lathe Exhibition
Two Spindle Lathe
Customers visited our booth.
CIMT 2025 LBIE Exhibition Review
METALLOOBRABOTKA 2025
"Metalworking" Minsk, Belarus

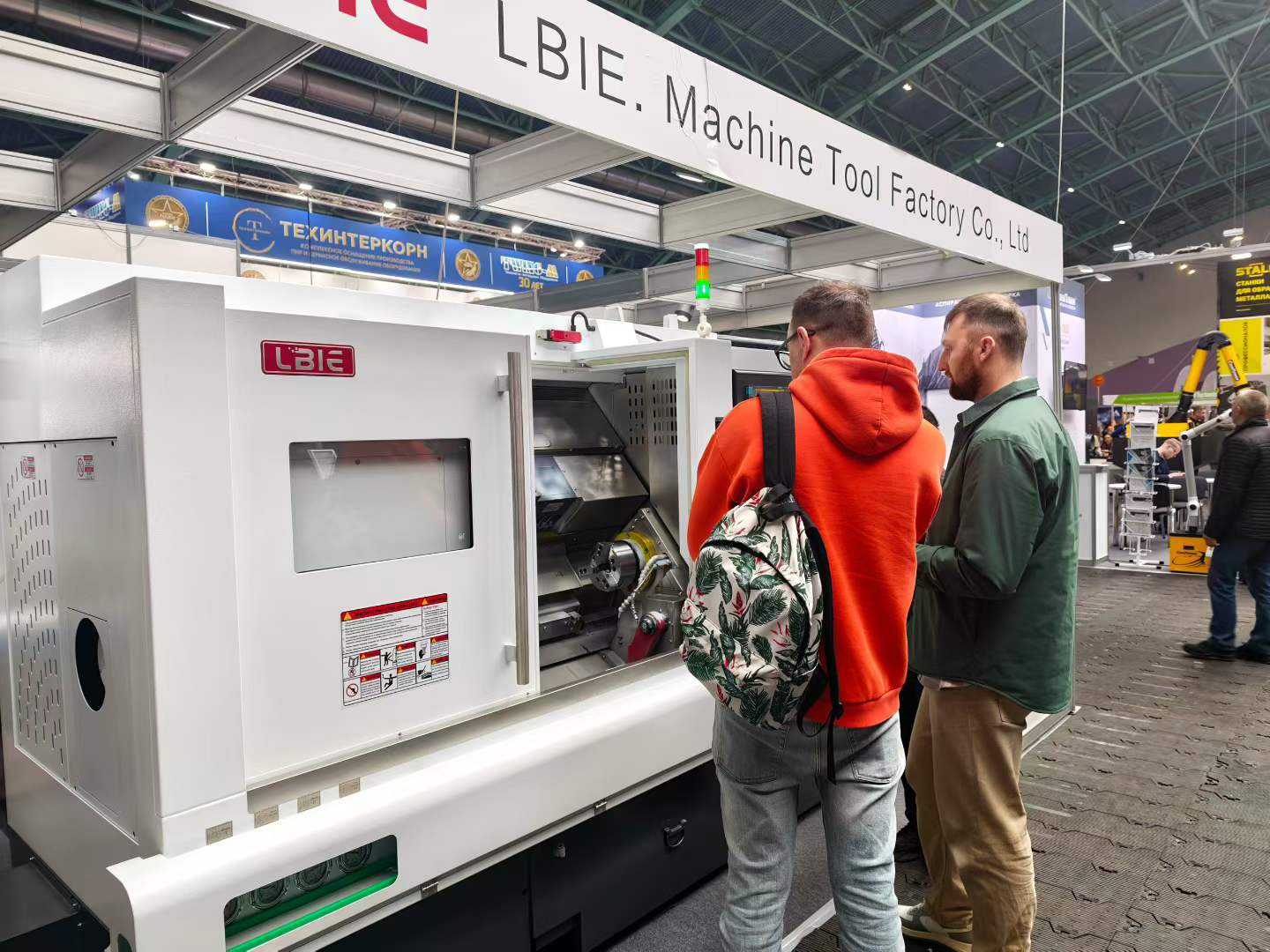

Overseas Exhibitions
We have been part of overseas exhibitions of CNC machine tools in Russia, Belarus, Malaysia, Uzbekistan, and some other countries as well, where we attracted a great deal of attention from customers worldwide.
1.Stretch Wrapping
2.Vacuum packaging
3.Strong Plywood Packing
4.Waterproof Top
5.Client's goods package
6.Client's good package

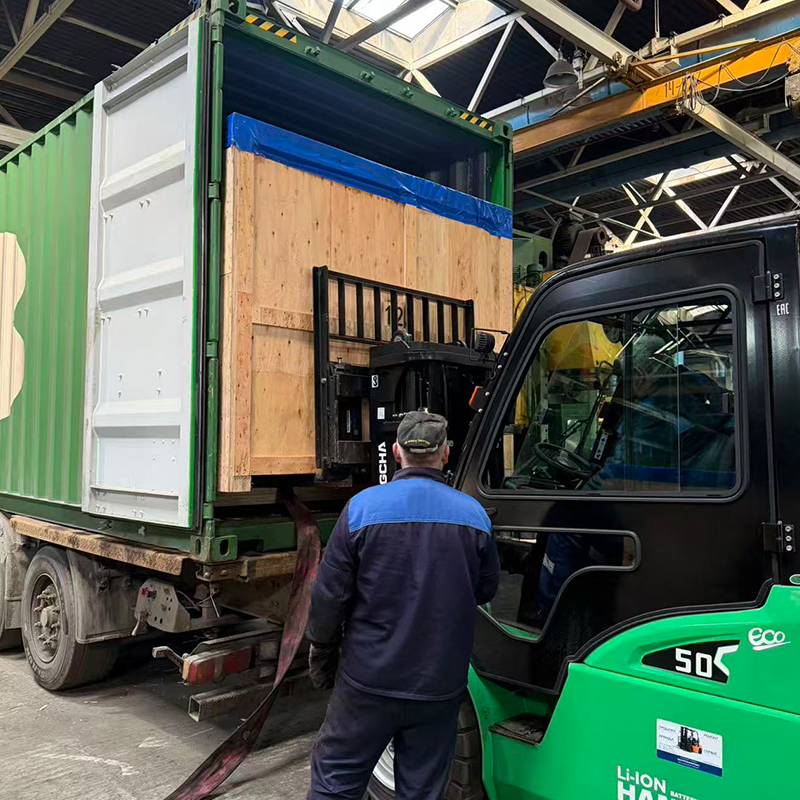

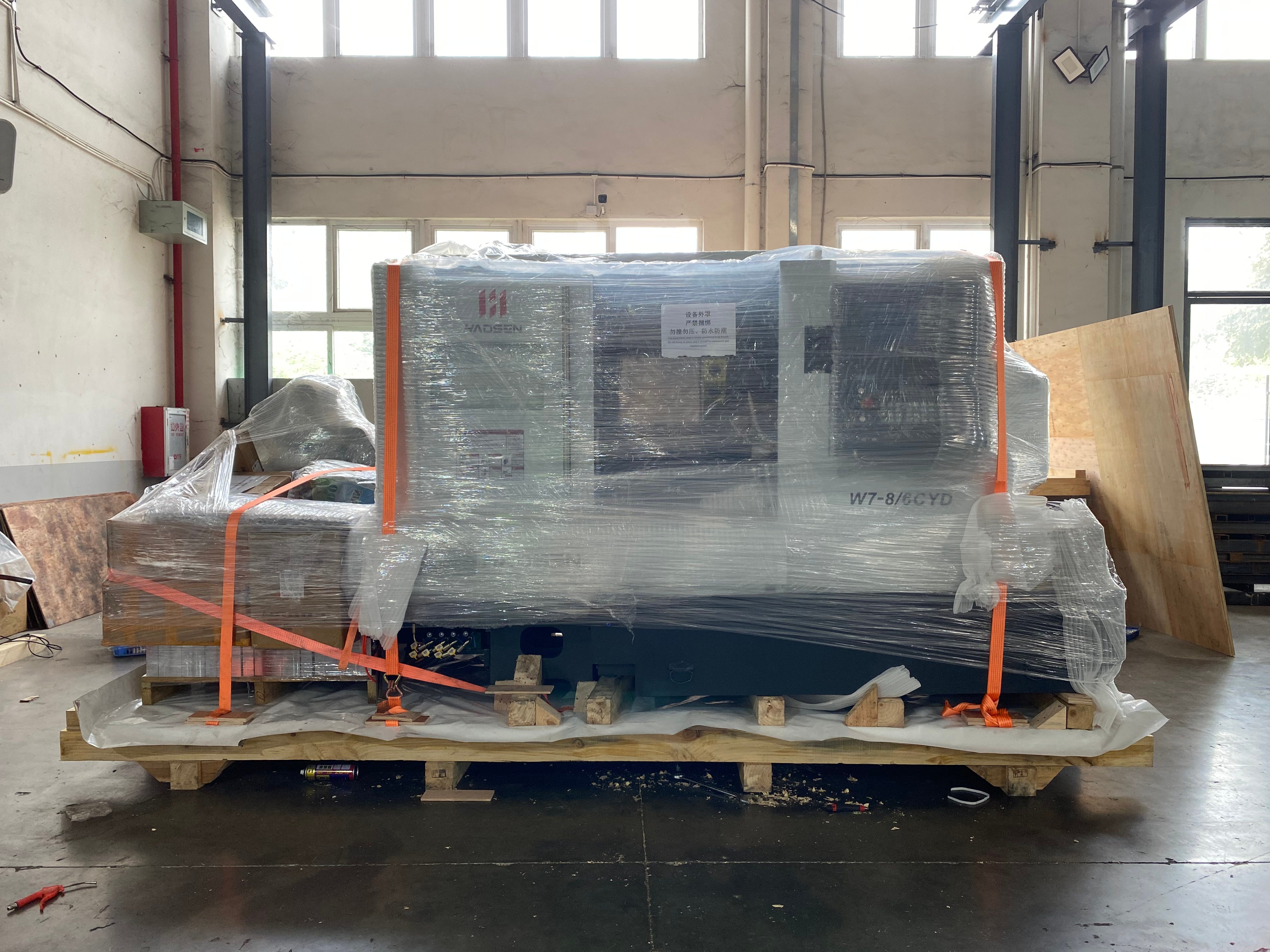

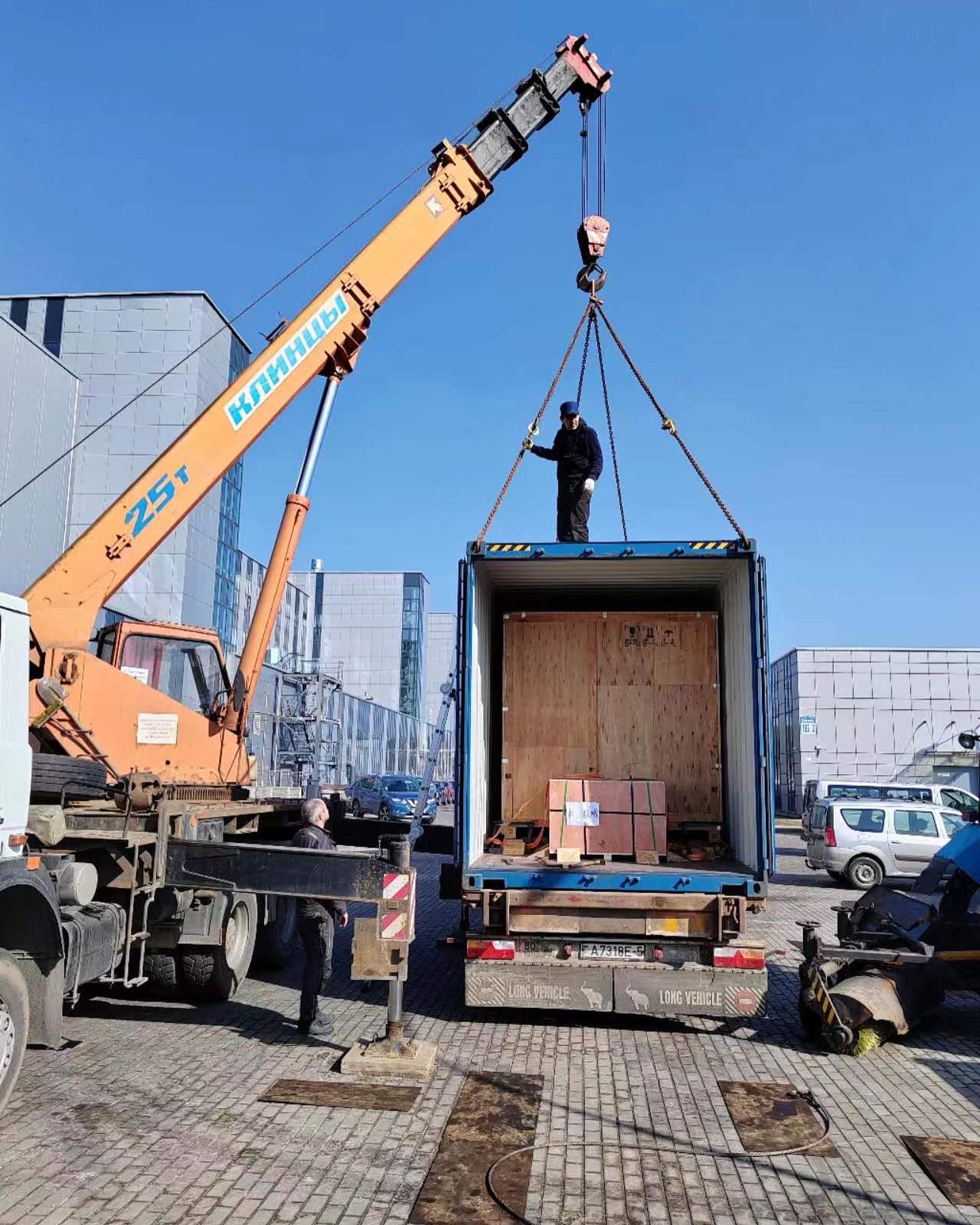

We employ a multi-layer protective packaging process for our CNC lathe to ensure safe delivery:
1. The lathe is first fully wrapped with stretch film for dust and scratch protection.

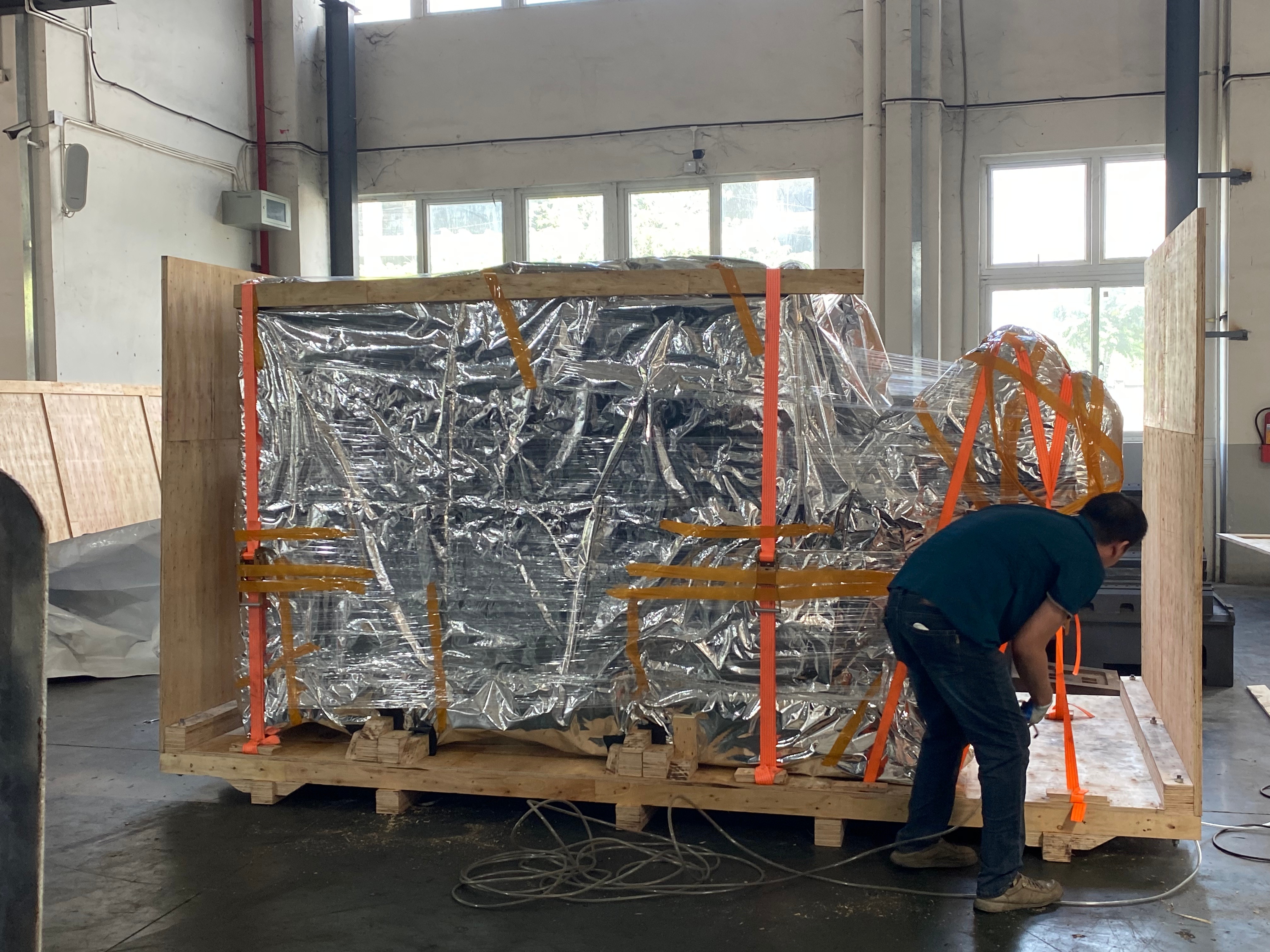

2.The machine is then vacuum sealed to prevent it from getting wet during transportation.
3.After vacuum packaging, the lathe is firmly fixed with straps to prevent its movement.

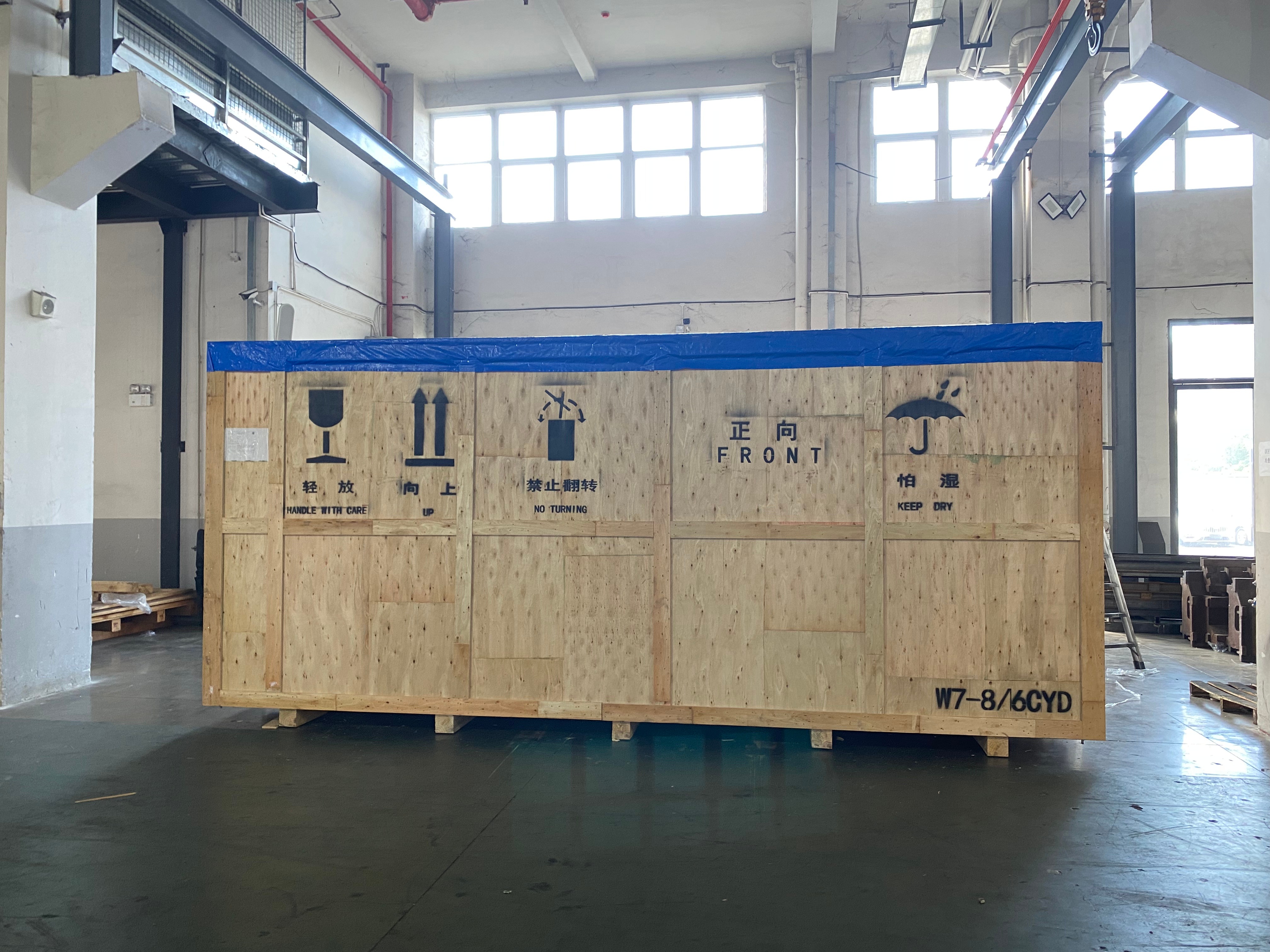

4.In the end, it is placed inside a strong plywood box.
ISO 9001 (International Quality Management System)
CE Certification (European Conformity)
EAC (Eurasian Conformity)
Greetings from the Consulting Section. These certifications are the guarantee for each of our machines to be reliable and safe, as well as to meet the performance requirements set by the worldwide standards.
