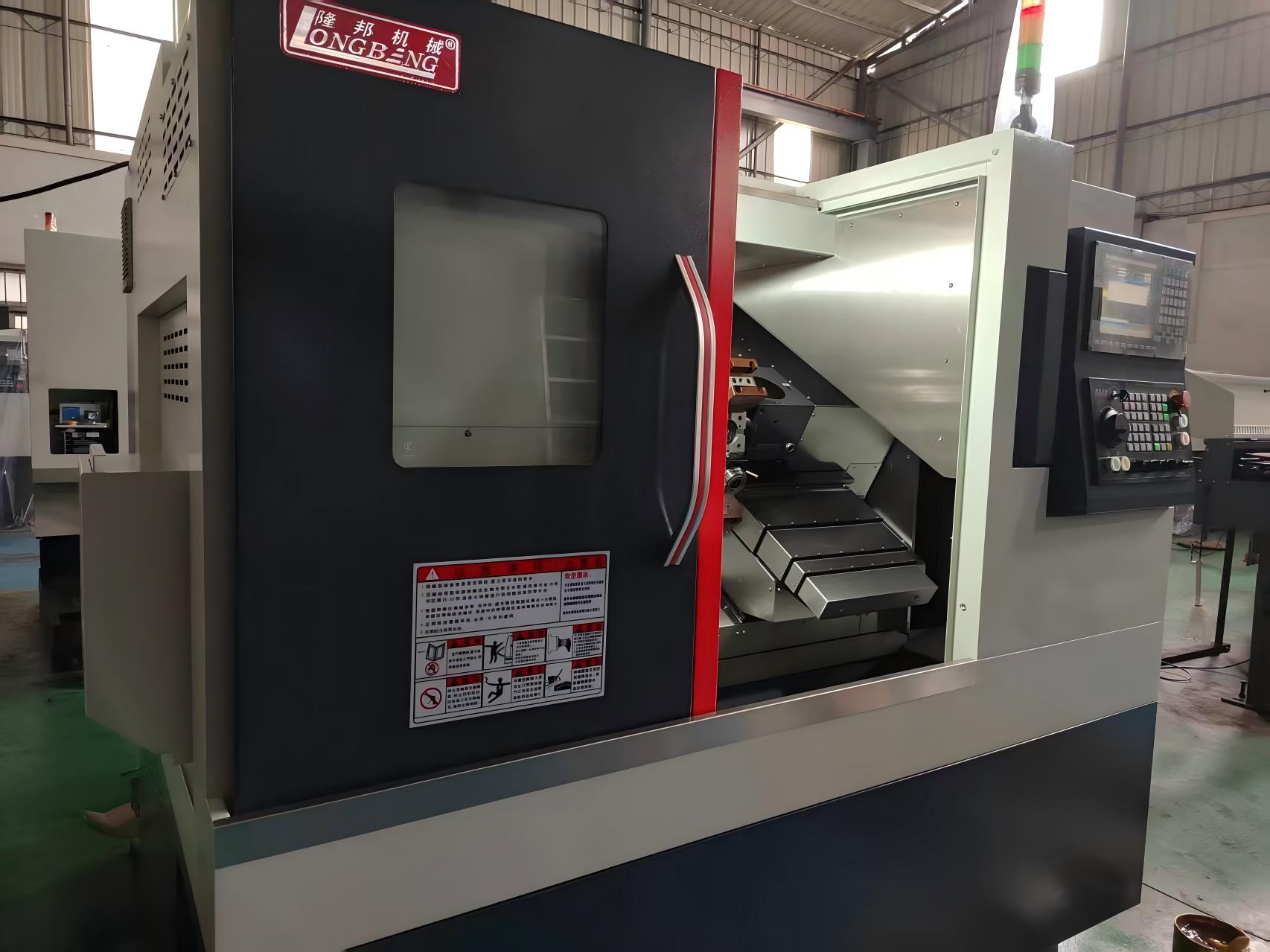

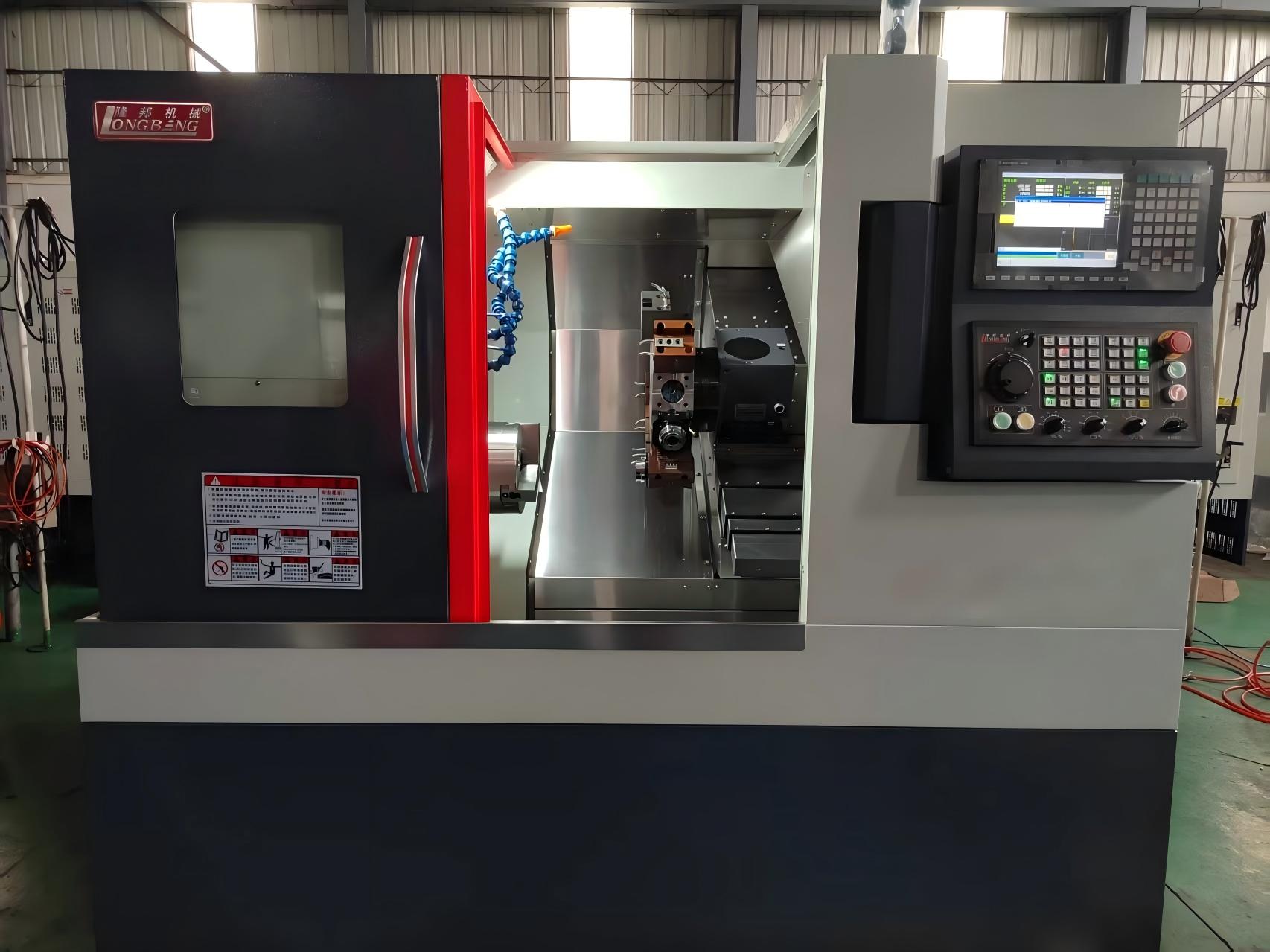

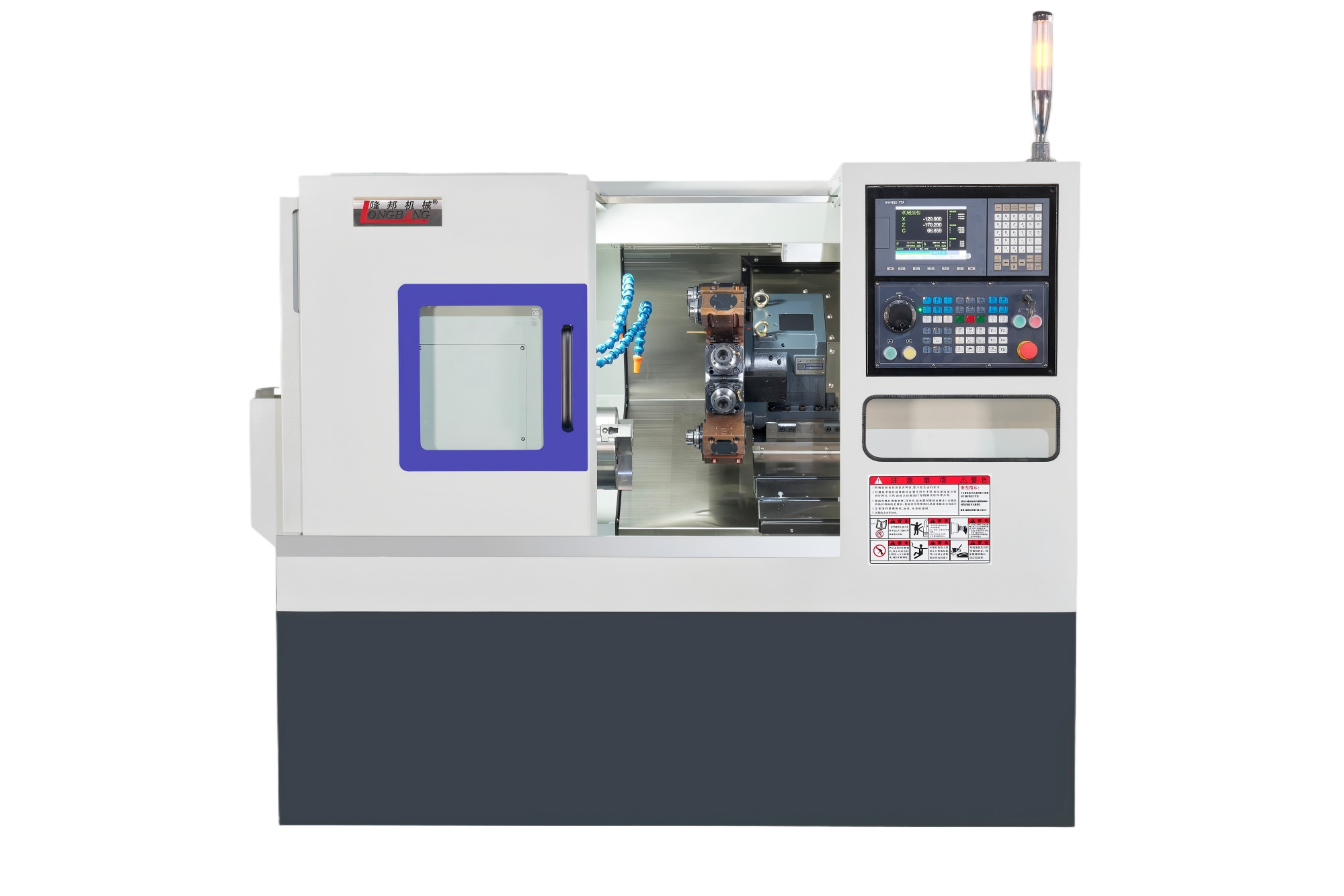

XL2-8YD Interpolated Y-axis Turning And Milling Centers
Key Featur
✅ Y-axis combining turning and milling in a single process, enabling one-stop production of complex parts and removing the possibility of secondary clamping errors.
✅ High-performance lathe machine specific for Stainless steel CNC machining lathe and Aluminum CNC lathe applications.
✅ 4500RPM high-torque spindle + 22m/min rapid feed for high efficiency and high precision production.
✅ Flexible CNC system choices (FANUC/Siemens/SYNTEC) with customizable servo & spindle configurations.
✅ Solid 3500kg body with Φ220mm max turning diameter, capable of providing stability over a long time for mass production.
Parameter Table
| # | Parameter | Unit | XL2-8YD Y-axis Turning and Milling Machine Tool | |||
| 1 | Max. Turning Diameter | mm | ☐ Φ220（Standard Radial Square Tool Holder） ☐ Φ300（Inverted Radial Square Tool Holder,50mm reduced Z-axis travel length） | |||
| 2 | Max. Machining Length | mm | 300 | |||
| 3 | Max. Swing Diameter over bed | mm | Φ550 | |||
| 4 | Max. Swing Diameter Over slide | mm | Φ220 | |||
| 5 | Bar Feeding Diameter | mm | <Φ52 | |||
| 6 | Spindle Bore | mm | Φ66 | |||
| 7 | Max. Spindle Speed | RPM | 4500 | |||
| 8 | X-axis Travel | mm | 260 | |||
| 9 | Y-axis Travel | mm | 100 | |||
| 10 | Z-axis Travel | mm | 300 | |||
| 11 | Tailstock Travel | mm | ||||
| 12 | Rapid Feedrate | m / min | 22 | |||
| 13 | Max. Driven Tool Speed | RPM | 4000 | |||
| 14 | Voltage (3phase) | V | 380±10% | |||
| 15 | Frequency | Hz | 50 | |||
| 16 | Power | kW | 23 | |||
| 17 | Weight | kg | 3500 | |||
| 18 | Size (Length × Width × Height) | mm | 2200 × 1750 × 1850 (Excluding Chip Conveyor) | |||
| # | Configuration Table | |||||
| 1 | CNC | ☐ FANUC 0I-TF PLUS(3B) | ☐ Siemens 828D (Shop Turn Programming) | ☐ SYNTEC 22TB | ||
| C-axis Rated Power / Torque of the Servo Motor | ☐ 11kW / 105Nm(Standard) ☐ 15kW / 143Nm(Optional) | 12kW / 115Nm | ☐ 11kW / 72Nm(Standard) ☐ 15kW / 98Nm(Optional) | |||
| X-axis Rated Power / Torque of the Servo Motor | 1.8kW / 11Nm | 2.2kW / 12Nm | 1.8kW / 11.5Nm | |||
| Y-axis Rated Power / Torque of the Servo Motor | 1.8kW / 11Nm | 2.2kW / 12Nm | 1.8kW / 11.5Nm | |||
| Z-axis Rated Power / Torque of the Servo Motor | 1.8kW / 11Nm | 2.2kW / 12Nm | 1.8kW / 11.5Nm | |||
| Driven Tool Rated Power / Torque of the Servo Motor | 2.7kW / 12Nm | 2.2kW / 12Nm | 5.5kW 17.5Nm (Water Coolant Motor) | |||
| 2 | \ | Brand | Type / Spec | |||
| Spindle | ☐ LBIE Belt Spindle (OEM by HAOZHI) (Standard) ☐Taiwan KENTURN Belt Spindle (Optional) ☐ Guangzhou HAOZHI Motor Spindle (Optional) | A2-6 | ||||
Details Display

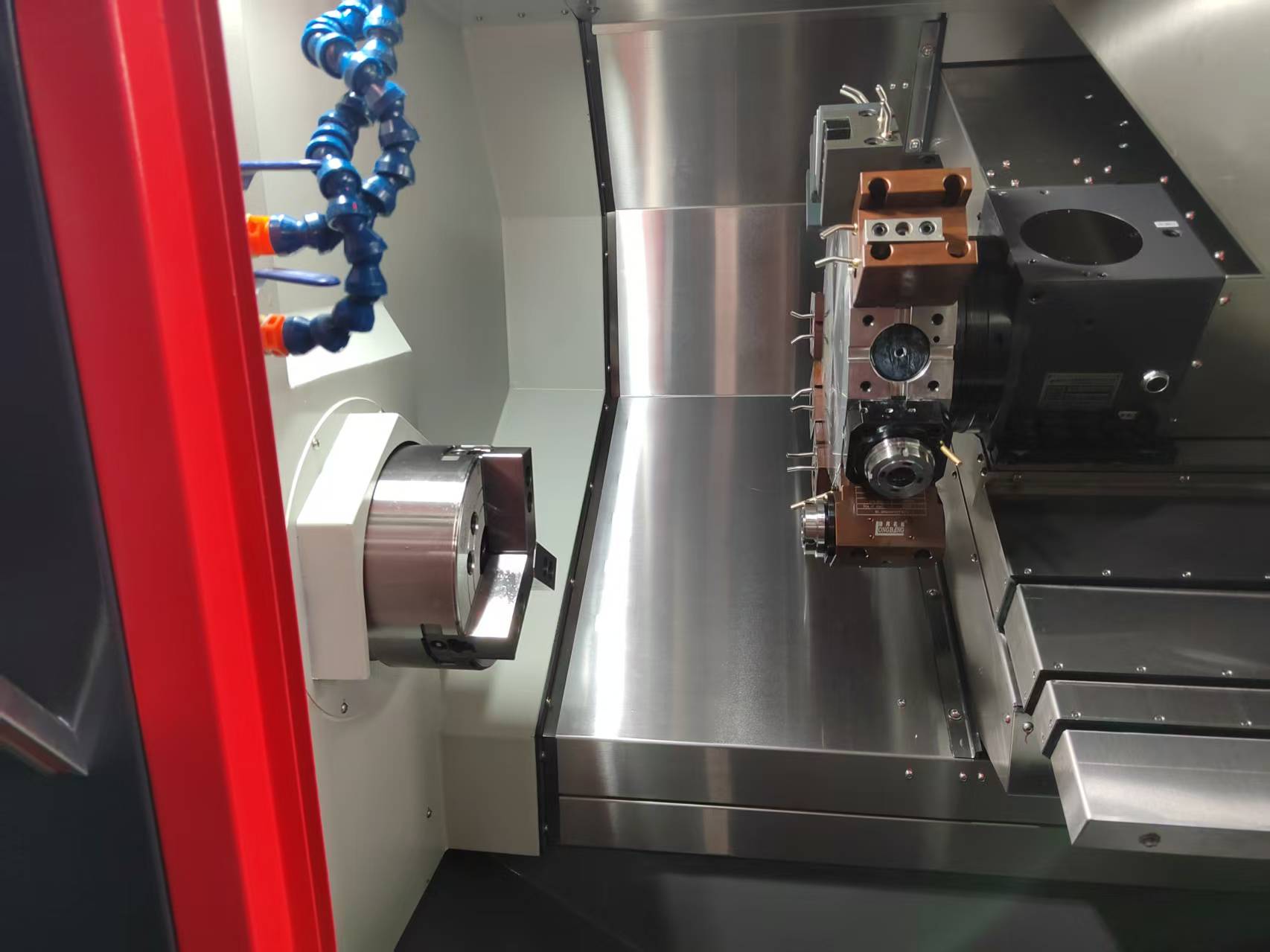

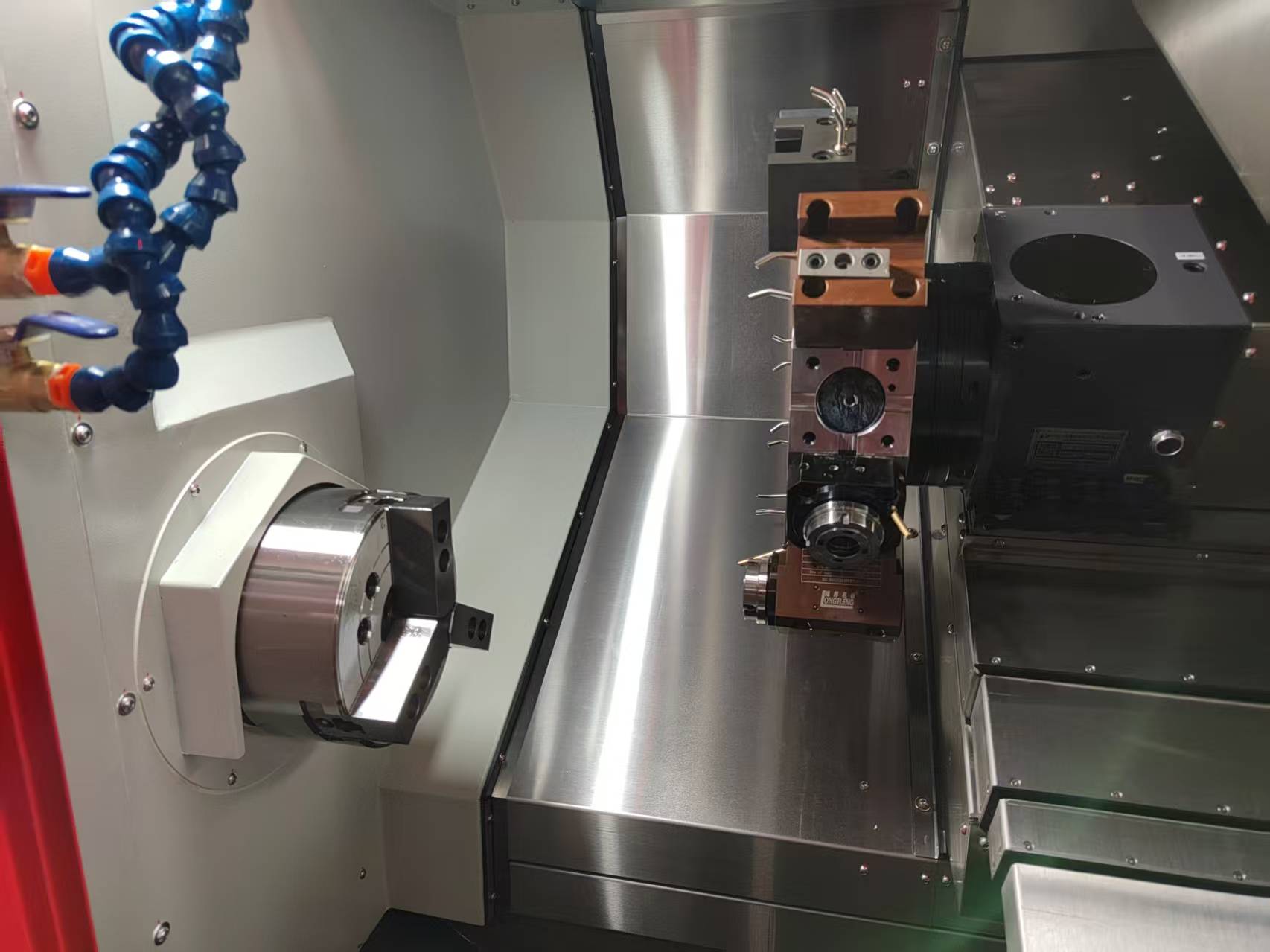

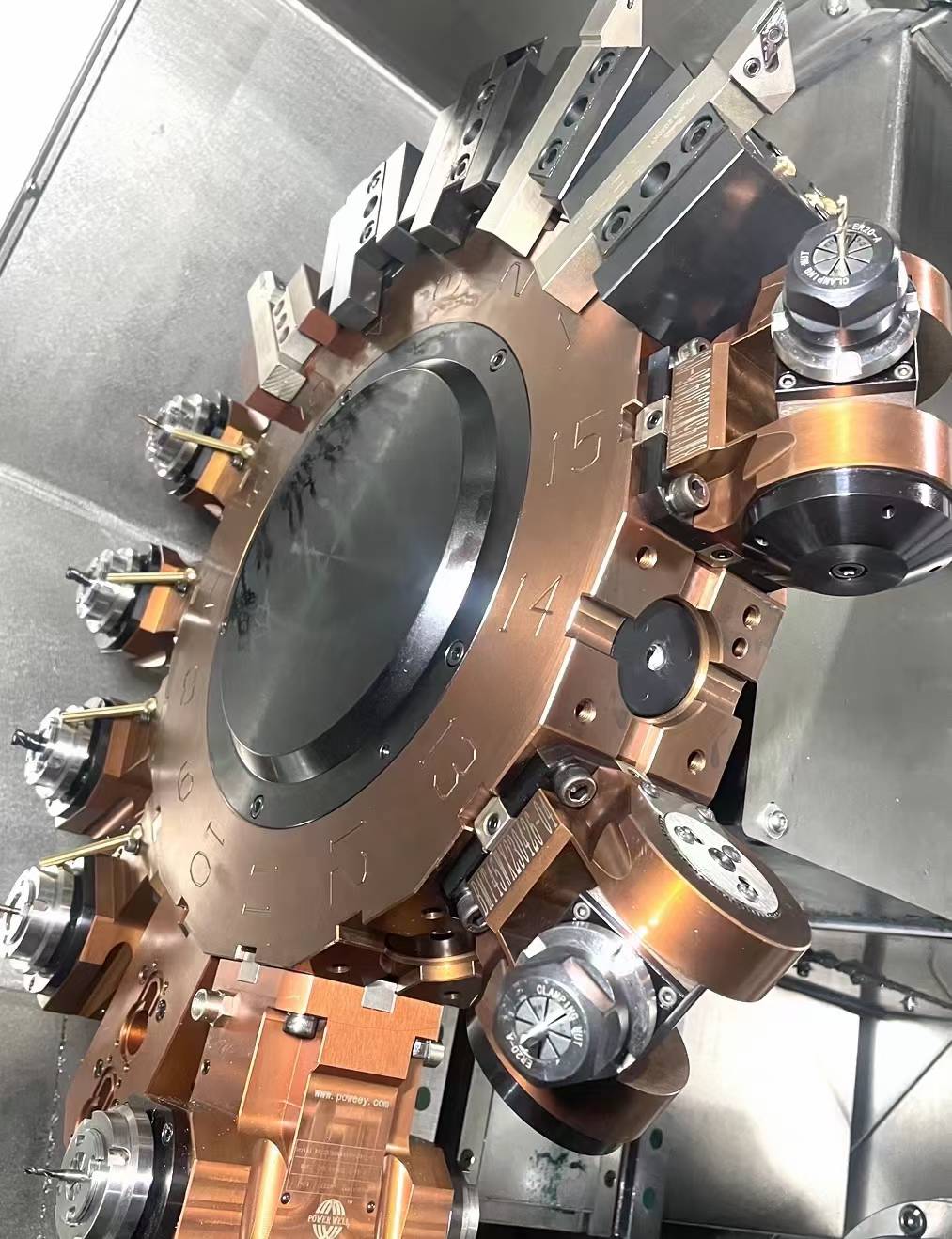

Driven Tool Turret
Our CNC lathe with live tooling (slant bed CNC lathe) is a high-performance machine equipped with a live tooling turret. It allows you to perform all operations in a single setup: turning, milling, drilling, and tapping. Its strong structure and high-torque driving tools guarantee stable and effective machining of complicated parts, which is perfect for stainless steel and aluminum.
Powerful tool operation: Besides the standard 2.2kW/12Nm motor, we also offer 2.7kW/12Nm and 5.5kW/17.5Nm options (water-coolant motor). All variations have a maximum speed of 4000RPM for the driven tool. This feature makes them suitable for milling, drilling, and tapping at a high-efficiency level.
Secure locking & positioning: Hydraulic locking (BMT55-12 station) together with servo motor drive, gives the system stable clamping, precise indexing, and outstanding repeat positioning accuracy, especially when dealing with complicated workpieces.
Machining in one go: The machine is capable of performing turning, milling, and multi-process operations all at once. This reduces secondary clamping, production time is shortened, and workpiece consistency is enhanced.
Spindle
✅ Powerful A2-6 pulley spindle with a high torque capacity (maximum speed 4500RPM, Φ66mm bore)
✅ Choices of different brands (LBIE HAOZHI / Taiwan KENTURN / HAOZHI motor spindle)
✅ Greatly improved speed and accuracy when it comes to machining heavy-duty stainless steel and aluminum

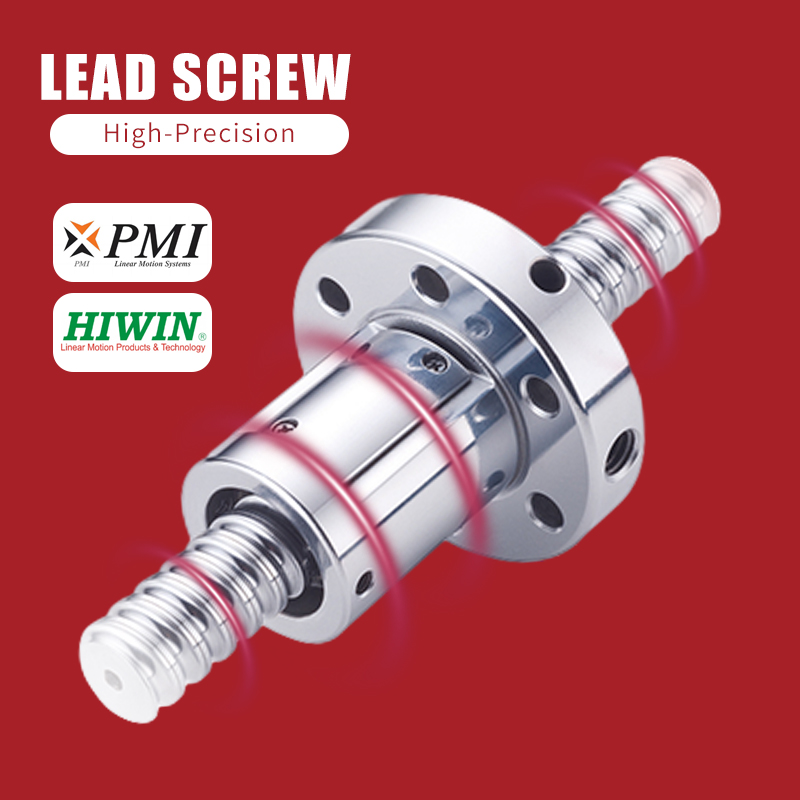

Lead Screw
NSK 32 precision lead screws (Option: PMI/HIWIN) have been supplied for the X/Y/Z axes. A CNC lathe with live tooling and a slant bed CNC lathe, this configuration achieves ultra-smooth motion, excellent positioning accuracy, and rigidity, thus providing stable performance even for the most demanding cutting operations.
Liner Guide Rail
Heavy-Duty Load Capacity: The roller guide design can bear large loads and resist vibrations well, which means the machine works steadily even when heavy cutting or high-speed milling.
Easy & Quick Movement: The mechanism with low friction makes it possible to achieve a very fast feed rate of 22m/min, which not only reduces the time of the machining process but also enhances the efficiency of production.
High-Precision Maintenance Over a Long Period: First-rate materials and high-accuracy manufacturing have been used to make the product very resistant to wear so that it can deliver the same level of positioning accuracy even when being used in continuous, high-intensity production.
This high-precision cnc lathe with live tooling (slant bed cnc lathe) is ideal for automotive, aerospace, medical, and general machinery industries, delivering efficient, stable machining for complex stainless steel and aluminum parts.
About Us
We hold "Quality First, Integrity Service" as our guideline and offer one-stop after-sales service (installation, training, maintenance, etc.) and technical support online 7×24 hours. Besides, we motivate clients through industry-university-research integration to winning results.
2007：The company was founded with a focus on R&D, manufacturing, sales, and services of turning and milling machine tools.
2009：Developed China's first 4+4 live tool turning and milling machine tool.
2014：After several attempts, they finally managed to get their interpolated Y-axis turning and milling machine tool working.
2022：MY's version of dual spindle dual turret turning and milling composite machine tool was born.
Today：With more than 15 years of industry experience and certified production qualifications, our services include nuclear energy, aerospace, automotive, and home appliances, among others. We are looking for global agents to cooperate with us in order to introduce superior Chinese CNC machine tools to worldwide customers.
Premium CNC Machinery
This presentation features our top-of-the-line CNC machining tools, such as large gantry machining centers, Okuma high-precision milling heads, and 5-axis linkage machining systems. The outstanding rigidity, stability, and super-high machining accuracy of these sophisticated machines allow for efficient processing of large, complex workpieces with very tight tolerances. They are fitted with well-established control systems and smart operation interfaces that make them an excellent choice for the aerospace, automotive, mold, and heavy machinery industries, producing reliable performance and high productivity for various industrial applications.

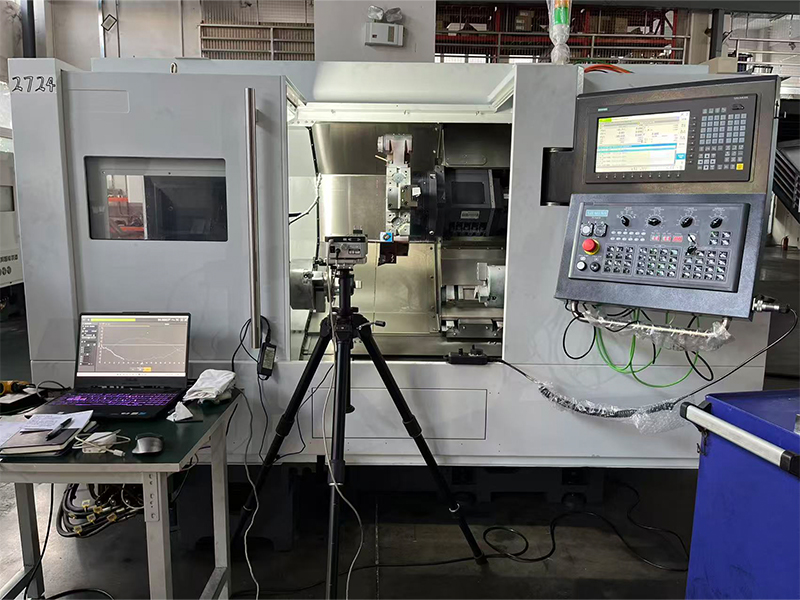

Laser Interferometer
Accuracy Compensation

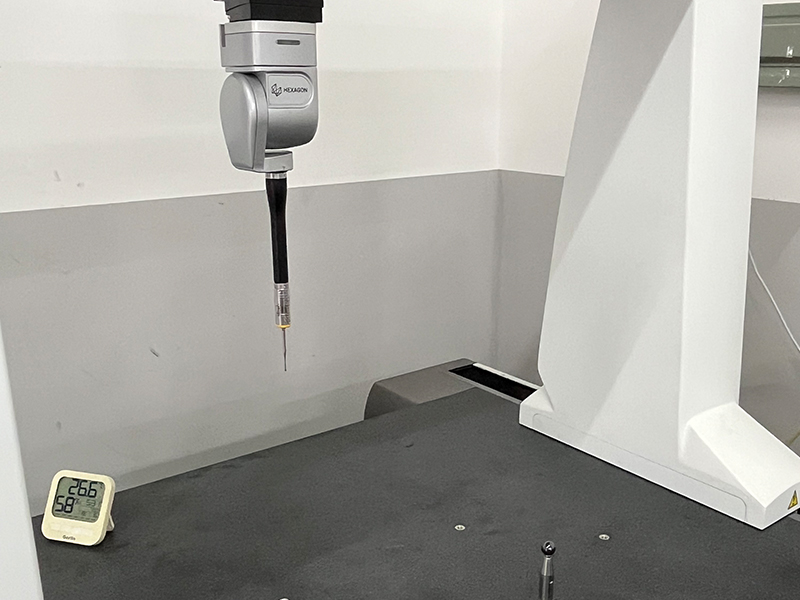

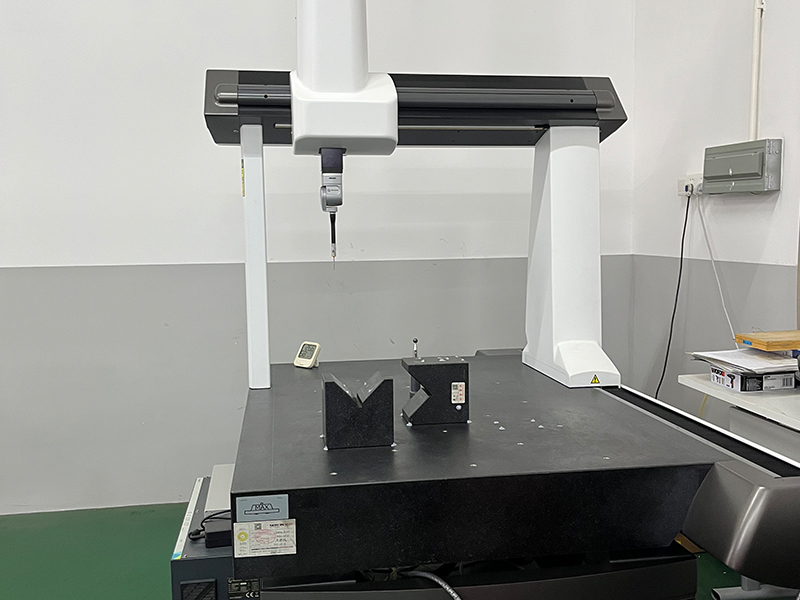

CMM
Accuracy Detection
Our CNC machine tools apply the cutting-edge laser interferometer technique to perform very accurate error compensation. By means of highly accurate measurements and thorough data study, it is possible to thoroughly correct positioning, geometry, and thermal errors so that reliable and accurate machining is possible even after prolonged usage.
LBIE applies quality control at every step of the process, and our expert teams carry out very thorough checks on all parts, systems, and processes. Our CNC machine tools will be manufactured according to international quality standards so that you can count on their continuous high-level precision and performance.

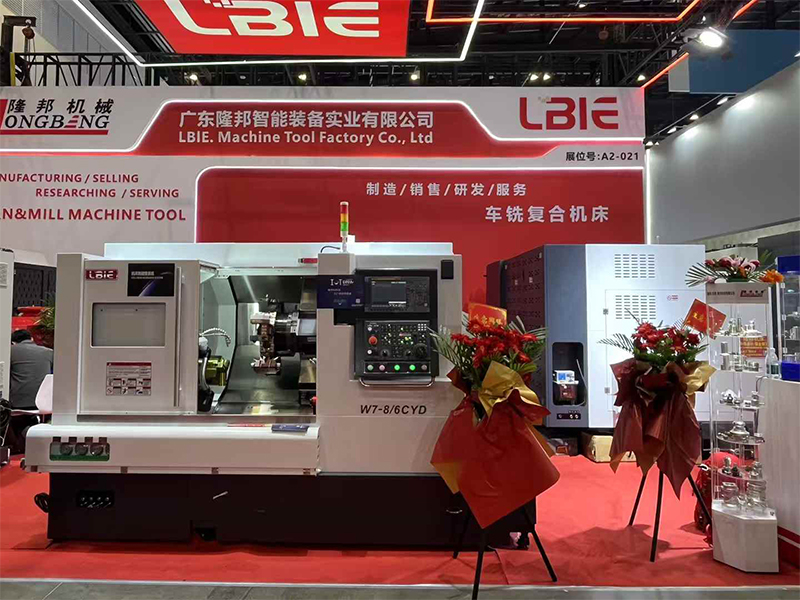

CIMT 2025
LBIE CNC Lathe Exhibition
Two Spindle Lathe
Customers visited our booth.
CIMT 2025 LBIE Exhibition Review

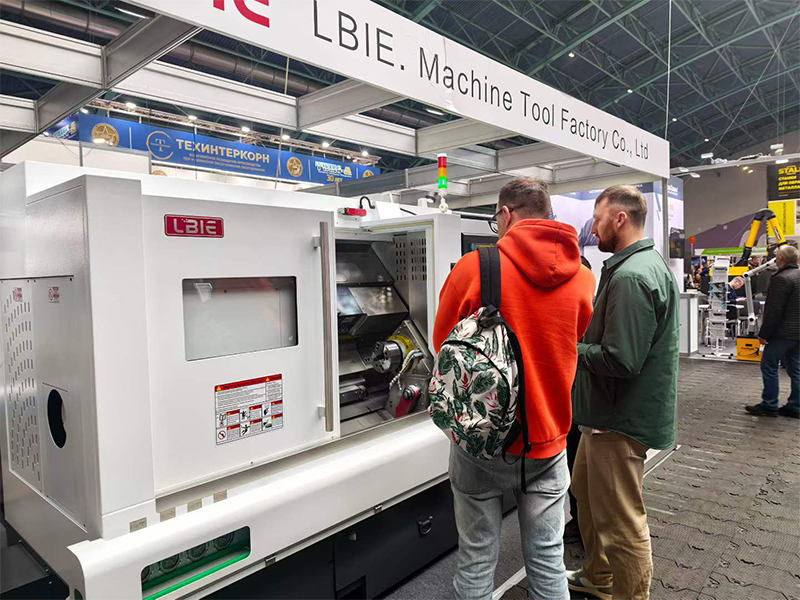

METALLOOBRABOTKA 2025
"Metalworking" Minsk, Belarus
Overseas Exhibitions
We attended overseas CNC machine tool exhibitions in Russia, Belarus, Malaysia, Uzbekistan, and other countries, attracting the attention of global customers worldwide.

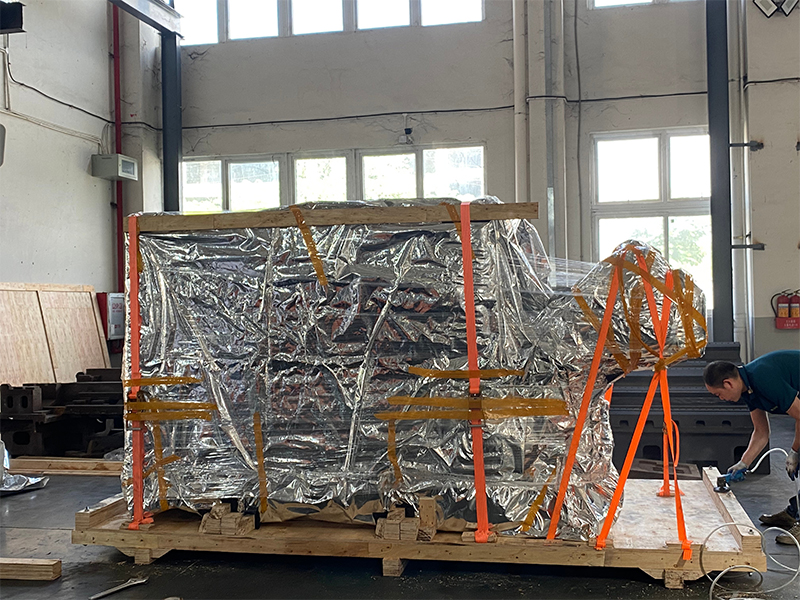

1.Stretch Wrapping
2.Vacuum packaging

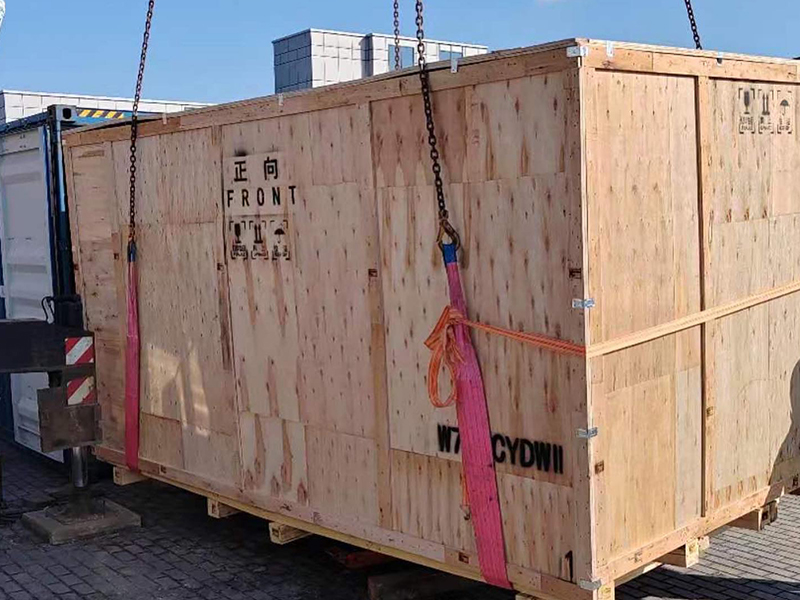

3.Strong Plywood Packing
4.Waterproof Top
5.Client's goods package
6.Client's good package
In order to provide safe delivery, our CNC lathe will be packed through a multi-layer protection process, as follows:
1.At first, the whole lathe will be wrapped with a stretch film to protect it from dust and scratches.
2.Then it will be vacuum packaged to make sure there is no moisture during transportation.
3.To limit the movement of the lathe, the vacuum-packaged lathe will be tied tightly with straps.
4.At last, the lathe will be packed in a hard plywood box.
