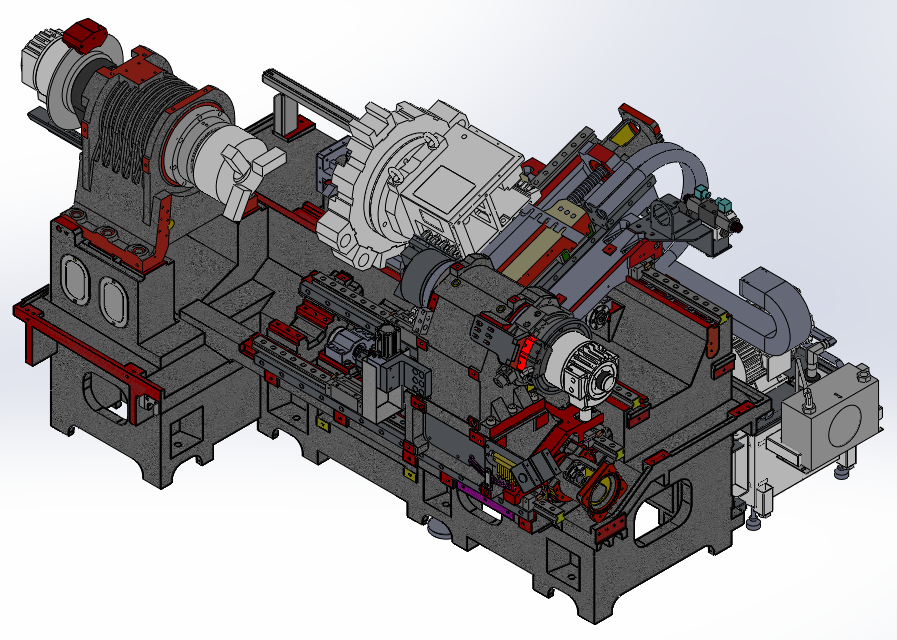

W7-8/6T Dual-spindle Servo Turret Lathe
Precision CNC lathe machine for metal offers CNC turning and milling in one integrated piece of equipment, which is mostly utilized in high-tolerance industries. Enables complicated CNC machining for defense parts with micron-level precision, strong construction, and available stock.
Parameter Table
| # | Parameter | Unit | W7-8/6T Dual-spindle Servo Turret Lathe | |||
| 1 | Max. Turning Diameter | mm | ☐ Φ300 (Standard) ☐ Φ370 (Spindle Motor Power Needs to Upgrade, Optional) | |||
| 2 | Max. Machining Length | mm | 550 | |||
| 3 | Max. Swing Diameter over bed | mm | 1st Spindle: Φ500；2nd Spindle: Φ220 | |||
| 4 | Max. Swing Diameter Over slide | mm | Φ300 | |||
| 5 | Bar Feeding Diameter | mm | 1st Spindle: <Φ52；2nd Spindle: <Φ46 | |||
| 6 | Spindle Bore | mm | 1st Spindle: Φ66；2nd Spindle: Φ56 | |||
| 7 | Max. Spindle Speed | RPM | 1st Spindle: 4500；2nd Spindle: 5000 | |||
| 8 | X-axis Travel | mm | 220 | |||
| 9 | Y-axis Travel | mm | \ | |||
| 10 | Z-axis Travel | mm | 600 | |||
| 11 | Tailstock Travel | mm | 610 | |||
| 12 | Rapid Feedrate | m / min | 22 | |||
| 13 | Max. Driven Tool Speed | RPM | \ | |||
| 14 | Voltage (3phase) | V | 380±10% | |||
| 15 | Electric Frequency | Hz | 50 | |||
| 16 | Power | kW | 32 | |||
| 17 | Weight | kg | 4300 | |||
| 18 | Size (Length × Width × Height) | mm | 3250×1700×1900 (Excluding Chip Conveyor) | |||
| # | / | Configuration Table | ||||
| 1 | CNC Control System | □ FANUC 0I-TF PLUS (3B) | ☐ Siemens 828D (With Shop Turn/Mill Function) | ☐ SYNTEC 22TB | ||
| Main-spindle Rated Power / Torque of the Servo Motor | ☐ 11kW / 105Nm (Belt Spindle) (Standard) ☐ 15kW / 143Nm (Belt Spindle) (Optional) ☐ 15kW / 95Nm (Motor Spindle) (Optional) | ☐ 12kW / 115Nm (Belt Spindle) (Standard) ☐ 15kW / 95Nm (Motor Spindle) (Optional) | ☐ 15kW / 98Nm (Belt Spindle) (Standard) ☐ 15kW / 95Nm (Motor Spindle) (Optional) | |||
| Sub-spindle Rated Power / Torque of the Servo Motor | 11kW / 52Nm (HAOZHI Motor Spindle) | 11kW / 52Nm (HAOZHI Motor Spindle) | 11kW / 52Nm (HAOZHI Motor Spindle) | |||
| X-axis Rated Power / Torque of the Servo Motor | 1.8kW / 11Nm | 2.2kW / 12Nm | 2.4kW / 11.5Nm | |||
| Y1-axis Rated Power / Torque of the Servo Motor | \ | \ | \ | |||
| Z-axis Rated Power / Torque of the Servo Motor | 1.8kW / 11Nm | 2.2kW / 12Nm | 2.4kW / 11.5Nm | |||
| B-axis Rated Power / Torque of the Servo Motor | 1.8kW / 11Nm | 2.2kW / 12Nm | 2.4kW / 11.5Nm | |||
| Driven Tool Rated Power / Torque of the Servo Motor | \ | \ | \ | |||
Key Features
✅ Dual-Spindle & Turret Combination: The CNC turning machine offered here comes with separate 1st/2nd spindles (4500/5000RPM) and a servo turret, thus allowing effective back-to-back processing of parts, which dramatically cuts down the cycle times in mass production.
✅ Heavy-Duty Slant Bed Construction: Built as a robust slant bed lathe with additional gravity distribution, thus it guarantees excellent stability, vibration damping, and effortless chip removal, which are very important for high-precision CNC metal lathe processes.
✅ Comprehensive Live Tooling Feature: With the in-built milling function, the CNC lathe machine can perform turning, drilling, and tapping operations of intricate parts in one fixture only, thereby increasing the practicality of this slant bed machine to make different metal parts.
✅ Solid Quality Inner Parts: Employs first-rate linear guides, lead screws, and bearings for X/Y/Z/B axes, thereby providing micrometer-level positioning accuracy to satisfy the most stringent requirements of CNC metal lathe machining.
✅ Adaptable Setup: Can work with FANUC/Siemens/SYNTEC CNC systems; also, the option of belt/motor spindles and double-chuck is available; in other words, for different part sizes and production requirements, the machine can be tailored.
Details Display

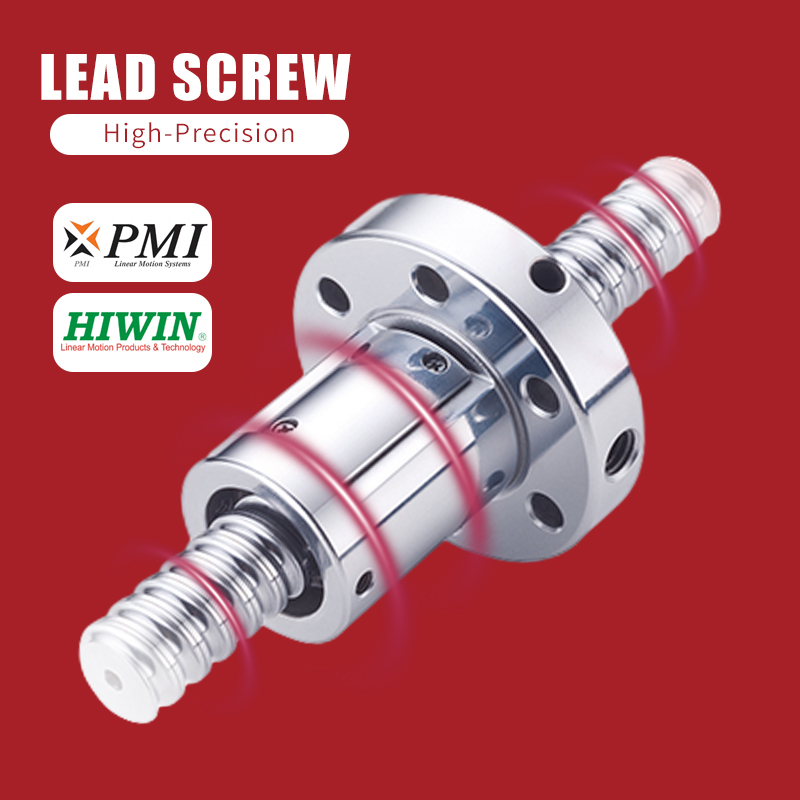

Lead Screw
Equipped with high-precision NSK ball screws (32-series) for the X/Y/Z/B axes, this CNC metal lathe enables ultra-low friction and minimal backlash. A high-quality lead screw system ensures the precise positioning and excellent linear motion even during continuous 24/7 production, thereby perfectly matching the high efficiency requirements of the slant bed machine.
Spindle
The W7-8/6T slant bed lathe has high-load Rexroth roller linear guides on all axes. These heavy-duty guides offer high-level load capacity and rigidity, rising to the level of cutting vibration absorption, thereby keeping movement very stable. The result is very accurate and smooth operation even during high-speed machining and heavy cutting, which is the fundamental precision of this CNC turning machine.

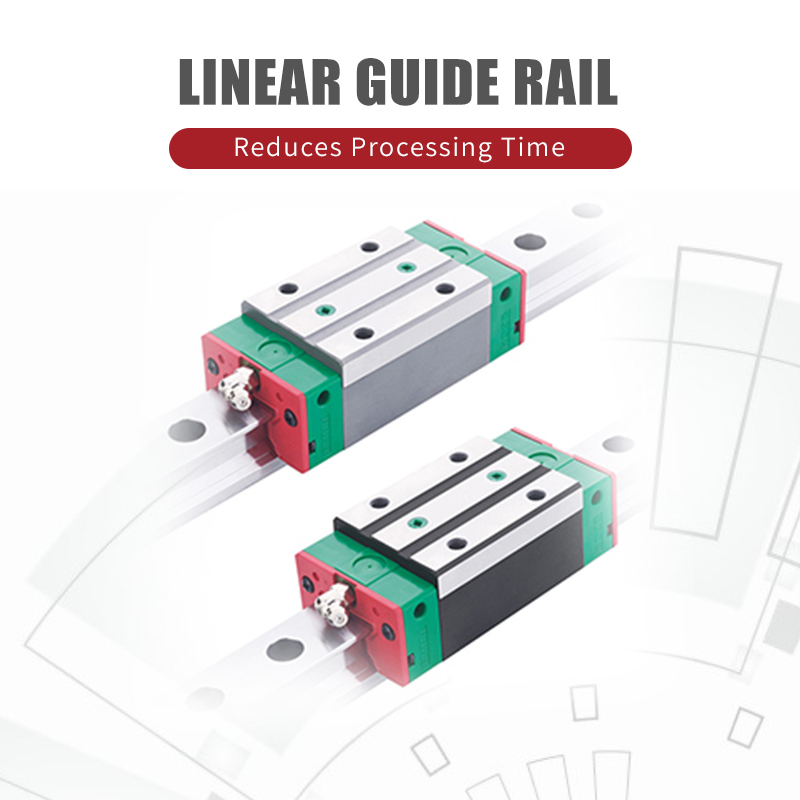

Liner Guide Rail
W7-8/6T slant bed lathe comes with high-load Rexroth roller linear guides on all axes. The heavy-duty guides not only offer excellent load capacity and rigidity but also absorb cutting vibrations to an effective level that allows for ultra-stable movement. As a result, the precise, smooth operation is maintained even during high-speed machining and heavy-duty cutting, which is the main characteristic of this CNC turning machine.

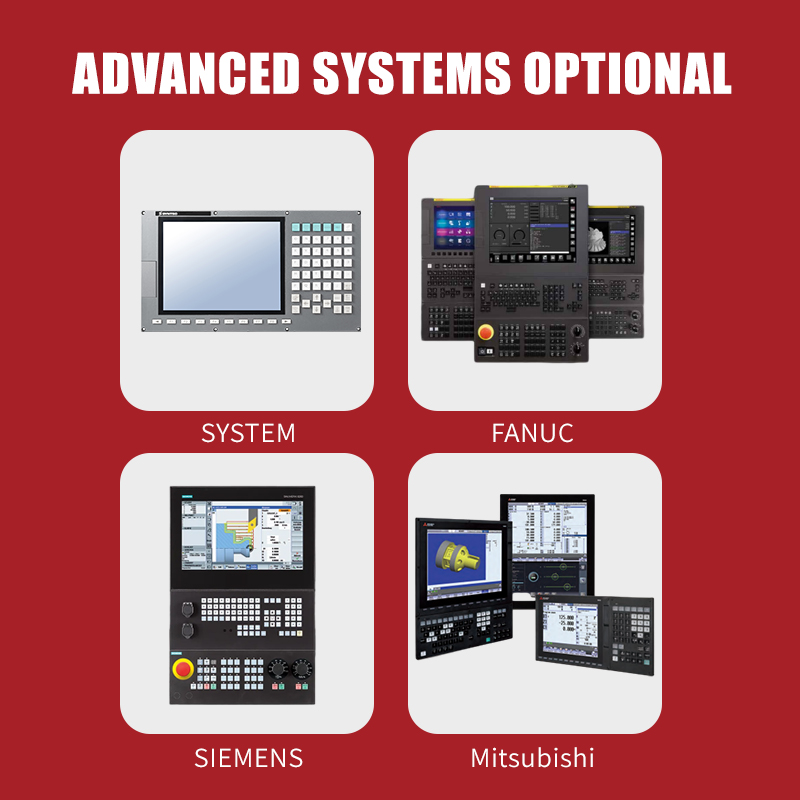

System
Machine tools for CNC milling and CNC turning with various CNC system options—including FANUC, Siemens, and Syntec—to meet the requirements of different types of machining. Every system features simple operation, fast processing, and good compatibility with automated work cycles, thus providing flexibility, dependability, and accuracy in a wide range of applications.

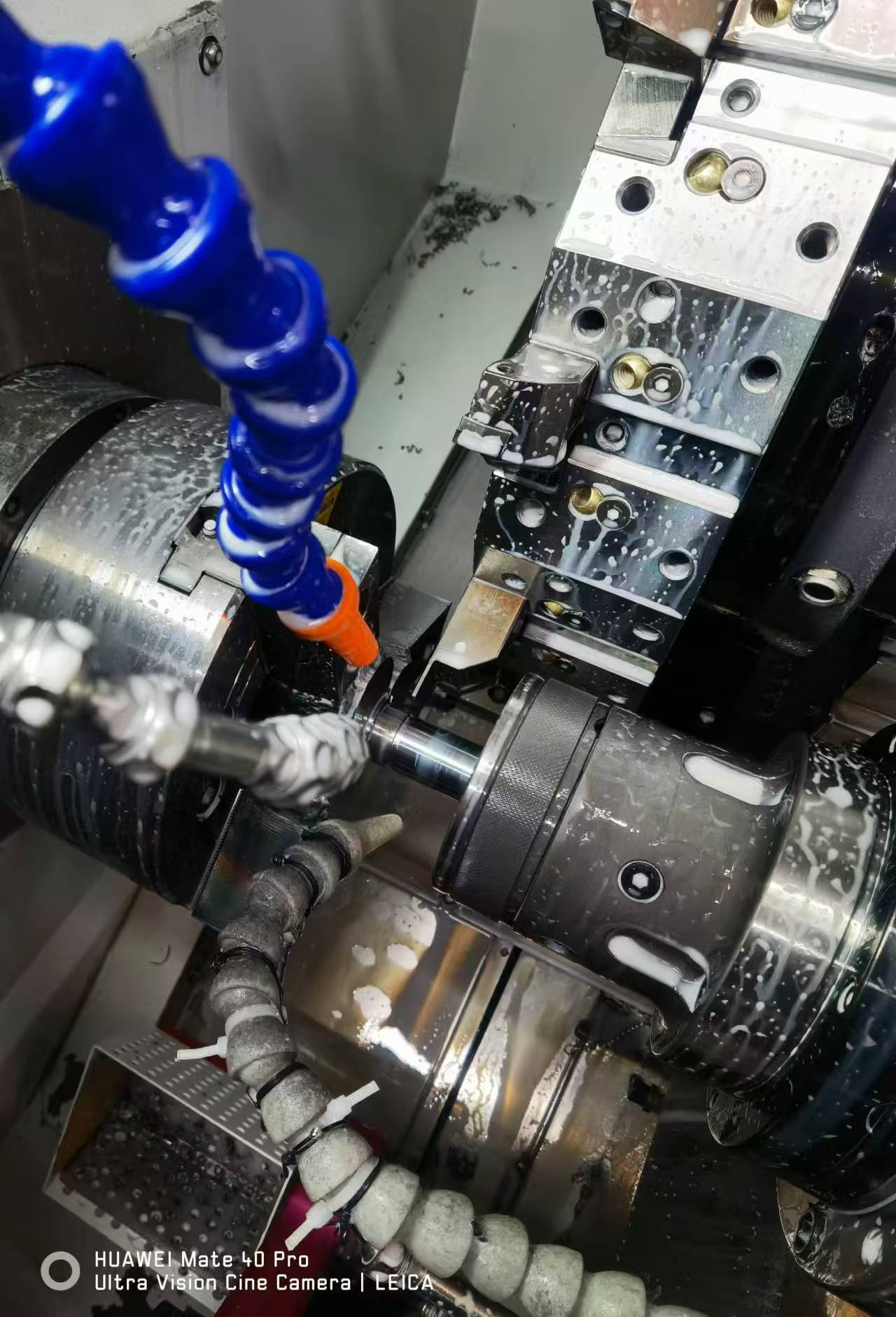

Partial workpiece display
A high-accuracy CNC turning machine that can work with metal, turning and milling are possible in one clamping. Works with stainless steel, titanium, aluminum, and alloys, it is perfect for aerospace, automotive, defense, and hardware industries.

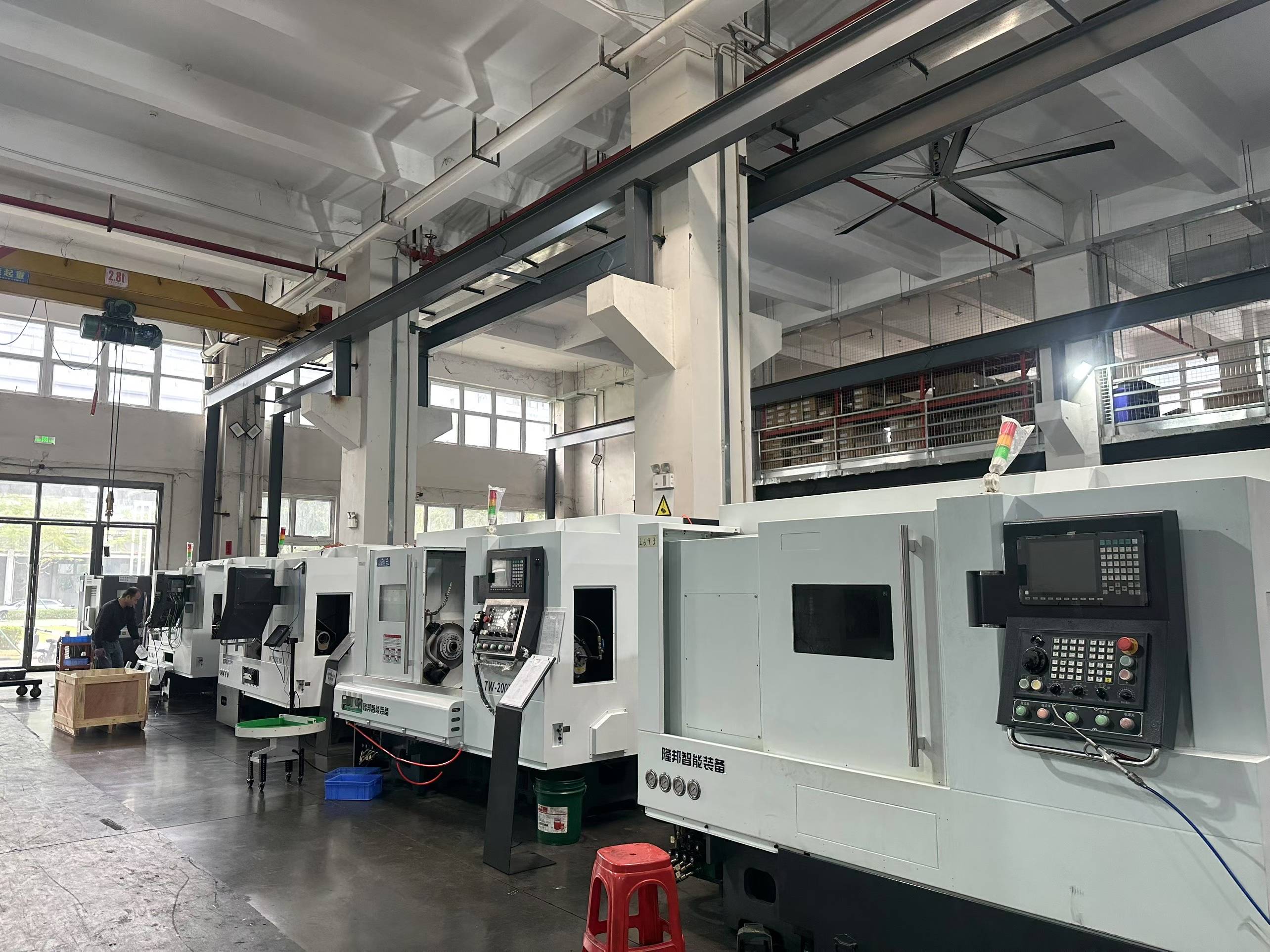

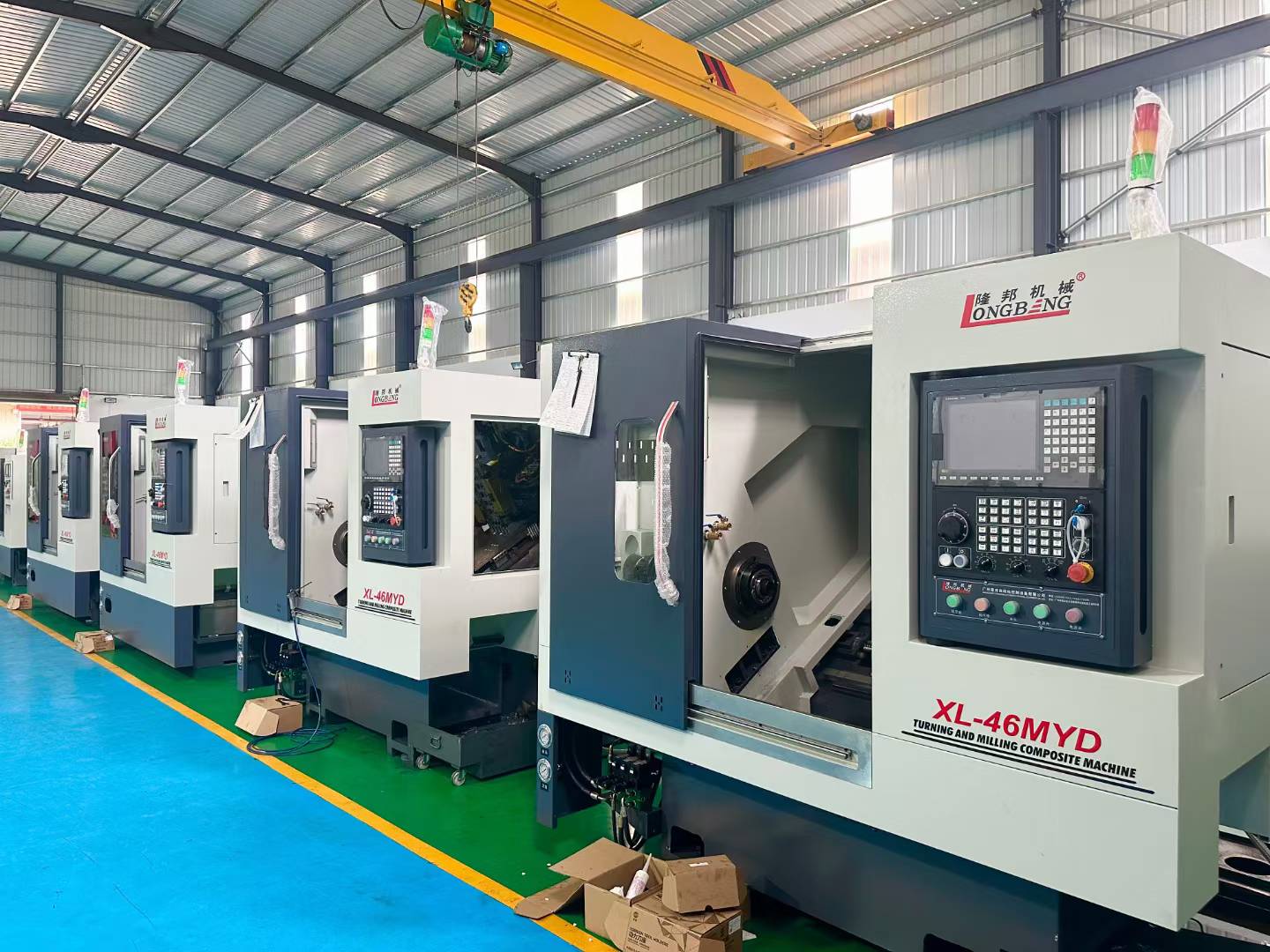

About Us
2007：Established. Main activities: research and development, manufacturing, sales, and service of turning and milling machine tools.
2009：Brought out China's first 4+4 live tool turning and milling machine.
2014：Helped to remove the technical constraint of the interpolated Y-axis turning and milling machine.
2022：Released the dual spindle dual turret turning and milling composite machine tool.
Today：Besides more than 15 years of industry experience, certified production qualification, and service covering nuclear energy, aerospace, automotive, home appliances, etc., we are looking for worldwide agents to deliver high-quality Chinese CNC machine tools to customers around the globe.
Premium CNC Machinery
This display features our latest CNC machining technology, including large gantry-type machining centers, high-precision milling heads from Okuma, and 5-axis linkage machining systems. The delivery of a high level of stiffness, stability, and extremely high accuracy in machining are the remarkable features of these advanced machines, which allow even the large and complex workpieces to be processed with the highest efficiency while maintaining strict tolerances. Thanks to their famous control systems and intelligent operation interfaces, they can be considered as a perfect fit for the needs of aerospace, automotive, mold, and heavy machinery manufacturing industries in terms of performance, reliability, and production efficiency.

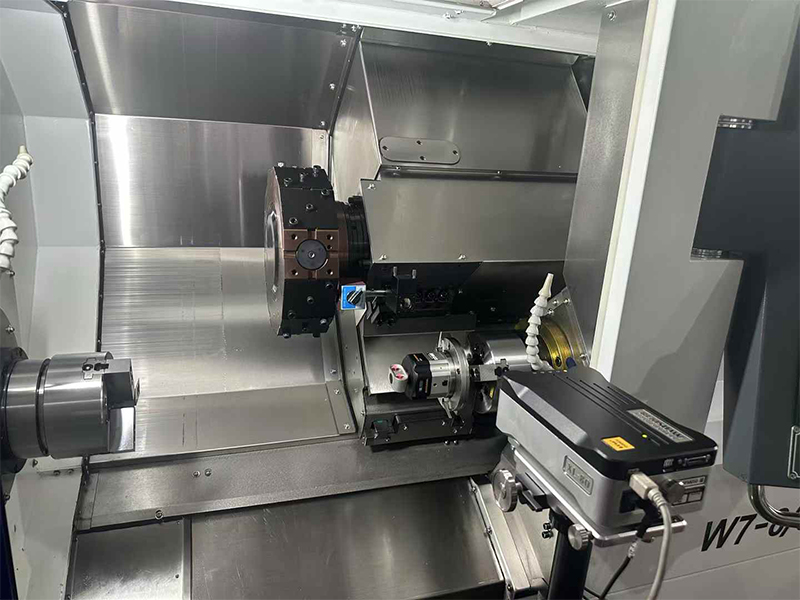

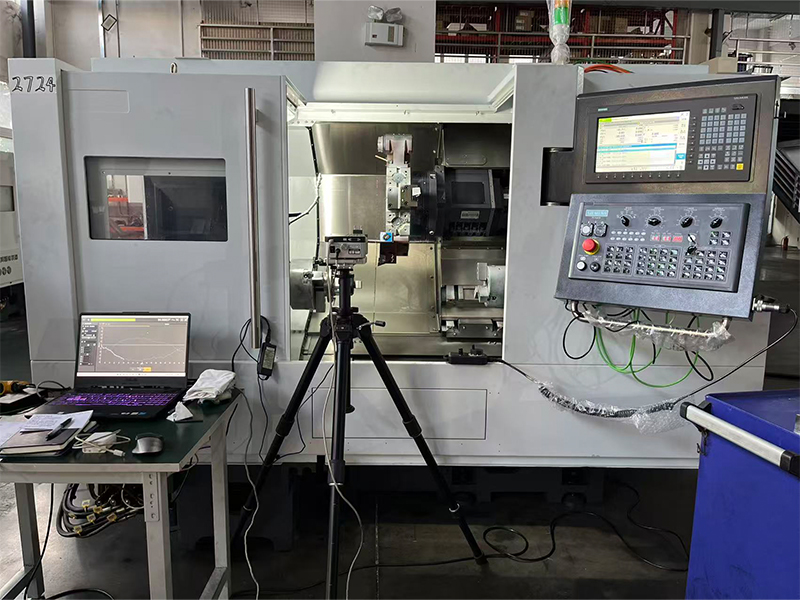

Laser Interferometer
Accuracy Compensation

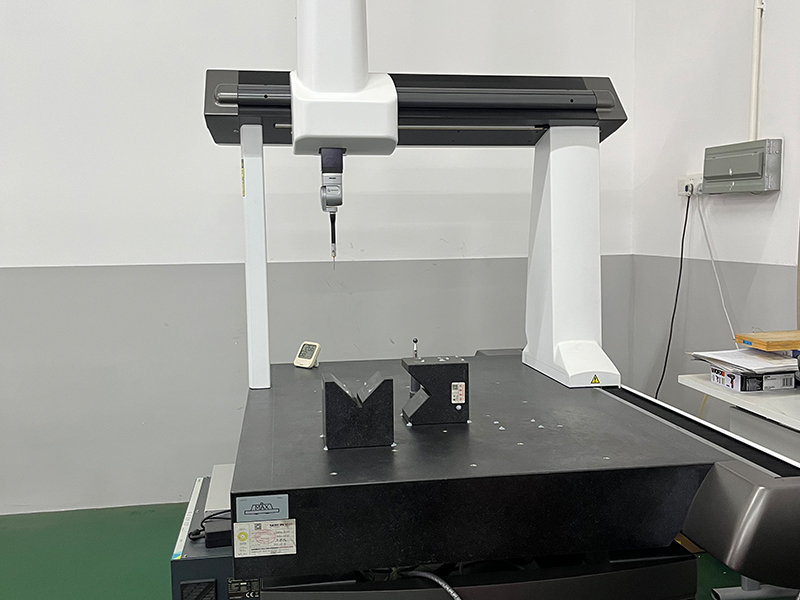

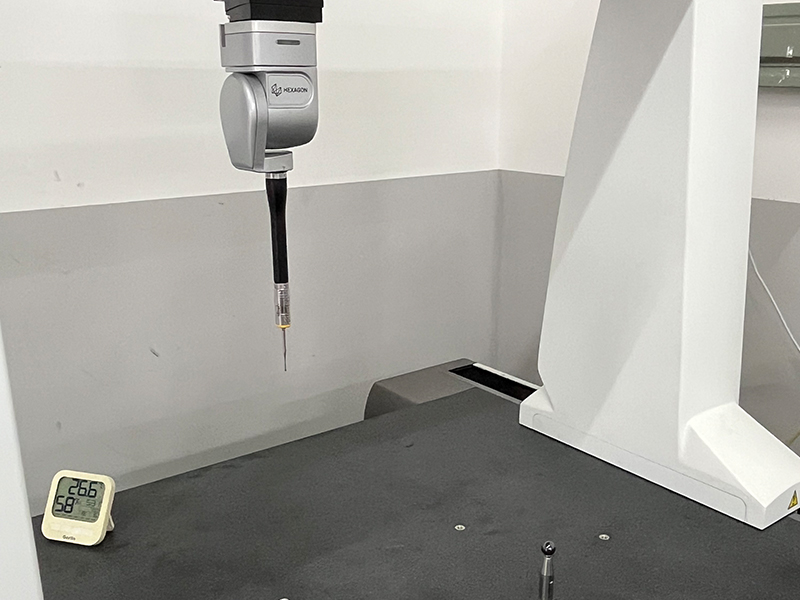

CMM
Accuracy Detection
Our CNC machine tools use the latest laser interferometer technology to make accurate compensation and ensure accuracy. The high-precision measurement and data analysis capabilities allowed us to successfully compensate for positioning, geometric, and thermal errors, driving more stable and reliable machining accuracy throughout the whole time of operation.
LBIE implements quality control throughout the whole process, with specialized teams inspecting each component, system, and process thoroughly. We supply CNC machine tools that comply with international quality standards, ensuring consistent accuracy and dependable performance for your production.

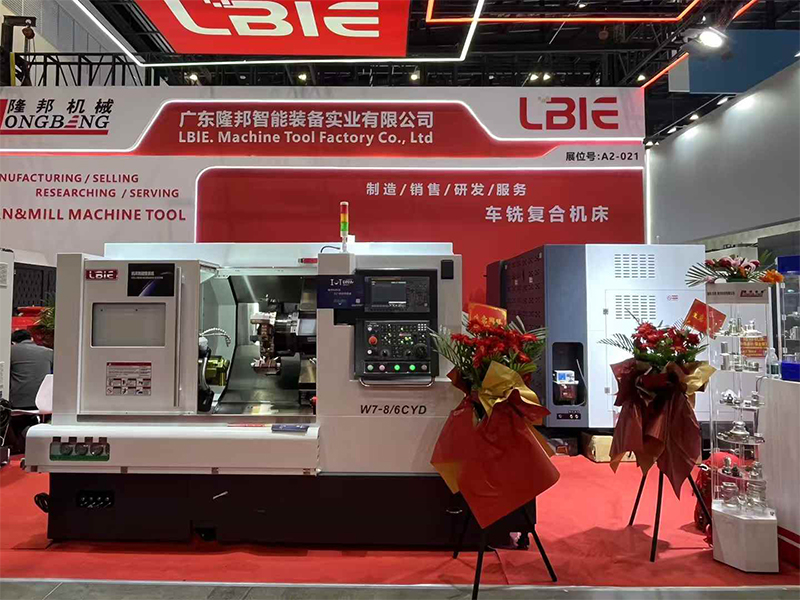

CIMT 2025
LBIE CNC Lathe Exhibition
Two Spindle Lathe
Customers visited our booth.

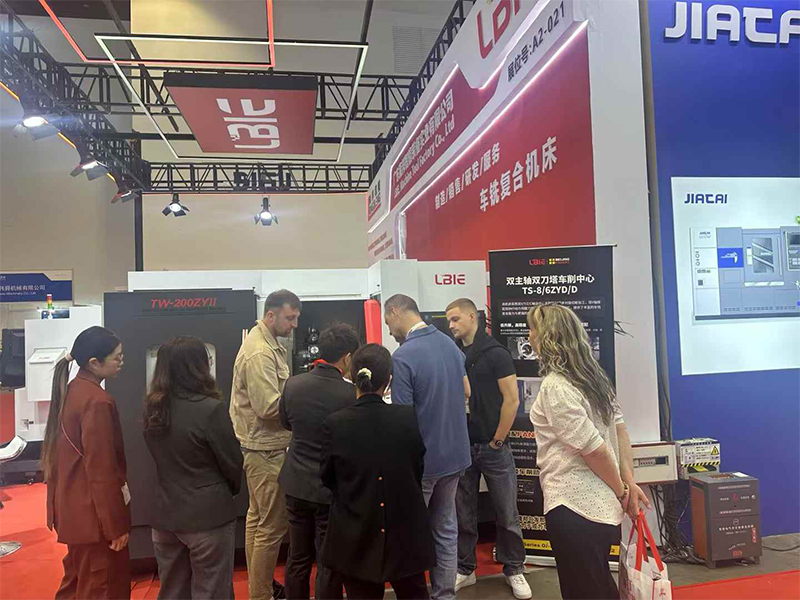

CIMT 2025 LBIE Exhibition Review

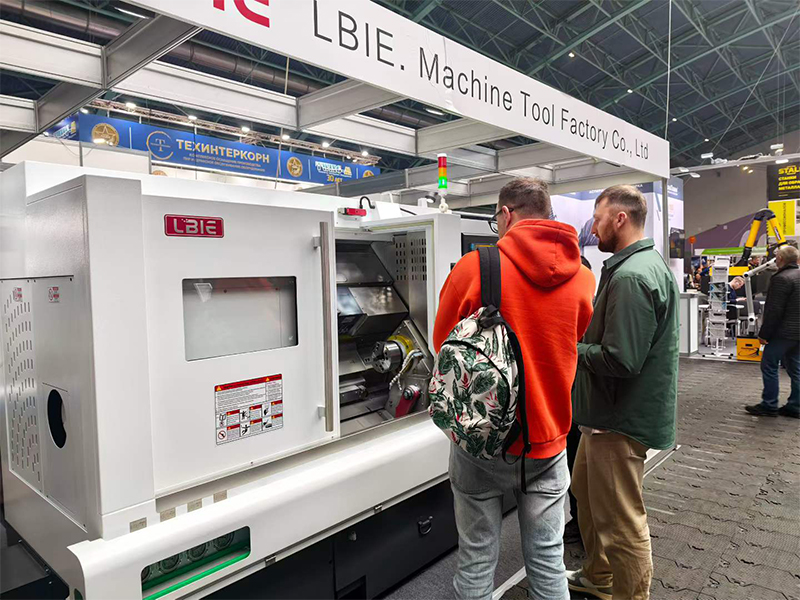

METALLOOBRABOTKA 2025
"Metalworking" Minsk, Belarus
Overseas Exhibitions
We have taken part in overseas CNC machine tool exhibitions in Russia, Belarus, Malaysia, Uzbekistan, and other countries. We attracted great attention from customers from all over the world.

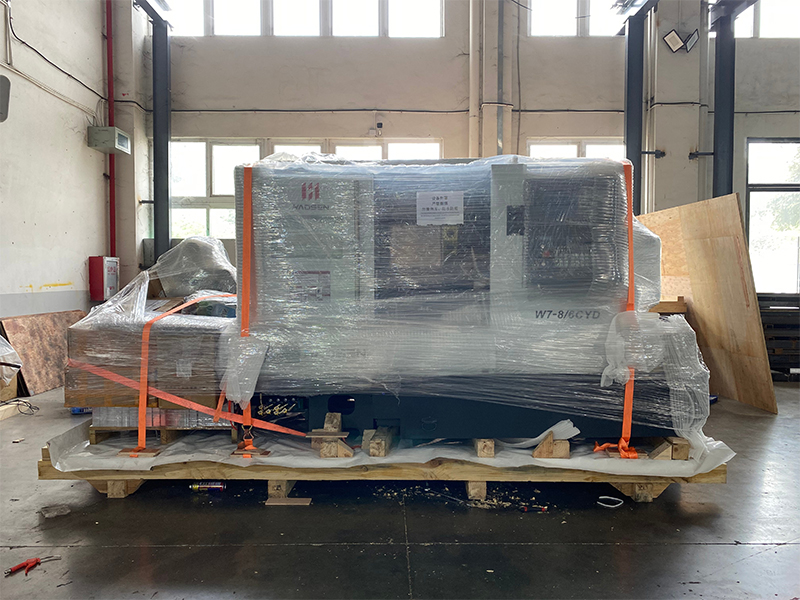

1.Stretch Wrapping
2.Vacuum packaging

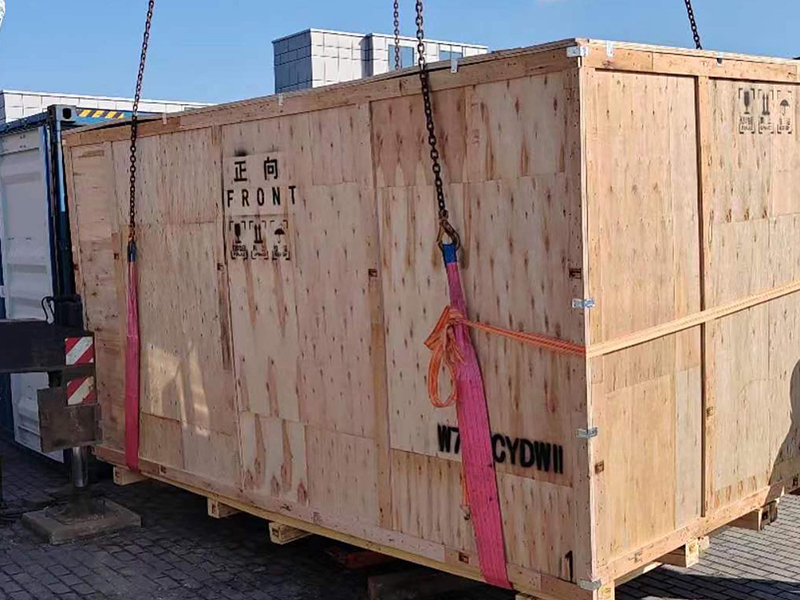

3.Strong Plywood Packing
4.Waterproof Top
5.Client's goods package
6.Client's good package
Our CNC lathe is safe and sound even during delivery, because we have a multi-layer process of protecting the machine via packaging:
1.The lathe will be fully wrapped in a stretch film, which can help protect it from dust and scratches.
2.We then vacuum pack it to make sure that moisture doesn't get in during shipping.
3.After vacuum packaging, the lathe will be firmly fixed by straps to prevent it from moving.
4.At last, it will be packed into a very sturdy plywood box.
ISO 9001 (International Quality Management System)
CE Certification (European Conformity)
EAC (Eurasian Conformity)
Welcome to the Consulting Section.These certifications provide a guarantee that the machines meet the most rigorous global standards for safety and performance.
