BG2000-10ZYDW | Heavy-Duty CNC Lathe for Large-Diameter & Long Bar Stock Machining
Parameter Table
| # | Parameter | Unit | BG2000-10ZYDW Orthogonal Y-axis Turning and Milling Machine Tool | |||
| 1 | Max. Turning Diameter | mm | Φ520 | |||
| 2 | Max. Machining Length | mm | 2000 | |||
| 3 | Max. Swing Diameter over bed | mm | Φ600 | |||
| 4 | Max. Swing Diameter Over slide | mm | Φ450 | |||
| 5 | Bar Feeding Diameter | mm | <Φ75 | |||
| 6 | Spindle Bore | mm | Φ86 | |||
| 7 | Max. Spindle Speed | RPM | 3000 | |||
| 8 | X-axis Travel | mm | 260 | |||
| 9 | Y-axis Travel | mm | ±50 | |||
| 10 | Z-axis Travel | mm | 2005 | |||
| 11 | Tailstock Travel | mm | 1900 | |||
| 12 | Morse Taper | mm | 65(5#) | |||
| 13 | Rapid Feedrate | m / min | 22 | |||
| 14 | Max. Driven Tool Speed | RPM | 4000 | |||
| 15 | Voltage (3phase) | V | 380±10% | |||
| 16 | Frequency | Hz | 50 | |||
| 17 | Power | kW | 29 | |||
| 18 | Weight | kg | ≈7800 | |||
| 19 | Size (Length × Width × Height) | mm | 7500 × 2050 × 2150 | |||
| # | Configuration Table | |||||
| 1 | CNC | ☐ FANUC 0I-TF PLUS (3B) | ☐ Siemens 828D (With Shop Turn/Mill Function) | ☐ SYNTEC 22TB | ||
| Spindle Rated Power / Torque of the Servo Motor | 15kW / 143Nm | 15kW / 143Nm | 15kW / 143Nm | |||
| X-axis Rated Power / Torque of the Servo Motor | 1.8kW / 11Nm | 2.2kW / 12Nm | 3.1kW / 14.6Nm | |||
| Y-axis Rated Power / Torque of the Servo Motor | 1.8kW / 11Nm | 2.2kW / 12Nm | 3.1kW / 14.6Nm | |||
| Z-axis Rated Power / Torque of the Servo Motor | 3kW / 20Nm | 3.6kW / 22Nm | 3.7kW / 23Nm | |||
| Driven Tool Rated Power / Torque of the Servo Motor | ☐ 2.7kW / 12Nm (Standard) ☐ 4.3kW / 22Nm (Optional) | 3.6kW / 22Nm | 5.5kW 17.5Nm (Water Coolant Motor) | |||
| 2 | \ | Brand | Type / Spec | |||
| Spindle | ☐ LBIE Belt Spindle (OEM by HAOZHI) (Standard) ☐ Taiwan KENTURN Belt Spindle (Optional) | ☐ A2-8(Standard) ☐ A2-11 (Spindle Bore: Φ105mm; Bar Feeding Diameter: <Φ92mm, Match 12inches Chuck;Recommended to Upgrade the Motor) (Optional) | ||||
Orthogonal Y-axis Design: With this feature, the machine will be able to perform operations on 5 sides of the workpiece without the need for changing the setup multiple times. As a result, production time is decreased and dimensional consistency is improved.
Big Processing Size: Has a maximum turning diameter of Φ520mm, a maximum machining length of 2000mm, and a swing diameter over bed of Φ600mm, easily capable of processing large, heavy workpieces.
High-Speed & High-Power Spindle: The spindle opening is Φ86mm (with an option to upgrade to Φ105mm), the maximum spindle speed is 3000RPM, the power rating is 15kW with 143Nm torque, and the cutting power is strong enough to carry out both the heavy-duty roughing and the high-precision finishing.
Flexible CNC System Options: Pick from top-notch CNC systems like FANUC 0I-TF PLUS(3B), Siemens 828D(with Shop Turn/Mill Function), or SYNTEC 22TB that are the best in the industry and can be aligned with your working preferences and ways of doing things.
Efficient Driven Tool Station: Besides supporting the usual tools, it also allows you to use very powerful driven tools (up to 5.5kW / 17.5Nm for SYNTEC configuration), which gives you the highest driven tool speed of 4000RPM, so that you can do high-speed milling, drilling, and tapping efficiently.
Heavy-Duty & Sturdy Frame: It is built of a solid metal working body (approx. 7800kg) with a size of 7500×2050×2150mm. This construction is highly effective in providing the machine rigidity and damping of vibrations, which are important factors for quality and long-lasting precision machining.
Axis Travel and Feed are Adapted: The travel of the X-axis is 260mm, the Y-axis moves in the range of +50 to -50mm, the Z-axis travel is 2005mm, and the maximum feed rate is 22m/min; all these features support fast, smooth movements and efficient machining cycles.

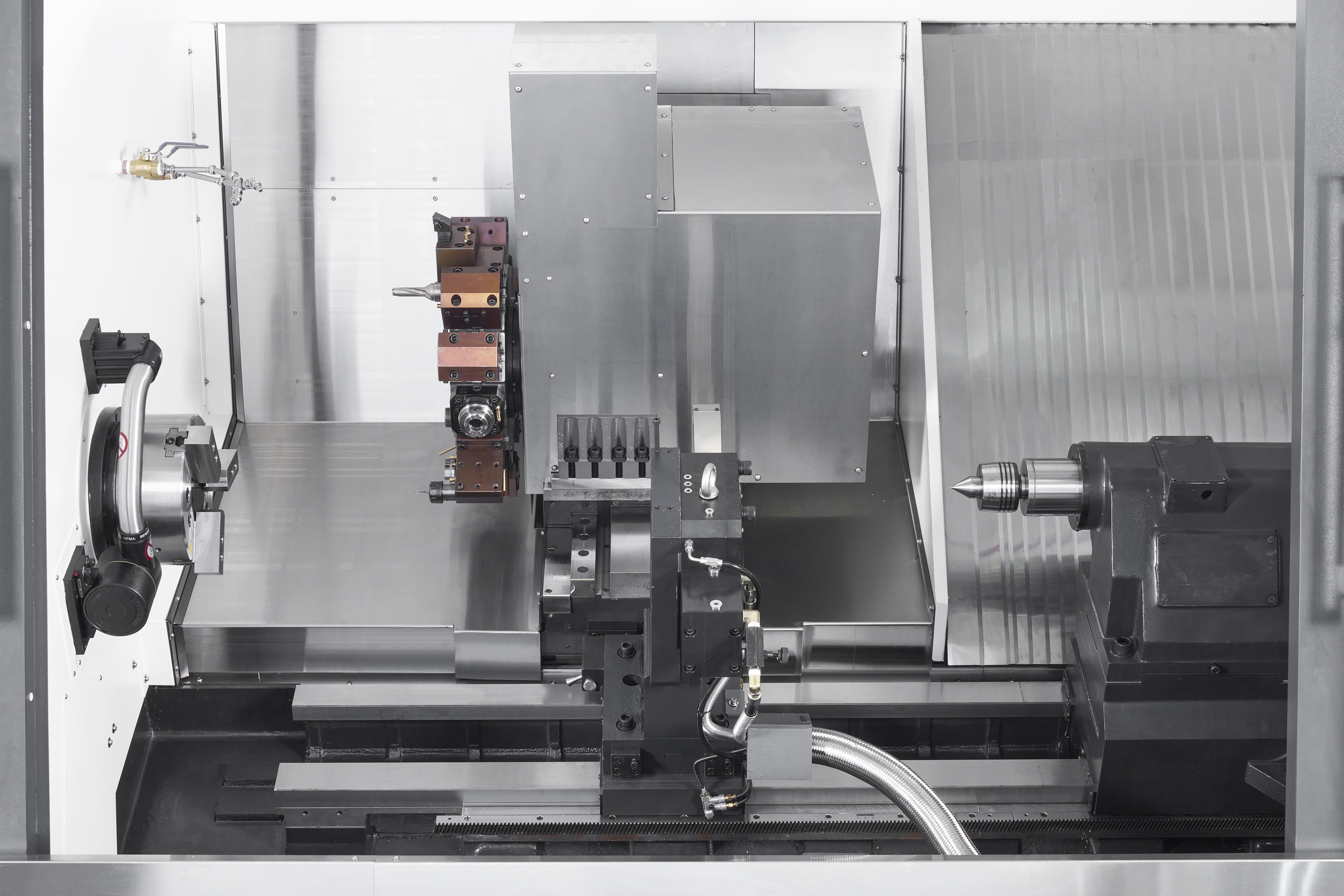

Details Display

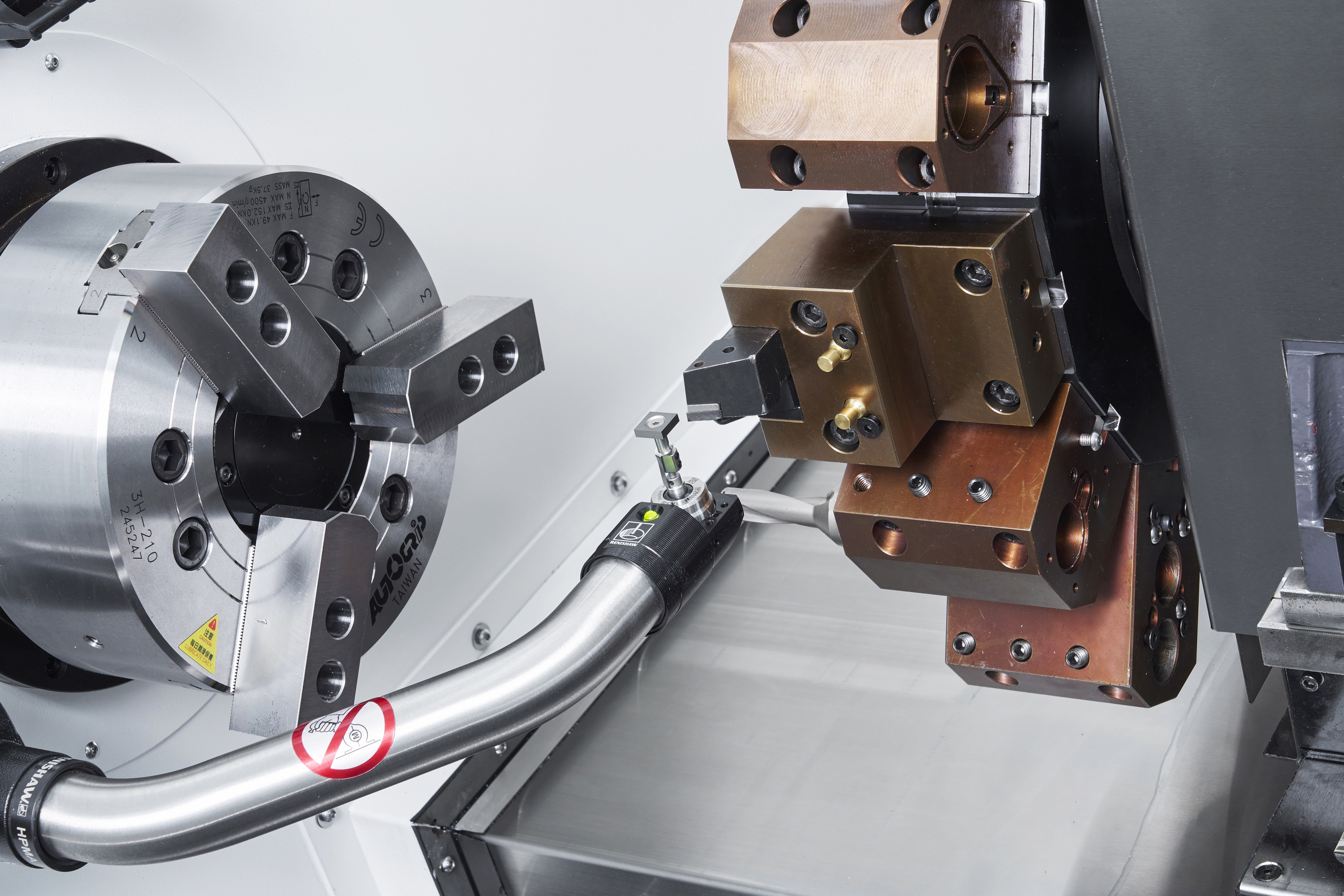

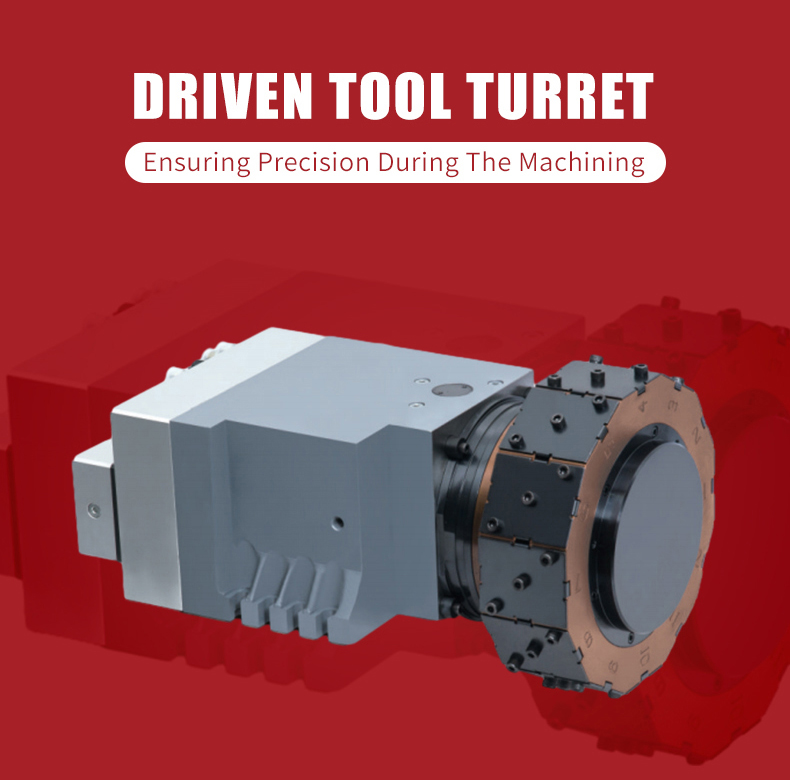

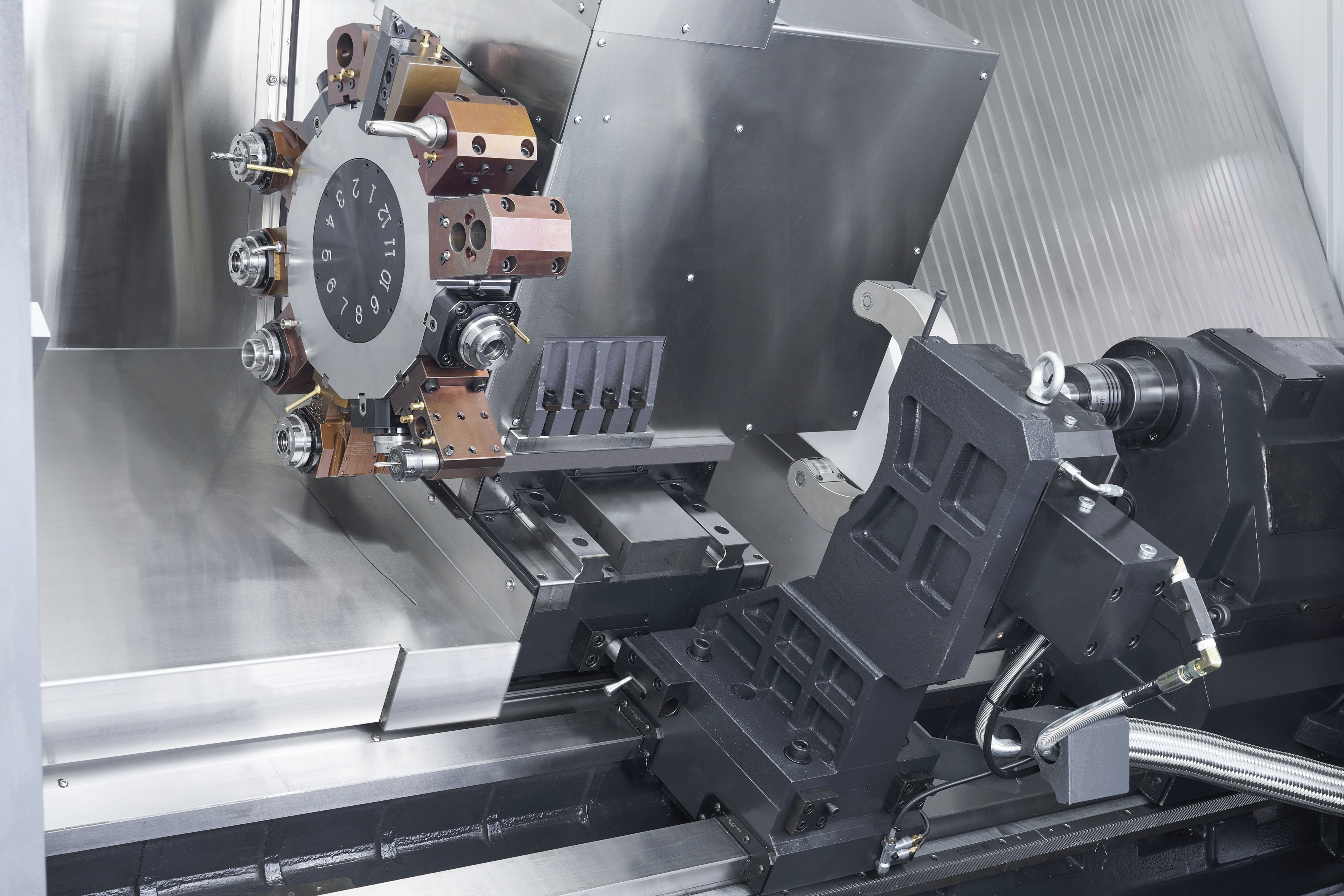

High-power driven tools (up to 5.5kW) with 4000RPM max speed for efficient milling/tapping.
Offering various power levels for different machining demands, the sturdy frame ensures firm cutting.
Setting aside the tool changing time allows complex workpiece processing.
Spindle
15kW / 143Nm high-torque spindle, 3000RPM max speed for heavy roughing and fine finishing.
Standard Φ86mm bore, optional Φ105mm large bore for bar feeding up to Φ92mm.
Premium options: LBIE (HAOZHI OEM) / Taiwan KENTURN belt spindles for reliable performance.

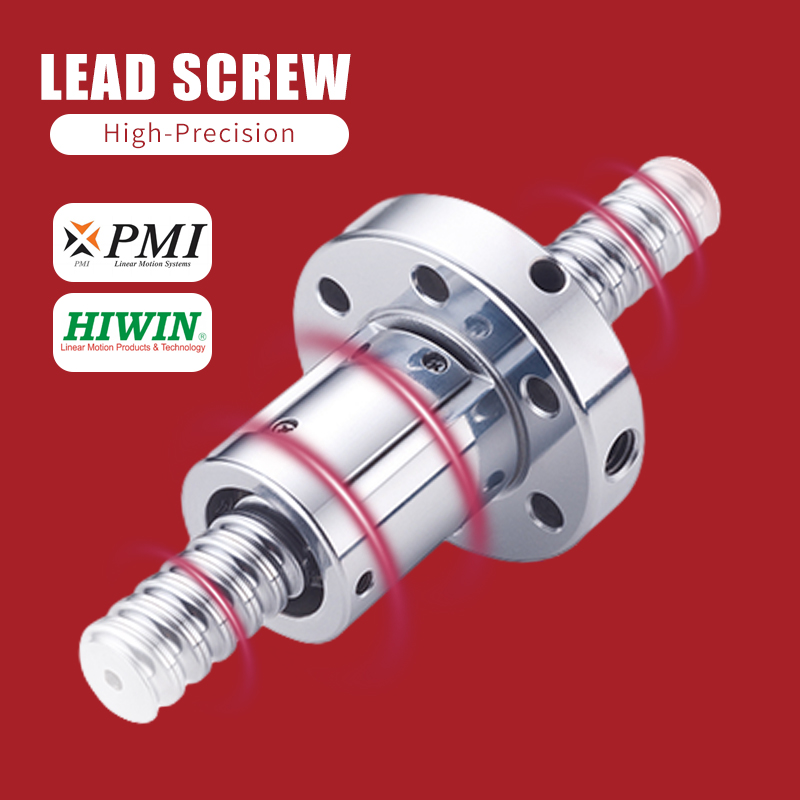

Lead Screw
The CNC machine tool has all linear axes equipped with top brands' high-precision ground ball screw. The lead screws with minimum backlash and high transmission efficiency have made it possible for us to control the tool movement in a very responsive way and accurately at rapid feed rates up to 22m/min, even when the cutting load is heavy. Besides, they are capable of ensuring the continued dimensional accuracy of large metal workpieces even during prolonged high-load operation.

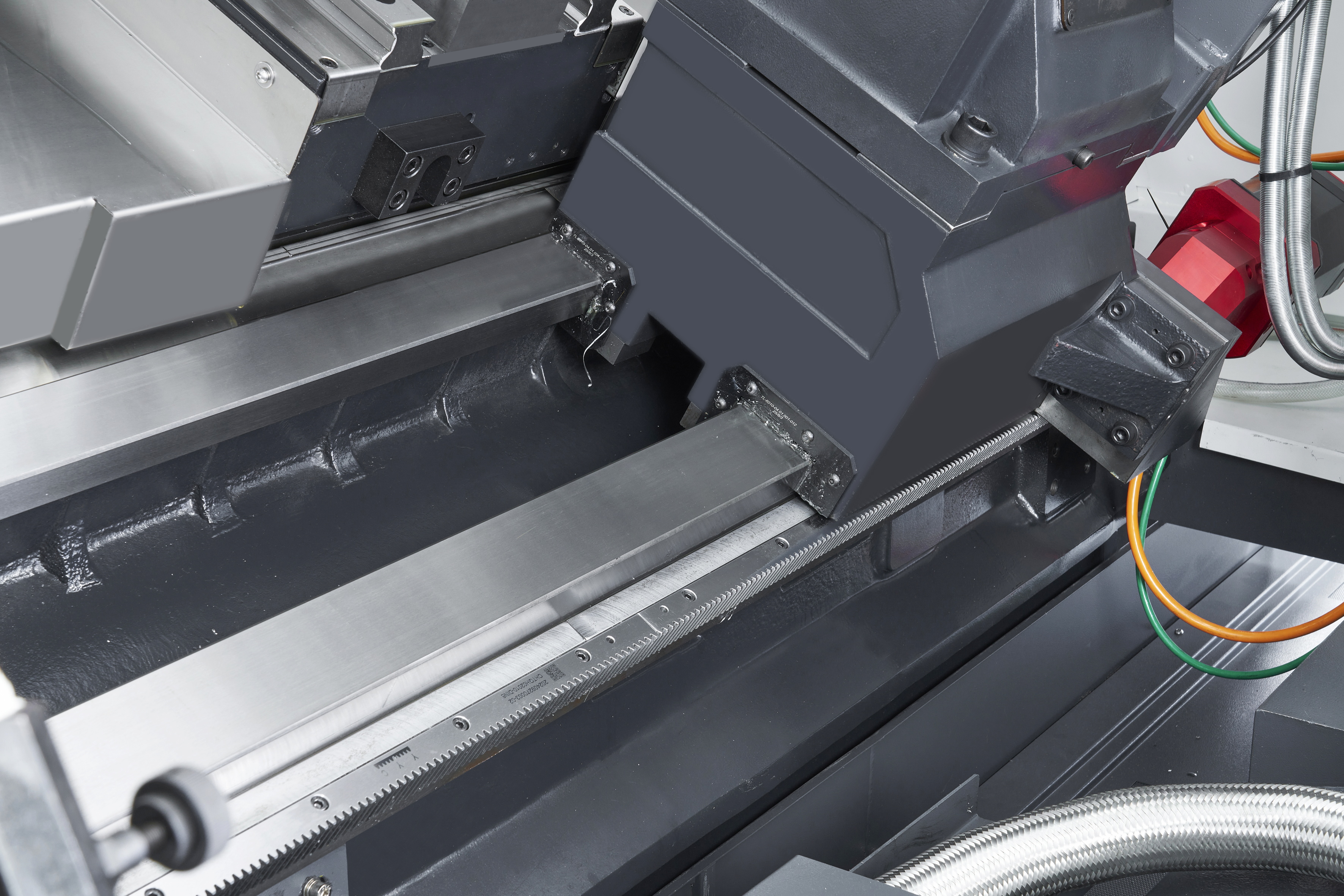

Liner Guide Rail
Our advanced metal processing lathe is capable of machining high-strength materials, such as titanium, Inconel, stainless steel, and aluminum, with very tight tolerances. This machine is used in the production of parts for the aerospace, nuclear, automotive industries, and others.
This is very high-precision equipment that can produce the most difficult parts accurately, all in one setup.
