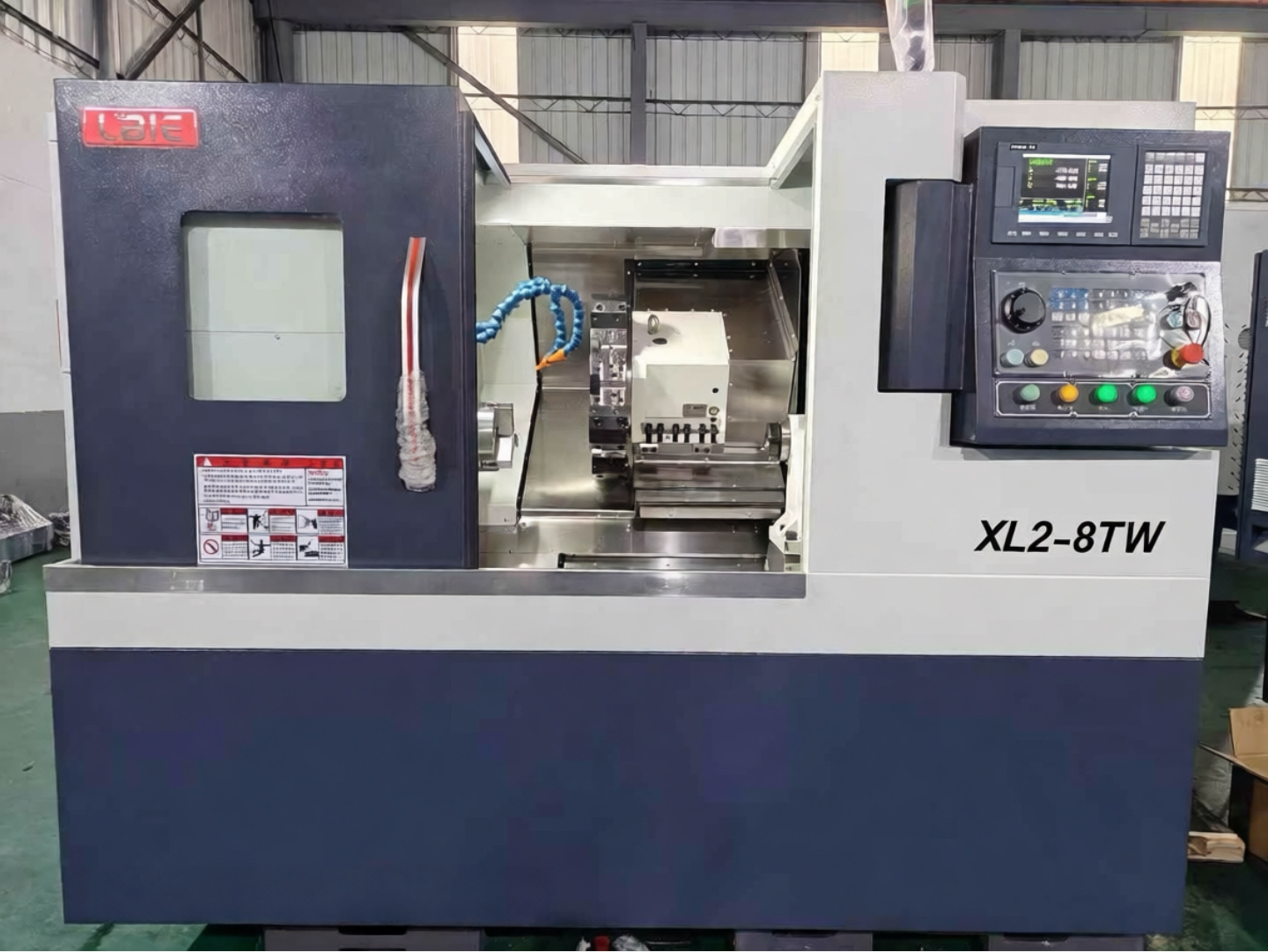

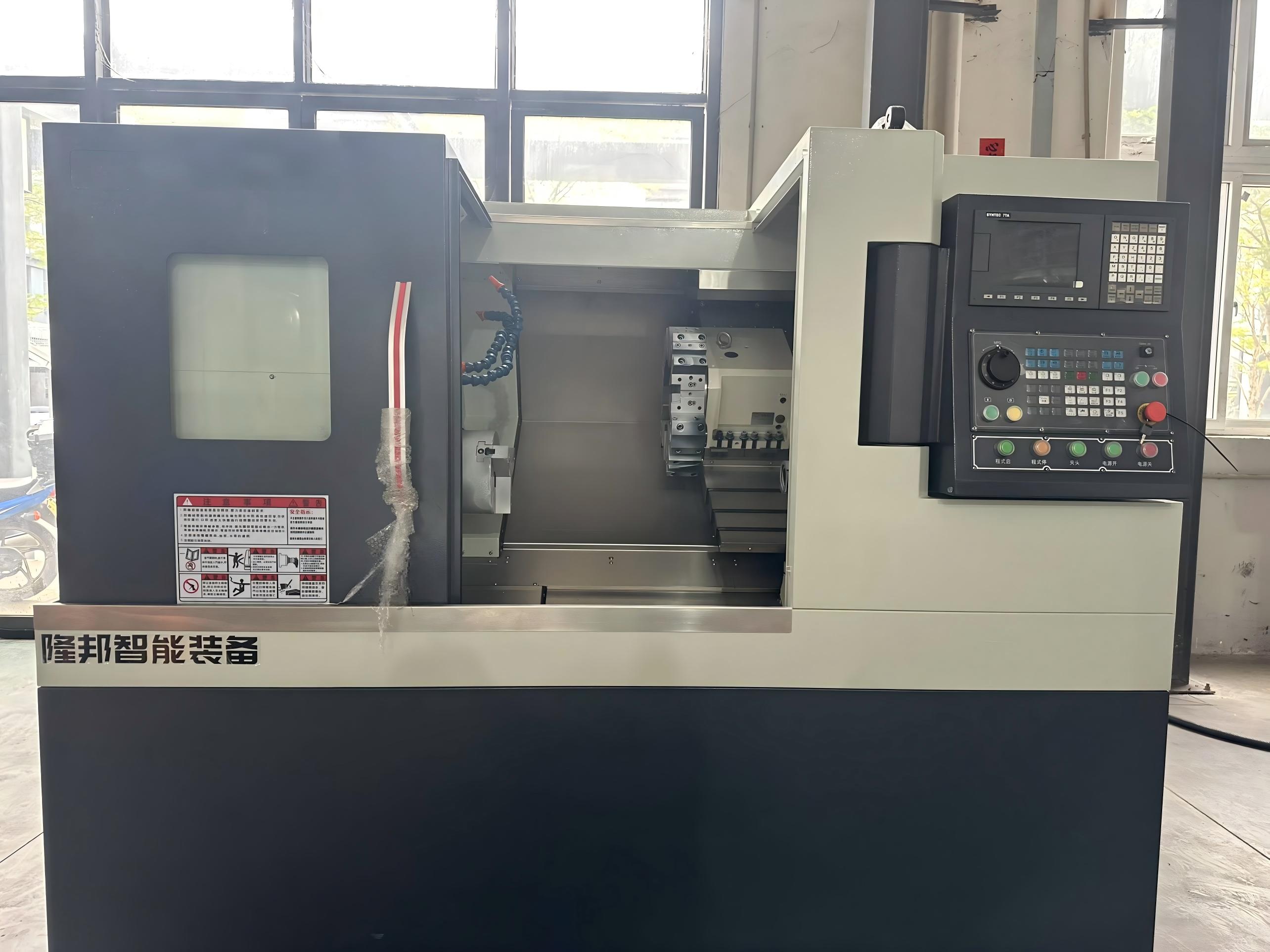

XL2-8TW Servo Turret Hydraulic Tailstock Turning Lathe
The XL2-8TW computer numerical control (CNC) turning lathe is an incredible precision machine tool for turning automatically at a maximum diameter of Φ420mm, 500mm machining length, and 22m/min rapid feed. With a servo turret, hydraulic tailstock, and high-rigidity linear guides, it will stabilize precision and efficient production of brass fittings and complex parts. With optional FANUC/Siemens/SYNTEC systems, it is suitable for high-volume, high-precision manufacturing.
Parameter Table
| # | Parameter | Unit | XL2-8TW Servo Turret Hydraulic Tailstock Lathe | |||
| 1 | Max. Turning Diameter | mm | Φ420 | |||
| 2 | Max. Machining Length | mm | 500 | |||
| 3 | Max. Swing Diameter over bed | mm | Φ560 | |||
| 4 | Max. Swing Diameter Over slide | mm | Φ220 | |||
| 5 | Bar Feeding Diameter | mm | <Φ52 | |||
| 6 | Spindle Bore | mm | Φ66 | |||
| 7 | Max. Spindle Speed | RPM | 4500 | |||
| 8 | X-axis Travel | mm | 240 | |||
| 9 | Z-axis Travel | mm | 500 | |||
| 10 | Tailstock Travel | mm | 500 | |||
| 11 | Rapid Feedrate | m / min | 22 | |||
| 12 | Max. Driven Tool Speed | RPM | \ | |||
| 13 | Voltage (3phase) | V | 380±10% | |||
| 14 | Frequency | Hz | 50 | |||
| 15 | Power | kW | 19 | |||
| 16 | Weight | kg | 3700 | |||
| 17 | Size (Length × Width × Height) | mm | 2550×1750×1850 (Excluding Chip Conveyor) | |||
| # | Configuration Table | |||||
| 1 | CNC | ☐ FANUC 0I-TF PLUS (3B) | ☐ Siemens 808D (Standard) ☐ Siemens 828D (Optional) (Shop Turn Programming) | ☐ SYNTEC 7TA | ||
| Spindle Rated Power / Torque of the Servo Motor | ☐ 11kW / 105Nm (Standard) ☐ 15kW / 143Nm (Optional) | 12kW / 115Nm | ☐ 11kW / 72Nm (Standard) ☐ 15kW / 98Nm (Optional) | |||
| X-axis Rated Power / Torque of the Servo Motor | 1.8kW / 11Nm | 1.75kW / 11Nm | 1.8kW / 11.5Nm | |||
| Z-axis Rated Power / Torque of the Servo Motor | 1.8kW / 11Nm | 1.75kW / 11Nm | 1.8kW / 11.5Nm | |||
| 2 | \ | Brand | Type / Spec | |||
| Spindle | ☐ LBIE Belt Spindle (OEM by HAOZHI) (Standard) ☐ Guangzhou HAOZHI Motor Spindle (Optional) ☐ Taiwan KENTURN Belt Spindle (Optional) | A2-6 | ||||
High-Capacity Turning Performance: This CNC lathe features a maximum turning diameter of Φ420mm and machining length of 500mm, with a large spindle bore of Φ66mm. It supports bar feeding up to Φ52mm, making it ideal for medium-to-large diameter shaft and disc parts processing.
High-Speed & High-Torque Drive System: Equipped with robust servo motors for X/Z axes and optional high-power spindle drives (up to 15kW/98Nm), it delivers stable cutting power with a maximum spindle speed of 4500RPM and rapid feed rate of 500m/min, ensuring efficient material removal.
Versatile Configuration & Flexibility: Supports mainstream CNC systems (FANUC 0I-TF PLUS, Siemens 828D, SYNTEC 7TA) and optional premium spindles (HAOZHI/KENTURN), adapting to diverse production needs and global operational habits.

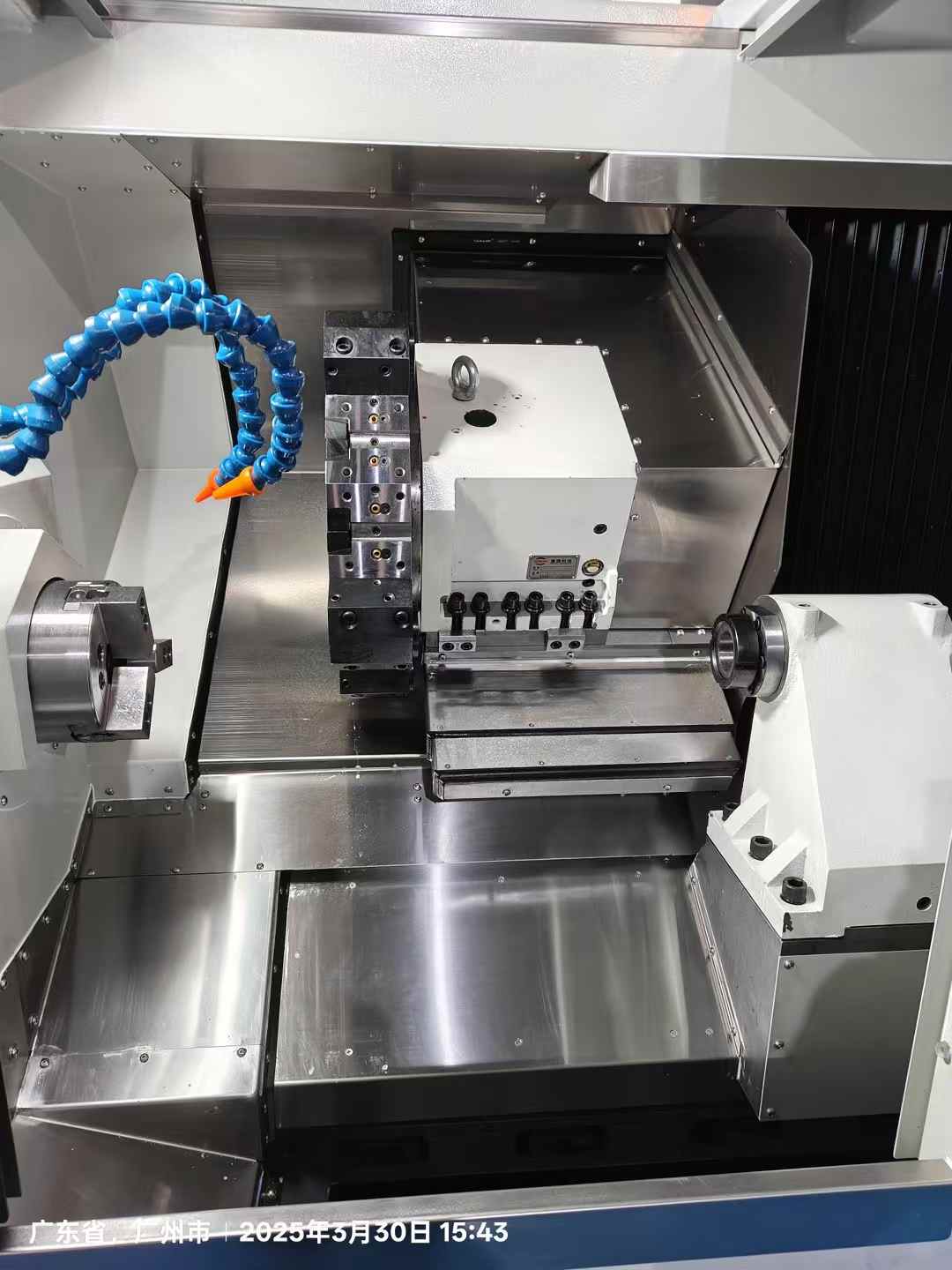

Hydraulic Tailstock for Enhanced Stability: Integrated hydraulic tailstock with 500mm travel provides firm support for long and slender workpieces, significantly improving machining accuracy and surface quality during high-speed rotation.
Details Display

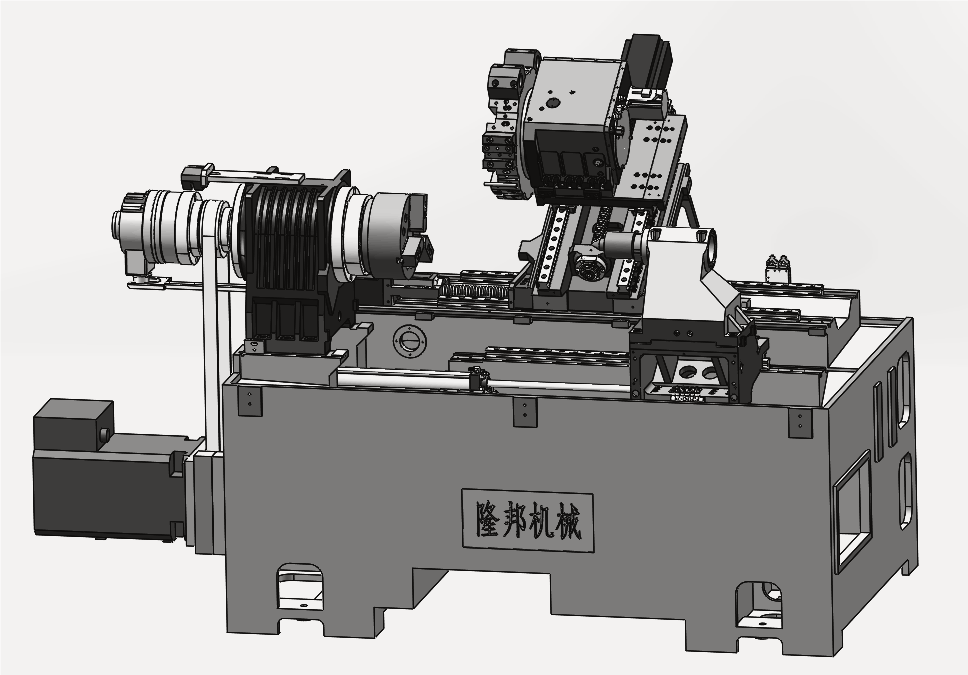

Built with HT300 cast iron slant bed and high-low guideways, this slant bed CNC lathe features outstanding structural rigidity and vibration damping. Its robust design ensures stable running and reliable precision during long-hour heavy cutting, making it an efficient automatic CNC lathe especially suitable as a high-performance CNC lathe for brass fittings.
The XL2-8TW is equipped with a high-performance A2-6 belt spindle (standard by HAOZHI, with optional KENTURN spindle). With a maximum speed of 4500RPM and large bore of Φ66mm, it offers strong cutting power and stable rotation accuracy. The spindle’s high rigidity supports heavy-duty turning and milling, ensuring consistent output quality of the CNC machine tool.
The XL2-8TW adopts premium Rexroth linear guide rails (35 Roller Guide type) for X/Z axes. This design offers superior load-bearing capacity and rigidity, ensuring smooth, friction-free movement during high-speed feed. It effectively minimizes vibration and wear, providing a stable motion foundation for the CNC lathe’s high-precision machining.

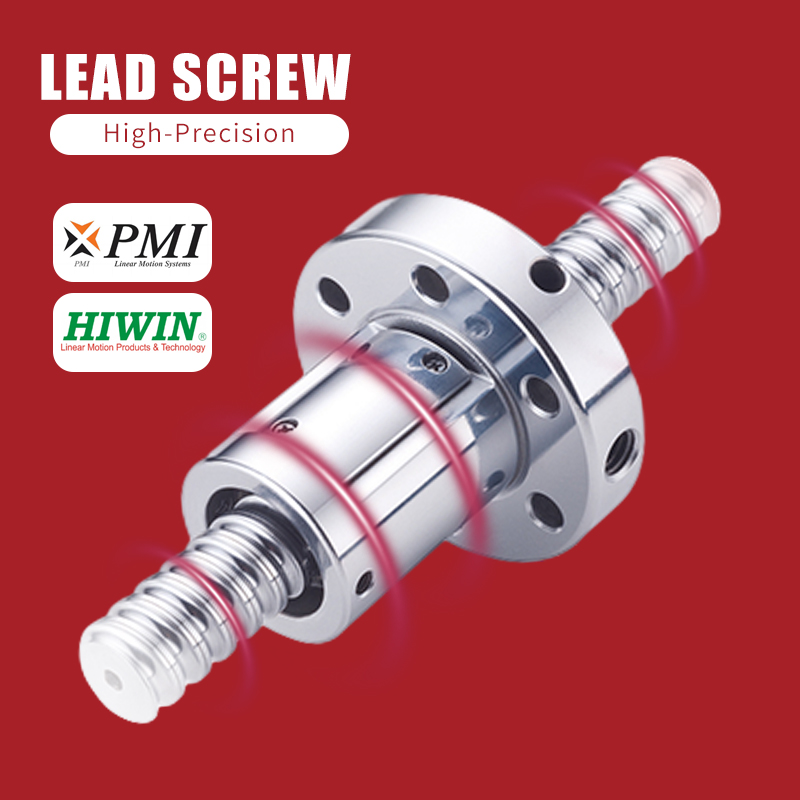

Incorporating precision-ground lead screws (spec 32) from Rexroth, this CNC lathe is capable of attaining very low backlash and excellent transmission efficiency.
The lead screw’s precise positioning capability directly corresponds to the dimensional stability and consistency of the workpieces, which is fundamental to the CNC machine tool's high-precision processing capability.

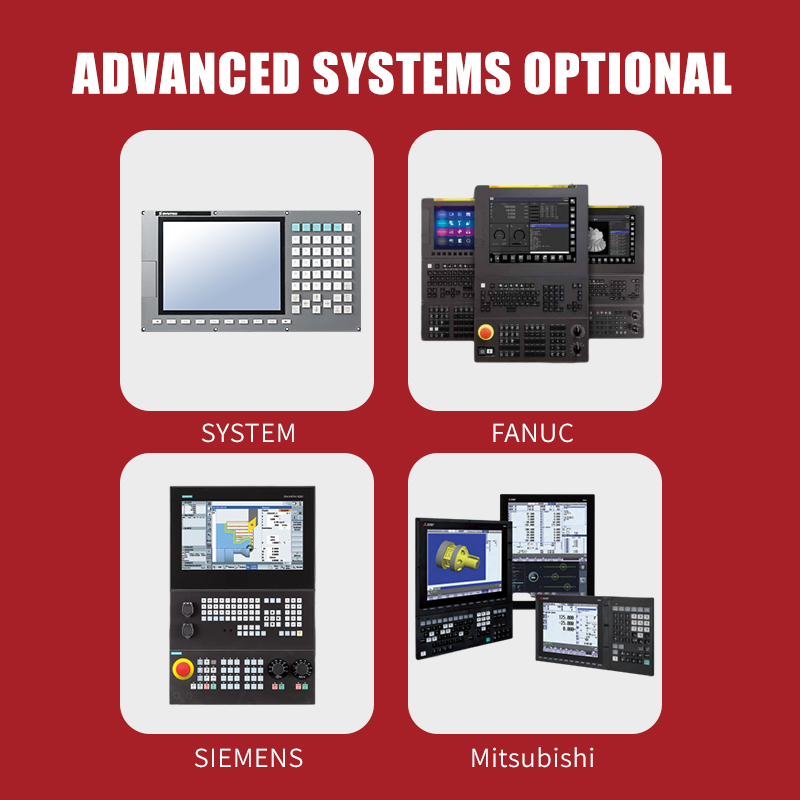

Our CNC lathes are very versatile and can work with lots of different major control systems, such as Syntec, Fanuc, and Siemens, giving users the freedom to pick the control system that's most appropriate for their machining needs, accustomed operations, and desired production efficiency.
