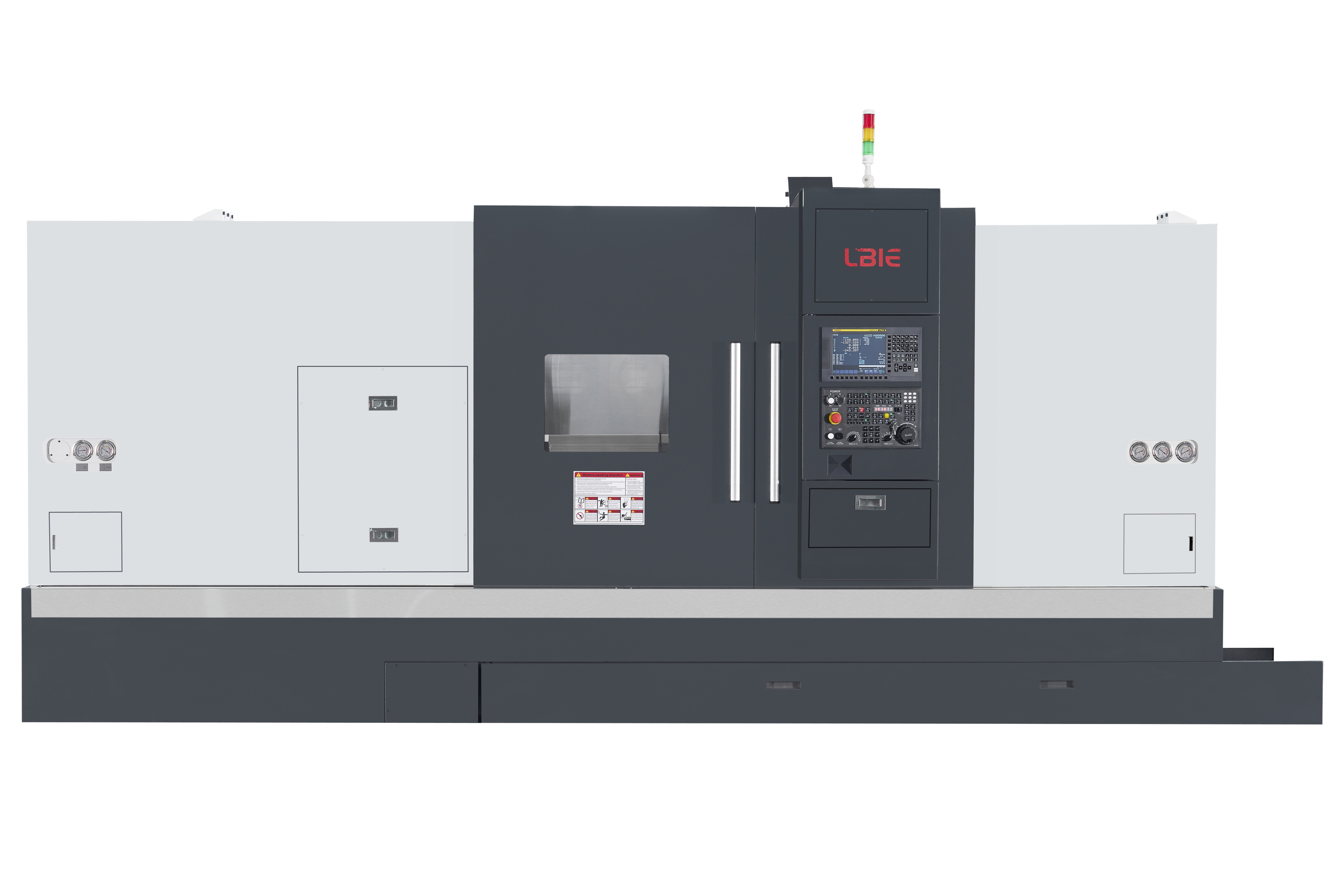

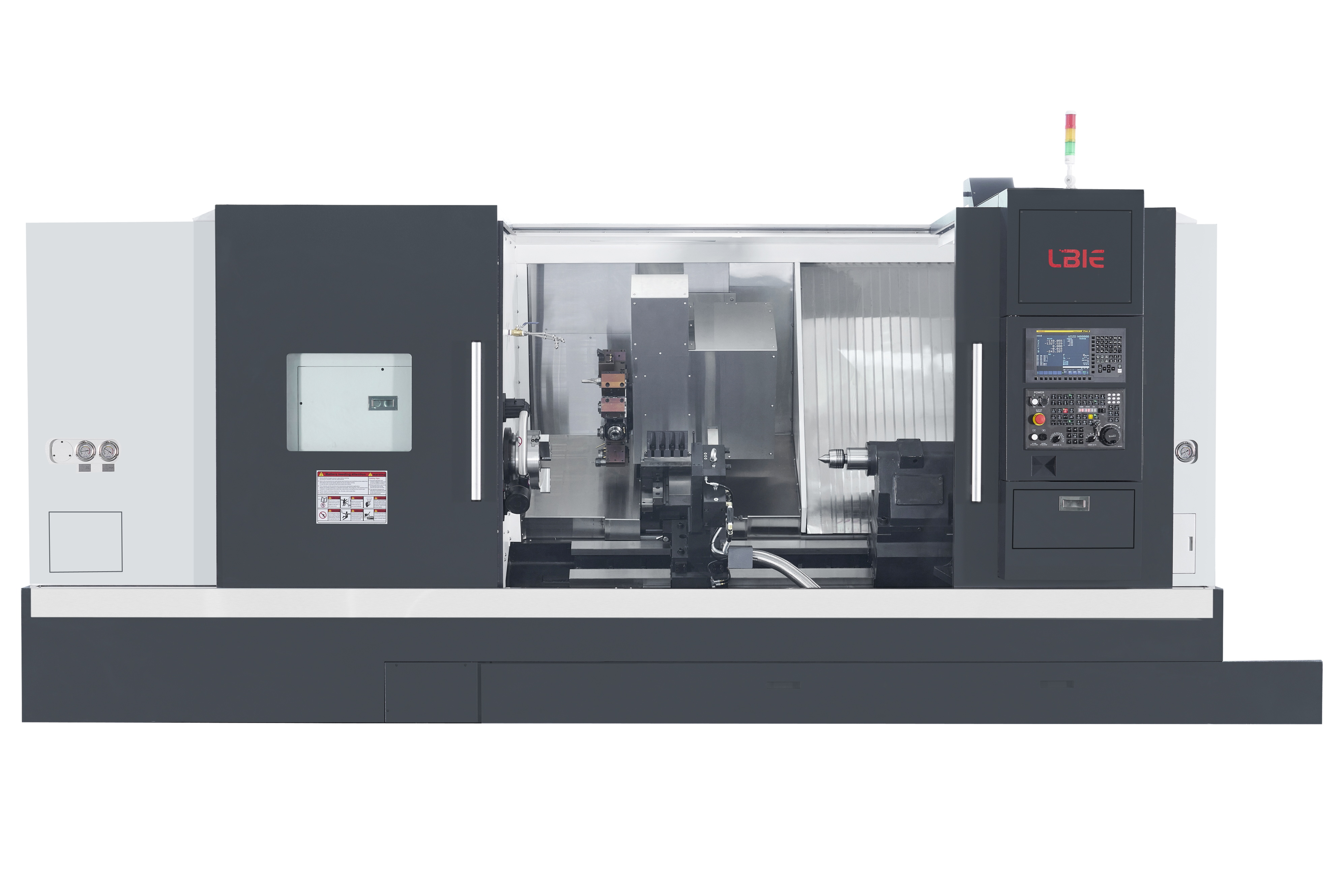

BG1500-10ZYDW Orthogonal Y-axis Turning and Milling Machine Tool
The BG1500-10ZYDW is an extremely capable CNC machine tool featuring an orthogonal Y-axis turning and milling center, combined with heavy-duty capability for precision CNC lathe for the manufacturing of complex and large parts. To be a professional heavy-duty lathe, it is equipped with a sturdy cast iron body and a 15kW high-torque spindle. Major workpieces of up to Φ600mm in swing diameter and 1500mm in machining length are possible, thus making it an excellent choice for the aerospace, automotive, energy, and heavy machinery sectors.
Parameter Table
| # | Parameter | Unit | BG1500-10ZYDW Orthogonal Y-axis Turning and Milling Machine Tool | |||
| 1 | Max. Turning Diameter | mm | Φ520 | |||
| 2 | Max. Machining Length | mm | 1500 | |||
| 3 | Max. Swing Diameter over bed | mm | Φ600 | |||
| 4 | Max. Swing Diameter Over slide | mm | Φ450 | |||
| 5 | Bar Feeding Diameter | mm | <Φ75 | |||
| 6 | Spindle Bore | mm | Φ86 | |||
| 7 | Max. Spindle Speed | RPM | 3000 | |||
| 8 | X-axis Travel | mm | 260 | |||
| 9 | Y-axis Travel | mm | ±50 | |||
| 10 | Z-axis Travel | mm | 1505 | |||
| 11 | Tailstock Travel | mm | 1400 | |||
| 12 | Morse Taper | mm | 65(5#) | |||
| 13 | Rapid Feedrate | m / min | 22 | |||
| 14 | Max. Driven Tool Speed | RPM | 4000 | |||
| 15 | Voltage (3phase) | V | 380±10% | |||
| 16 | Frequency | Hz | 50 | |||
| 17 | Power | kW | 29 | |||
| 18 | Weight | kg | 7030 | |||
| 19 | Size (Length × Width × Height) | mm | 4900 × 2260 × 2410 | |||
| # | Configuration Table | |||||
| 1 | CNC | ☐ FANUC 0I-TF PLUS (3B) | □ Siemens 828D (With Shop Turn/Mill Function) | □ SYNTEC 22TB | ||
| Spindle Rated Power / Torque of the Servo Motor | 15kW / 143Nm | 15kW / 143Nm | 15kW / 143Nm | |||
| X-axis Rated Power / Torque of the Servo Motor | 1.8kW / 11Nm | 2.2kW / 12Nm | 3.1kW / 14.6Nm | |||
| Y-axis Rated Power / Torque of the Servo Motor | 1.8kW / 11Nm | 2.2kW / 12Nm | 3.1kW / 14.6Nm | |||
| Z-axis Rated Power / Torque of the Servo Motor | 3kW / 20Nm | 3.6kW / 22Nm | 3.7kW / 23Nm | |||
| Driven Tool Rated Power / Torque of the Servo Motor | ☐ 2.7kW / 12Nm (Standard) ☐ 4.3kW / 22Nm (Optional) | 3.6kW / 22Nm | 5.5kW 17.5Nm (Water Coolant Motor) | |||
| 2 | \ | Brand | Type / Spec | |||
| Spindle | ☐ LBIE Belt Spindle (OEM by HAOZHI) (Standard) ☐ Taiwan KENTURN Belt Spindle (Optional) | A2-8 | ||||
Key Features
✅ Heavy-Duty Machining Power : This machine is a sturdy heavy-duty lathe equipped with a powerful 15kW high-torque spindle, fully capable of handling large workpieces with a maximal swing diameter of Φ600mm and machining length of 1500mm.
✅ Orthogonal Y-Axis Innovation : The inclusion of an orthogonal Y-axis allows for complex turning, milling, drilling, and tapping all within the same setup, thereby significantly broadening the extent of machining possibilities for producing complex parts.
✅ Ultra-Precision Performance : This top-of-the-line Precision CNC lathe is fitted with super-rigid linear guides and precision lead screws. It is capable of micron-level accuracy and is the perfect choice for those demanding applications.
✅ High-Efficiency Live Tooling : With a driven tool speed of 4000RPM and a BMT55-12 servo turret, the machine can quickly change tools and perform multi-task machining, thus production cycle times are significantly decreased.
✅ Flexible & Reliable Configuration : This machine supports FANUC/Siemens/SYNTEC CNC systems and is made with high-quality imported core components to ensure long-term stability in heavy production environments.

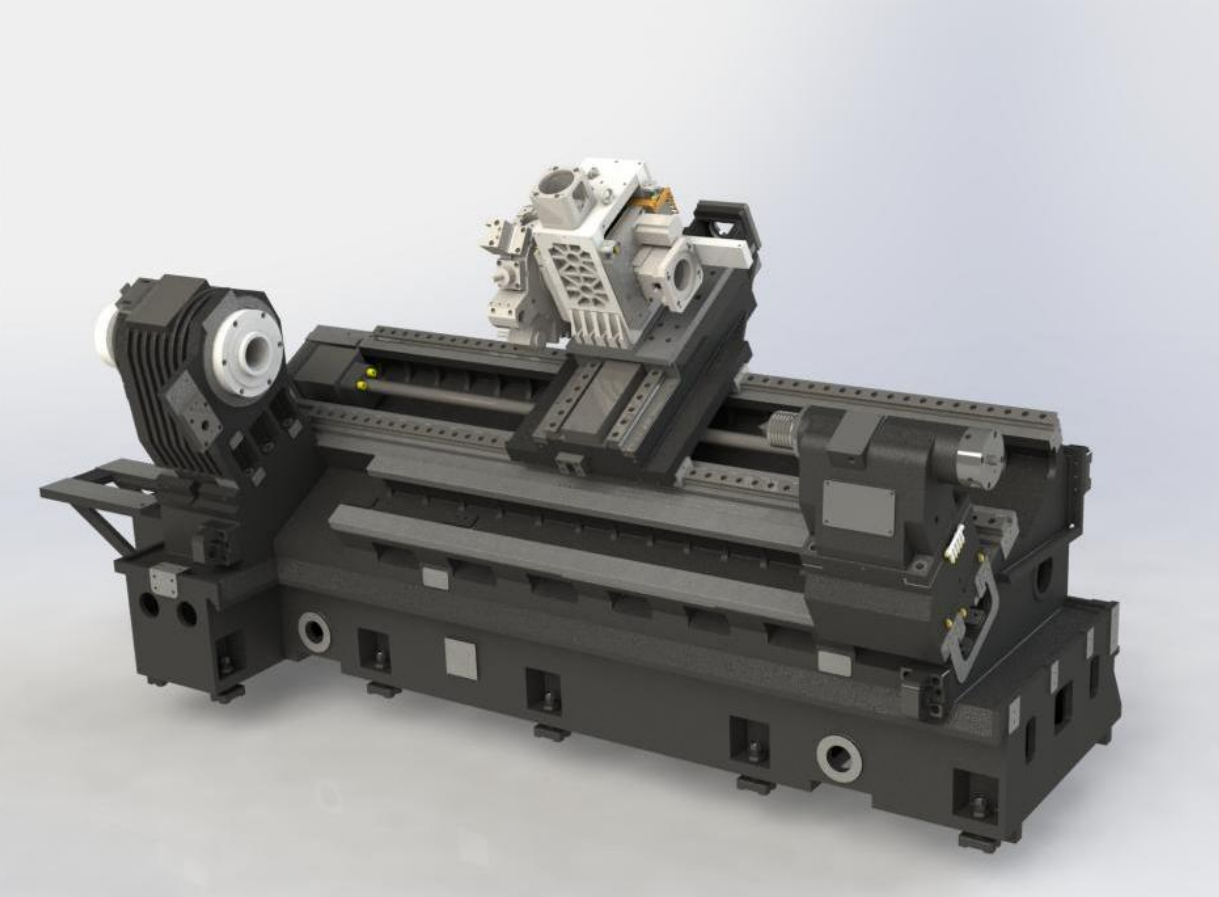

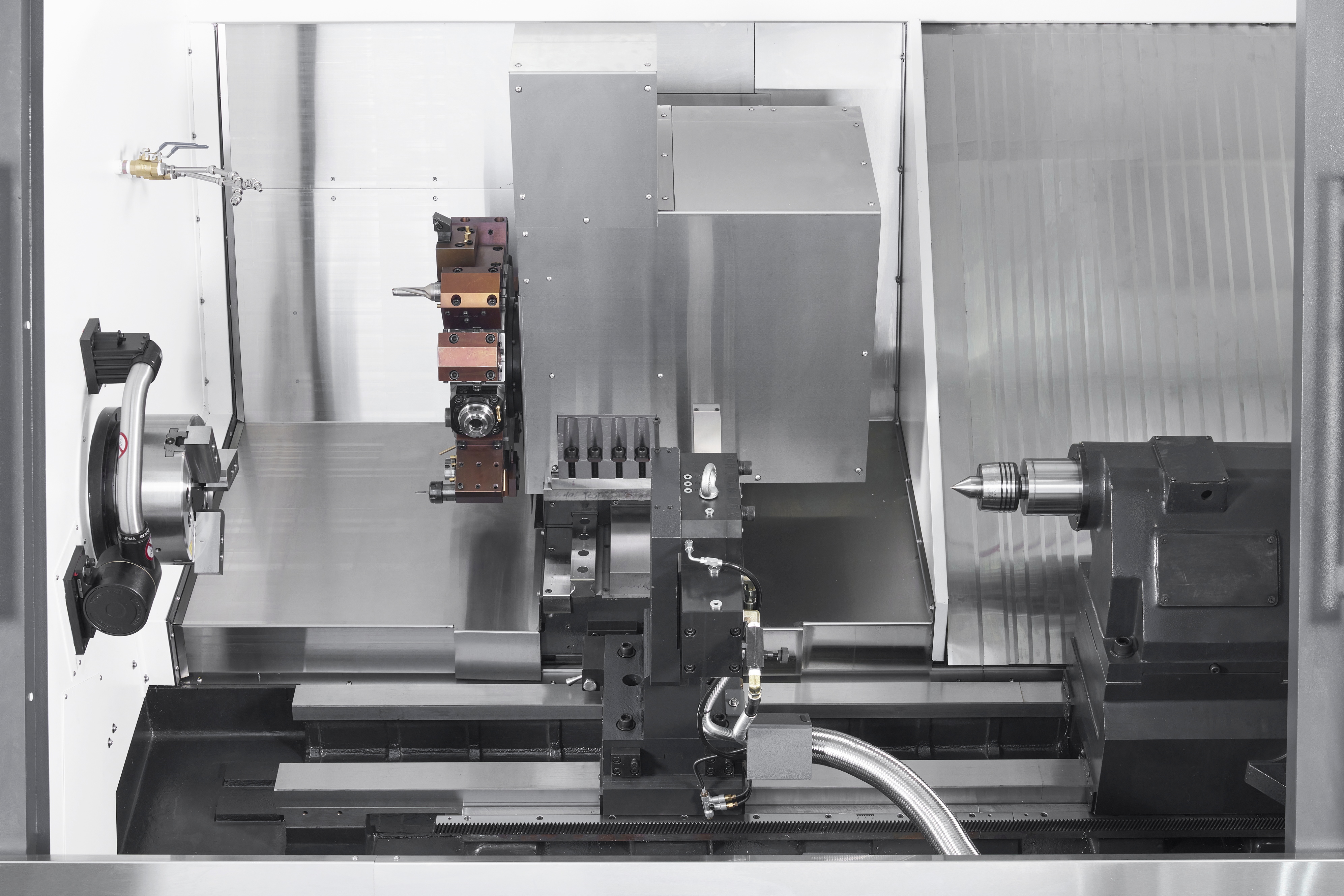

Details Display
With an HT300 cast-iron slant bed and high-low guideways optimally arranged, this slant-bed CNC lathe has great stiffness, and vibration hardly affects it at all. The strong construction of the machine ensures stable, accurate function even during long-term heavy cutting, making it a dependable automatic CNC lathe that is ideal for the high-efficiency machining of brass parts.

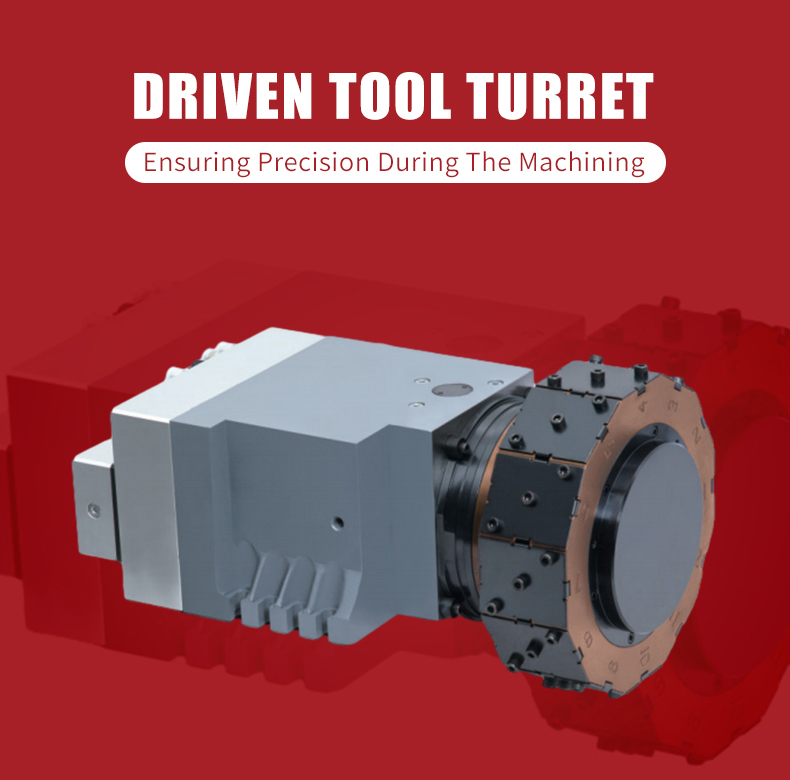

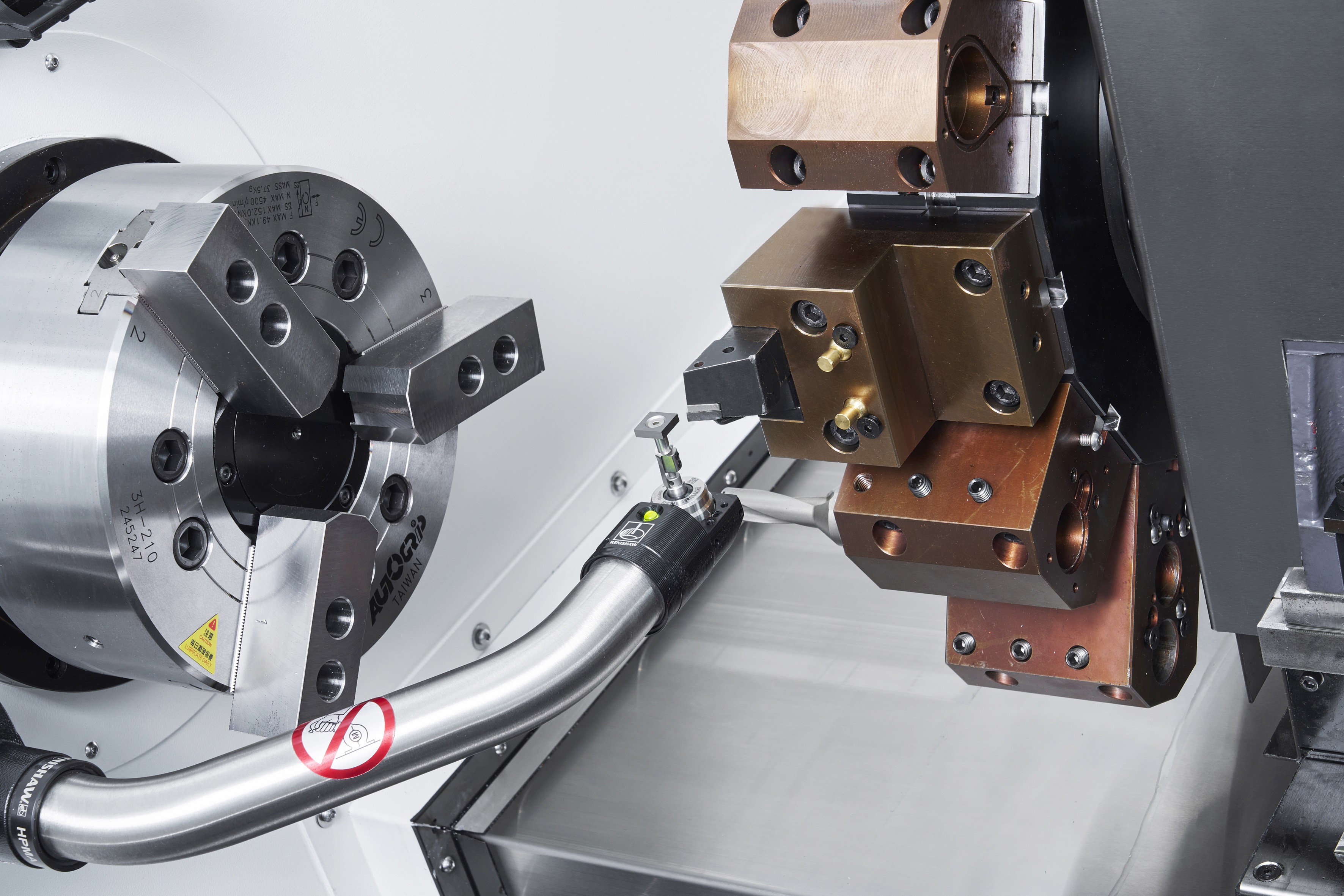

Turret
The BG1500-10ZYDW features a servo turret from Taiwan's TCSM BMT55-12 with hydraulic locking. Such a high-precision turret is capable of delivering ultra-fast indexing, strong clamping, and no backlash at all, thus resulting in 4000RPM-driven tooling for multi-task machining support. Robust construction makes stable, repeatable tool changes, thus fully leveraging the efficiency of this Precision CNC lathe in continuous heavy-duty production.

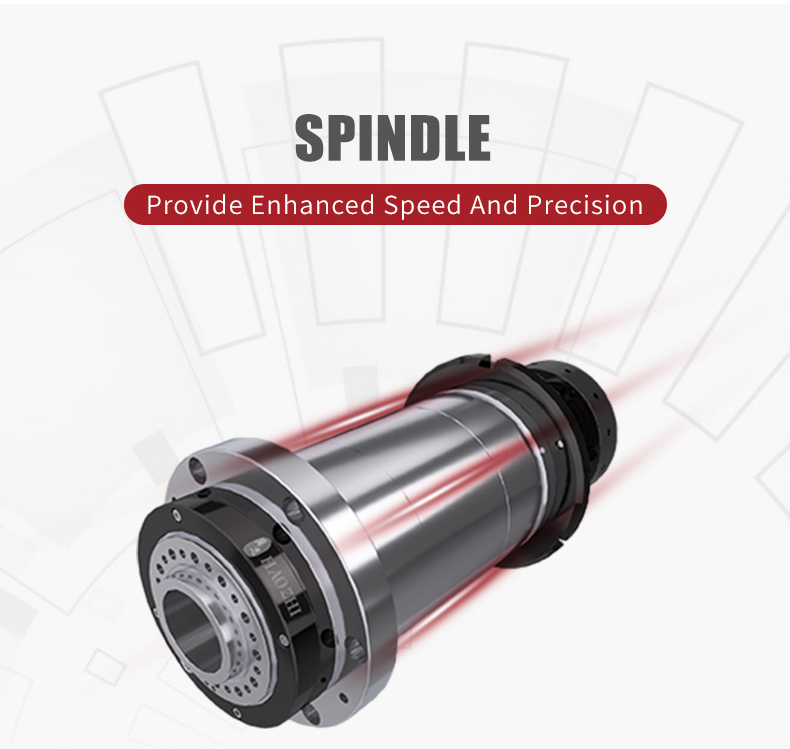

Spindle
The BG1500-10ZYDW features a high-performance A2-8 spindle system at its core (standard: LBIE HAOZHI belt spindle, optional: Taiwan KENTURN belt spindle). The spindle is capable of a maximum speed of 3000RPM and has a large spindle bore diameter of Φ86mm. This spindle, which is extremely rigid with minimal vibrations, offers high torque and reasons for rotation accuracy. It can consistently and efficiently handle the cutting of large-sized workpieces due to its stability and power. It is therefore the perfect choice for heavy-duty lathe production.
The BG1500-10ZYDW features a high-performance A2-8 spindle system (standard: LBIE HAOZHI belt spindle; optional: Taiwan KENTURN belt spindle) that can reach a maximum speed of 3000 revolutions per minute and has a large spindle bore of φ86mm. It is equipped with a highly rigid and low-vibration spindle that offers great torque and rotational accuracy. Therefore, it is capable of stable and powerful cutting of large workpieces, which perfectly fits the requirements of heavy-duty lathe production.
This precision CNC lathe is fitted with the most accurate HIWIN/PMI/THK 40-series ball screws for X/Z axes, which makes it possible to achieve ultra-low friction and minimal backlash.
Moreover, the top-level lead screw mechanism ensures not only the maintenance of high positioning accuracy but also the provision of smooth linear motion, even if the machine is working non-stop under heavy-duty conditions, allowing for the efficient and repeatable manufacturing of large and complex parts.

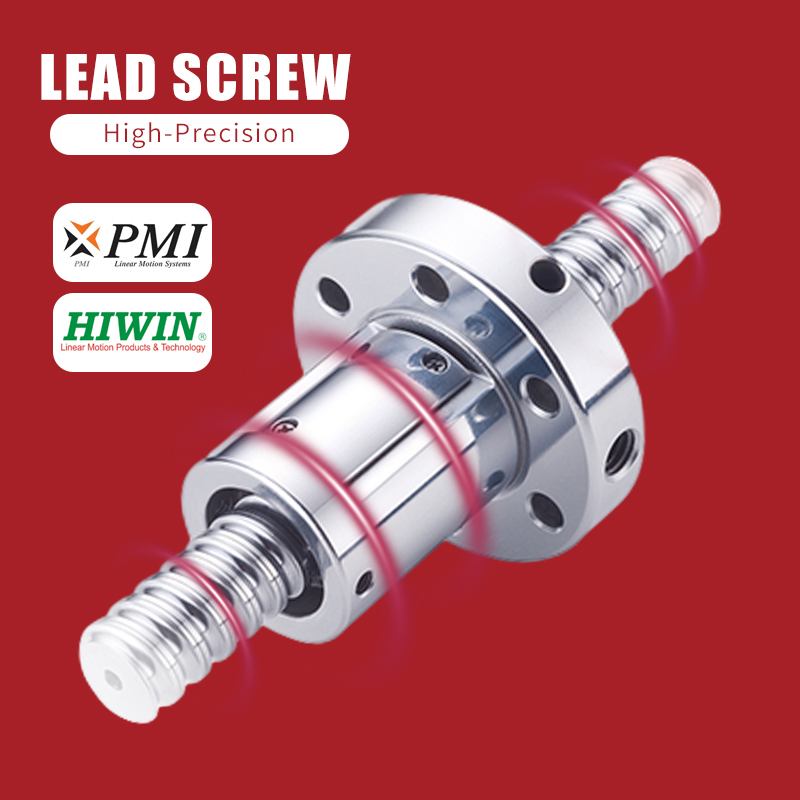

Lead Screw
By the adoption of high-precision HIWIN/PMI/THK 40 series ball screws for the X and Z axes, this Precision CNC lathe is capable of achieving ultra-low friction and minimal backlash. The superior lead screw system not only maintains the positioning accuracy at a high level but also ensures smooth linear motion in long, heavy-duty production cycles, enabling the efficient, repeatable manufacturing of large, complex parts.

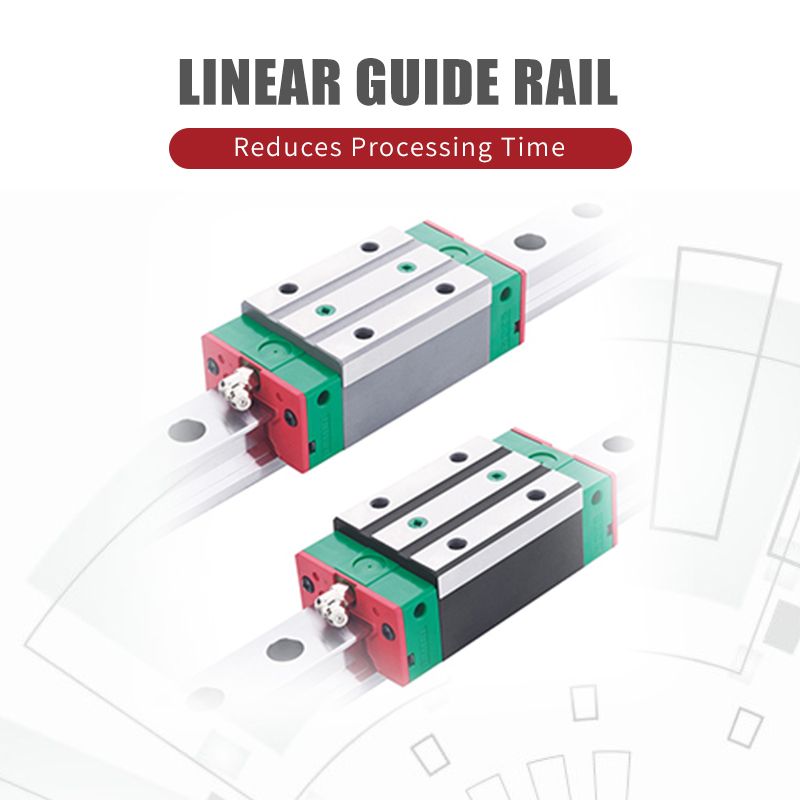

Linear Guide Rail
HIWIN/PMI 45-series heavy-load linear roller guide ways are equipped on the X/Z axes of the BG1500-10ZYDW heavy-duty lathe. Such high-rigidity guide ways have phenomenal load capacity, vibration damping, and smooth motion, rendering the total movement of the heavy-duty cutting to be stable at an extremely high level, which is the very matter of the Precision CNC lathe's micron-level accuracy.
