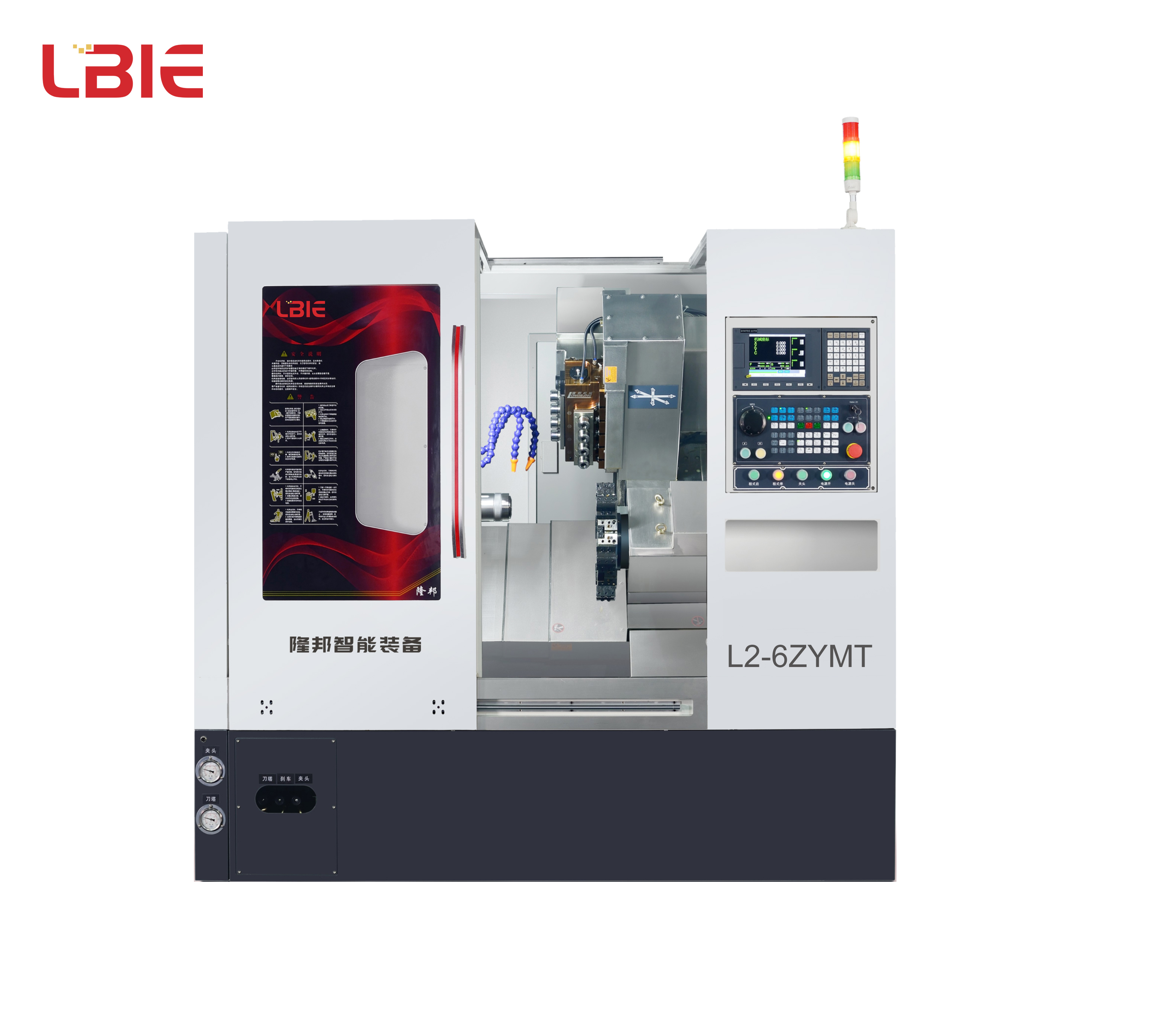

L2-6ZYMT 4+4 Live Tool Turning-Milling CNC Machine Tool for Metalworking
The L2-6ZYMT is a high-performance 4+4 driven tool CNC lathe with a normal turret, designed for precision turning work and composite milling machining of metal parts. As a professional CNC machine tool, it combines Y-axis interpolation technology and a 4+4 driven tool turret, allowing for full multi-process machining of complicated metal workpieces in a single clamping, thus the efficiency and accuracy of modern metalworking are being redefined.
Parameter Table
| # | Parameter | Unit | L2-6ZYMT 4+4 Driven Tool + Normal Turret Turning and Milling Machine Tool | |||
| 1 | Max. Turning Diameter | mm | Φ300 | |||
| 2 | Max. Machining Length | mm | 200 | |||
| 3 | Max. Swing Diameter over bed | mm | Φ400 | |||
| 4 | Max. Swing Diameter Over slide | mm | Φ140 | |||
| 5 | Bar Feeding Diameter | mm | <Φ46 | |||
| 6 | Spindle Bore | mm | Φ56 | |||
| 7 | Max. Spindle Speed | RPM | 5000 | |||
| 8 | X-axis Travel | mm | 800 | |||
| 9 | Y-axis Travel | mm | 180 | |||
| 10 | Z-axis Travel | mm | 300 | |||
| 11 | Rapid Feedrate | m / min | 22 | |||
| 12 | Max. Driven Tool Speed | RPM | 4000 | |||
| 13 | Voltage (3phase) | V | 380±10% | |||
| 14 | Electric Frequency | Hz | 50 | |||
| 15 | Power | kW | 24 | |||
| 16 | Weight | kg | 2500 | |||
| 17 | Size (Length × Width × Height) | mm | 2350 × 1700 × 2000 | |||
| # | Configuration Table | |||||
| 1 | CNC | ☐ FANUC 0I-TF PLUS (3B) | ☐ Siemens 828D (With Shop Turn/Mill Function) | ☐ SYNTEC 22TB | ||
| C-axis Rated Power / Torque of the Servo Motor | □ 7.5kW / 59.7Nm (Standard) ☐ 11kW / 105Nm (Optional) | ☐ 9kW / 57Nm (Standard) ☐ 11kW / 105Nm (Optional) | ☐ 7.5kW / 49Nm (Standard) ☐ 11kW / 72Nm (Optional) | |||
| X-axis Rated Power / Torque of the Servo Motor | 1.8kW / 11Nm | 2.2kW / 12Nm | 2.4kW / 11.5Nm | |||
| Y-axis Rated Power / Torque of the Servo Motor | 1.2kW / 7Nm | 1.15kW / 6.5Nm | 1.7kW / 8.4Nm | |||
| Z-axis Rated Power / Torque of the Servo Motor | 1.8kW / 11Nm | 2.2kW / 12Nm | 2.4kW / 11.5Nm | |||
| Driven Tool Rated Power / Torque of the Servo Motor | 1.2kW / 7Nm | 1.15kW / 6.5Nm | 1.7kW / 8.4Nm (SYNTEC Two Motors) | |||
| 2 | Spindle | Brand | Type / Spec | |||
| ☐ LBIE Belt Spindle (OEM by HAOZHI) (Standard) ☐ Guangzhou HAOZHI Motor Spindle (Optional) ☐ Taiwan KENTURN Belt Spindle (Optional) | A2-5 | |||||
Key Feature

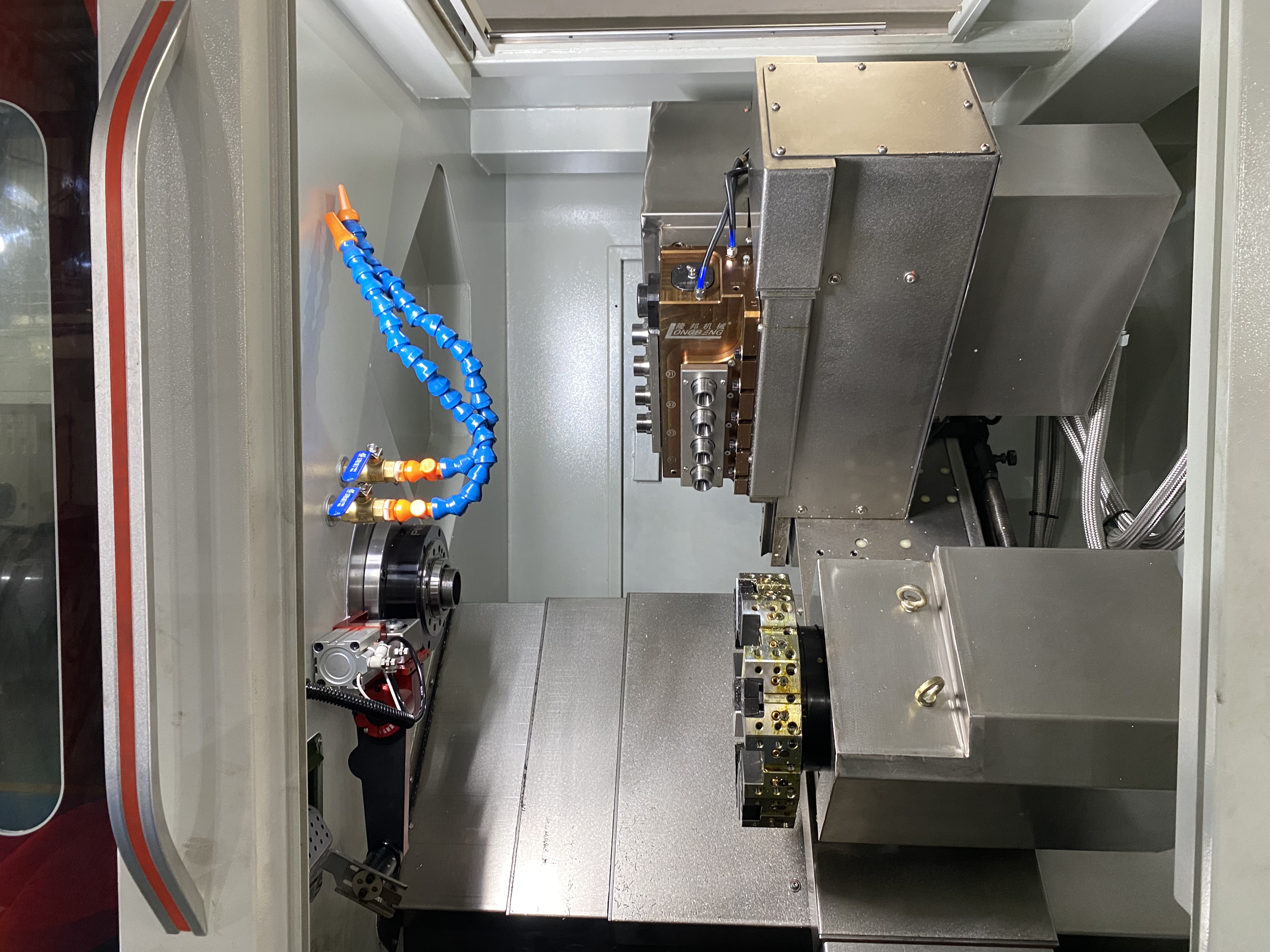

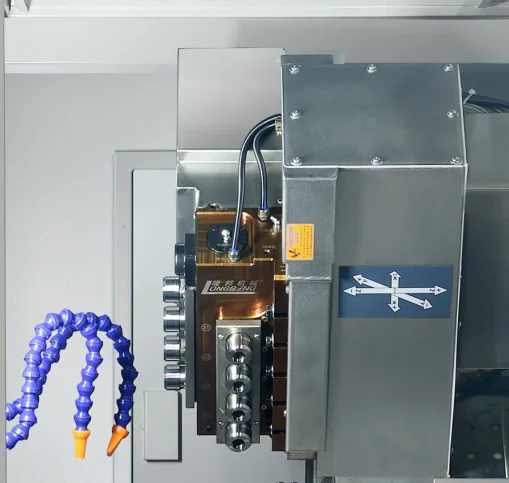

4+4 Driven Tool & Y-Axis Turning-Milling Integration
Mounted with a 4+4 driven tool turret and an interpolated Y-axis, this CNC lathe allows one-stop turning, milling, drilling, and tapping operations all in a single setup. It gets rid of the need for secondary clamping, hugely slashes the production time, and offers outstanding flexibility for machining complex metal parts.
High-Precision Motion System for Stable Performance
This CNC machine tool, which has premium linear guide rails, lead screws, and bearings from world-famous brands, is capable of ultra-smooth linear motion, minimal backlash, and long-term positioning accuracy, which are the main features that will bring consistent quality for high-tolerance metal workpieces.
Powerful Spindle & Servo System for Heavy-Duty Cutting
Being equipped with a high-torque A2-5 spindle (max speed 5000RPM) and high-power servo motors, this CNC lathe for metal has a strong cutting power for hard materials and big stock removal, which is perfect for mass production of automotive, aerospace, and industrial components.
Details Display
A2-5 Spindle for Superior Metal Machining
This CNC lathe is equipped with a high-rigidity A2-5 spindle that operates at a maximum speed of 5000RPM, providing great low-vibration power for turning, milling, and drilling metal parts. Designed for stability and precision, it guarantees the consistency of accuracy and effectiveness of cutting for all metalworking operations, which is why it is the key element of our high-performance CNC machine tool.

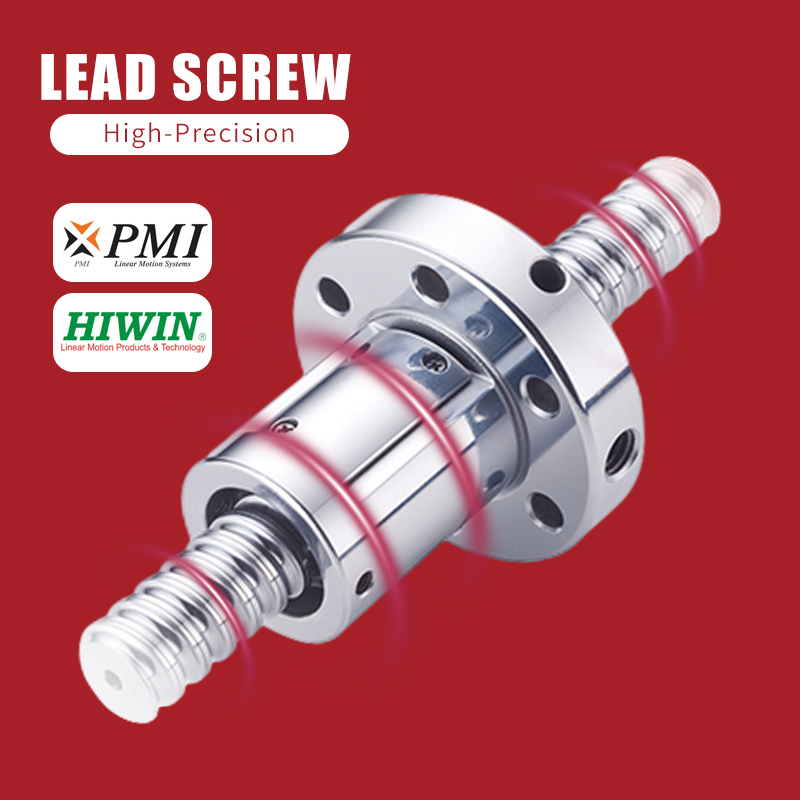

This CNC machine tool is fitted with HIWIN and PMI's high-precision ground ball lead screws for all linear axes. The lead screws have very low backlash and high transmission efficiency, which allows precise and responsive control of tool movement at rapid feed rates of up to 22m/min. Besides, they ensure dependable dimensional accuracy of complex metal parts even after continuous high-load operation.
It is equipped with very accurate 35 Ball Guide linear guide rails of HIWIN, PMI, and INA brands for X and Z axes, and a hardened linear guide for the Y axis. These top-quality rails not only offer excellent load-bearing capacity but also work with very low friction. As a result, the linear motion is ultra-smooth and stable even when high-speed turning and milling. They keep the positioning accuracy unchanged and have a long life. Thus, they not only provide a good base for this CNC lathe's precision performance but also serve as the foundation.

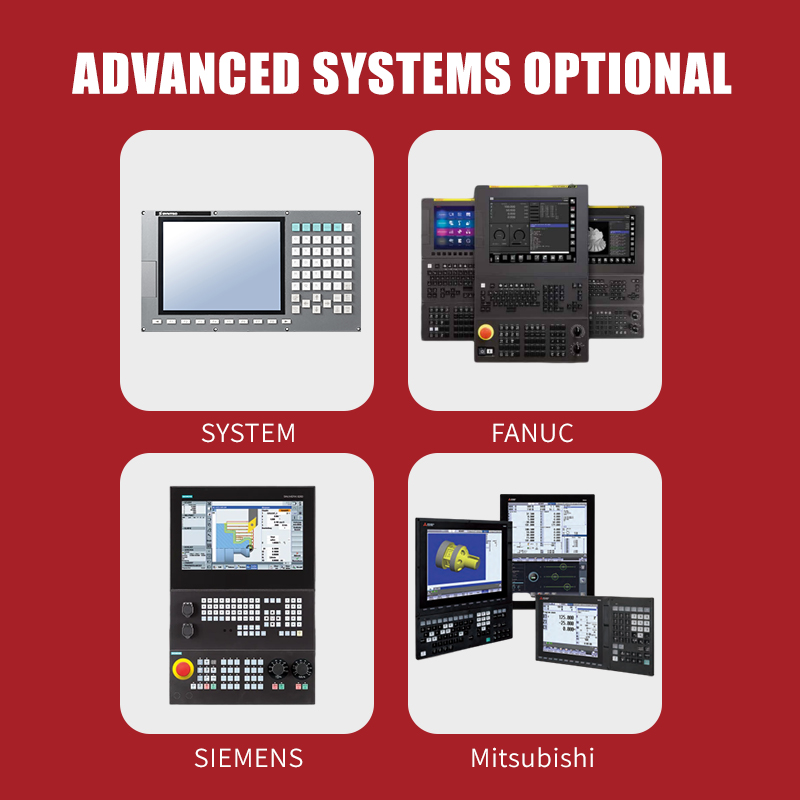

System
LBIE’s high-performance CNC lathes come with an optional variety of advanced CNC systems featuring some of the best brand names, such as FANUC, SIEMENS, SYNTEC, and MITSUBISHI. No matter if you are into achieving high-speed, accurate results, doing multi-axis, intricate machining, or producing large quantities at a minimal cost, a suitable control system is available for your production workflow, helping your metalworking in a reliable, intelligent, and globally-standard manner.
Partial workpiece display
Our advanced live tool CNC lathes, which are mainly used for making hydraulic fittings and medical components, have integrated turning-milling capabilities. Thus, they are capable of manufacturing with very high precision. These machines perform at a very high level and are very consistent. They can meet the requirements in terms of tightness of tolerances on materials such as aluminum, steel, titanium, and other exotic types. The main users of these machines are aerospace, automotive, medical, nuclear energy, and other industries.
About Us
2007：Beginning of the business, focusing on R&D, making, selling, and servicing turning and milling machine tools.
2009：Creation of China’s first 4+4 live turning and milling machine tool.
2014：Made a breakthrough in the technical barrier of interpolated Y-axis turning and milling machine tool.
2022：Introduced a dual-spindle dual-turret turning and milling composite machine tool.
Today：Relying on a long-standing industry experience of 15 years, certified production qualification, as well as global service capability covering nuclear energy, aerospace, automotive, home appliances, and more, we are actively looking for global agents to introduce excellent Chinese CNC machine tools to customers worldwide.

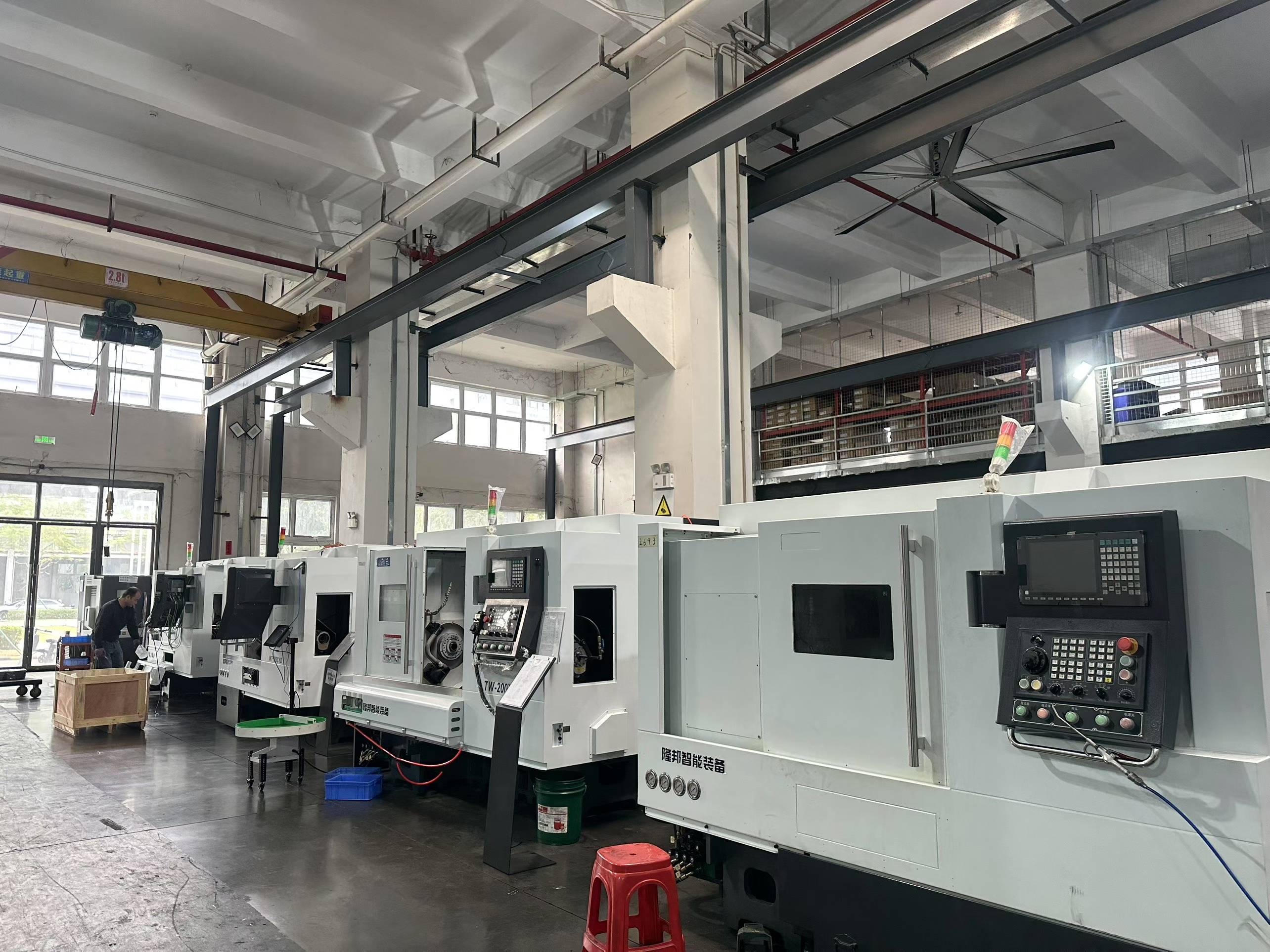

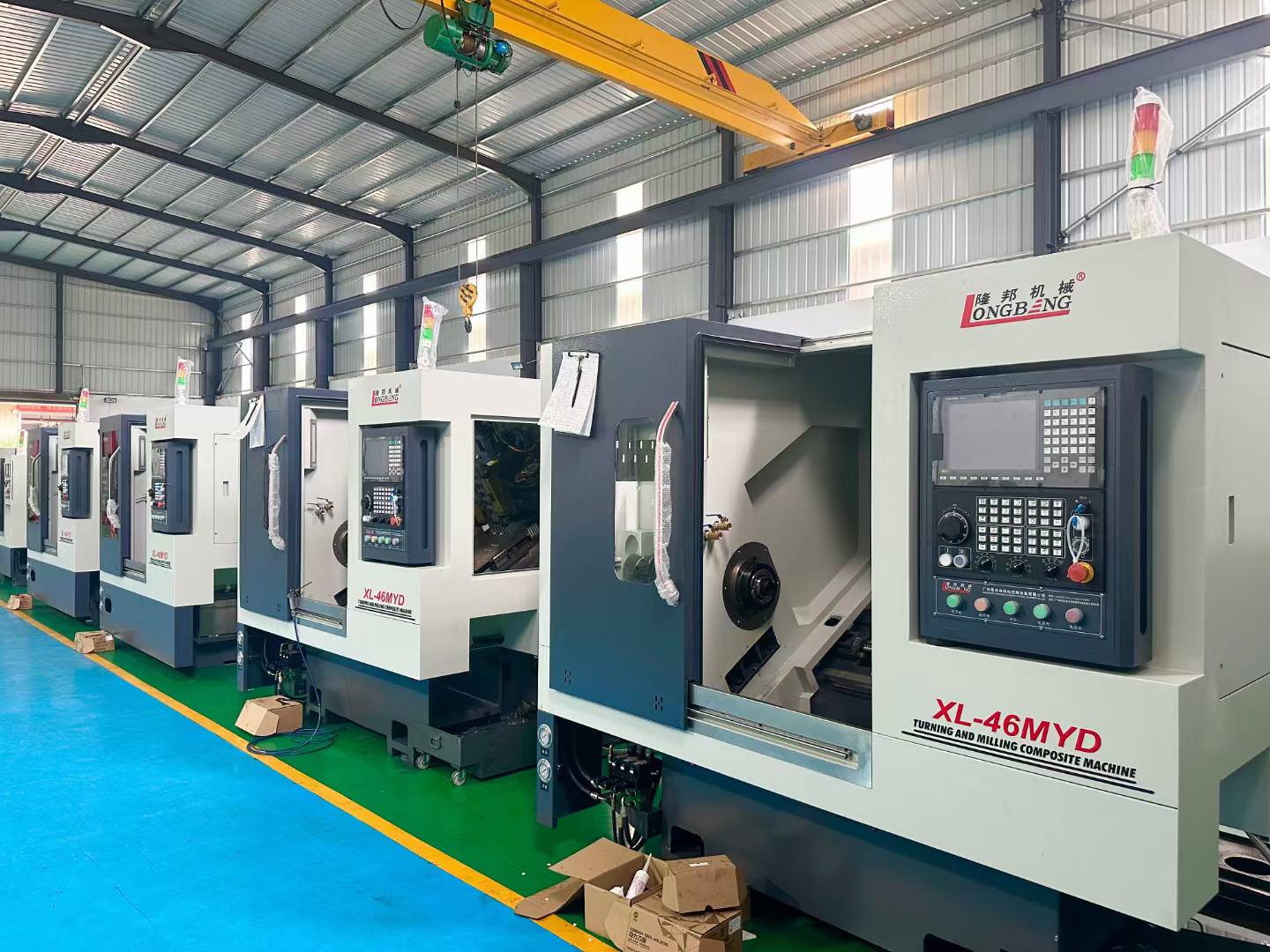

Premium CNC Machinery
In this exhibition, you can see the latest CNC machining machines that we use. It includes large-sized gantry machining centers, milling heads of the highest precision by Okuma, and 5-axis linkage machining systems. These high-end equipments have superb rigidity, stability, and ultra-high machining accuracy, which make it possible to efficiently process large & complicated workpieces with very strict tolerance requirements. They are installed with the control systems of world-famous brands and intelligent operation interfaces, thus making them very suitable for aerospace, automotive, mold, and heavy machinery manufacturing. They are the sources of your reliable performance and superior production efficiency for diverse industrial applications.

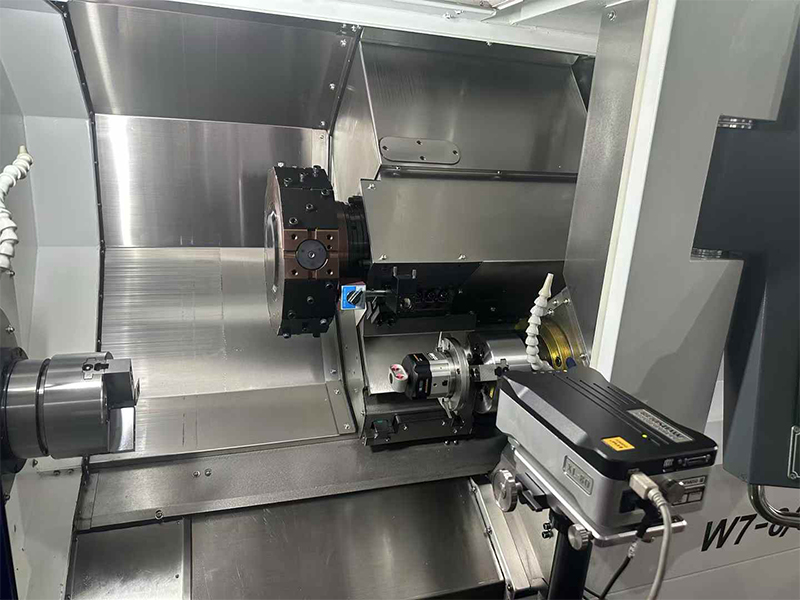

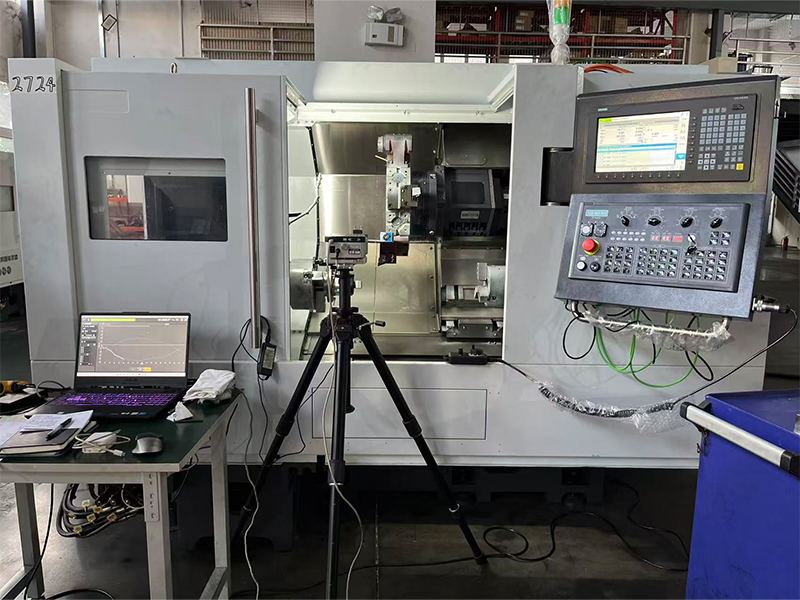

Laser Interferometer
Accuracy Compensation

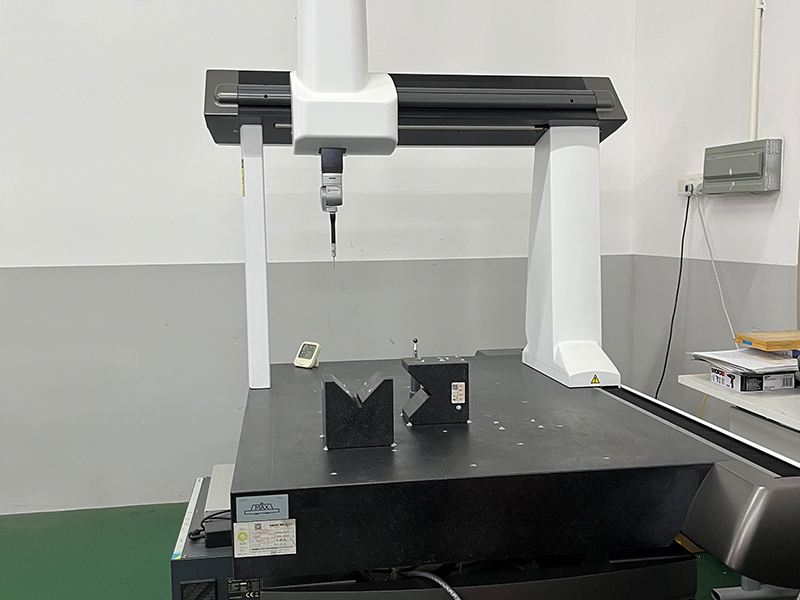

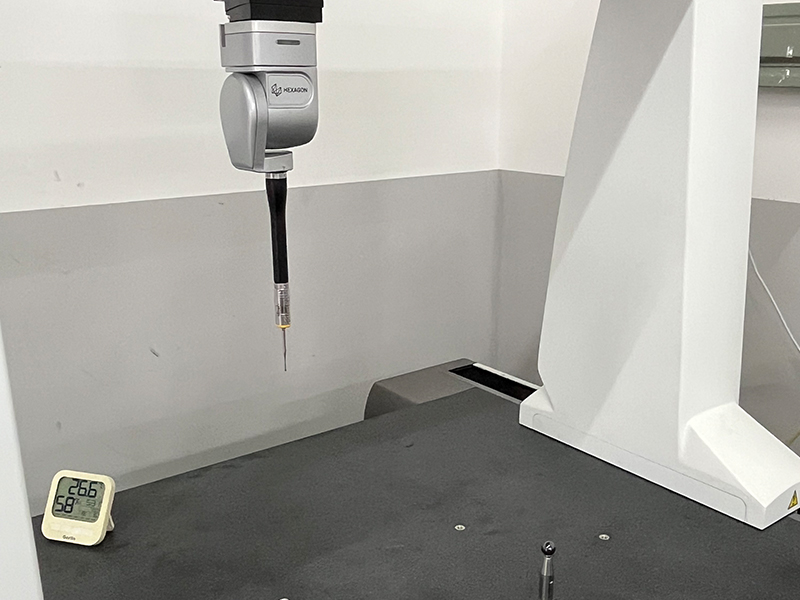

CMM
Accuracy Detection
Advanced laser interferometer technology is used by our CNC machine tools for accurate precision compensation. We perform compensation for the errors of positioning, geometry, and thermal by measuring with high precision and analyzing the data, which in turn helps us to maintain the machining accuracy at a stable and reliable level even after a long time of operation.
LBIE implements complete quality control from start to finish, with deep professional teams inspecting with diligence each component, system, and process. We supply CNC machine tools that comply with international quality standards, ensuring that your production will always have precision and reliability.

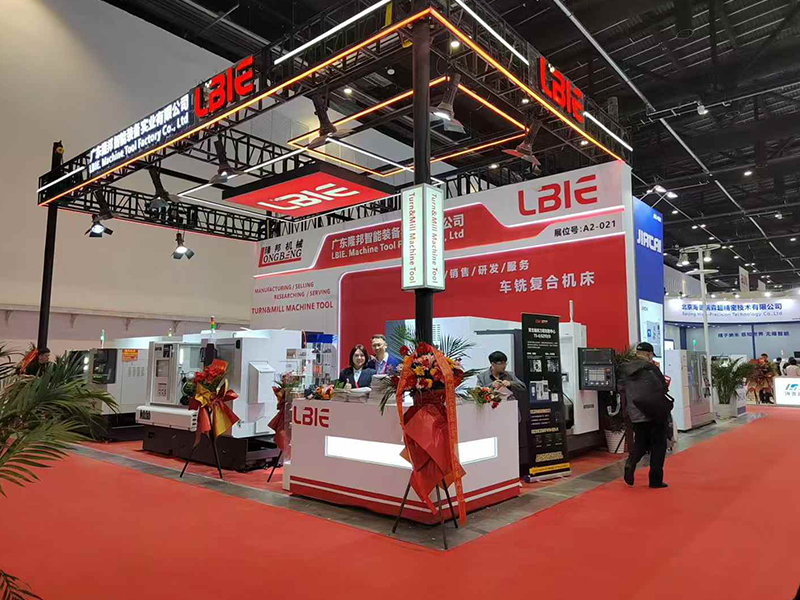

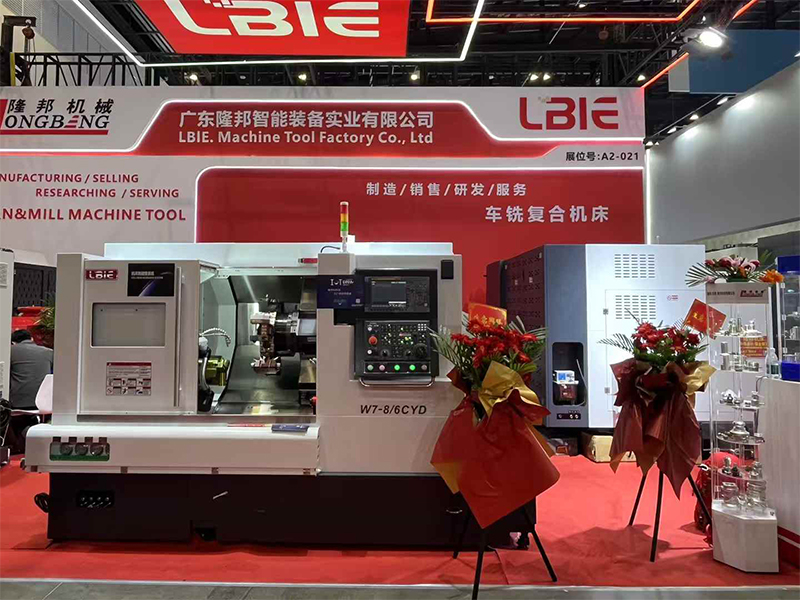

CIMT 2025
LBIE CNC Lathe Exhibition
Two Spindle Lathe
Customers visited our booth.
CIMT 2025 LBIE Exhibition Review

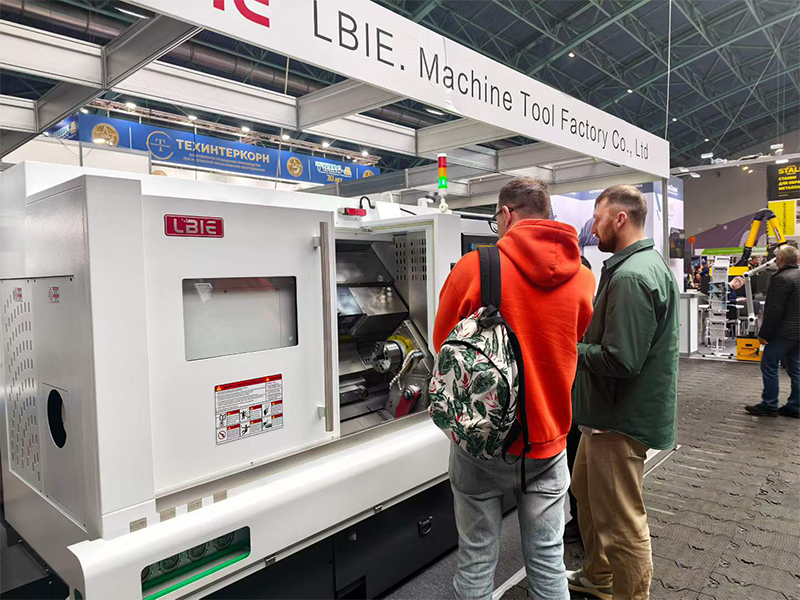

METALLOOBRABOTKA 2025
"Metalworking" Minsk, Belarus

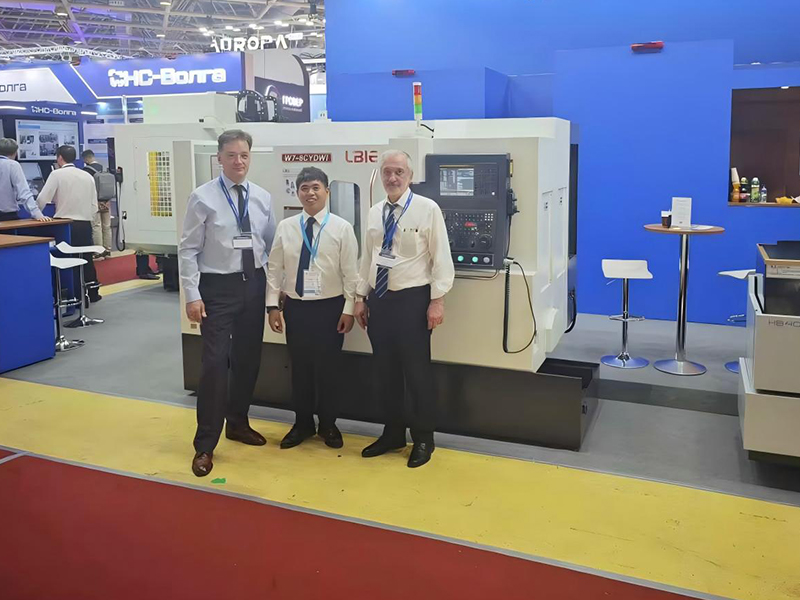

Overseas Exhibitions
We have taken part in exhibitions for CNC machine tools abroad in Russia, Belarus, Malaysia, Uzbekistan, and other countries, which have aroused widespread interest among customers all over the world.

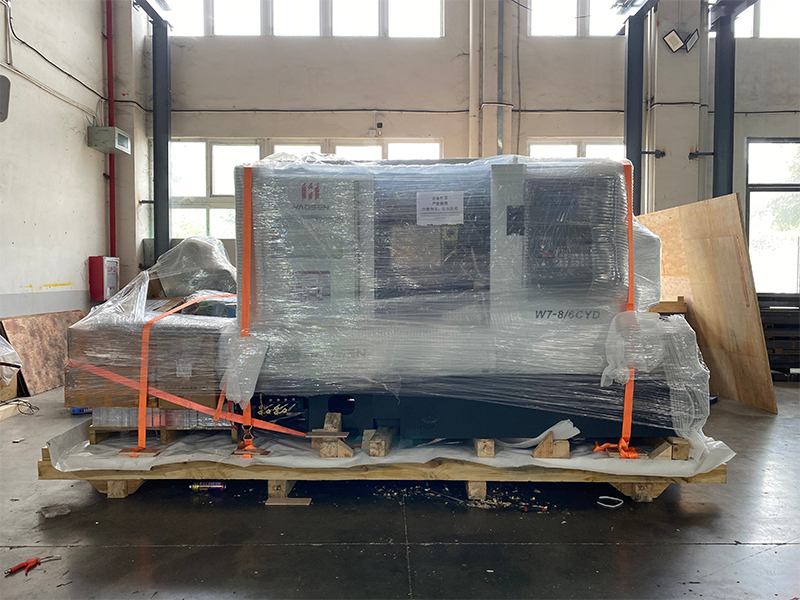

1.Stretch Wrapping

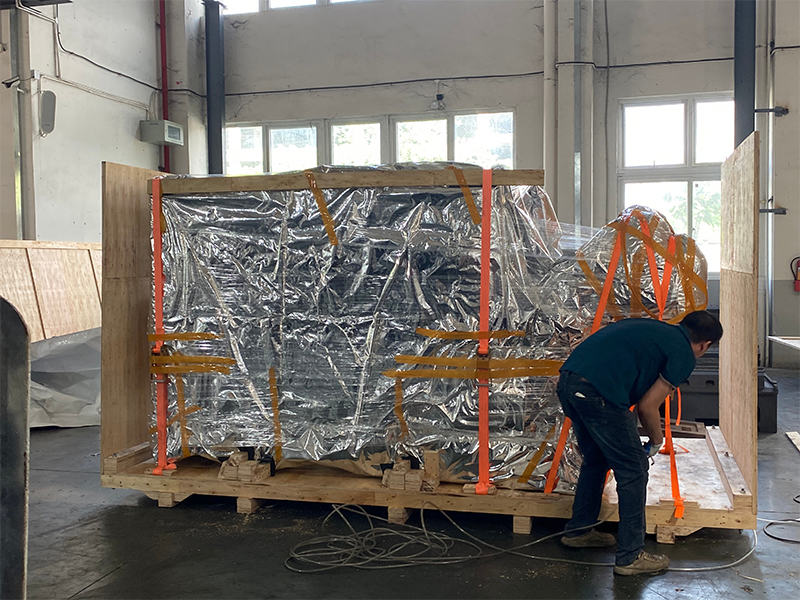

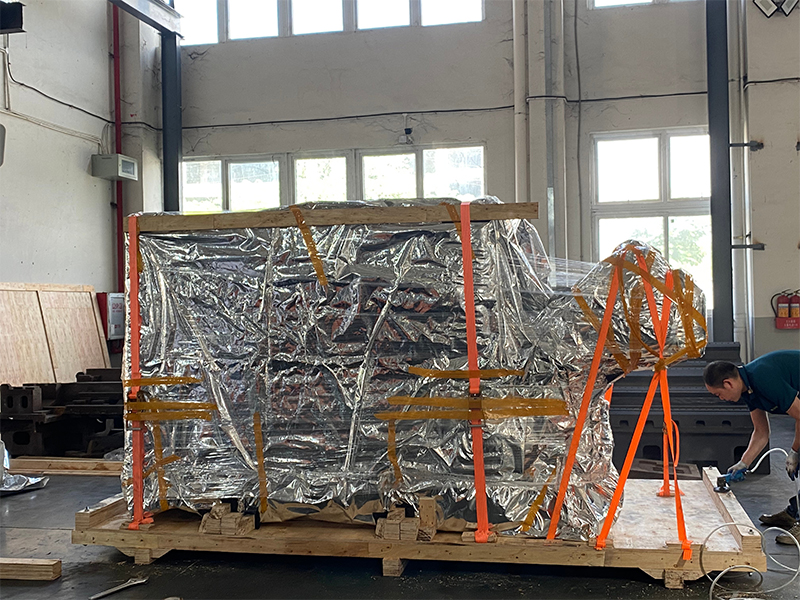

2.Vacuum packaging

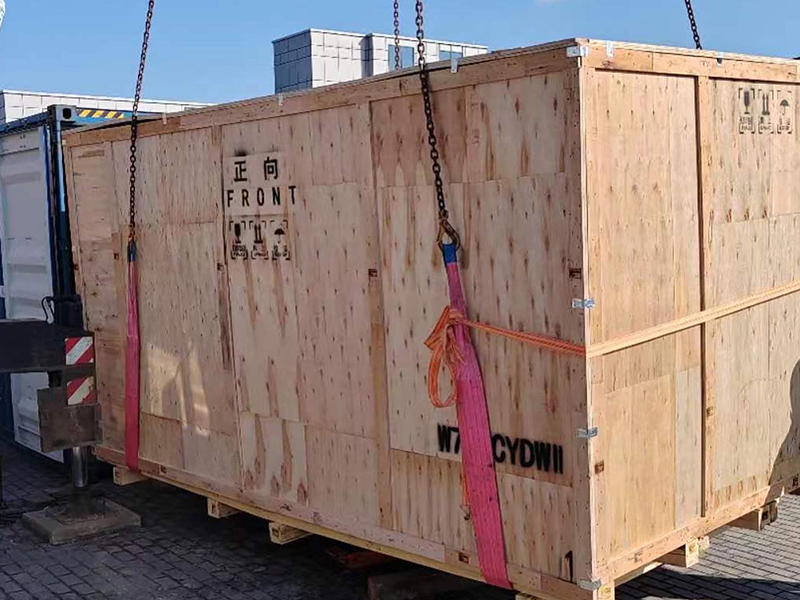

3.Strong Plywood Packing
4.Waterproof Top
5.Client's goods package
6.Client's good package

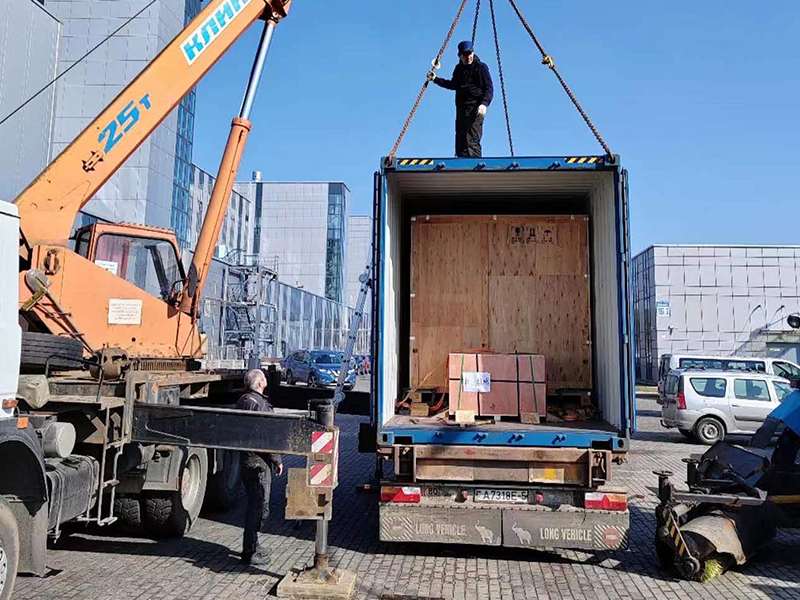

In order to guarantee a safe delivery, we apply multiple protection layers to our CNC lathe:
1.The lathe is initially completely wrapped with a stretch film, which prevents dust and scratches.
2.It is then vacuum-packed to safeguard it from moisture during the journey.
3.Following the vacuum packaging, the lathe is fastened with straps to prevent it from moving.

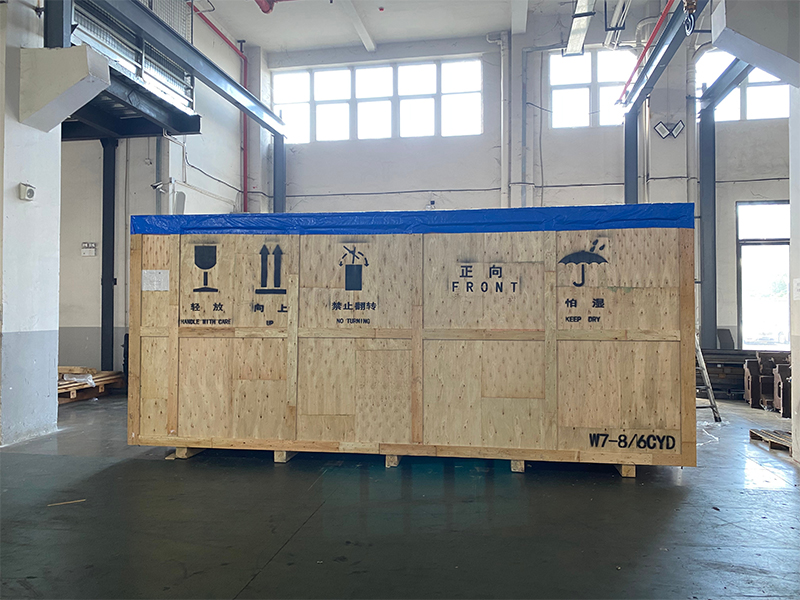

4.Lastly, it is enclosed in a robust plywood box.
ISO 9001 (International Quality Management System)
CE Certification (European Conformity)
EAC (Eurasian Conformity)
Welcome to the Consulting Section.All the certifications mentioned above guarantee that any machine produced will meet the tough safety and performance standards set globally.
