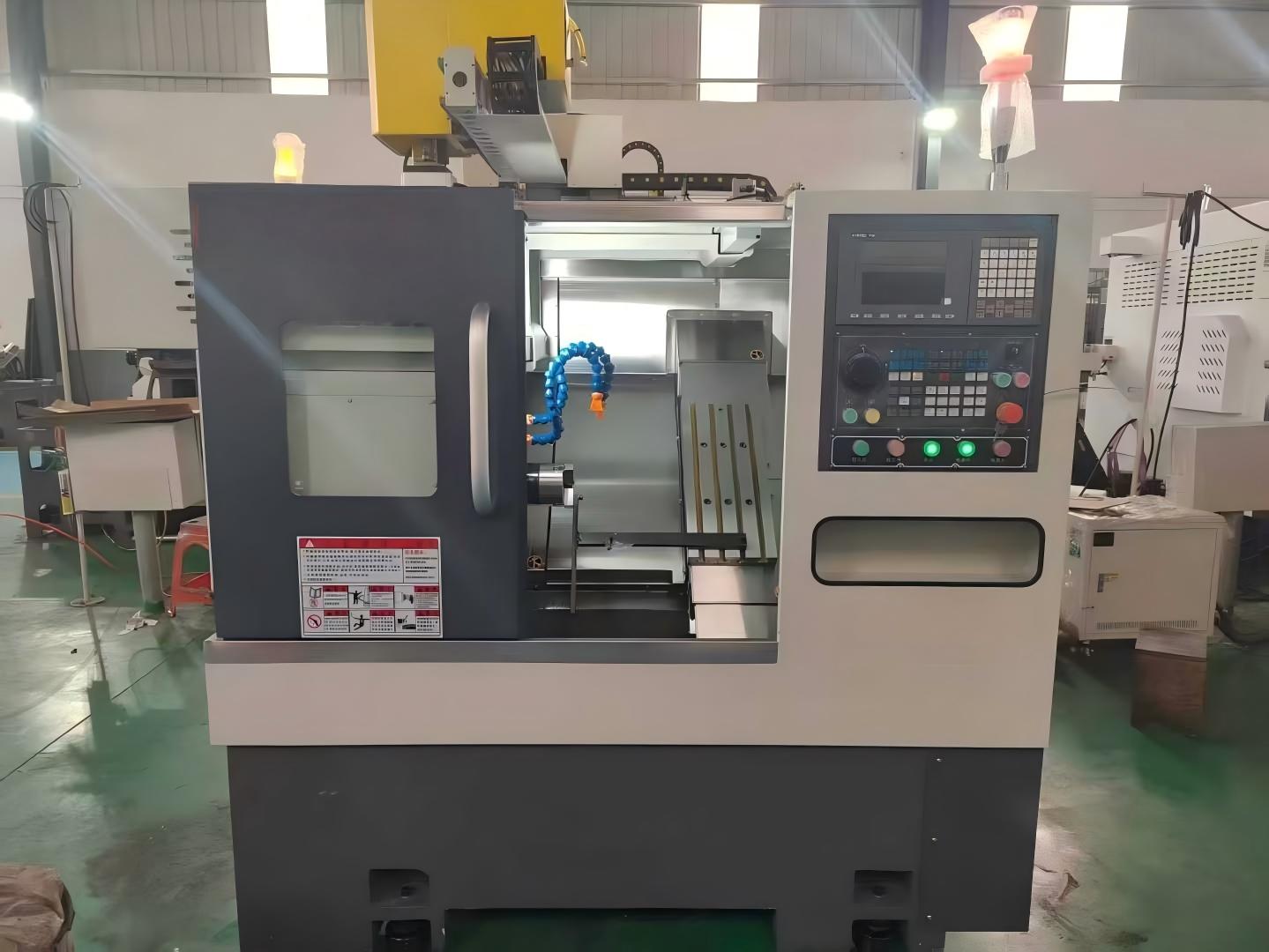

XL-5P High-Precision Gang Type CNC Lathe for Small Parts Production
The XL-5P is a high-end, small-sized gang-type lathe designed as a professional Precision CNC lathe for the manufacture of small, complex parts. Built for speed and accuracy, it has a simple gang tool carrier that allows very fast tool changes, hence significantly cutting down the cycle times of high-volume runs.
Parameter Table
| # | Parameter | Unit | XL-5P CNC Lathe | |||
| 1 | Max. Turning Diameter | mm | Φ200 | |||
| 2 | Max. Machining Length | mm | 200 | |||
| 3 | Max. Swing Diameter over bed | mm | Φ280 | |||
| 4 | Max. Swing Diameter Over slide | mm | Φ100 | |||
| 5 | Bar Feeding Diameter | mm | <Φ36 | |||
| 6 | Spindle Bore | mm | Φ46 | |||
| 7 | Max. Spindle Speed | RPM | 6000 | |||
| 8 | X-axis Travel | mm | 720 | |||
| 9 | Z-axis Travel | mm | 220 | |||
| 10 | Rapid Feedrate | m / min | 25 | |||
| 11 | Voltage (3phase) | V | 380±10% | |||
| 12 | Frequency | Hz | 50 | |||
| 13 | Power | kW | 7 | |||
| 14 | Weight | kg | 2000 | |||
| 15 | Size (Length × Width × Height) | mm | 1950 × 1500 × 1700 | |||
| # | Configuration Table | |||||
| 1 | CNC | ☐ FANUC 0I-TF PLUS (3B) | ☐ Siemens 808D | ☐ SYNTEC 7TA | ||
| Spindle Rated Power / Torque of the Servo Motor | 5.5kW / 26.3Nm | 3.7kW / 24Nm | 3.7kW / 26Nm ALPHA | |||
| X axis Rated Power / Torque of the Servo Motor | 0.85kW / 5.4Nm | 0.85kW / 5.4Nm | 0.85kW / 5.4Nm YASKAWA | |||
| Z axis Rated Power / Torque of the Servo Motor | 0.85kW / 5.4Nm | 0.85kW / 5.4Nm | 0.85kW / 5.4Nm YASKAWA | |||
| 2 | \ | Brand | Type / Spec | |||
| Spindle | ☐ LBIE Belt Spindle (OEM by HAOZHI) (Standard) ☐ Guangzhou HAOZHI Motor Spindle (Optional) ☐ Taiwan KENTURN Belt Spindle (Optional) | A2-4 | ||||
Details Display

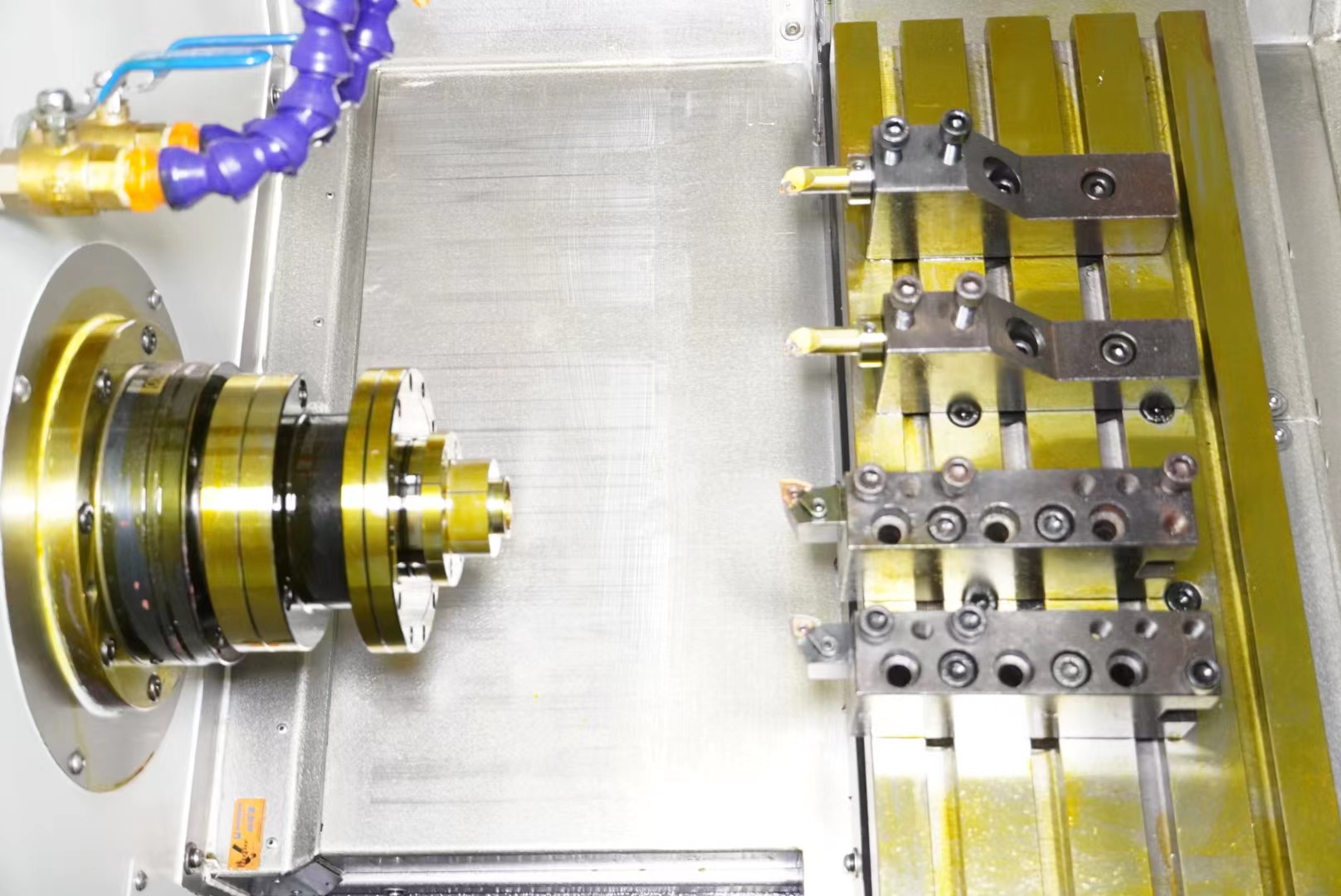

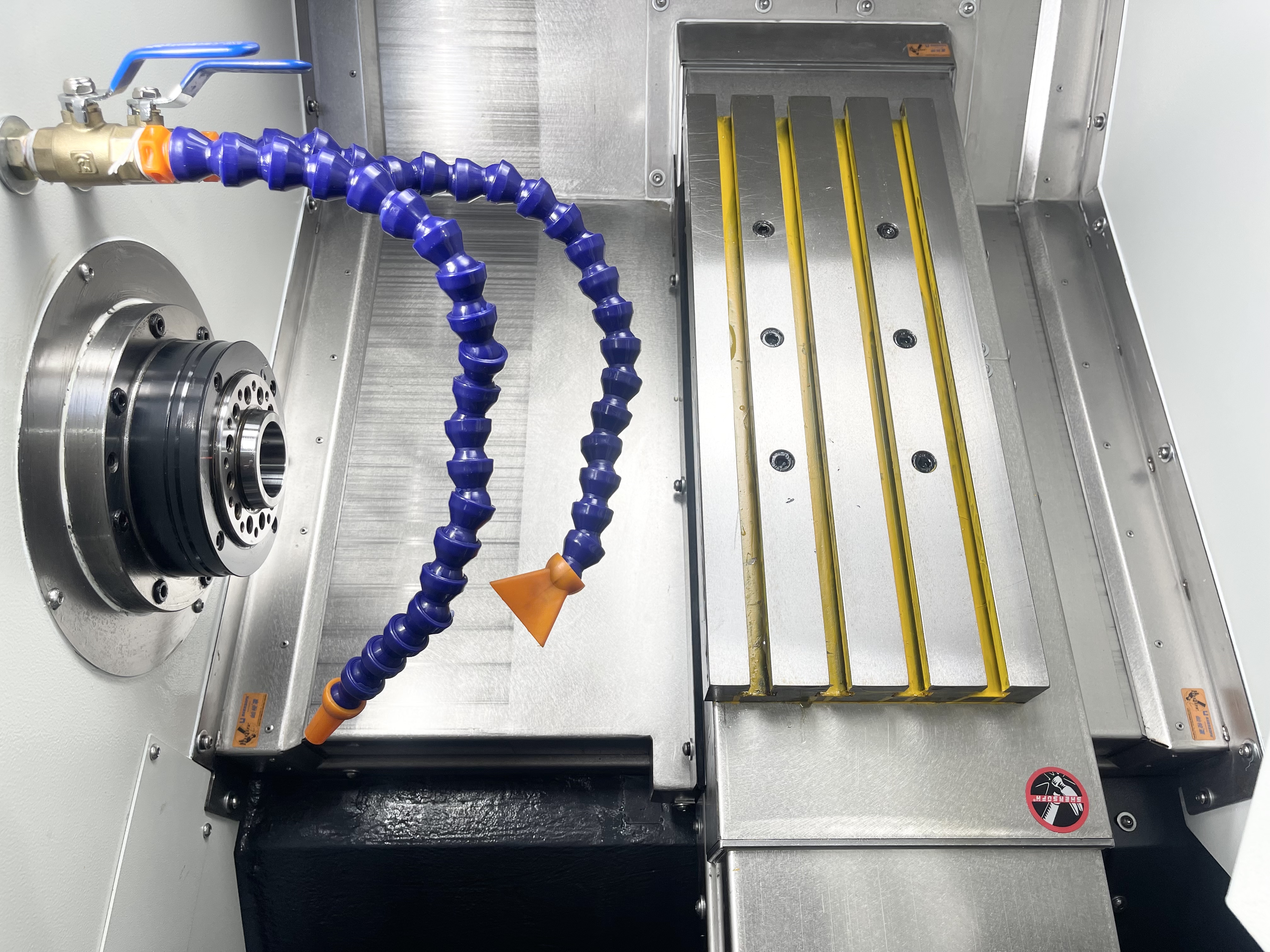

Gang Type Carrier
✅ Compact Gang Type Lathe Design : Compact and efficient gang tool carrier designed for very rapid tool changes, significantly reducing non-cutting time and increasing production output.
✅ High-Precision Machining : A first-class Precision CNC lathe built for ultra-fine tolerance, perfect for the production of small, detailed parts and mass manufacturing.
✅ High-Speed Performance : 6000RPM max spindle speed + 25m/min rapid feed, which means a fast and efficient operation even for small pieces.
✅ Flexible Configuration : Multiple CNC system options (FANUC/Siemens/SYNTEC) and excellent import core components for a reliable, durable performance over a long period.
✅ Space-Saving & Cost-Effective : Small area usage but big power for processing; an ideal choice for the workshop with limited space and a need for high efficiency.
This precision CNC turning machine is capable of fulfilling very different production needs, developing industries such as aerospace, automotive, nuclear power, and precision hand tools.
By combining quality turning and milling processes, it makes it possible to machine complicated and very accurate parts in a single setup.
Designed with defense and military manufacturing in mind, it is well-known for its performance in the most precise tolerance and highest quality material integrity applications.
About Us
2007：The company was established and fully engaged in R&D, manufacturing, selling, and servicing of turning and milling machine tools.
2009：Manufactured China’s first 4+4 live tool turning and milling machine tool.
2014：Successfully developed an interpolated Y-axis turning and milling machine tool.
2022：Delivered dual spindle dual turret turning and milling composite machine tool.
Today：We have more than 15 years of experience in the industry, are officially qualified for production, and have service capabilities covering nuclear energy, aerospace, automotive, home appliances, etc. We are now looking for global agents who can bring high-quality Chinese CNC machine tools to customers all over the world.
Premium CNC Machinery
In this Exhibition Space, we have revealed our most advanced CNC machining equipment. Some of them are large-format gantry machining centers, high-precision milling heads by Okuma, and 5-axis linkage machining systems. The extraordinary rigidity, stability, and highest machining accuracy of these machines are only some of the features that back this ultra efficiency in the processing of large and complex work pieces with very strict tolerance requirements. Since they are fitted with control systems and operation interfaces of world-class quality that are very user-friendly, these machines are used in the manufacturing of aerospace, automotive, mold, and heavy machinery industries. They ensure reliable performance along with superior production efficiency that is capable of handling different industrial areas.
Laser Interferometer
Accuracy Compensation
CMM
Accuracy Detection
Our CNC machine tools employ the state-of-the-art laser interferometer technology to achieve the highest level of precision and accuracy compensation. By means of ultra-precision measurements and analytical techniques, we counterbalance positioning, geometric, and thermal errors, thereby maintaining machining accuracy at a stable and reliable level throughout the duration of the operation.
LBIE practices comprehensive quality oversight at every stage. Expert crew members conduct thorough inspections of individual parts, systems, processes, etc. We supply CNC machine tools conforming to international quality standards, which support ongoing accuracy and dependable performance in your production.
CIMT 2025
LBIE CNC Lathe Exhibition
Two Spindle Lathe
Customers visited our booth.
CIMT 2025 LBIE Exhibition Review
METALLOOBRABOTKA 2025
"Metalworking" Minsk, Belarus
Overseas Exhibitions
We've attended international CNC machine tool expos in Russia, Belarus, Malaysia, Uzbekistan, etc., drawing great interest from worldwide customers.
1.Stretch Wrapping
2.Vacuum packaging
3.Strong Plywood Packing
4.Waterproof Top
5.Client's goods package
6.Client's good package
To guarantee the safe delivery of our CNC lathe, we package it with a multi-layer protective procedure as follows:
1.The lathe is first fully wrapped with stretch film for dust and scratch protection.
2.It is then vacuum-packed to prevent moisture during transportation.
3.The lathe, after vacuum packaging, is fixed with straps securely so as not to move while in transport.
4.Finally, it is packed into a strong plywood box.
ISO 9001 (International Quality Management System)
CE Certification (European Conformity)
EAC (Eurasian Conformity)
