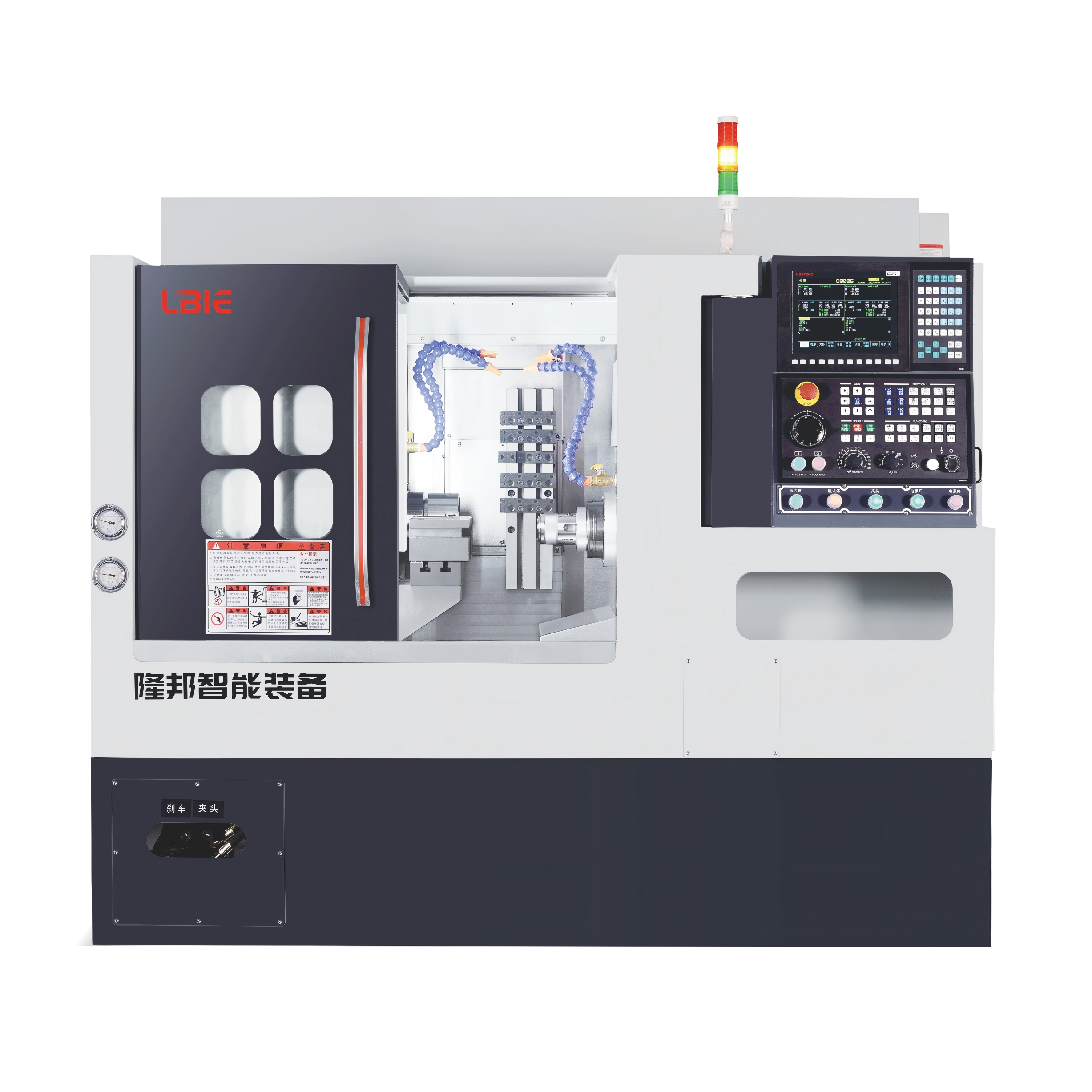

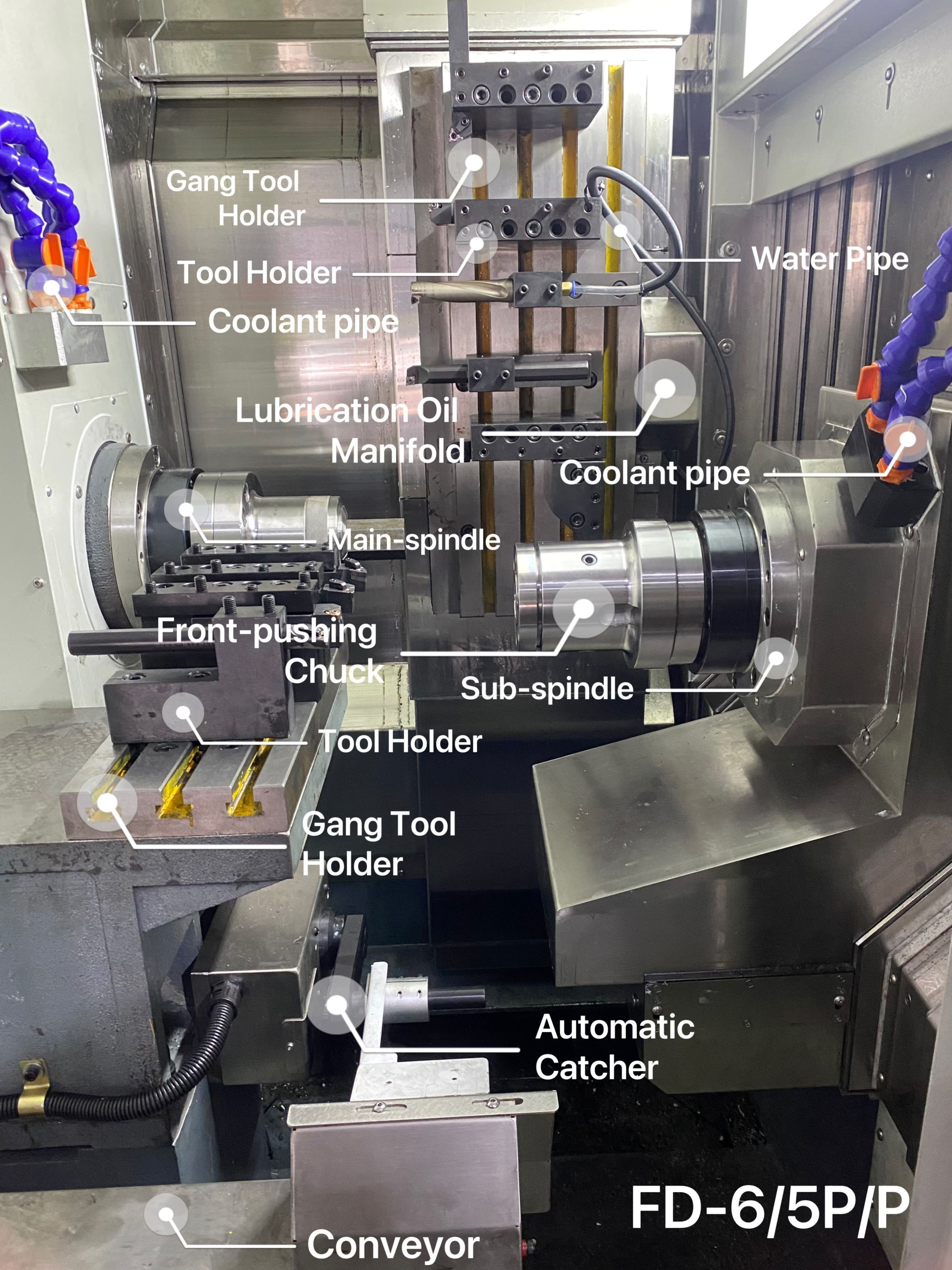

FD-6/5P/P Double-Spindle Lathe with Vertical and Horizontal Gang Tool Carriers

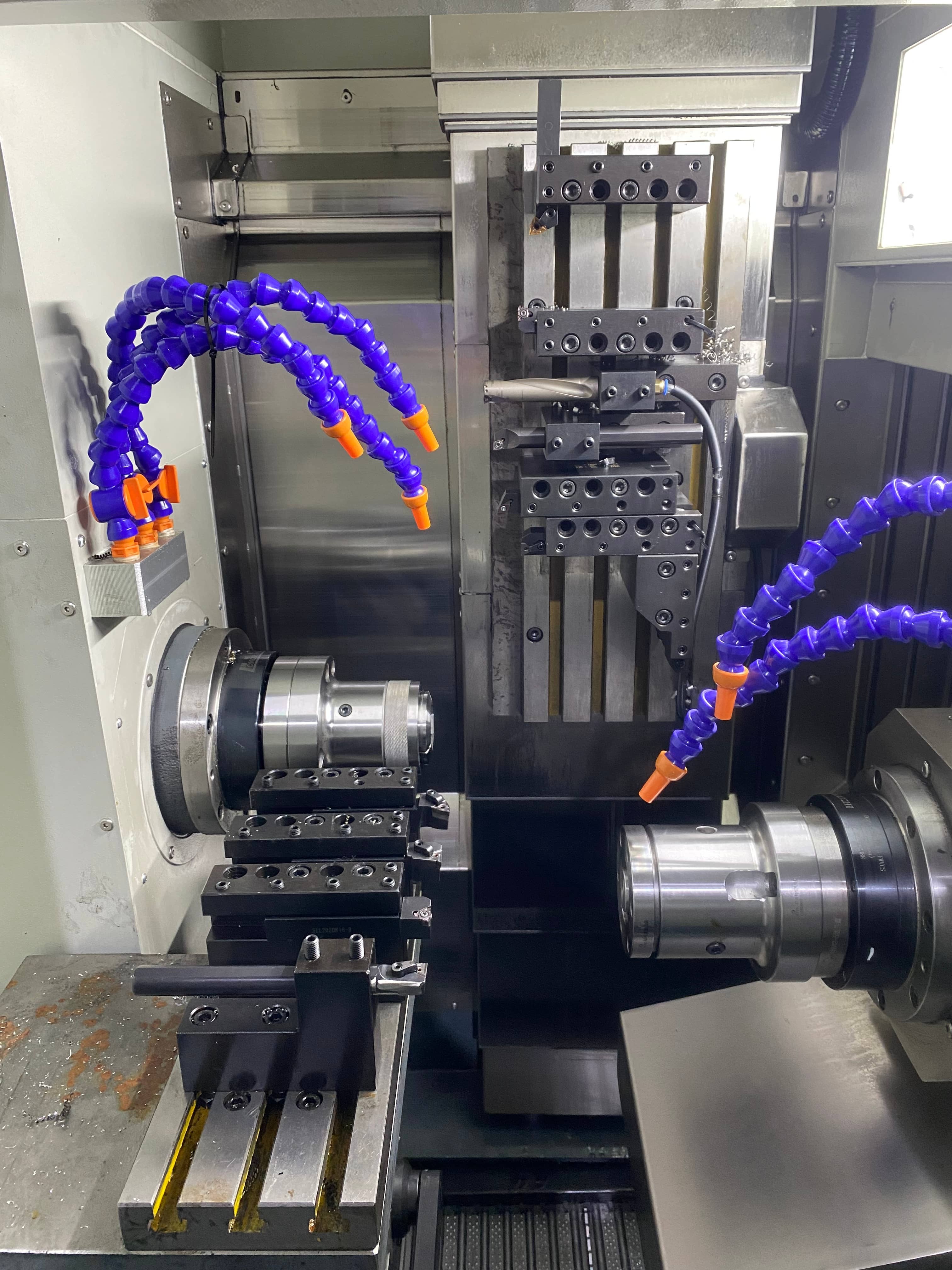

This FD-6/5P/P double-spindle CNC lathe is capable of vertical and horizontal gang tool carriers, which allow different machining operations to be carried out flexibly and efficiently.
The dual-spindle system can operate in parallel or one after another, and the gang tool arrangement allows rapid tool change and ensures the tools are held firmly.
The machine is perfect for producing small, complex, high-precision parts in large quantities with just one setup. It will significantly enhance the productivity as well as the consistency of the parts.
Parameter Table
| # | Parameter | Unit | FD-6/5P/P Double-Spindle Lathe with Vertical and Horizontal Gang Tool Carriers | |||
| 1 | Max. Turning Diameter | mm | Φ150 | |||
| 2 | Max. Machining Length | mm | 200 | |||
| 3 | Max. Swing Diameter over bed | mm | Φ200 | |||
| 4 | Max. Swing Diameter Over slide | mm | Φ70 | |||
| 5 | Bar Feeding Diameter | mm | <Φ46 | |||
| 6 | Spindle Bore | mm | 1st Spindle: Φ56; 2nd Spindle: Φ46 | |||
| 7 | Max. Spindle Speed | RPM | 1st Spindle: 5000; 2nd Spindle: 6000 | |||
| 8 | X-axis Travel | mm | X1: 800 | X2: 800 | ||
| 9 | Z-axis Travel | mm | Z1: 200 | Z2: 200 | ||
| 10 | Rapid Feedrate | m / min | 25 | |||
| 11 | Voltage (3phase) | V | 380±10% | |||
| 12 | Frequency | Hz | 50 | |||
| 13 | Power | kW | 18 | |||
| 14 | Weight | kg | 3500 | |||
| 15 | Size (Length × Width × Height) | mm | 2400 × 1650 × 2000 | |||
| # | Configuration Table | |||||
| 1 | CNC | ☐ FANUC 0I-TF PLUS (3B) | ☐ Siemens 828D (Shop Turn Programming) | ☐ SYNTEC 22TB | ||
| Main-spindle Rated Power / Torque of the Servo Motor | 7.5kW / 35.8Nm | 7kW / 36Nm | 5.5kW / 35Nm | |||
| Sub-spindle Rated Power / Torque of the Servo Motor | 5.5kW / 26Nm | 5.5kW / 26Nm | 5.5kW / 26Nm | |||
| X1-axis Rated Power / Torque of the Servo Motor | 1.2kW / 7Nm | 1.15kW / 6.5Nm | 1.7kW / 8.4Nm | |||
| X2-axis Rated Power / Torque of the Servo Motor | 1.2kW / 7Nm | 1.15kW / 6.5Nm | 1.7kW / 8.4Nm | |||
| Z1-axis Rated Power / Torque of the Servo Motor | 1.2kW / 7Nm | 1.15kW / 6.5Nm | 1.7kW / 8.4Nm | |||
| Z2-axis Rated Power / Torque of the Servo Motor | 1.2kW / 7Nm | 1.15kW / 6.5Nm | 1.7kW / 8.4Nm | |||
| 2 | \ | Brand | Type / Spec | |||
| 1st Spindle | ☐ LBIE Belt Spindle (OEM by HAOZHI) (Standard) ☐ Guangzhou HAOZHI Motor Spindle (Optional) ☐ Taiwan KENTURN Belt Spindle (Optional) | A2-5 | ||||
| 2nd Spindle | Guangzhou HAOZHI Motor Spindle | A2-4 | ||||
| 3 | X1 / X2 Axis | Linear Guide Rail | HIWIN / PMI / Rexroth | 35 Roller Guide | ||
| Lead Screw | HIWIN / PMI / NSK | 32 | ||||
| Bearing | NSK | 20TAC | ||||
| Z1 / Z2 Axis | Linear Guide Rail | HIWIN / PMI / Rexroth | 35 Roller Guide | |||
| Lead Screw | HIWIN / PMI / NSK | 32 | ||||
| Bearing | NSK | 20TAC | ||||
| 4 | Tool Carrier Form | ☐ 2 × Gang Tool Carrier (Length: 1st 580mm; 2nd 480mm) ☐ Gang Tool Carrier + 8 Stations Lathe Turret | ||||
| 5 | Lubrication Form | Oil Lubrication | ||||
| 6 | Hydraulic System | Standard | ||||
| 7 | Fixture | ☐ Collect Chuck (1st Spindle: 46 Type Pull-type, 2nd Spindle: 36 Push-type) (Standard) ☐ Hydraulic Chuck (1st Spindle: 6inch, 2nd Spindle: 5inch) (Optional) | ||||
Dual Spindle Design | The two independent high-speed spindles (5000/6000RPM) in the dual spindle lathe allow you to do one-clamp front/back machining simultaneously on both sides. This system helps to get rid of clamping errors, shortens lead-time, and increases throughput - making it the perfect choice for mass automotive parts manufacturing.
High-Efficiency Gang Tool Carrier | Being a professional gang tool machine, its vertical+horizontal gang tool carrier achieves zero-delay tool changes (no turret rotation), cuts down auxiliary time, and guarantees stable, high-precision turning.
Premium Precision Components | This CNC machine tool is fitted with top-class linear guide rails, lead screws, and bearings. It offers excellent rigidity, low friction, and the ability to maintain accurate positioning over a long period. This stability is perfect for the machining of automotive parts.
Flexible Configuration | This machine tool's lathe is Fanuc/Siemens/syntec CNC systems compatible and supports customized spindles, fixtures, and tool carriers for meeting various production needs.
Compact & Powerful | 18kW power, Φ150mm maximum turning diameter, 200mm machining length—this CNC lathe for automotive parts combines a high level of productivity with a small footprint, which is perfect for workshops.
Details Display

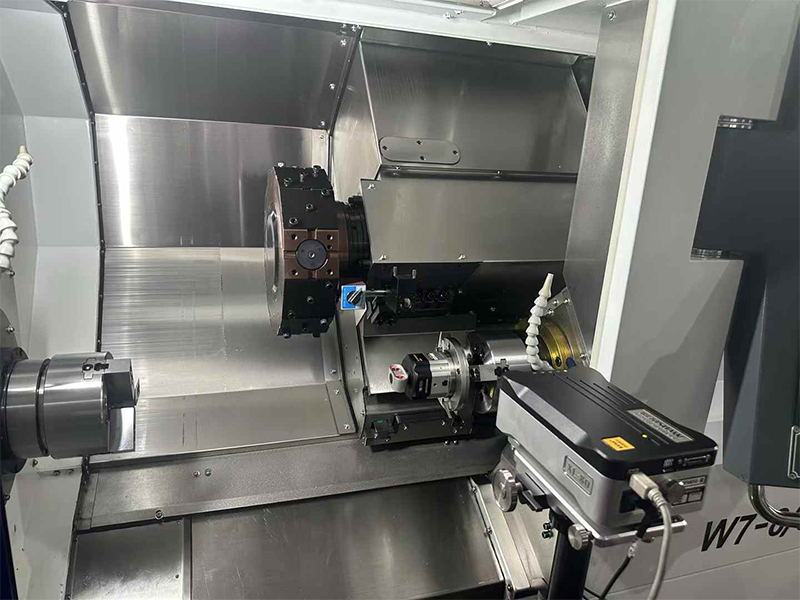

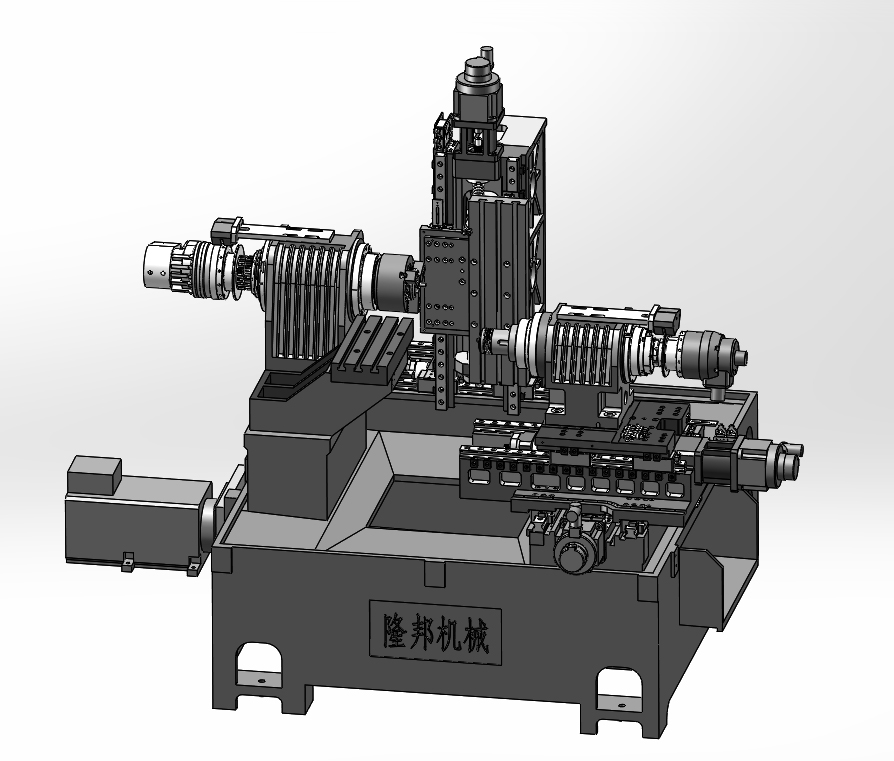

The machine is built around an HT300 cast iron slant bed and a high-low guideway configuration, which results in outstanding rigidity and damping performance. This kind of structural design ensures the machine is very stable during operations and can keep the level of machining precision unchanged even when facing long-term heavy-duty cutting.

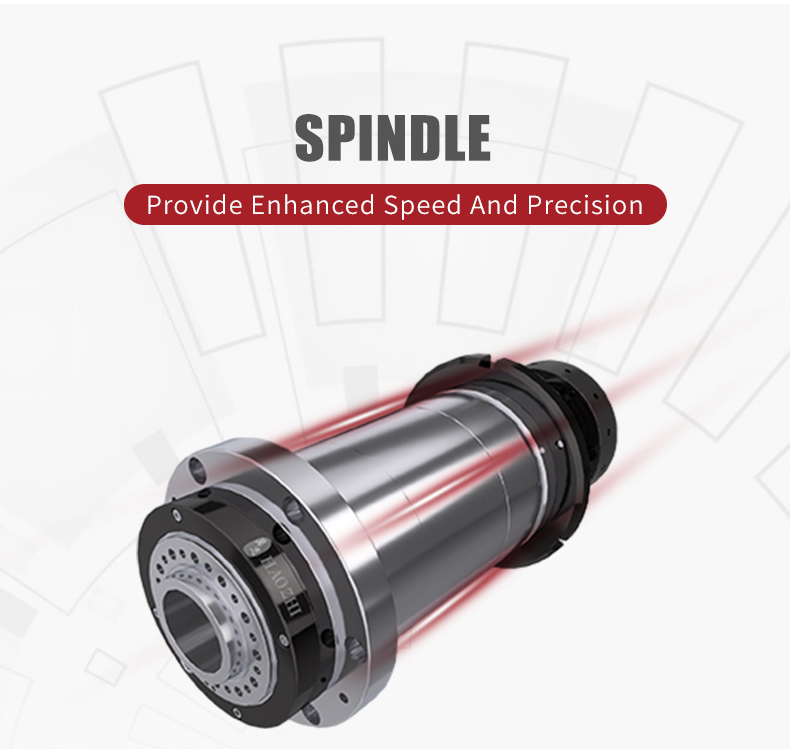

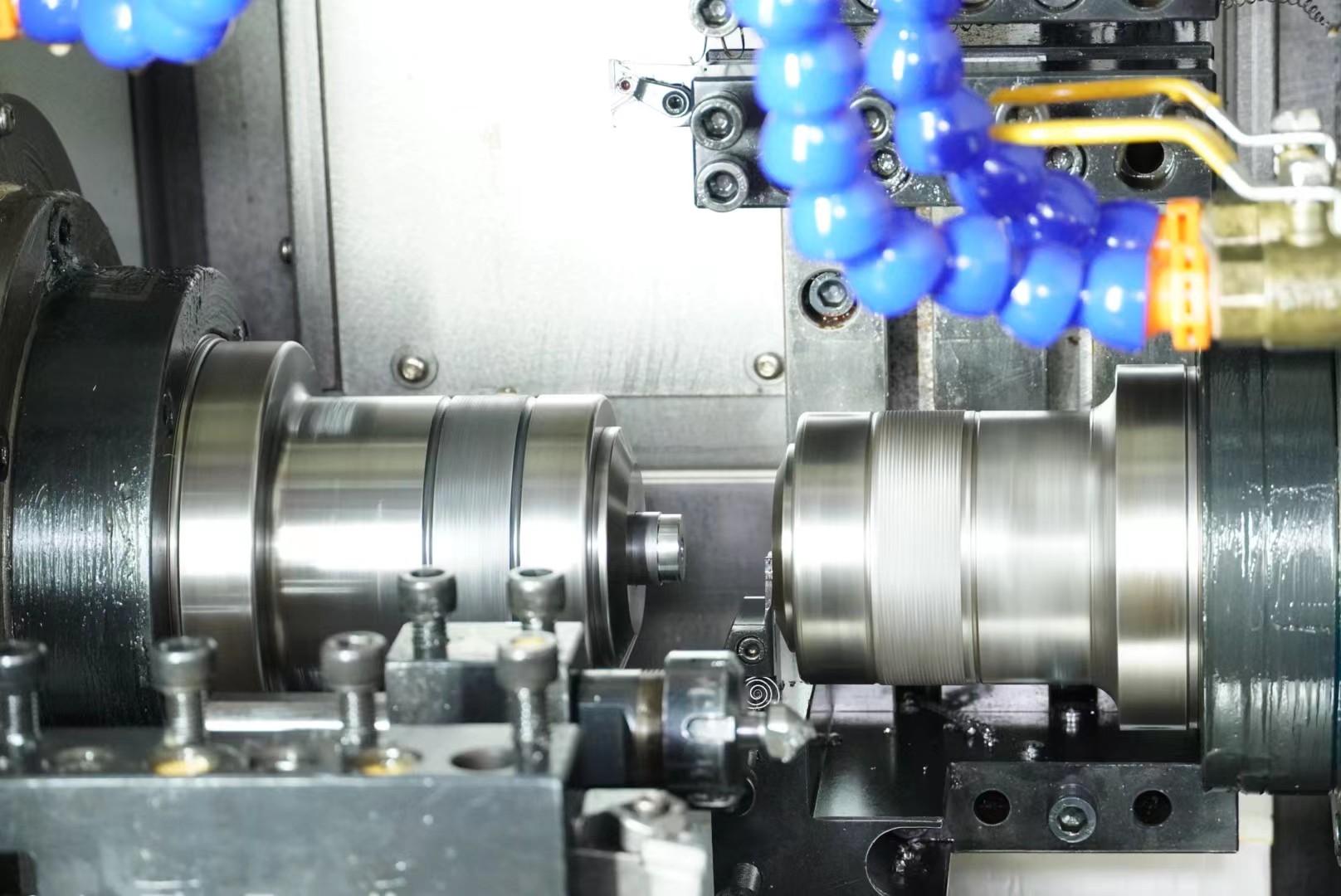

Our CNC metal lathe series is equipped with several varieties of high-rigidity mechanical spindles that have been engineered for low vibration, high precision, and very stable running accuracy. These spindles, which use top-of-the-line NSK super-precision bearings, also display excellent thermal stability, which is a must for high-performance turning. As an efficiency booster, a spindle powered by electricity is also available as an option, offering very accurate speed control, less energy usage, and minimal need for maintenance.

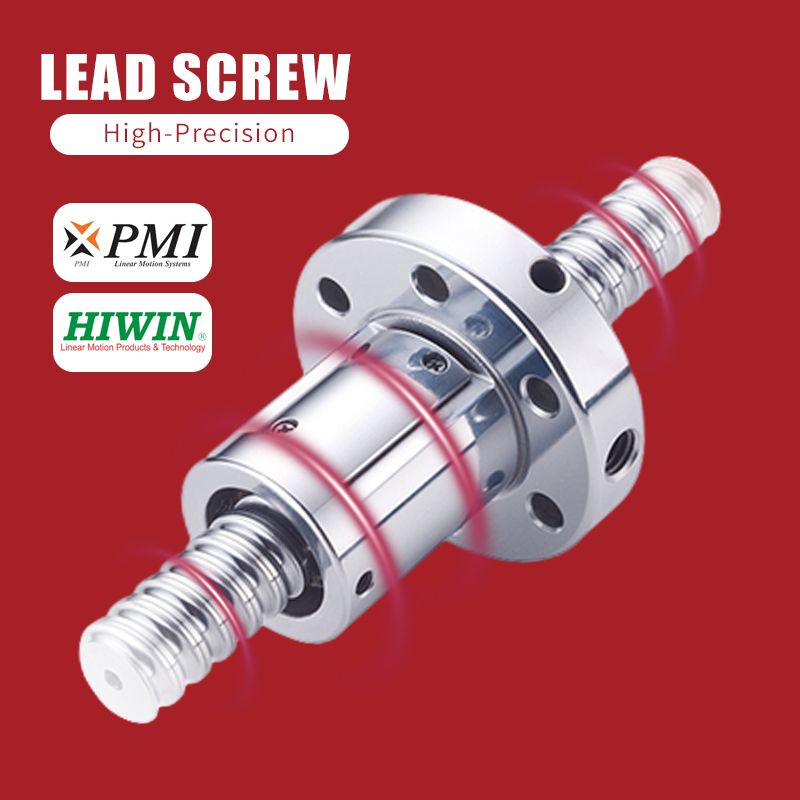

Lead Screw | High-precision ground ball lead screws (HIWIN/PMI/NSK), surprisingly low-backlash and high-efficiency, capable of very accurate tool control (up to 25m/min feed) and consistent automotive parts dimensional accuracy.

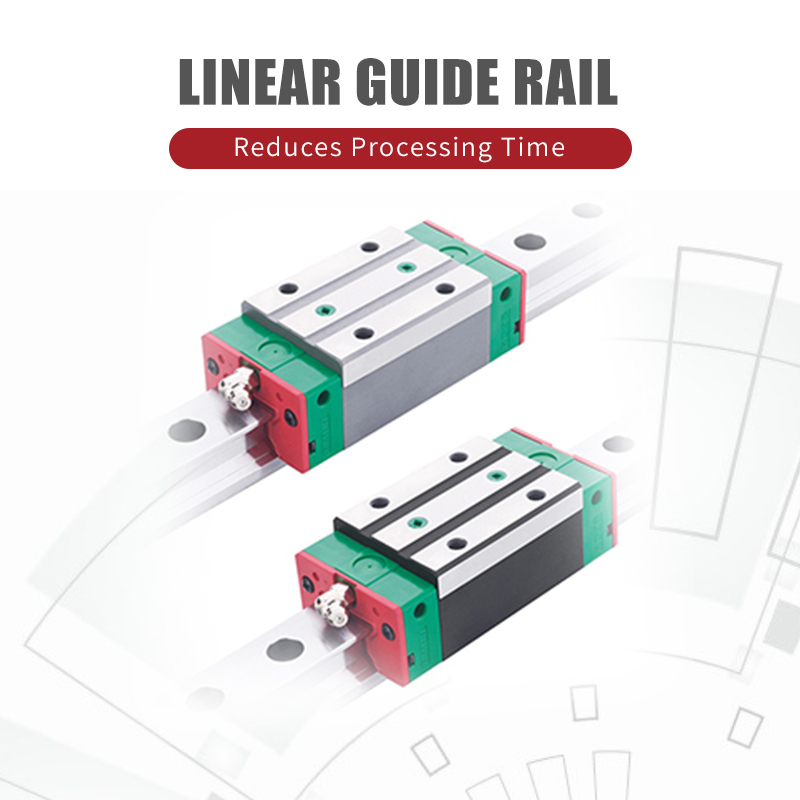

Linear Guide Rail | High-rigidity 35 Roller Guide (HIWIN/PMI/Rexroth) for exceptional load-bearing, low friction, smooth motion, and long service life—forming the basis of this dual spindle lathe’s accuracy.
Bearing | NSK 20TAC angular contact ball bearings with high precision and designed for high-speed/high-load operations in CNC applications. They effectively reduce vibration and ensure stable rotation, thus guaranteeing the long-term accuracy of this automotive parts CNC lathe.
Linear Guide Rail | High-rigidity 35 Roller Guide (HIWIN/PMI/Rexroth) for exceptional load-bearing, low friction, smooth motion, and long service life—laying the foundation for this dual spindle lathe’s precision.

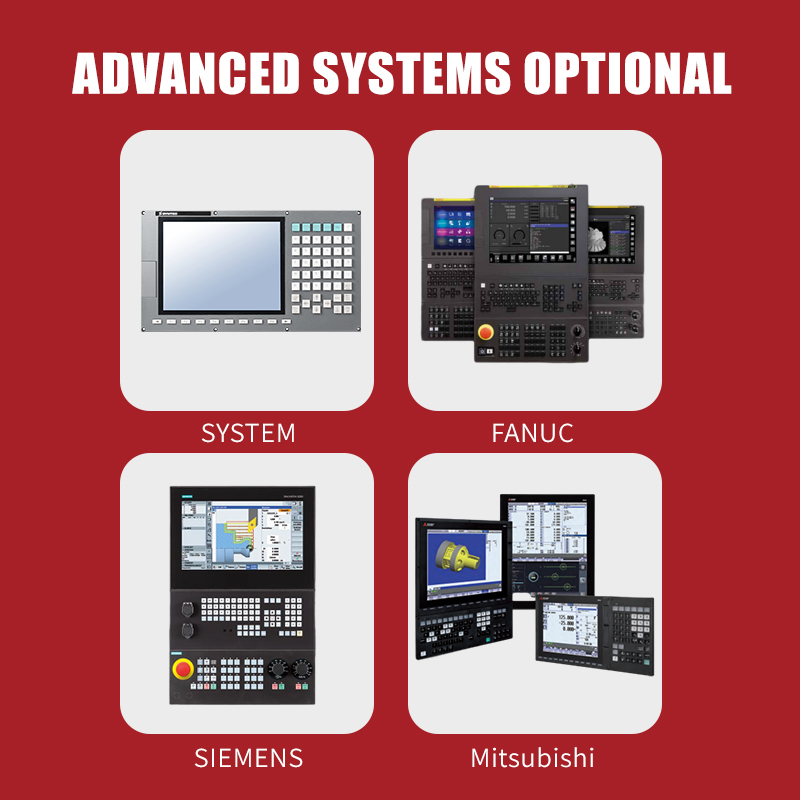

We have Syntec, Fanuc,Siemens system for choose.
About Us
1. Professional Manufacturing Strength
2007：As a new company, we focus on research and development, production, sales, and after-sales service of turning and milling machine tools.
2009：We are proud to have created China's first 4+4 live turning and milling machine tool.
2014：We have successfully overcome the technical difficulty of inter-located Y-axis turning and milling machine tools.
2022：We introduced a dual-spindle dual-turret turning and milling composite machine tool.
Today：Leveraging our 15 years of industry experience, certified production qualification, and services covering nuclear energy, aerospace, automotive, home appliances, etc., we are intensively looking for global agents to cooperate in bringing superb Chinese CNC machine tools to the world.
Premium CNC Machinery
This display features our advanced CNC machining capabilities, such as gantry machining centers of large format, milling heads of very high precision by Okuma, and machining systems with 5-axis linkage. Such state-of-the-art equipment provides outstanding rigidity, stability, and ultra-high levels of machining accuracy that enable us to process large and complicated workpieces meeting strict tolerance requirements in an efficient manner. On the other hand, their operation is made smarter and more convenient thanks to control systems that are world-renowned and highly intelligent user interfaces. Not only are these machines perfect for aerospace, automotive, mold, and heavy machinery manufacturing sectors, but they also guarantee reliable performance and the best productivity results for different types of industrial applications.
Laser Interferometer
Accuracy Compensation

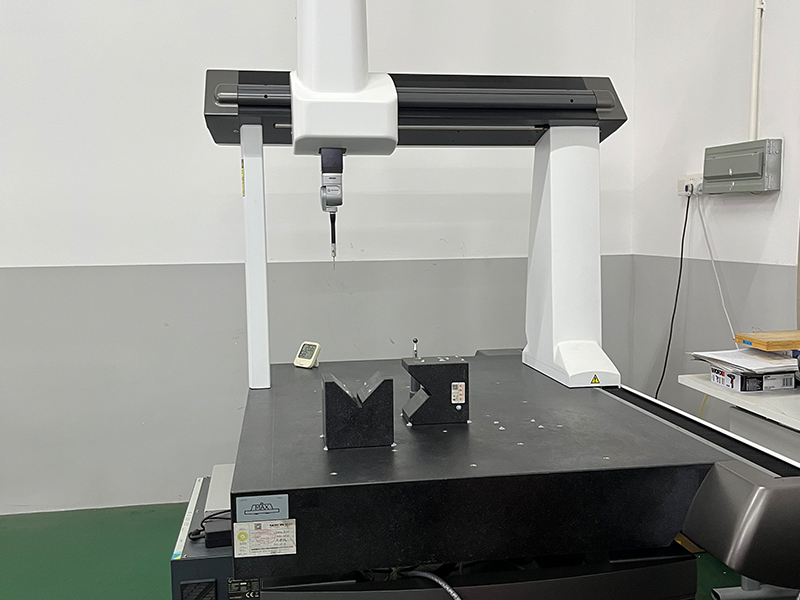

CMM
Accuracy Detection

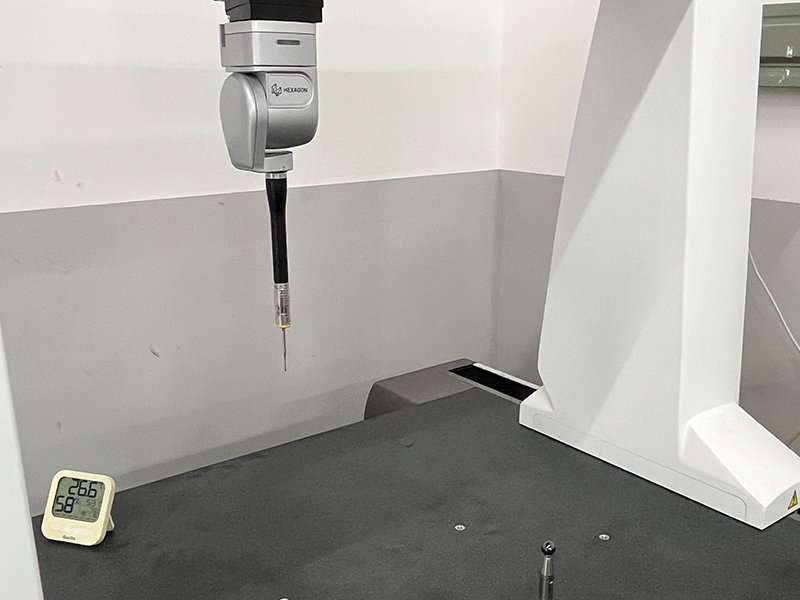

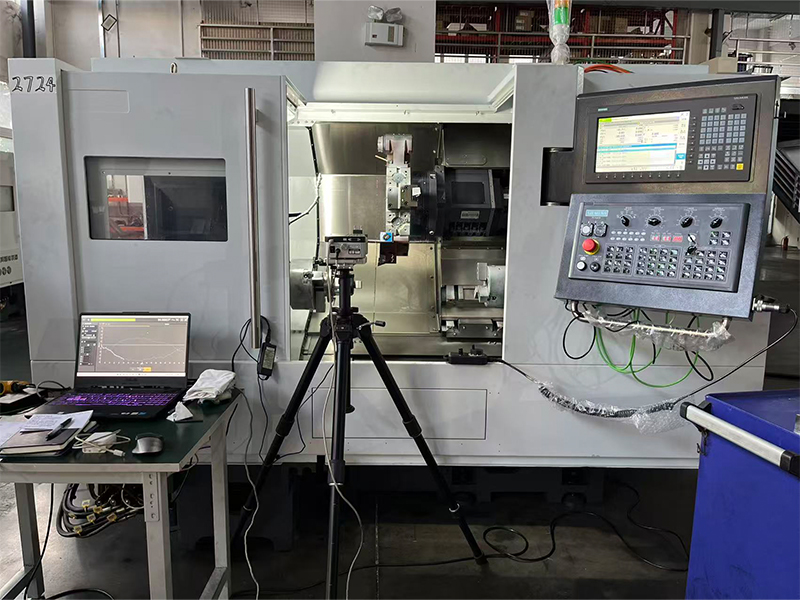

Our CNC machine tools combine the latest laser interferometer technology for high-precision accuracy compensation. By means of precision measurement and data analysis, we can compensate for different types of errors, such as positioning error, geometric error, thermal error, etc. We guarantee stable and reliable machining accuracy over time.
The quality control system of LBIE is a full-process one. First of all, we have expert inspectors who check each component, system, and process very thoroughly. Besides, our machine tools are in line with global quality standards, which assure constant precision and dependable production performance.
CIMT 2025

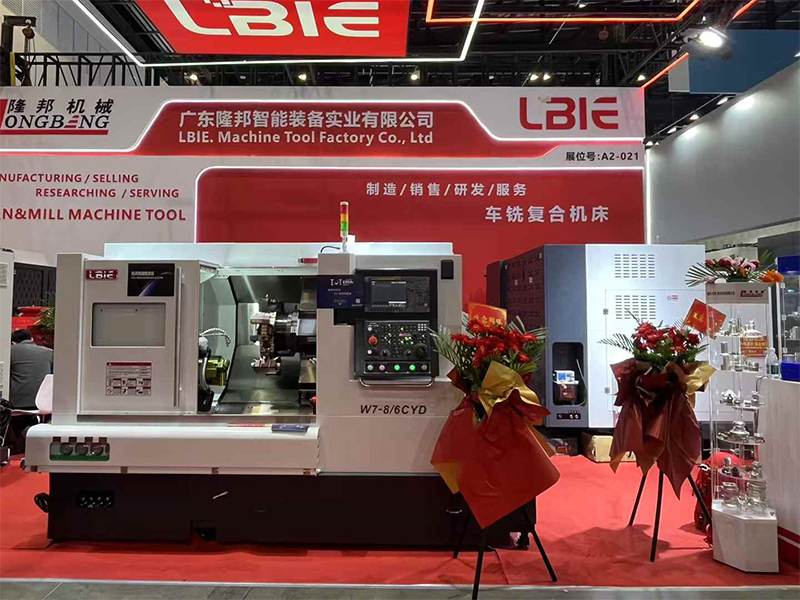

LBIE CNC Lathe Exhibition
Two Spindle Lathe

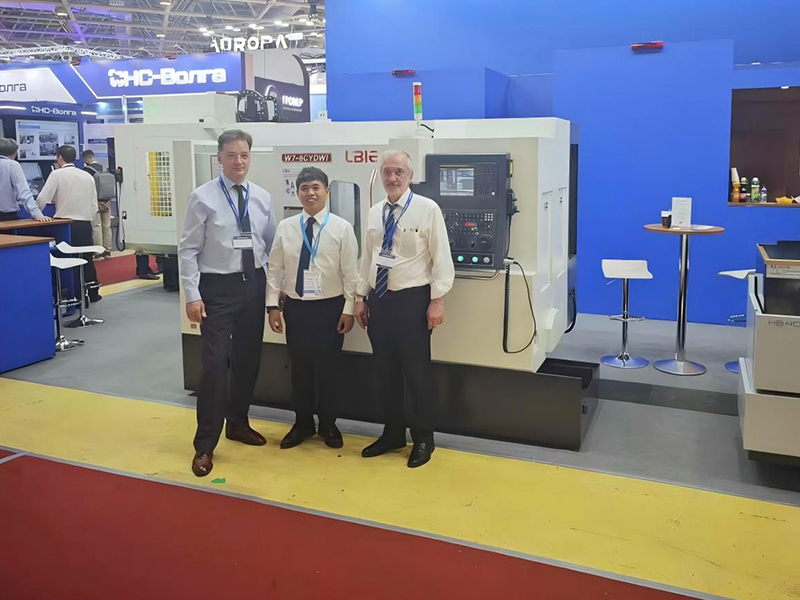

Customers visited our booth.
CIMT 2025 LBIE Exhibition Review
METALLOOBRABOTKA 2025
"Metalworking" Minsk, Belarus
Overseas Exhibitions
We have taken part in overseas exhibitions of CNC machine tools in Russia, Belarus, Malaysia, and Uzbekistan, among other countries, and have attracted a lot of attention from global customers.
1.Stretch Wrapping
2.Vacuum packaging
3.Strong Plywood Packing
4.Waterproof Top
5.Client's goods package
6.Client's good package
For delivery safety, our CNC lathe is packed with a multi-layer protective process as follows:

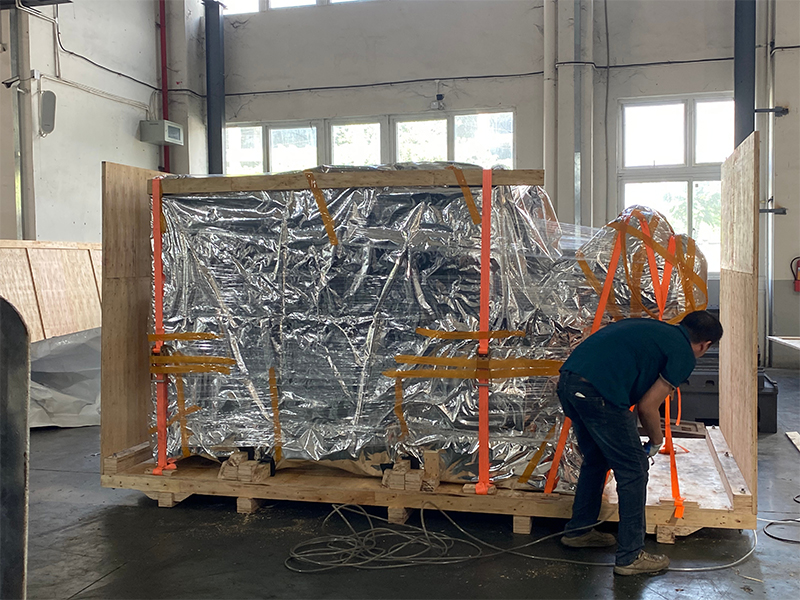

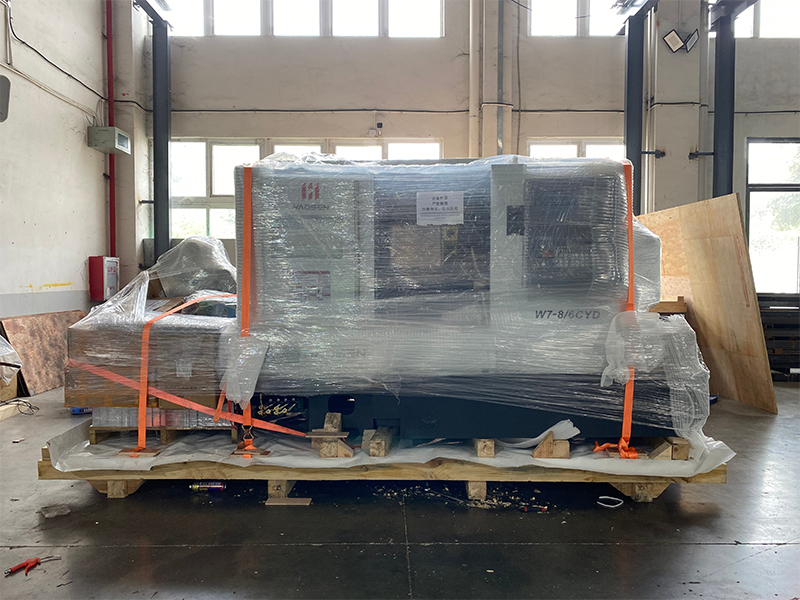

1.A lathe is fully wrapped with stretch film for dust and scratch protection.

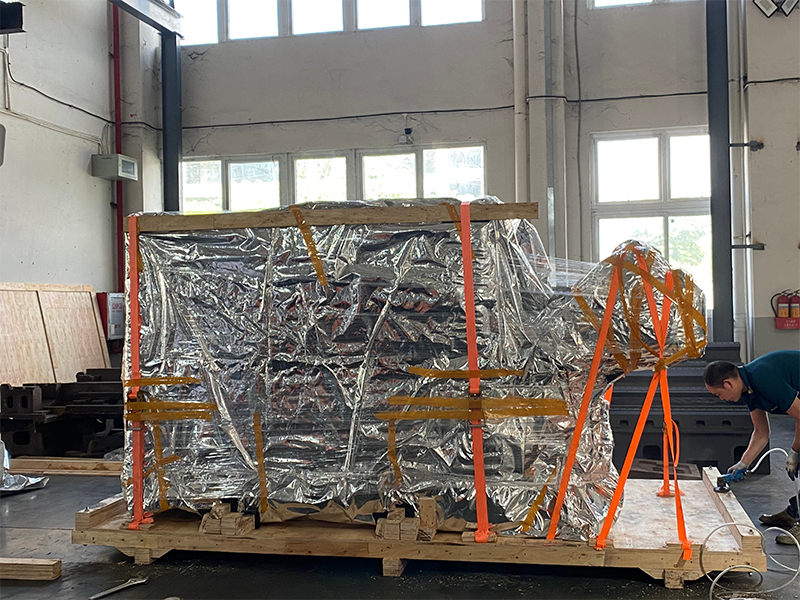

2.Then vacuum-mapped to prevent moisture during transportation.
3.Vacuum packaging with strappings to fix the lathe tightly to avoid movement.

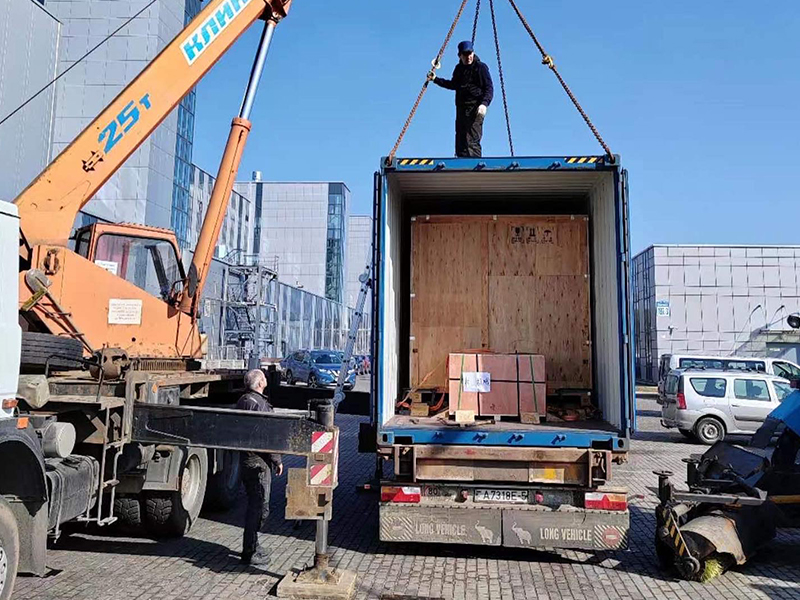

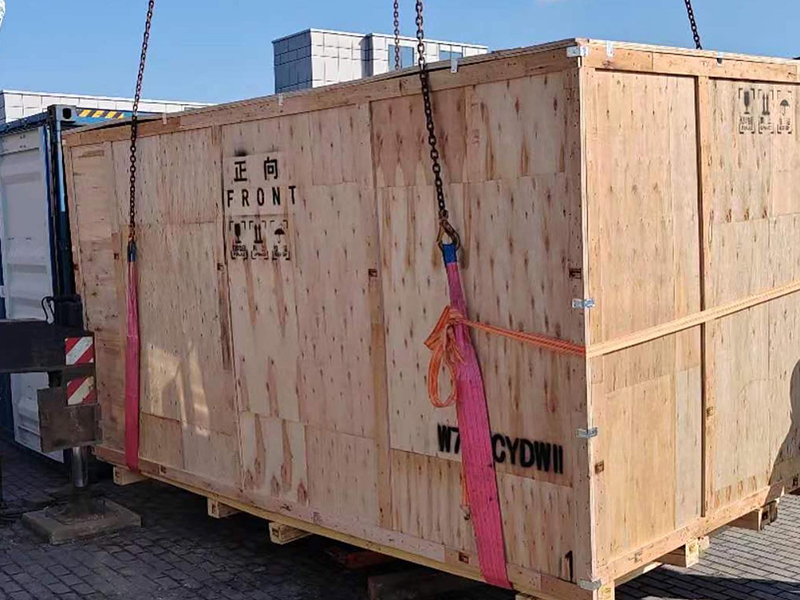

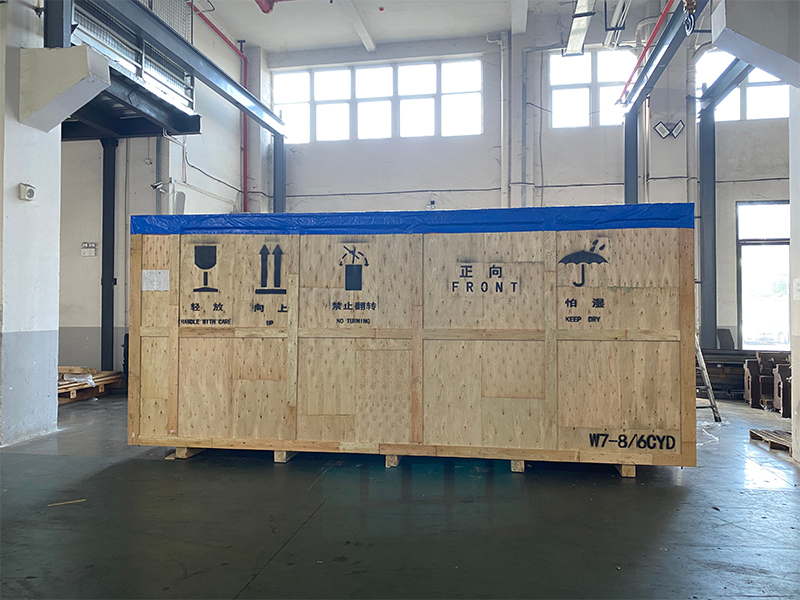

4.Finally, it is packed into a strong plywood box.
