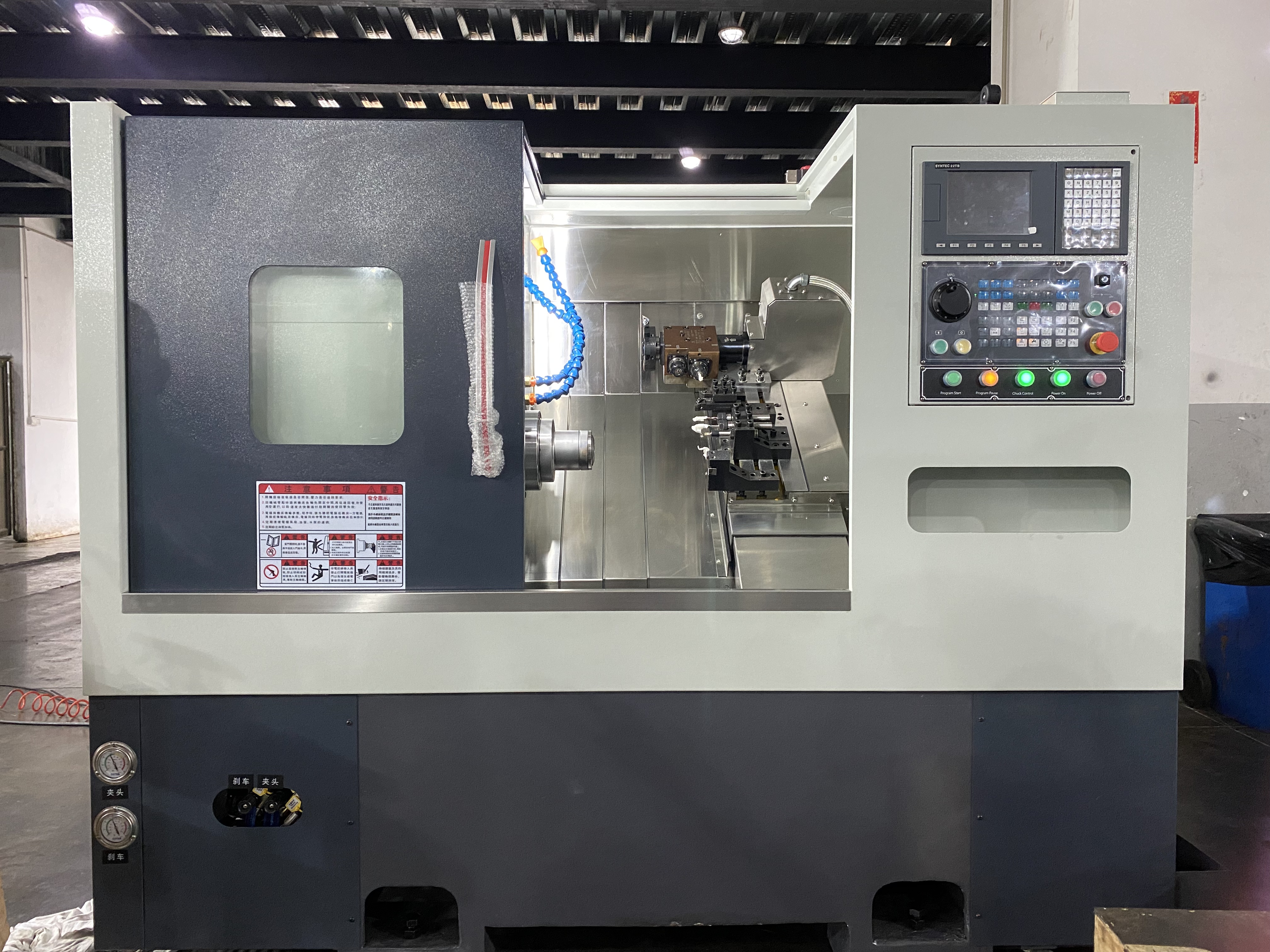

CNC Lathe Turning Milling Service 2 Axis CNC Machining Center with Single Spindle Slant Bed
By fitting with 1-to-2 driven tools and fly cutters, the XL-6P 2-axis gang-type CNC lathe is perfect for turning small parts and automated machining.
Parameter Table
| # | Parameter | Unit | XL-6P CNC Lathe | |||
| 1 | Max. Turning Diameter | mm | Φ300 | |||
| 2 | Max. Machining Length | mm | 200 | |||
| 3 | Max. Swing Diameter over bed | mm | Φ400 | |||
| 4 | Max. Swing Diameter Over slide | mm | Φ140 | |||
| 5 | Bar Feeding Diameter | mm | <Φ46 | |||
| 6 | Spindle Bore | mm | Φ56 | |||
| 7 | Max. Spindle Speed | RPM | 5000 | |||
| 8 | X-axis Travel | mm | ☐ 780 (Standard) ☐ 980 (Optional) | |||
| 9 | Z-axis Travel | mm | 300 | |||
| 10 | Rapid Feedrate | m / min | 25 | |||
| 11 | Voltage (3phase) | V | 380±10% | |||
| 12 | Frequency | Hz | 50 | |||
| 13 | Power | kW | 10 | |||
| 14 | Weight | kg | 2300 | |||
| 15 | Size (Length × Width × Height) | mm | 2200 × 1500 × 1800 | |||
| # | Configuration Table | |||||
| 1 | CNC | ☐ FANUC 0I-TF PLUS (3B) | ☐ Siemens 808D | ☐ SYNTEC 7TA | ||
| Spindle Rated Power / Torque of the Servo Motor | 7.5kW / 35.8Nm | 7.5kW / 36Nm | 5.5kW / 35Nm | |||
| X axis Rated Power / Torque of the Servo Motor | 1.2kW / 7Nm | 1.5kW / 8Nm | 1.3kW / 8.3Nm | |||
| Z axis Rated Power / Torque of the Servo Motor | 1.2kW / 7Nm | 1.5kW / 8Nm | 1.3kW / 8.3Nm | |||
| 2 | \ | Brand | Type / Spec | |||
| Spindle | ☐ LBIE Belt Spindle (OEM by HAOZHI) (Standard) ☐ Guangzhou HAOZHI Motor Spindle (Optional) ☐ Taiwan KENTURN Belt Spindle (Optional) | ☐ A2-5 (Standard) ☐ A2-6 (Spindle Bore: Φ66mm; Bar Feeding Diameter: <Φ52) (Optional) | ||||
Details Display

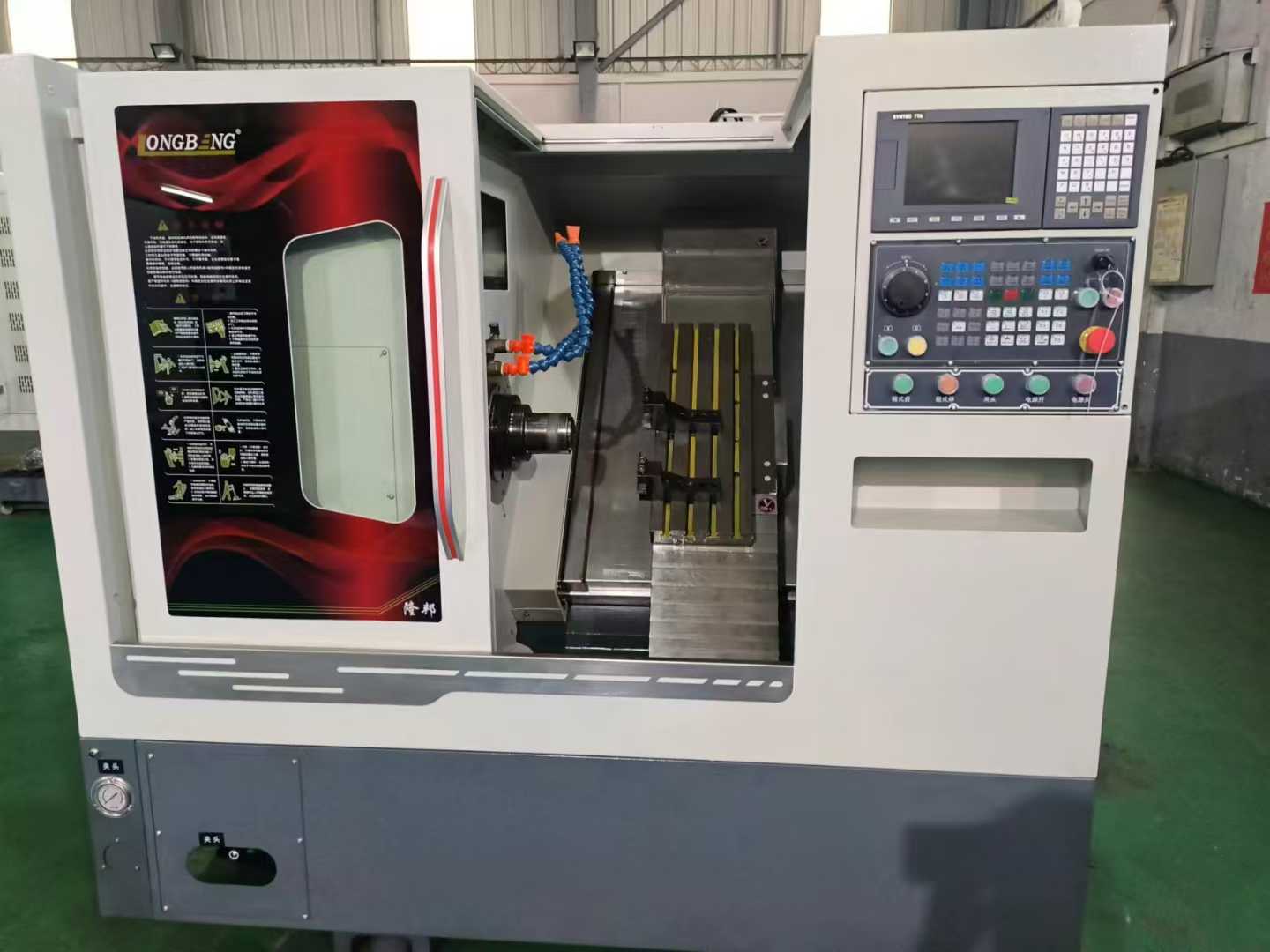

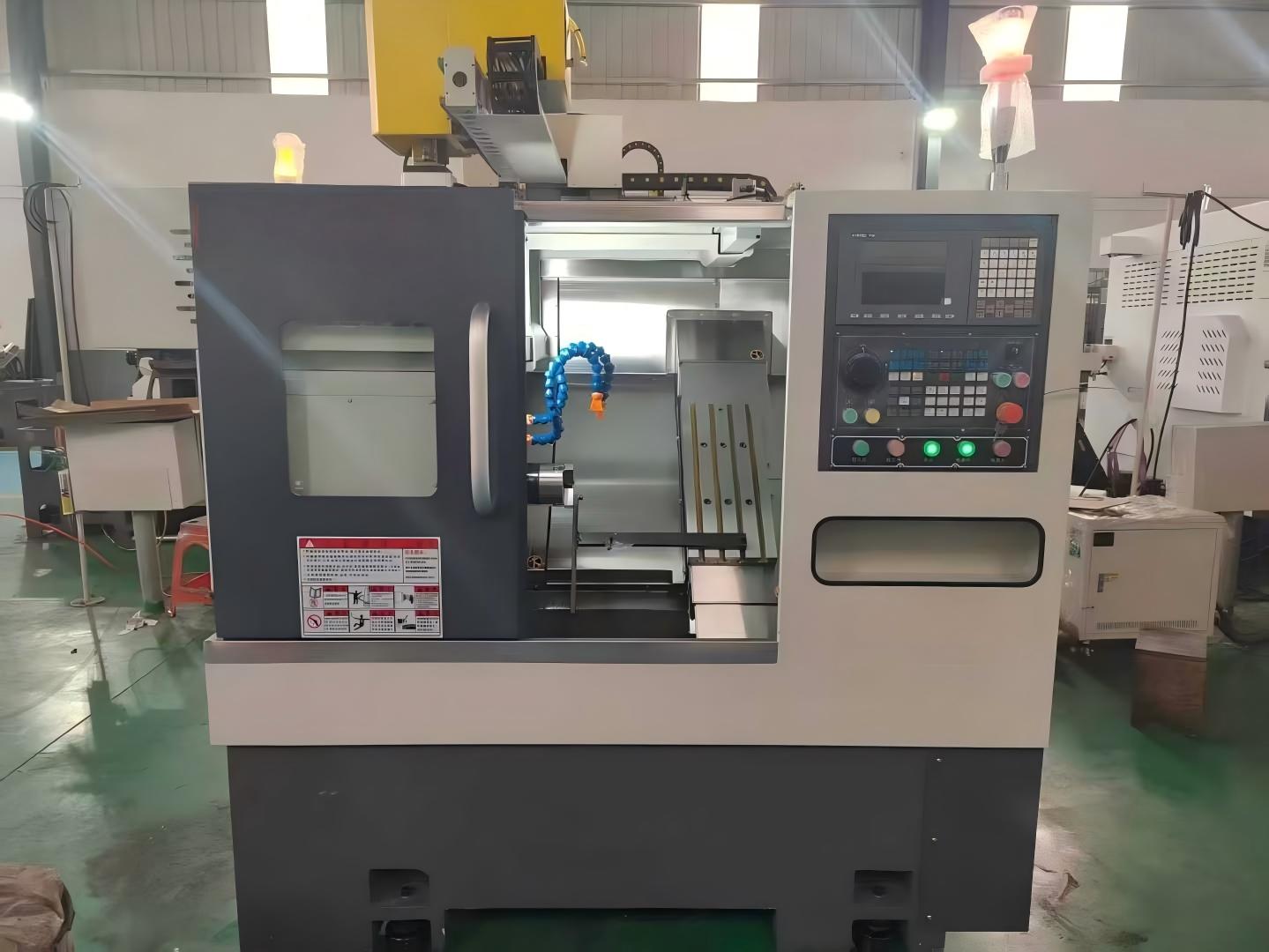

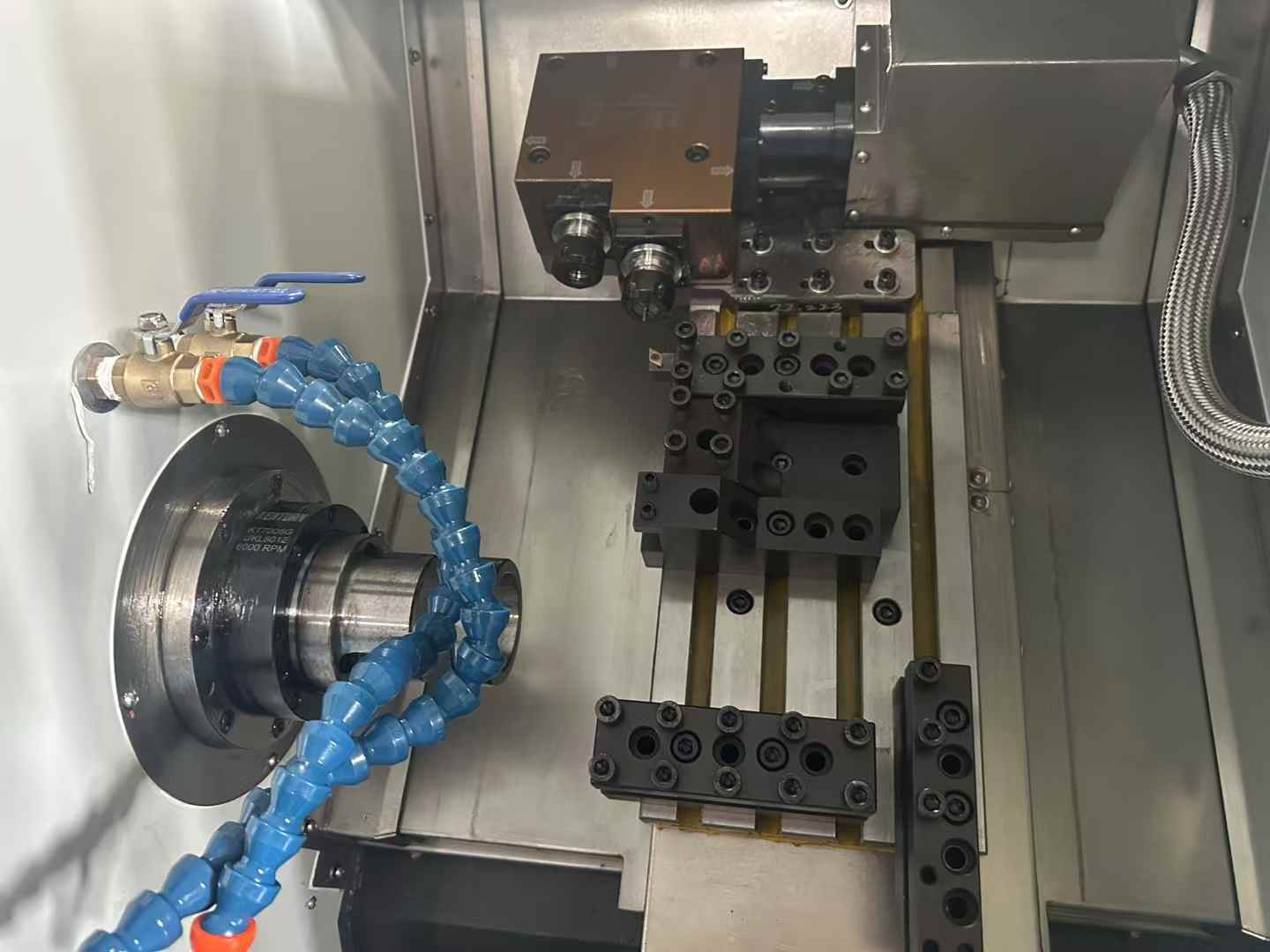

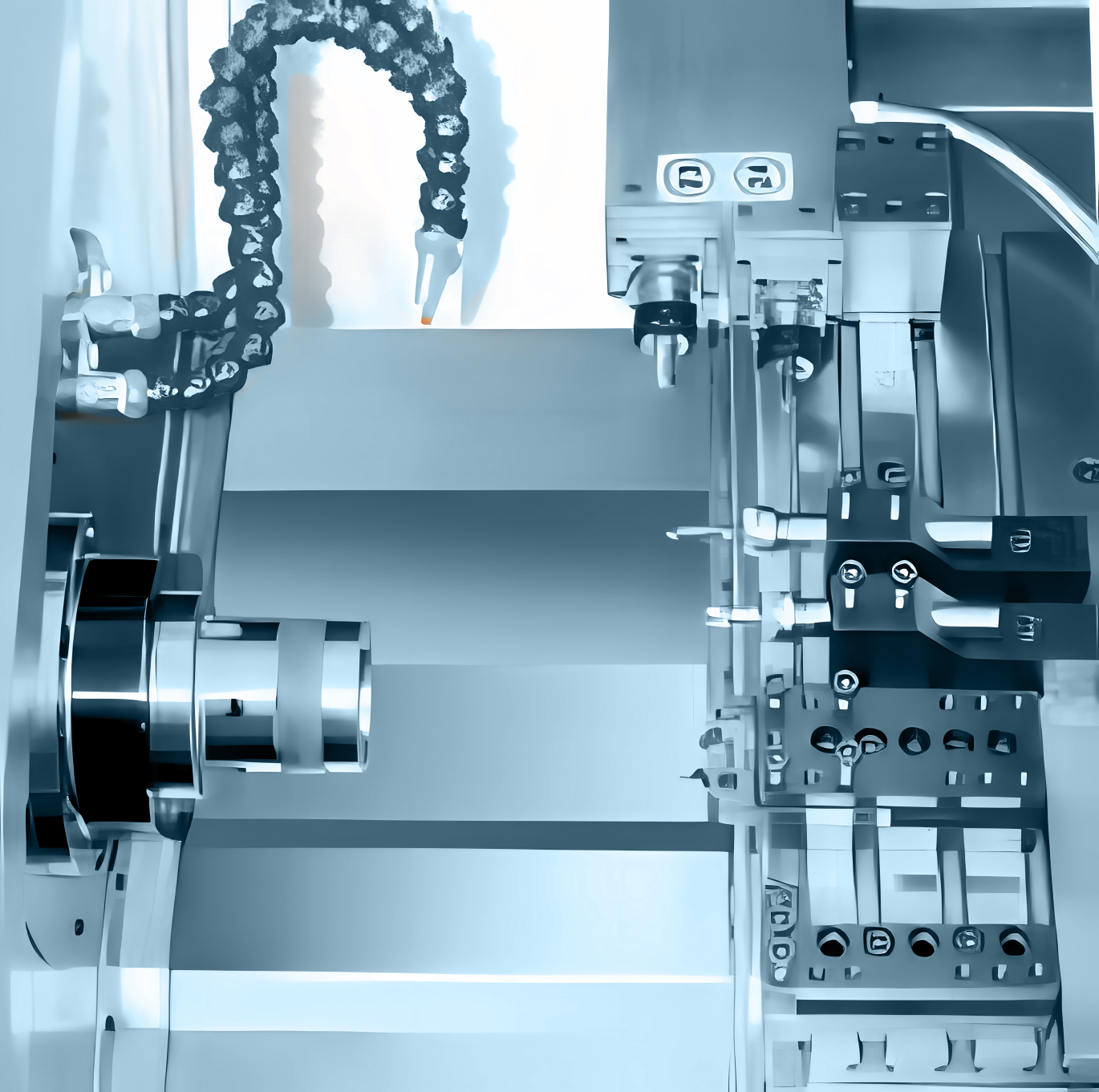

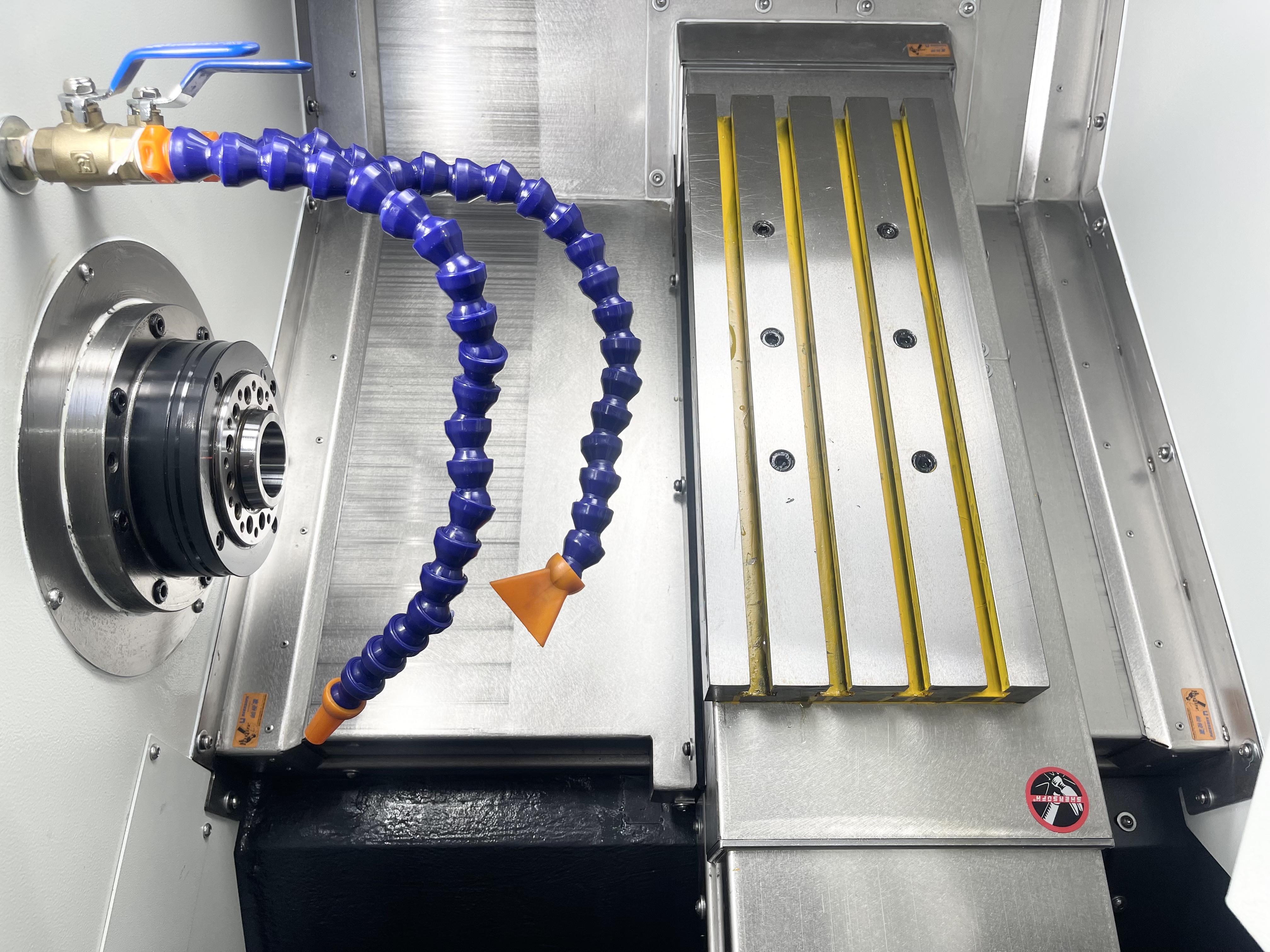

Gang Type Carrier
A gang-type CNC lathe is a kind of machine that has tools laid out in a straight line on a fixed tool block. This arrangement allows the tools to be positioned very quickly without having to rotate the turret. It is capable of high efficiency, very good accuracy, and stable performance for small precision parts. It is especially suited for mass turning, drilling, threading, and milling of shafts, sleeves, and electronic components in automotive, hardware, and electronics industries.
This CNC metal turning lathe is designed to meet the different production requirements of important sectors like aerospace, automobile, nuclear power, and precision hardware.
With the help of high-performance turning and milling capabilities, one complex high-precision part can be machined very efficiently or in one hit.
Manufacturing defense and military parts is one of its main uses. This machine can perform very well in manufacturing parts with very tight tolerances and superior material integrity.
About Us
2007：The company was set up as a professional enterprise of R&D, manufacturing, sales, and service of turning and milling machine tools.
2009：China's first 4+4 live tool turning and milling machine was produced by the company.
2014：They have overcome the technical obstacle of the interpolated Y-axis turning and milling machine tool.
2022：A dual-spindle dual-turret turning and milling composite machine tool was introduced by the company.
Today：The company is now seeking agents worldwide to export high-quality Chinese CNC machine tools, based on their over 15 years of experience, certified production qualification, and their service, which includes nuclear energy, aerospace, automotive, home appliances, and more.
Premium CNC Machinery
This display features the top-of-the-line CNC machining tools that we use, such as large-format gantry machining centers, Okuma milling heads that can achieve high precision, and 5-axis linkage machining systems. These sophisticated machines provide excellent rigidity, stability, and ultra-high machining accuracy at the same time, which makes it possible to carry out the processing of large and complicated workpieces with very strict tolerances efficiently. With the installation of control systems from globally known brands and intelligent operation interfaces, these machines will be perfect for aerospace, automotive, mold, and heavy machinery manufacturing. They will certainly give you reliable performance and top-notch production efficiency for a wide range of industrial areas.

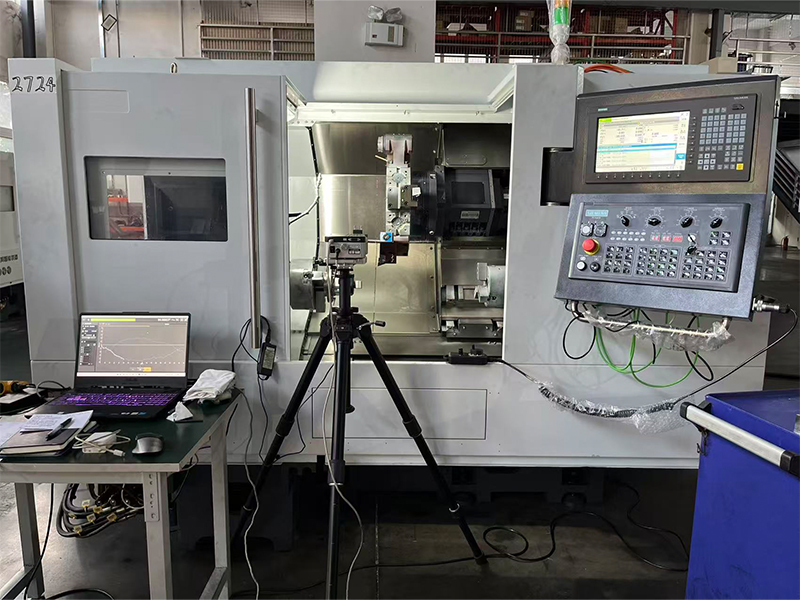

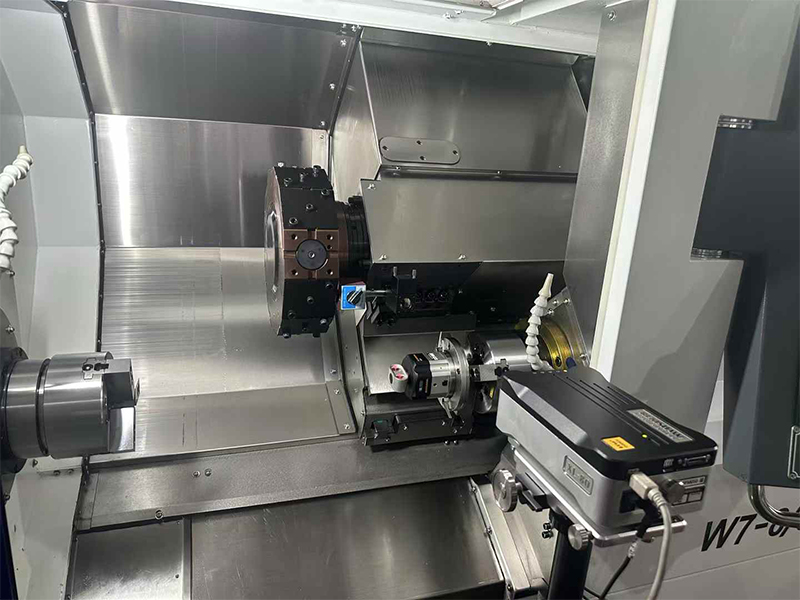

Laser Interferometer
Accuracy Compensation

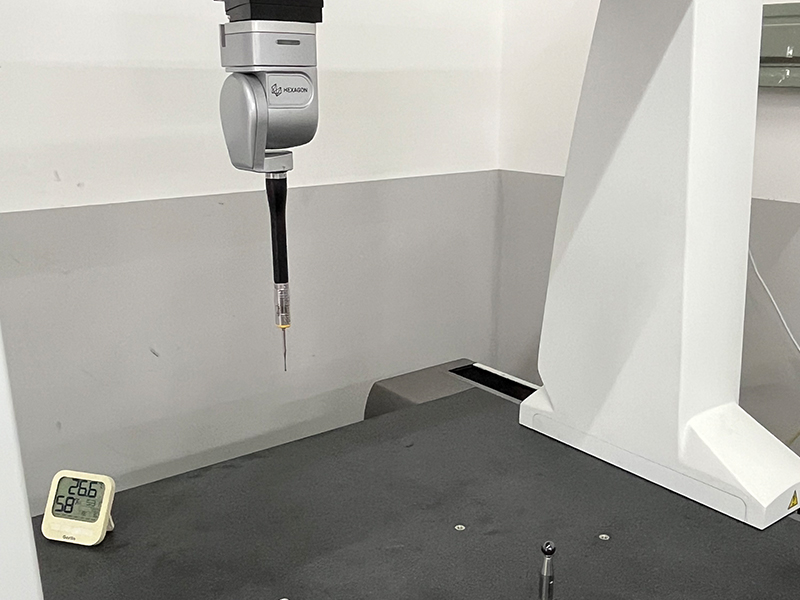

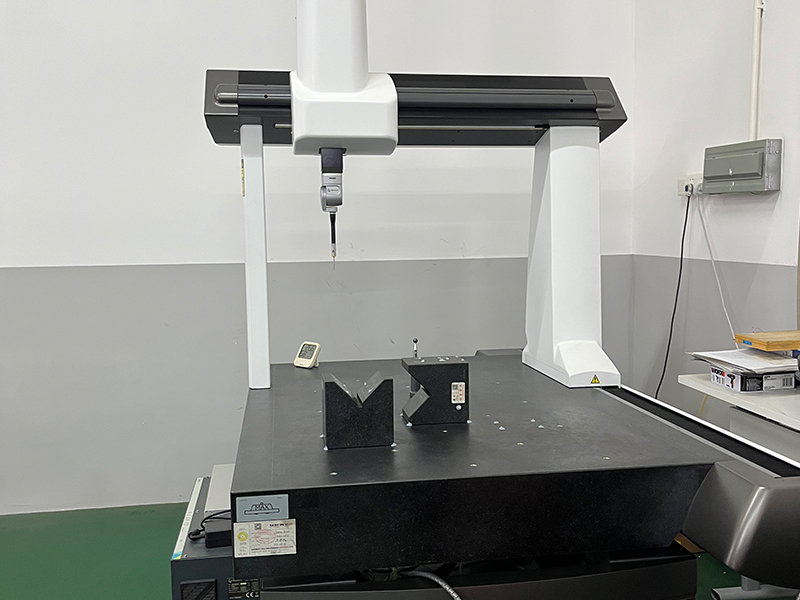

CMM
Accuracy Detection
Our CNC machine tools are equipped with the latest laser interferometer technology to measure and correct the accuracy of the machine very precisely. By combining very accurate measurements with data analysis, we compensate effectively for different kinds of errors in positioning, geometry, and temperature changes. This way, we can ensure the stable and dependable machining accuracy, even during long hours of operation.
LBIE carries out quality control of the whole process. We have experienced teams who check every component, system, and process very closely. Our CNC machine tools will exceed global quality standards, giving you precision and performance that you can rely on time after time in your production.

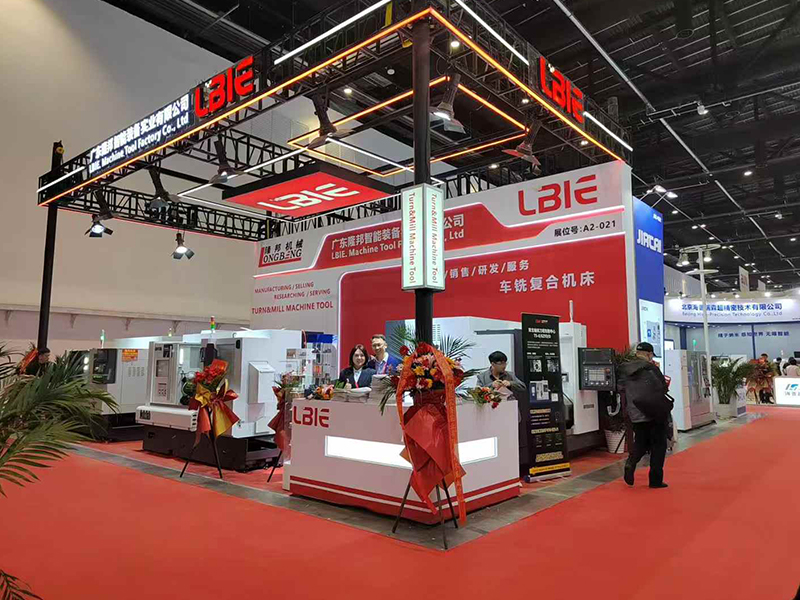

CIMT 2025

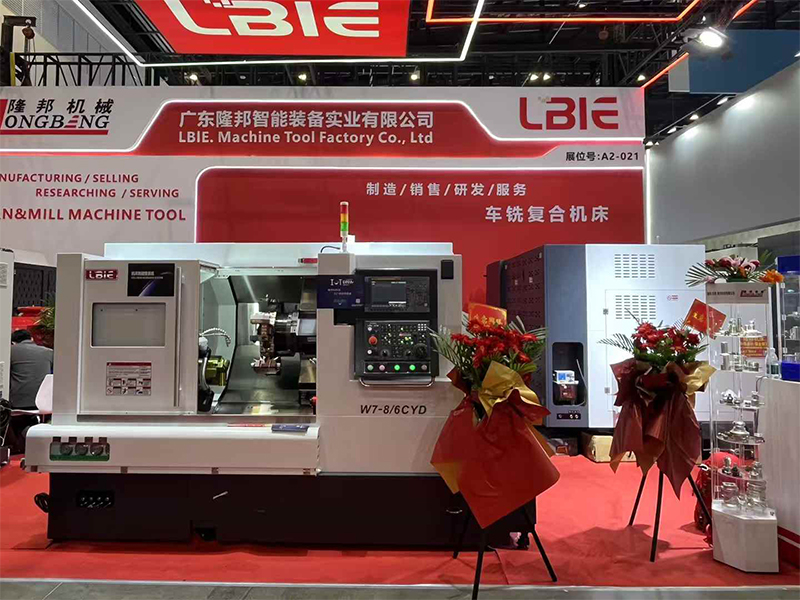

LBIE CNC Lathe Exhibition
Two Spindle Lathe
Customers visited our booth.
CIMT 2025 LBIE Exhibition Review

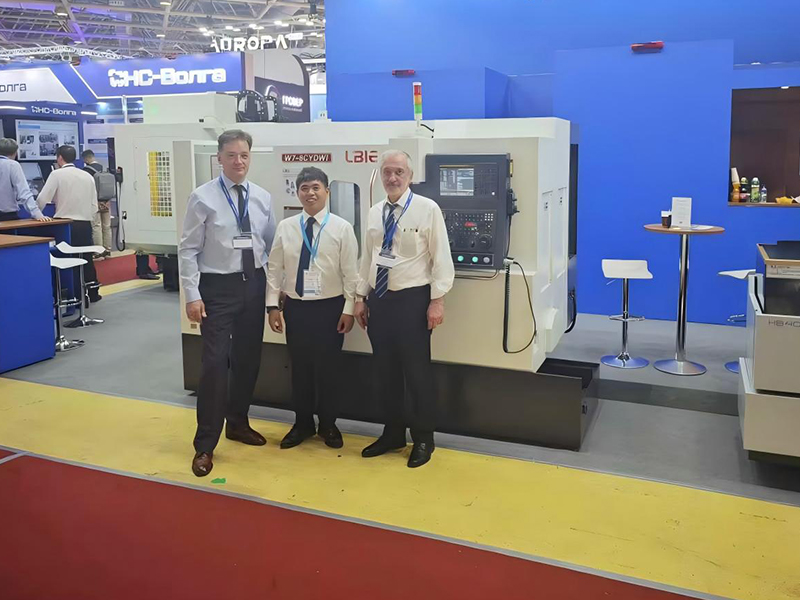

METALLOOBRABOTKA 2025
"Metalworking" Minsk, Belarus

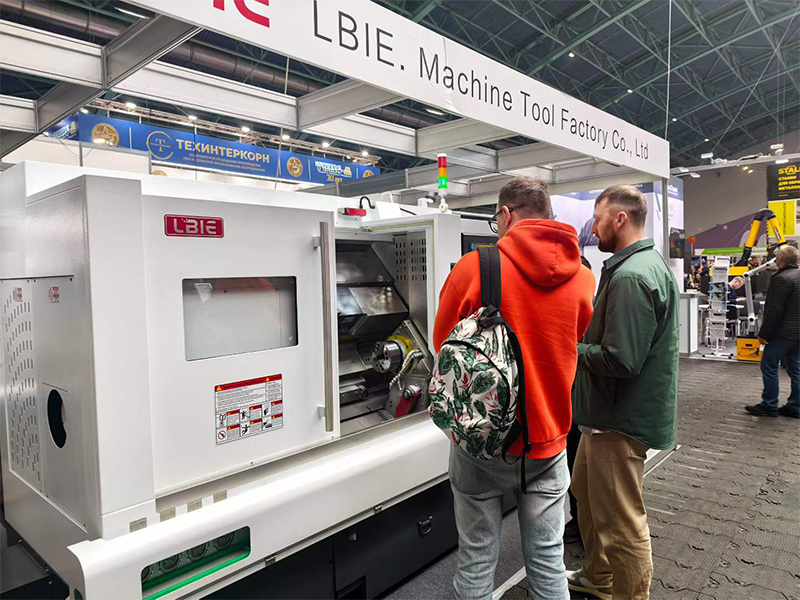

Overseas Exhibitions
We have been involved in exhibitions of CNC machine tools overseas in different countries such as Russia, Belarus, Malaysia, Uzbekistan, and others, which have brought us a great deal of worldwide attention from customers.
1.Stretch Wrapping

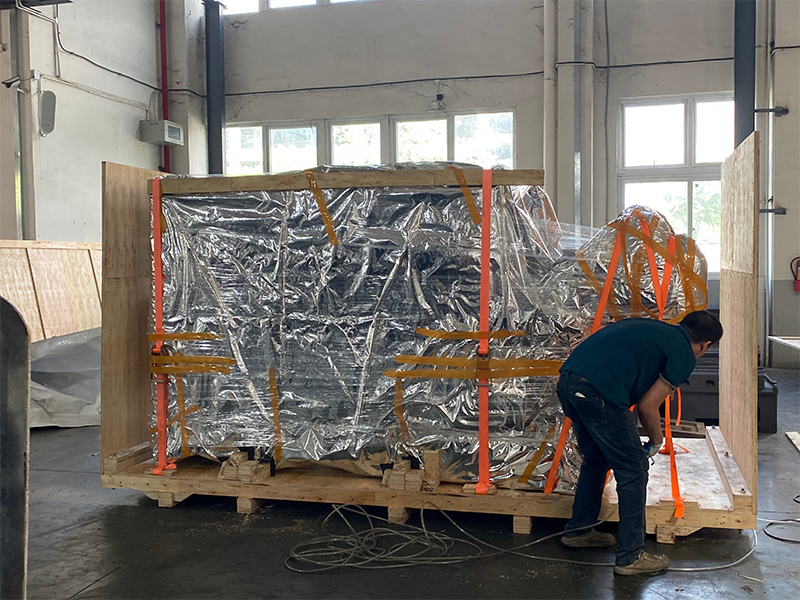

2.Vacuum packaging

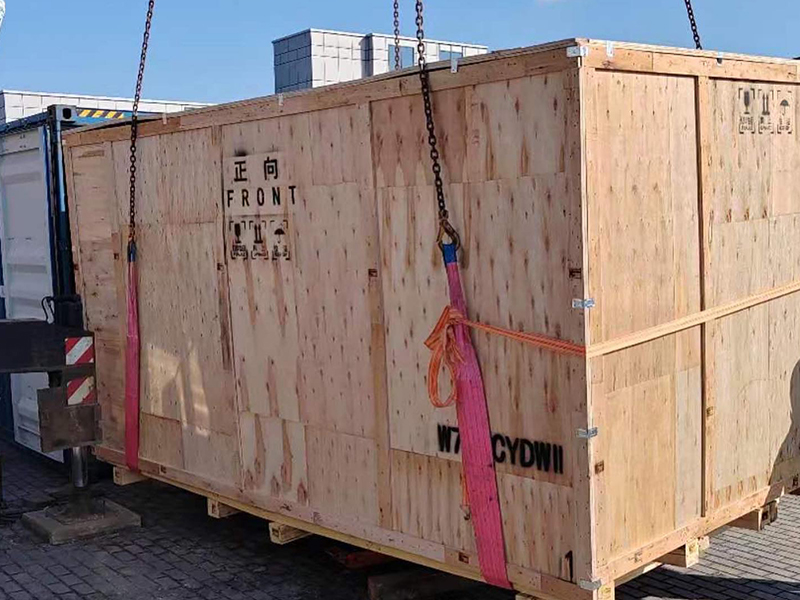

3.Strong Plywood Packing
4.Waterproof Top

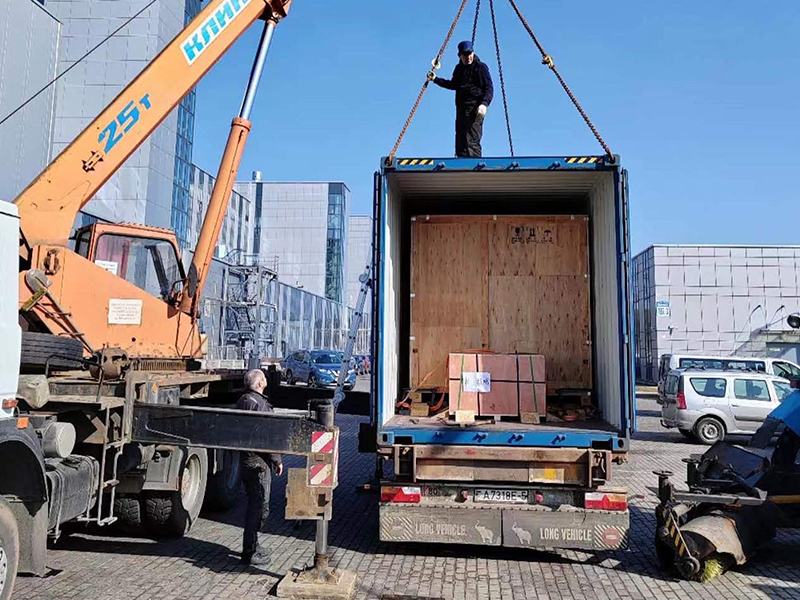

5.Client's goods package
6.Client's good package

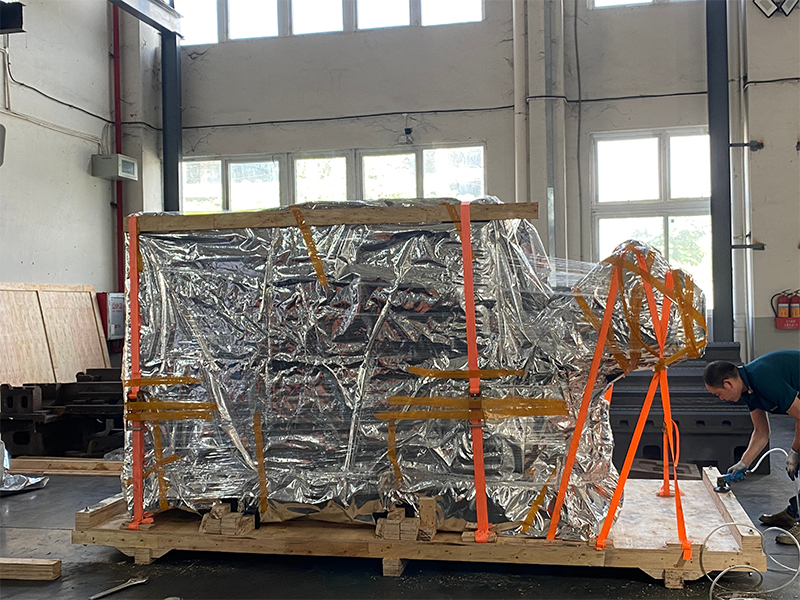

We use a multi-layer protective process to make sure that the CNC lathe is delivered without any damage:

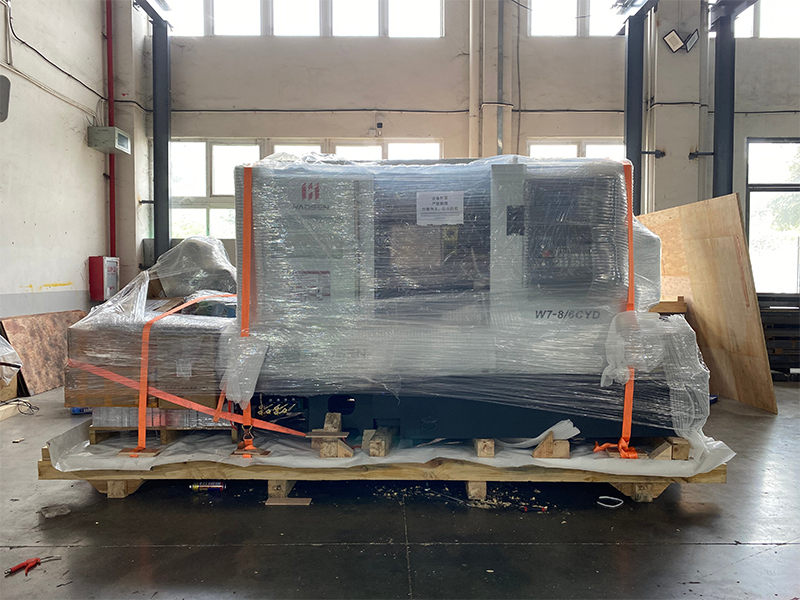

1.Firstly, the lathe is fully wrapped with stretch film to prevent dust and scratches.
2.Secondly, it is vacuum-packed to keep moisture away while being transported.
3.Thirdly, after vacuum packaging, the lathe is tightly strapped to prevent it from moving.
4.Lastly, it is arranged inside a strong plywood box.

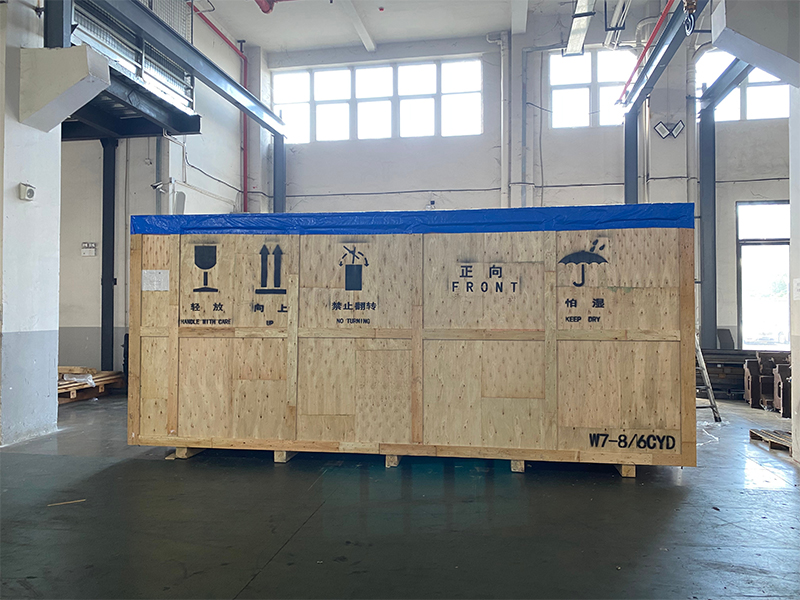

The plywood box's top is covered with a waterproof film to keep the machine dry and in perfect condition upon arrival.
ISO 9001 (International Quality Management System)
CE Certification (European Conformity)
EAC (Eurasian Conformity)
