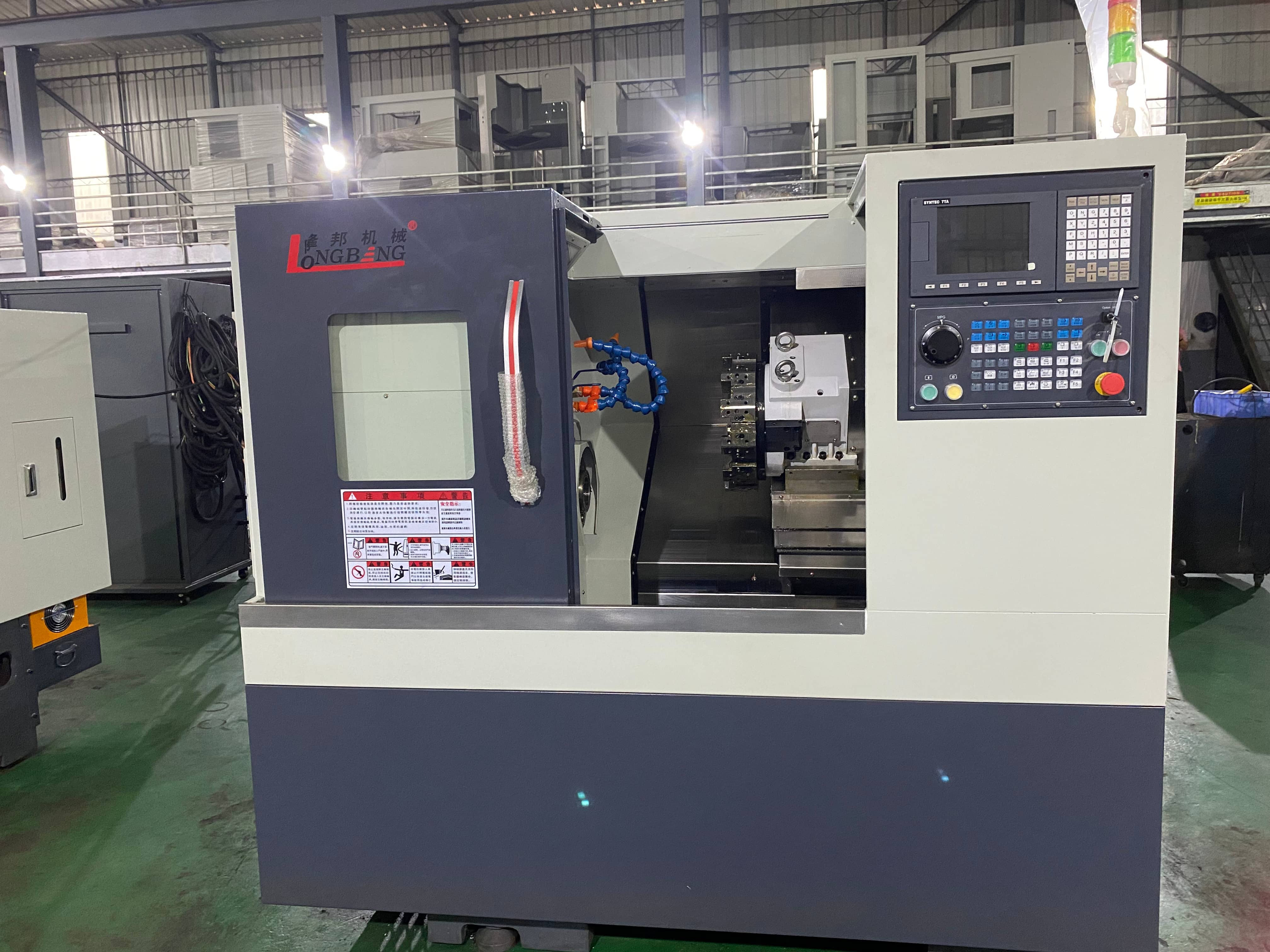

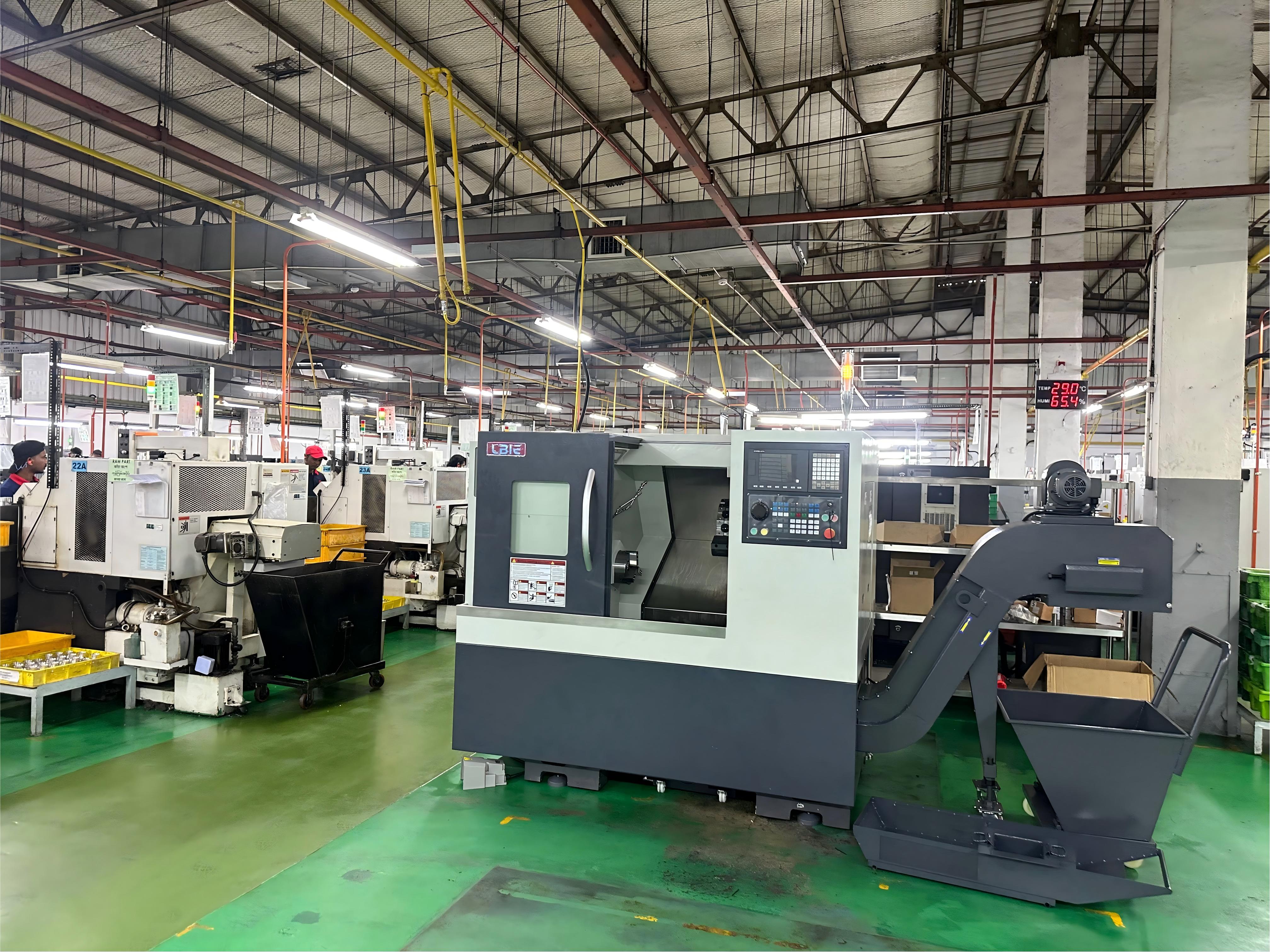

XL2-6T Single Spindle Automatic Horizontal Turning Center CNC Lathe 2 Axis 6 Inch Chuck FANUC Control
The XL2-6T is a high-performance single-spindle automatic horizontal turning center CNC lathe, especially designed to offer precision, efficiency, and reliability in metal machining of different types. Operating with a 2-axis configuration, this machine combines state-of-the-art technology and durable build to serve the needs of today's manufacturing, whether it's small-batch production or high-volume mass manufacturing.
Parameter Table
| # | Parameter | Unit | XL2-6T CNC Turret Lathe | |||
| 1 | Max. Turning Diameter | mm | Φ420 | |||
| 2 | Max. Machining Length | mm | 350 | |||
| 3 | Max. Swing Diameter over bed | mm | Φ560 | |||
| 4 | Max. Swing Diameter Over slide | mm | Φ220 | |||
| 5 | Bar Feeding Diameter | mm | <Φ46 | |||
| 6 | Spindle Bore | mm | Φ56 | |||
| 7 | Max. Spindle Speed | RPM | 5000 | |||
| 8 | X-axis Travel | mm | 240 | |||
| 9 | Z-axis Travel | mm | 400 | |||
| 10 | Tailstock Travel | mm | \ | |||
| 11 | Rapid Feedrate | m / min | 22 | |||
| 12 | Max. Driven Tool Speed | RPM | \ | |||
| 13 | Voltage (3phase) | V | 380±10% | |||
| 14 | Frequency | Hz | 50 | |||
| 15 | Power | kW | 12 | |||
| 16 | Weight | kg | 3000 | |||
| 17 | Size (Length × Width × Height) | mm | 1980 × 1500 × 1680 (Excluding Chip Conveyor) | |||
| # | Configuration Table | |||||
| 1 | CNC | ☐ FANUC 0I-TF PLUS (3B) | ☐ Siemens 808D (Standard) ☐ Siemens 828D (Optional) (Shop Turn Programming) | ☐ SYNTEC 7TA | ||
| Spindle Rated Power / Torque of the Servo Motor | ☐ 11kW / 52Nm (Standard) ☐ 15kW / 71Nm (Optional) | 11kW / 57Nm | ☐ 7.5kW / 49Nm (Standard) ☐ 11kW / 72Nm (Optional) | |||
| X-axis Rated Power / Torque of the Servo Motor | 1.2kW / 7Nm | 1.5kW / 8Nm | 1.3kW / 8.3Nm | |||
| Z-axis Rated Power / Torque of the Servo Motor | 1.2kW / 7Nm | 1.5kW / 8Nm | 1.3kW / 8.3Nm | |||
| Driven Tool Rated Power / Torque of the Servo Motor | \ | \ | \ | |||
| 2 | \ | Brand | Type / Spec | |||
| Spindle | ☐ LBIE Belt Spindle (OEM by HAOZHI) (Standard) ☐ Guangzhou HAOZHI Motor Spindle (Optional) ☐ Taiwan KENTURN Belt Spindle (Optional) | A2-5 | ||||
Details Display

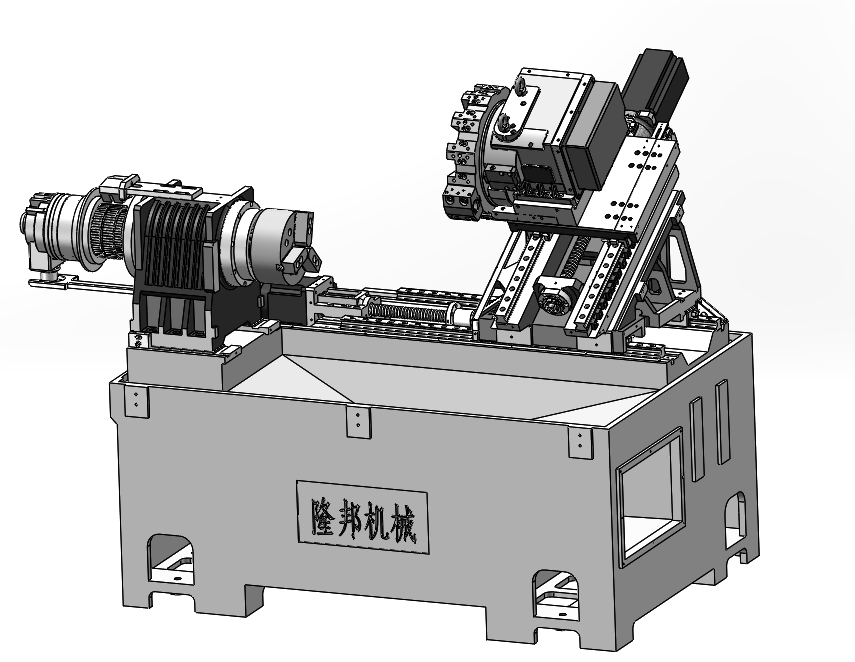

The machine is built around an HT300 cast iron slant bed with a high and low guideway arrangement, providing outstanding rigidity and damping qualities. This kind of building design ensures that the machine stays very stable while running and that it is capable of maintaining the same level of precision in machining even after it has been used for heavy-duty cutting over a long period of time.
Spindle
Our series of CNC metal lathes is equipped with a variety of very stiff mechanical spindles with low vibration and high precision as the main features. These spindles, which are made to run stably and keep their dimensions despite changes in heat, are equipped with the highest quality NSK super-precision bearings and are the sine qua non of performing turning at the highest level.
The electric spindle that is optionally available can also be very helpful if you want to improve the productivity of your turning line because it gives you very accurate speed control, consumes lower levels of energy, and requires less maintenance time.
Lead Screw
In our series of CNC metal lathes, we offer spindles with superior stiffness that help to minimize vibrations and maintain high precision. The spindles are equipped with top-tier NSK super-precision bearings, ensuring consistent and accurate operation as well as superior thermal stability, features crucial for high-performance turning. If you want to increase productivity further, you can choose the electric spindle, a precise speed control, energy saving, and low maintenance solution.
Liner Guide Rail
The CNC lathe is equipped with high-rigid linear guides on both X and Z axes, having optimized track width, which results in less friction during operation and high accuracy at a speed of 22 m/min.
Manufacturing efficiency is highly enhanced by this machinery, and it drastically reduces the time required to complete tasks, especially when executing complicated contour machining with the interpolated Y-axis.
This machine is capable of rapidly locating and stably moving anywhere and is equally good as a tailstock-containing standalone machine and in automated production lines. This makes it an ideal choice for high-volume and high-precision production.
System
The XL2-6T CNC turret lathe provides versatile, high-performing CNC system choices: Siemens 808D (standard), FANUC 0I-TF PLUS, or SYNTEC 7TA. It features a 7.5kW-15kW spindle power range and very responsive axis servos to guarantee precise, high-speed turning of small to medium workpieces.
This CNC metal lathe is capable of adapting to various manufacturing needs, and it is a major source for industries such as aerospace, automotive, nuclear power, and precision hardware. The machine combines state-of-the-art turning and milling operations to perform the machining of ultra-precise complex parts with just one setup. It is truly a wise choice for making defense and military parts, as it can reach extremely tight tolerances and maintain material integrity with superb performance.
About Us
Following the "Quality First, Integrity Service" concept, we are committed to providing comprehensive after-sales service solutions, including installation, training, maintenance, etc., besides 24/7 technical support online. On top of that, customer empowerment through integration of industry, university and research is one of our ways to reach win-win results.
2007：The company was founded and initially focused on the research and development, production, sales, and after-sales service of turning and milling machine tools.
2009：We created the first 4+4 live turning and milling machine tool in China.
2014：Achieved a breakthrough in overcoming the technical barrier of interpolation of the Y-axis turning and milling machine tool.
2022：Released a dual spindle dual turret turning and milling composite machine tool.
Today：after 15+ years of industry experience, we are recognized with the certificate of production qualification. Our service has covered nuclear energy, aerospace, automotive, home appliances, and more. We are now looking for agents around the world to present excellent Chinese CNC machine tools to customers globally.
Premium CNC Machinery
Our exhibit features very modern CNC machining tools, like large-scale gantry machining centers, Okuma precision milling heads, and 5-axis linkage machining systems. These top-notch machines provide excellent stiffness, stability, and the highest level of machining accuracy, which allows them to carry out efficient processing of large, complex parts with very precise specification requirements. They are equipped with control systems of great renown globally and smart operation interfaces. These features make them perfect for aerospace, automotive, mold, and heavy machinery manufacturing. These machines deliver dependable performance and capability that can support various industrial applications very well.
Laser Interferometer
Accuracy Compensation
CMM
Accuracy Detection
Our CNC machine tools use cutting-edge laser interferometer technology to accurately compensate for precision. High-precision measurement and data analysis allow us to effectively correct positioning, geometric, and thermal errors, so your machining accuracy will be stable and reliable even during long-term operation.
LBIE strictly controls quality at all stages of production. We have expert teams who thoroughly check each part, the whole system, and the processes. Our CNC machine tools meet worldwide quality standards and will ensure that your production will have constant precision and dependable performance.
CIMT 2025
LBIE CNC Lathe Exhibition
Two Spindle Lathe
Customers visited our booth.
CIMT 2025 LBIE Exhibition Review
METALLOOBRABOTKA 2025
"Metalworking" Minsk, Belarus
Overseas Exhibitions
We have taken part in overseas exhibitions of CNC machine tools held in Russia, Belarus, Malaysia, Uzbekistan, and other countries, and our company has received highly attractive attention from global customers.
1.Stretch Wrapping
2.Vacuum packaging
3.Strong Plywood Packing
4.Waterproof Top
5.Client's goods package
6.Client's good package
So as to secure the delivery, our CNC lathe features a multi-layer protection treatment as follows:
1.The lathe is initially fully wrapped with stretch film to prevent dust and scratches.
2.A vacuum sealed to keep moisture away during delivery.
3.After vacuum sealing, the lathe will be fixed with straps to avoid shifting.
4.Finally, it will be packed into a sturdy plywood box.
ISO 9001 (International Quality Management System)
CE Certification (European Conformity)
EAC (Eurasian Conformity)
The certifications listed above guarantee that each unit is produced in accordance with the highest international safety and performance requirements.
