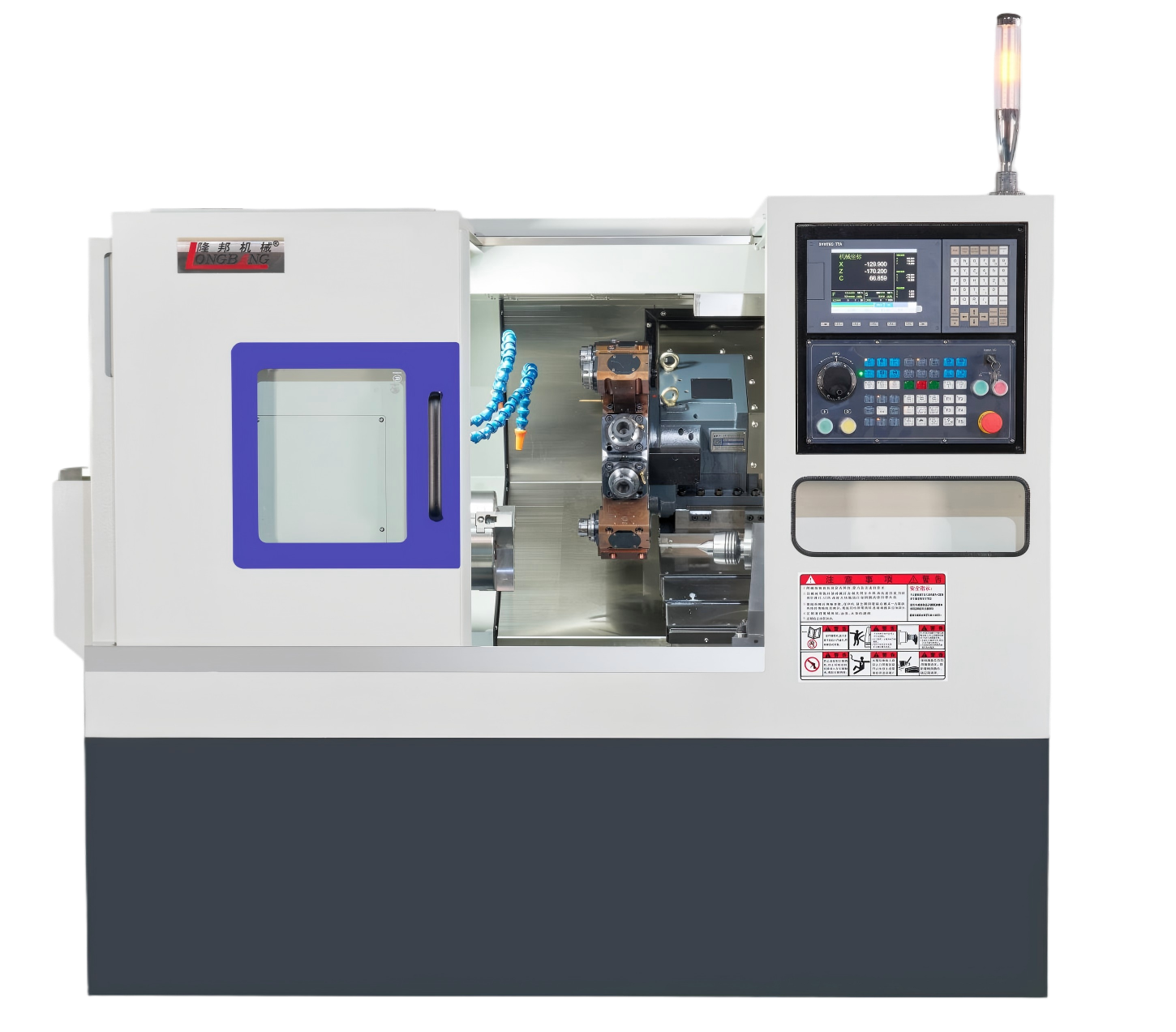

XL2-6DW Driven Tool Turret Hydraulic Tailstock Lathe
Key Featur

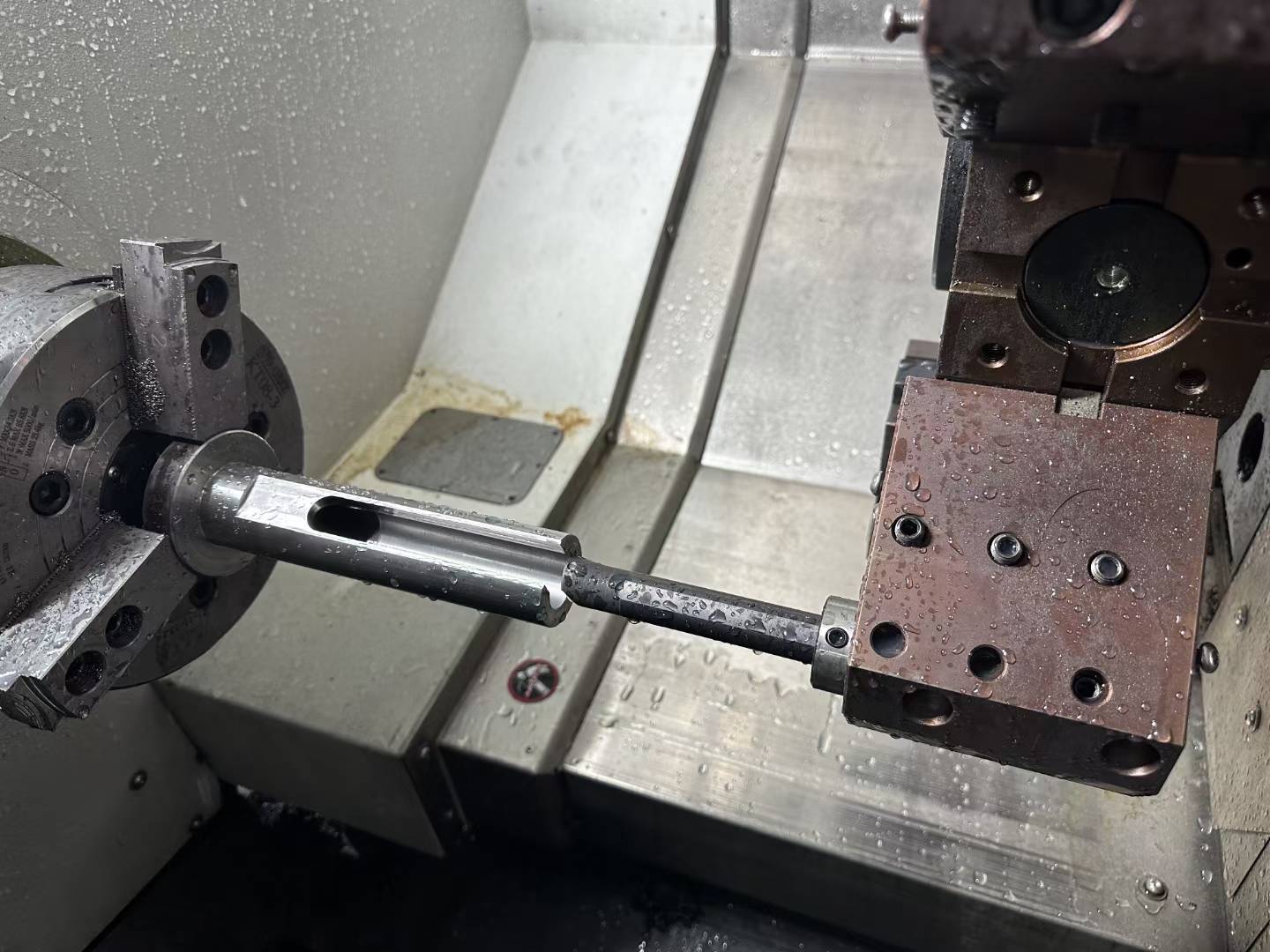

✅ CNC lathe with live tooling integrated in one machine for all turning, milling, drilling & tapping operations
✅ Solid slant bed CNC lathe design ensuring stable, vibration-free machining

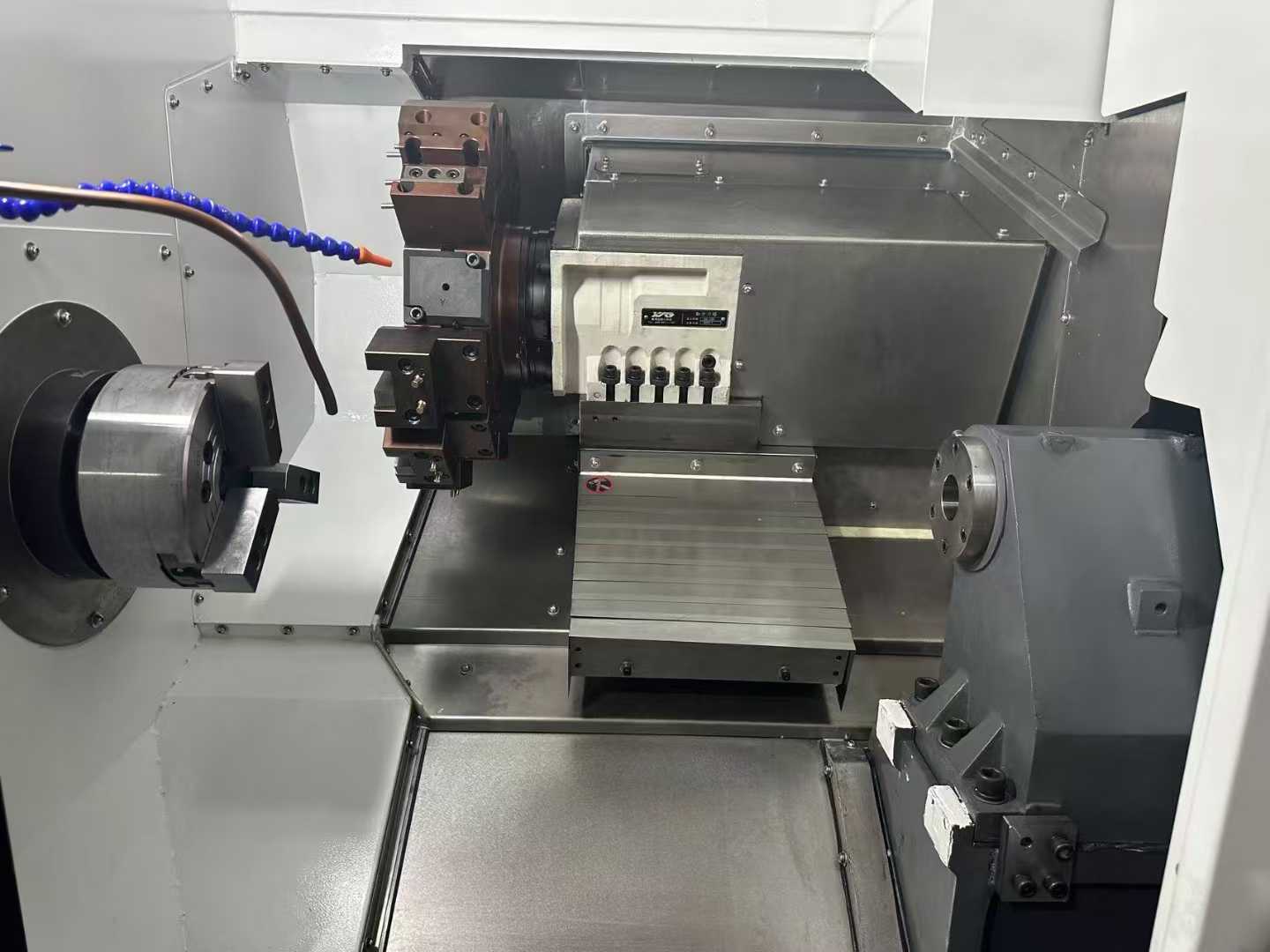

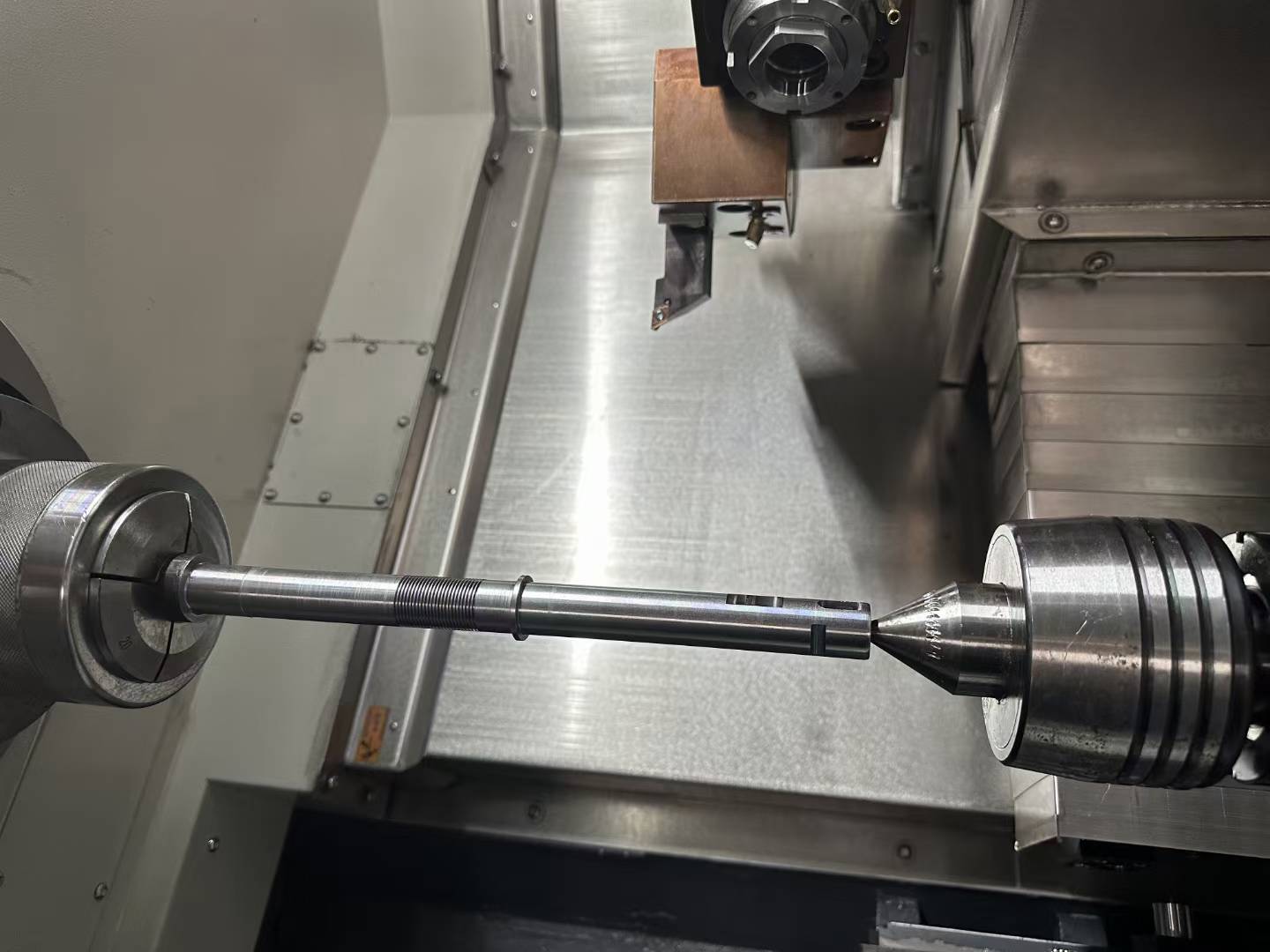

✅ High-productivity CNC lathe with automatic feeding system and tailstock hydraulic for uninterrupted operation
✅ Configured primarily as a CNC lathe for brass fittings, accurate threading and finishing are ensured
✅ 5000RPM high-speed spindle with flexible CNC system options
Parameter Table
| # | Parameter | Unit | XL2-6DW Driven Tool Turret Hydraulic Tailstock Lathe | |||
| 1 | Max. Turning Diameter | mm | Φ420 | |||
| 2 | Max. Machining Length | mm | 500 | |||
| 3 | Max. Swing Diameter over bed | mm | Φ560 | |||
| 4 | Max. Swing Diameter Over slide | mm | Φ220 | |||
| 5 | Bar Feeding Diameter | mm | <Φ46 | |||
| 6 | Spindle Bore | mm | Φ56 | |||
| 7 | Max. Spindle Speed | RPM | 5000 | |||
| 8 | X-axis Travel | mm | 240 | |||
| 9 | Z-axis Travel | mm | 450 | |||
| 10 | Tailstock Travel | mm | 500 | |||
| 11 | Rapid Feedrate | m / min | 22 | |||
| 12 | Max. Driven Tool Speed | RPM | 4000 | |||
| 13 | Voltage (3phase) | V | 380±10% | |||
| 14 | Frequency | Hz | 50 | |||
| 15 | Power | kW | 18 | |||
| 16 | Weight | kg | 3700 | |||
| 17 | Size (Length × Width × Height) | mm | 2550×1750×1850 (Excluding Chip Conveyor) | |||
| # | Configuration Table | |||||
| 1 | CNC | ☐ FANUC 0I-TF PLUS (3B) | ☐ Siemens 828D (Shop Turn Programming) | ☐ SYNTEC 22TA | ||
| Spindle Rated Power / Torque of the Servo Motor | ☐ 11kW / 52Nm (Standard) ☐ 15kW / 71Nm (Optional) | 11kW / 57Nm | ☐ 7.5kW / 49Nm (Standard) ☐ 11kW / 72Nm (Optional) | |||
| X-axis Rated Power / Torque of the Servo Motor | 1.2kW / 7Nm | 2.2kW / 12Nm | 1.3kW / 8.3Nm | |||
| Z-axis Rated Power / Torque of the Servo Motor | 1.2kW / 7Nm | 2.2kW / 12Nm | 1.3kW / 8.3Nm | |||
| Driven Tool Rated Power / Torque of the Servo Motor | 2.7kW / 12Nm | 2.2kW / 12Nm | 3.1kW / 15Nm | |||
| 2 | \ | Brand | Type / Spec | |||
| Spindle | ☐ LBIE Belt Spindle (OEM by HAOZHI) (Standard) ☐ Guangzhou HAOZHI Motor Spindle (Optional) ☐ Taiwan KENTURN Belt Spindle (Optional) | A2-5 | ||||
| 3 | X-axis | Linear Guide Rail | Rexroth | 35 Roller Guide | ||
| Lead Screw | NSK | 32 | ||||
| Bearing | NSK | 20TAC | ||||
| Z-axis | Linear Guide Rail | Rexroth | 35 Roller Guide | |||
| Lead Screw | NSK | 32 | ||||
| Bearing | NSK | 20TAC | ||||
| 4 | Tool Carrier Form | Brand | Taiwan TCSM | |||
| Driving Type | Servo Motor | |||||
| Locking Type | Hydraulic Locking | |||||
| Model / Station | BMT55-12 | |||||
Details Display

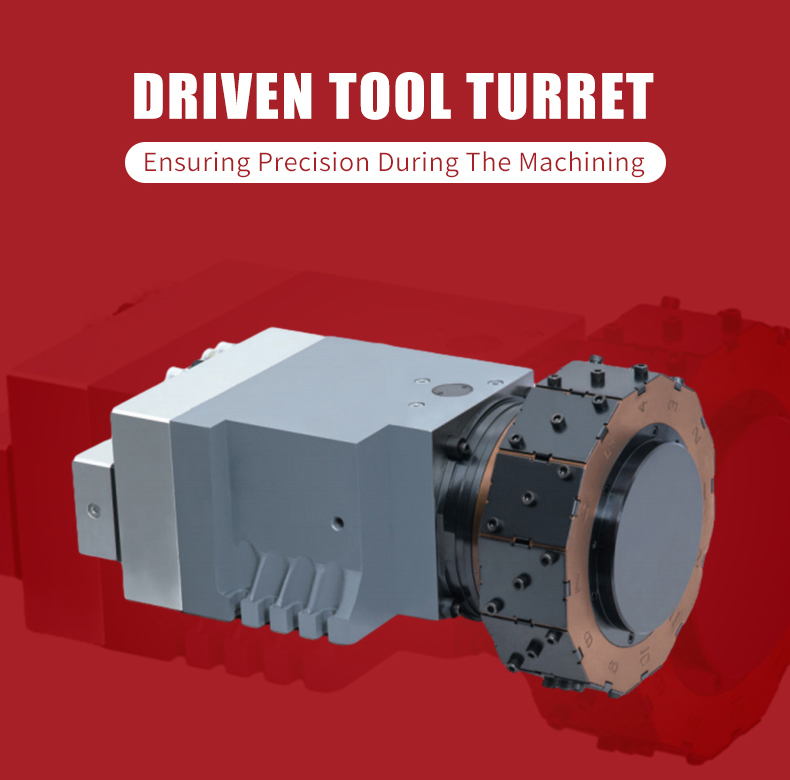

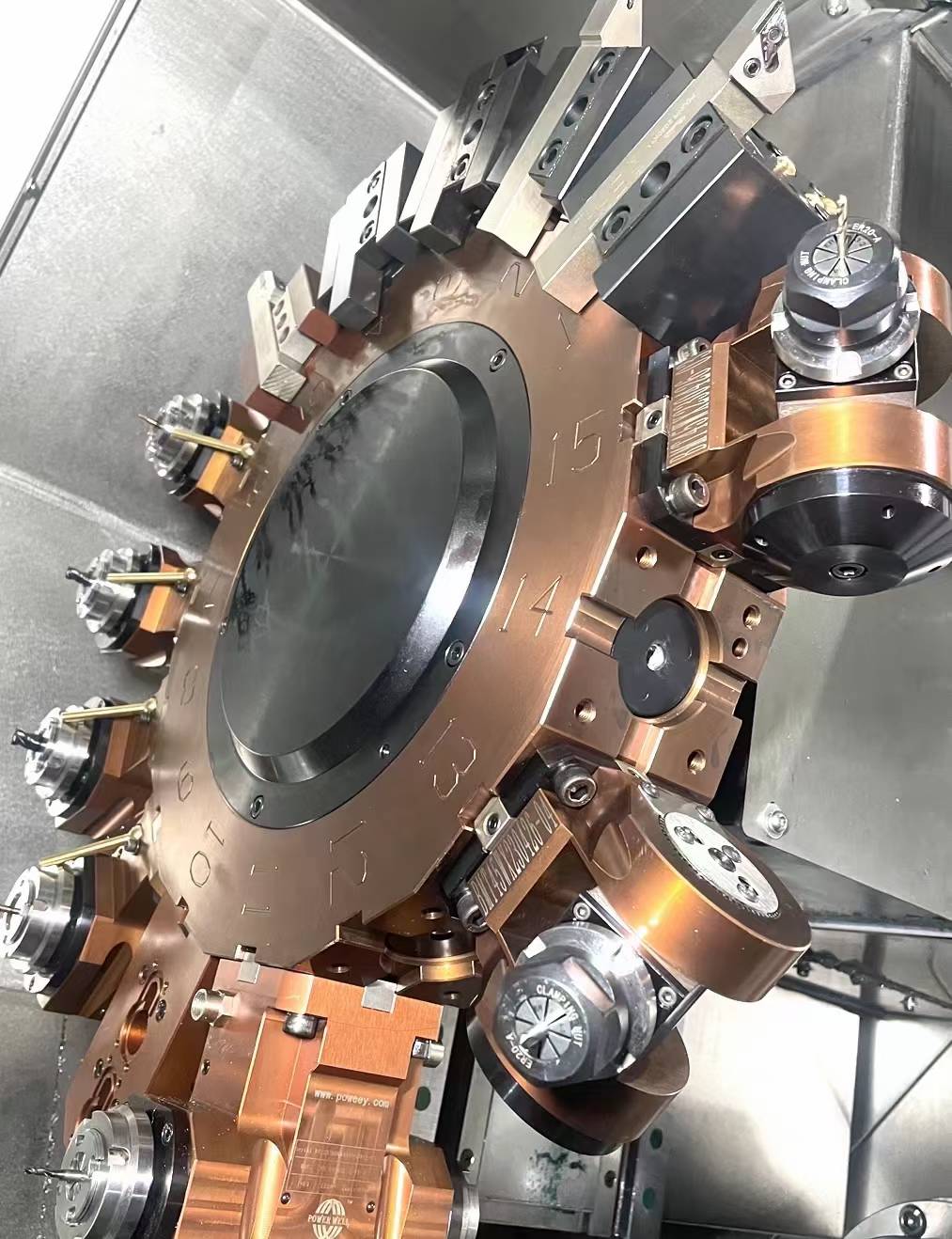

Turret
The Taiwan TCSM BMT55-12 turret operated by servo and locked hydraulically, 4000 RPM maximum speed, allows the hybrid turn-mill compound machining to be performed efficiently.
Spindle
15kW powerful A2-5 spindle (Π56mm cavity), 5000 RPM max speed for heavy-duty & precision turning.

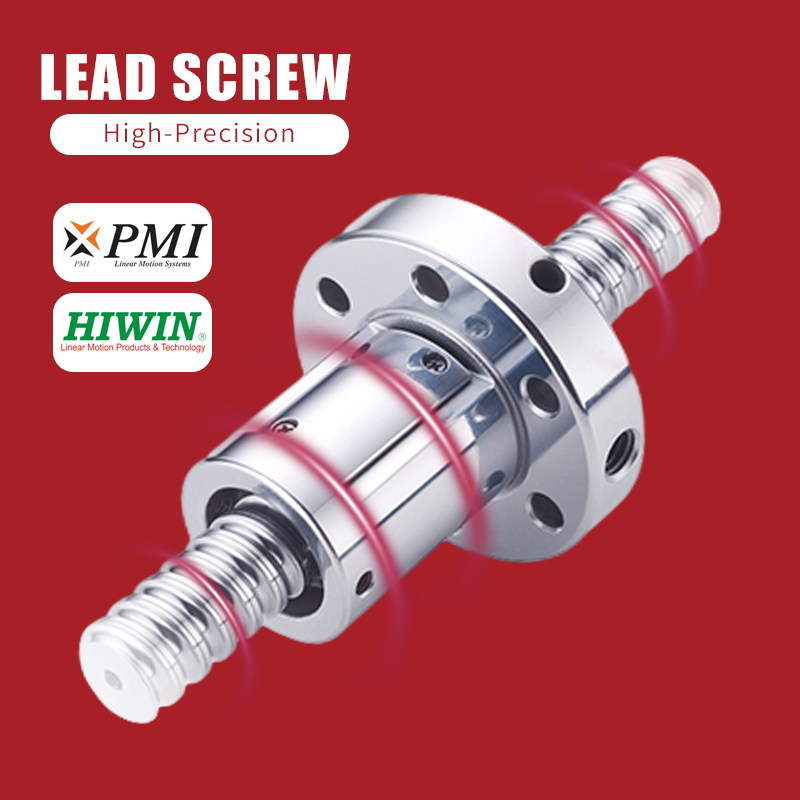

Lead Screw
NSK precision ball screws with bearings, providing accurate positioning & thermal stability.
Linear Guide Rail
Rexroth 35 roller guides for X/Z axes, guaranteeing rigid, smooth motion & a high load capacity.
About Us
2007：The company was established initially as a team for R&D, manufacturing, sales, and after-sales service of turning and milling machine tools.
2009：The company created the first 4+4 live tool turning and milling machine in China.
2014：The company explored the technical challenge of an interpolated Y-axis turning and milling machine tool.
2022：The company rolled out a dual-spindle dual-turret turning and milling composite machine tool.
Today：Having more than a decade of experience in the industry, with a certified production qualification, and our services cover nuclear energy, aerospace, automotive, home appliances, etc., we are vigorously looking for world agents to help introduce high-quality Chinese CNC machine tools to global customers.
Premium CNC Machinery
This display features our latest CNC machining tools, including large-sized gantry milling centers, Okuma high-precision milling heads, and 5-axis machining systems. These new machines have outstanding stiffness, stability, and ultra-sharp machining accuracy, which allow them to process large, complicated workpieces very effectively with very tight tolerance requirements. Highly efficient and well-equipped with the world-famous controls and smart user interfaces, they are best suited to aerospace, automotive, mold, and heavy machinery manufacturing, guaranteeing dependable performance and top-level production efficiency for a wide range of industrial applications.
Laser Interferometer
Accuracy Compensation
CMM
Accuracy Detection
The CNC machine tools we make are equipped with cutting-edge laser interferometer technology to ensure extreme accuracy. By measuring very accurately and analyzing the data, we can compensate for errors in positioning, geometry, and temperature, thus guaranteeing stable and reliable machining accuracy over a period of time.
LBIE applies full-process quality control, with professional teams being involved in the inspection of every component, system, and process with great thoroughness. We provide CNC machines that are certified by international quality norms, thus assuring you that the machines will maintain their accuracy and work reliably.
CIMT 2025
LBIE CNC Lathe Exhibition
Two Spindle Lathe
Customers visited our booth.
CIMT 2025 LBIE Exhibition Review
METALLOOBRABOTKA 2025
"Metalworking" Minsk, Belarus
Overseas Exhibitions
1.Stretch Wrapping
2.Vacuum packaging
3.Strong Plywood Packing
4.Waterproof Top
5.Client's goods package
6.Client's good package
In order to deliver our CNC lathe in a safe condition, we package it with multiple layers of protection as follows:
1. Firstly, the lathe is thoroughly wrapped with stretch film, which serves as a protective layer against dust and scratches.
2. It is then vacuum-packed to ensure no moisture comes in during the journey.
3. After vacuum packaging, the lathe is secured very tightly with straps so that it cannot move during transport.
4. Finally, it is placed inside a sturdy plywood box.
