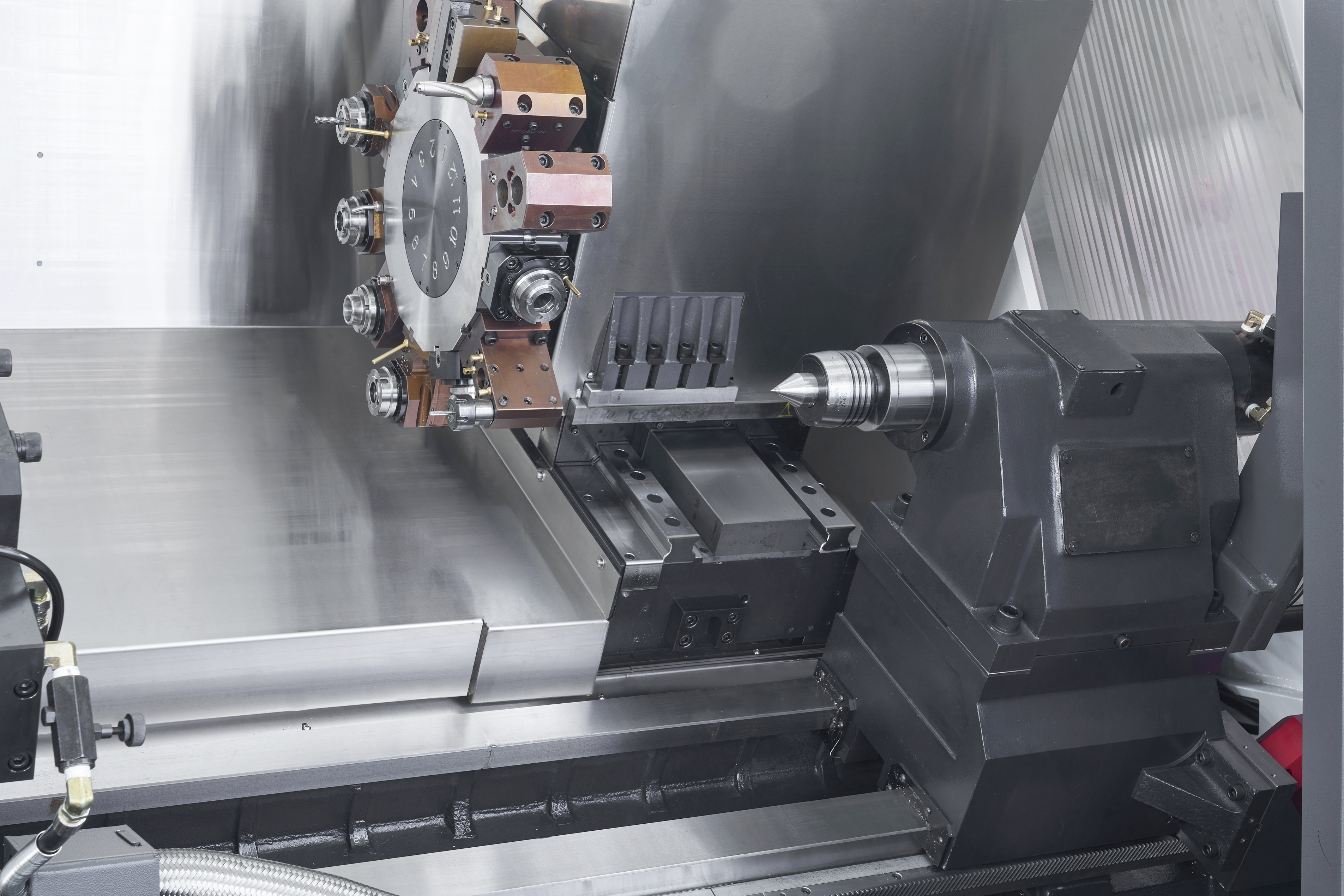

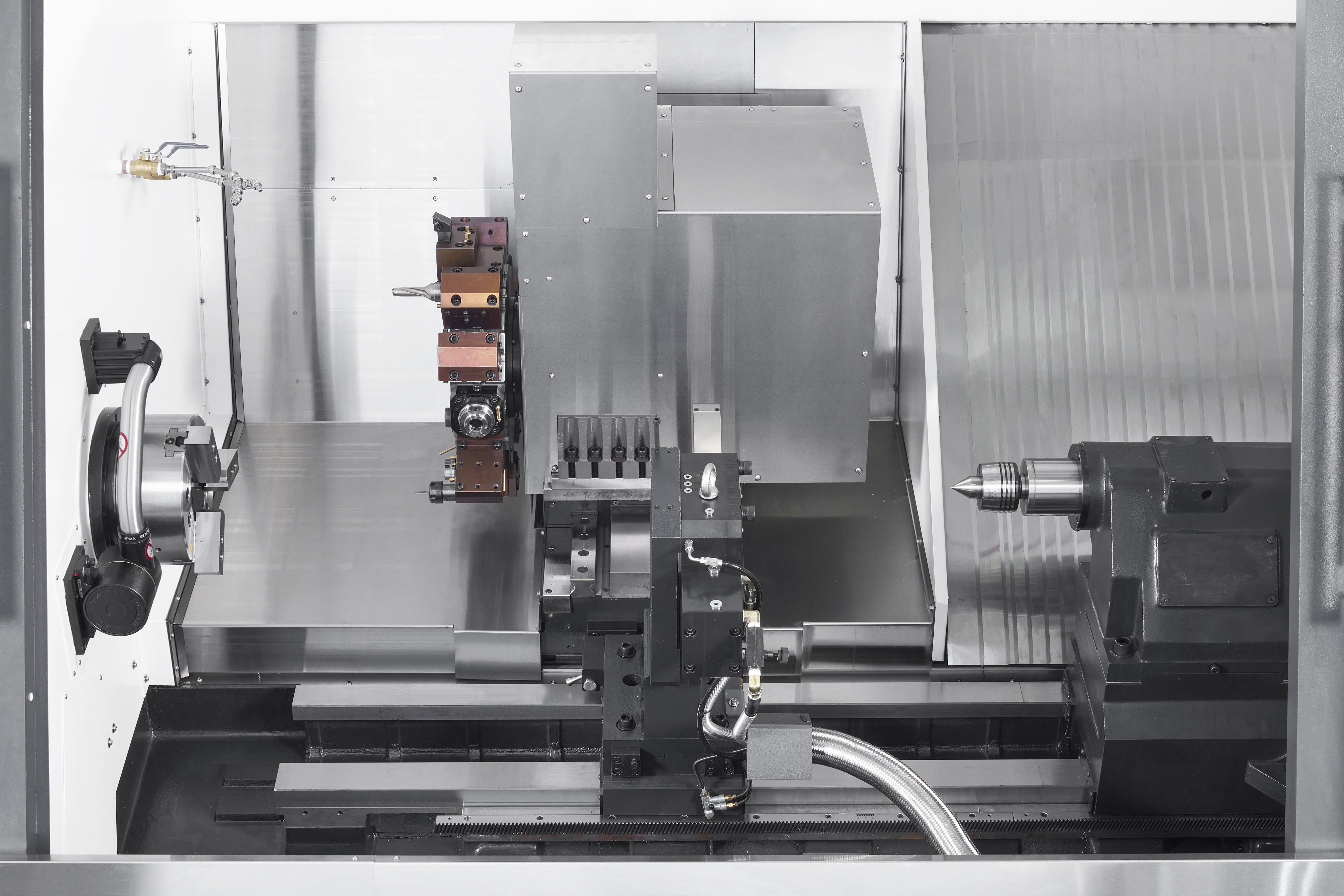

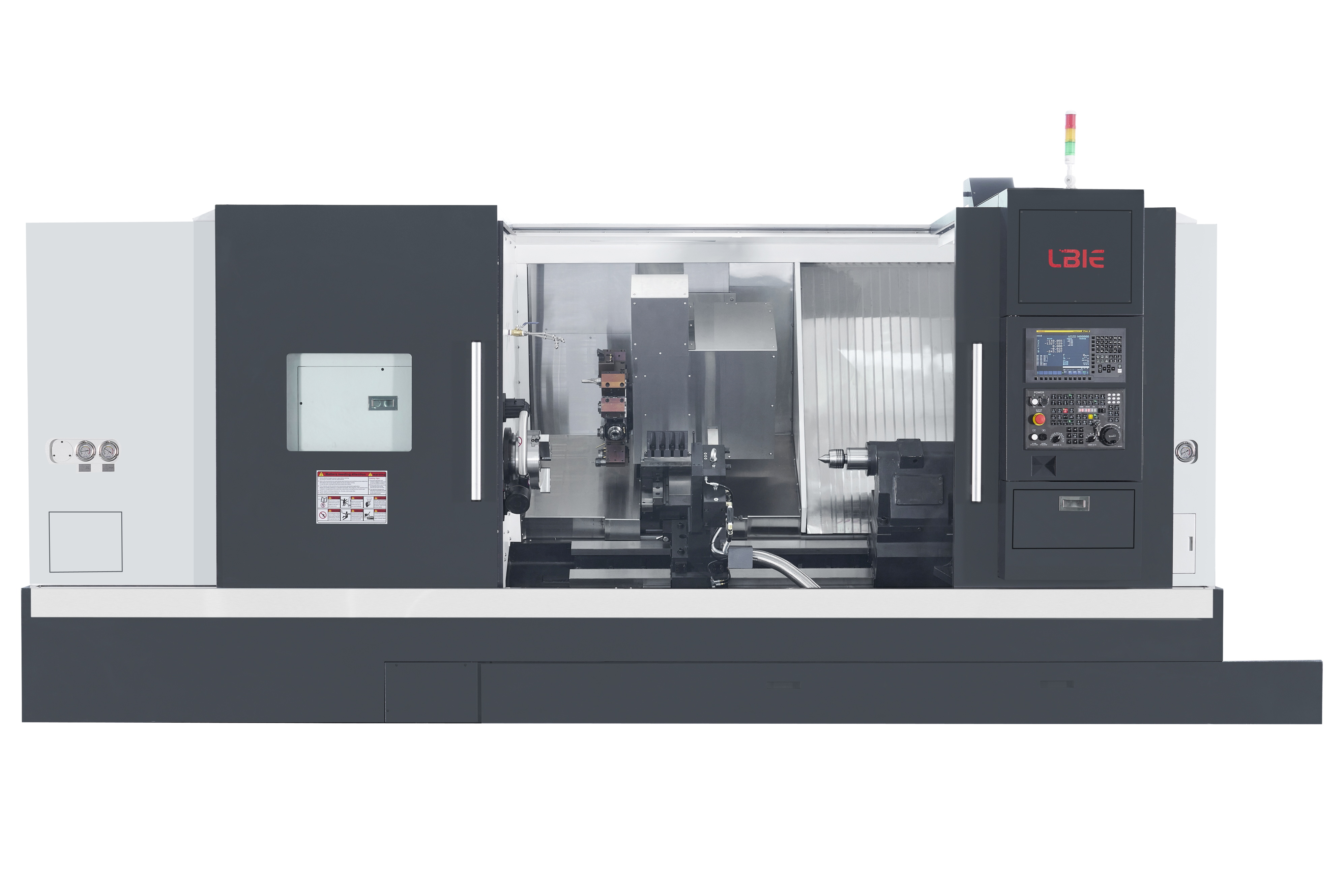

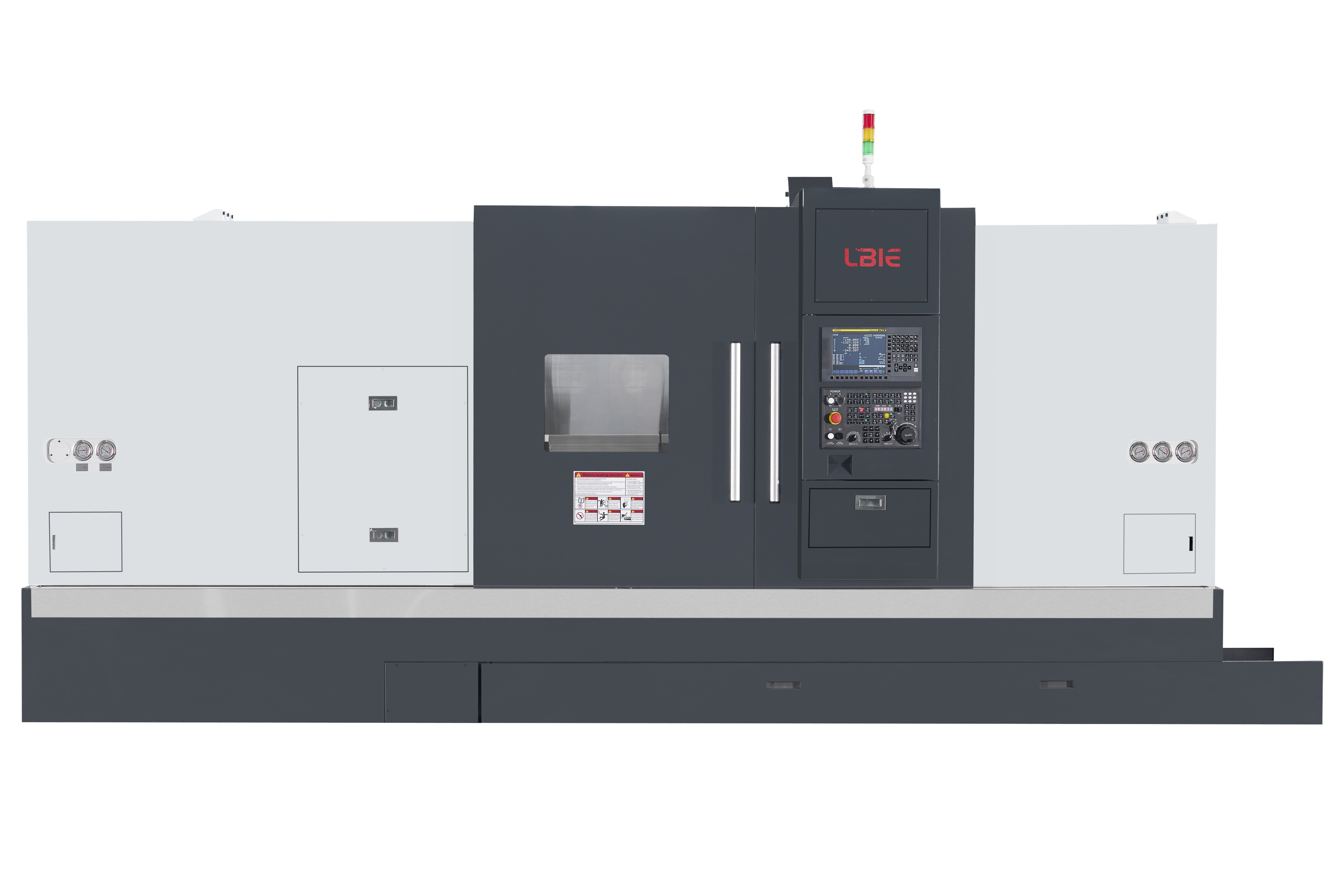

Orthogonal Y-Axis Turning and Milling Centers – Large CNC Lathe for Heavy-Duty Metal Processing (1000-3000mm)

Our‍‌‍‍‌‍‌‍‍‌ Orthogonal Y-Axis Turning and Milling Centers feature a vertical Y-axis metal processing structure that is one of the main factors in its being able to perform with high stability even under long operation time. Our large CNC lathe is available in different models with flexible travel options of 1000,1500,2000 or 3000mm, and this big CNC lathe series is designed for making complex parts easier to machine by combining the turning and milling functions in one setup. Constructed with a strong emphasis on rigidity and versatility, it offers a dependable solution for a wide variety of industrial manufacturing ‍‌‍‍‌‍‌‍‍‌requirements.

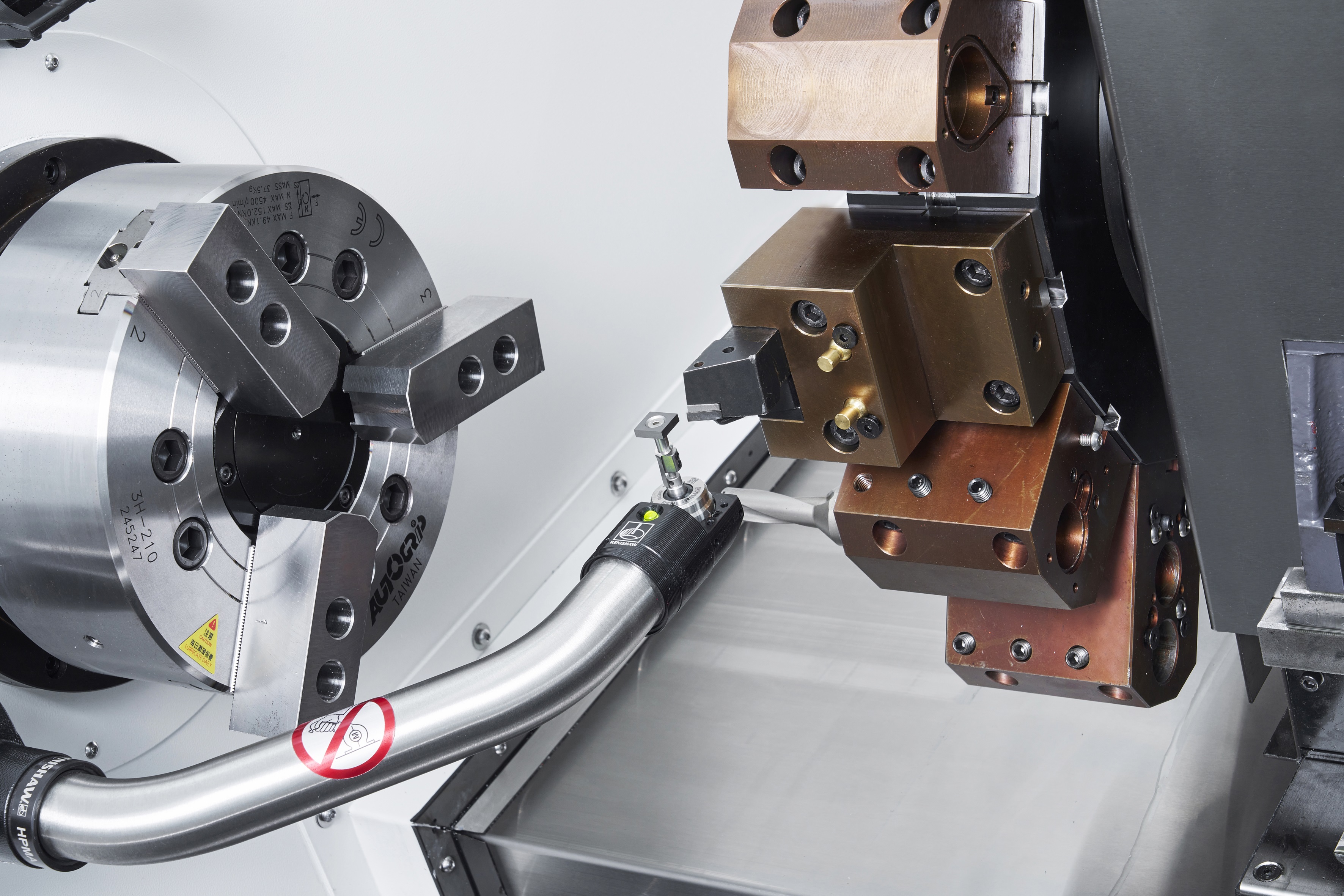

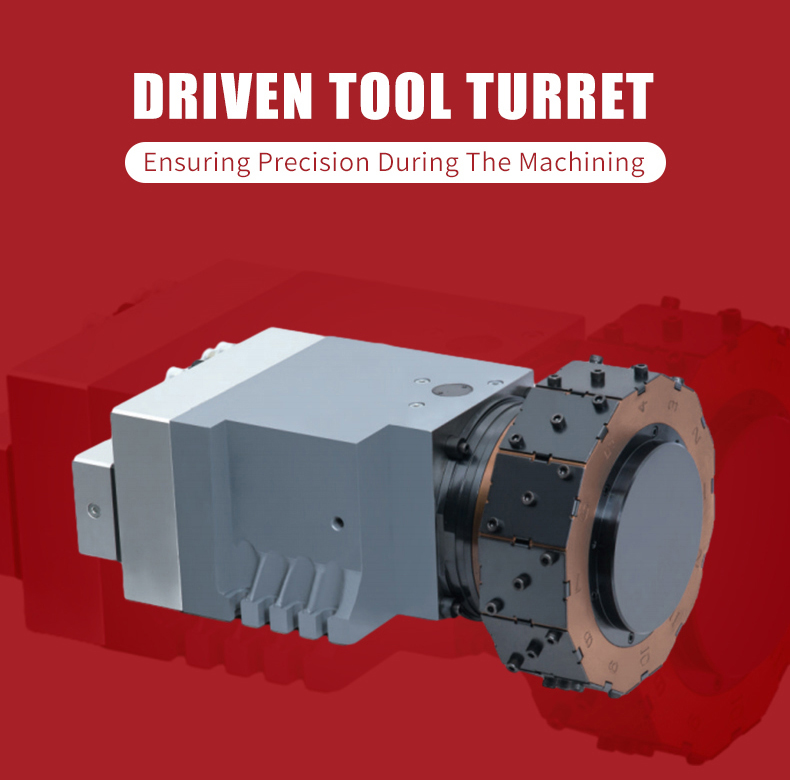

Enhanced Machining Capabilities with Driven Tool Turrets

With‍‌‍‍‌‍‌‍‍‌ a highly developed Driven Tool Turret at its core, the machine is capable of carrying out complicated drilling, milling, and tapping operations all in one setup without a hitch. Such a multi-oscillational manner of working turns a lone unit physically into a multi-functional CNC lathe machine chemically, which, in a big way, enhances the processing capability and the flexibility of operation of the machine. It is through the turret's facilitation of quick changes of tools and the automation of the high-precision processes that the overall productivity and the quality of the parts are considerably increased. If set up as a large CNC lathe, it can handle lengthy components, while if it is configured as a big CNC lathe for heavy-duty applications, this very technology will deliver the highest performance. To sum up, the metal processing CNC lathe machine, which incorporates this technology, will have its capabilities upgraded and become a defining feature of efficient and modern precision ‍‌‍‍‌‍‌‍‍‌manufacturing.

Spindle

Our‍‌‍‍‌‍‌‍‍‌ range of CNC lathes uses high-performance mechanical spindles that are very rigid and offer almost zero vibration. These tough parts form the basis for high-precision machining even in the most difficult metalworking environments.

For higher productivity, our state-of-the-art electric spindles provide excellent speed control, remarkable energy efficiency, and less downtime. Whether the large CNC lathes for oversized parts or heavy-duty machines for tough cutting, our spindle technology that has been supported by high-end NSK ultra-precision bearings is capable of providing the highest level of cutting performance, excellent thermal stability, and producing parts that are consistent in quality without any defects, all of which help to meet the manufacturing requirements of the present ‍‌‍‍‌‍‌‍‍‌times.

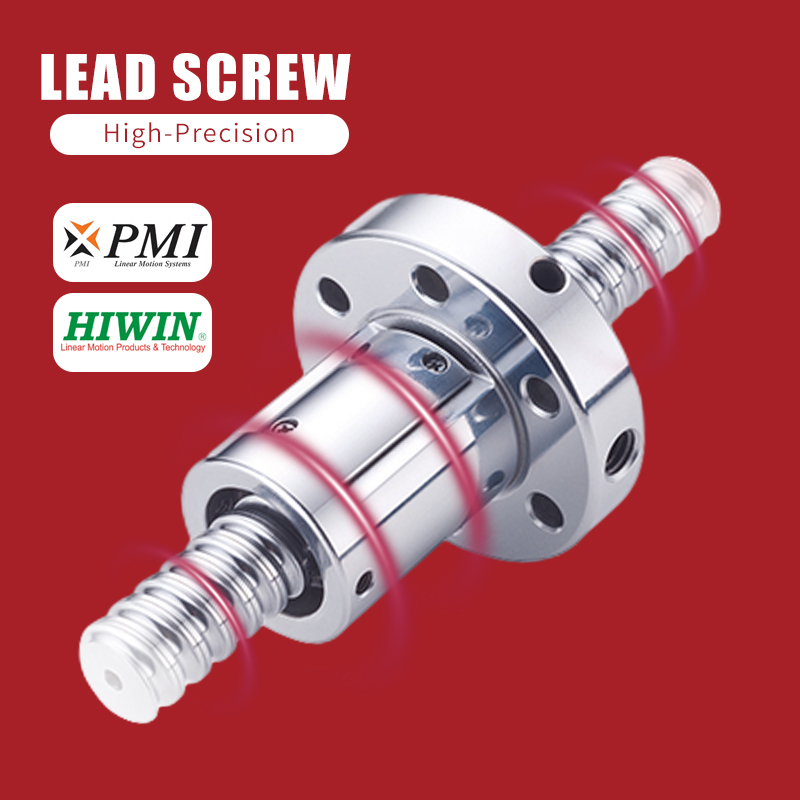

Lead Screw

The‍‌‍‍‌‍‌‍‍‌ transmission system of this CNC lathe has been meticulously designed and houses the integration of high-quality ball screws as well as heavy-duty high-speed linear roller guides. Besides offering excellent rigidity, this reliable construction also ensures stable motion control that, together, becomes the firm grounds for highly efficient metal machining. The optimized drive system is capable of lowering friction and backlash significantly, which results in a stable machining accuracy and enhanced overall production efficiency, whether you are dealing with large workpieces or carrying out heavy-duty cutting ‍‌‍‍‌‍‌‍‍‌operations.

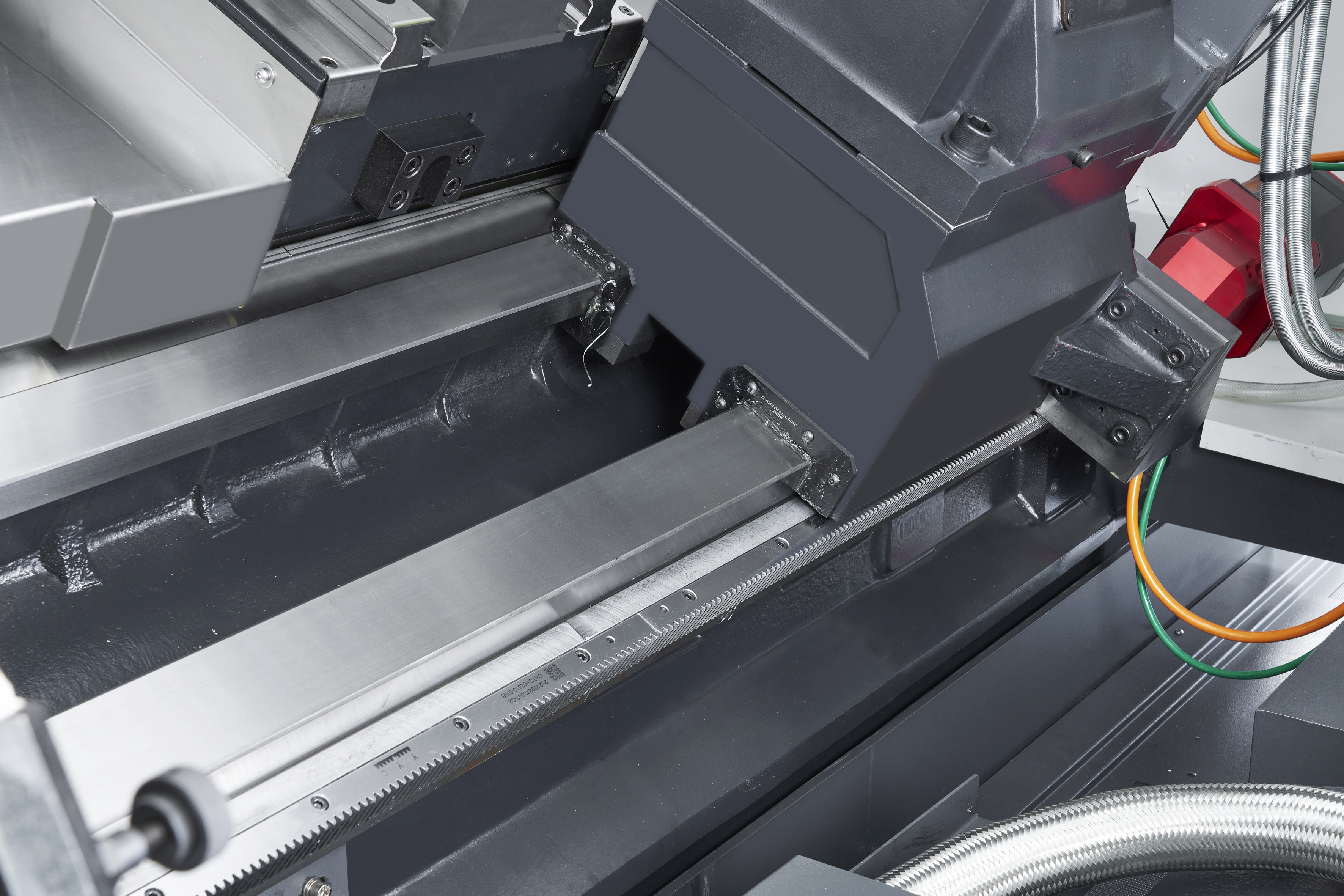

Liner Guide Rail

The‍‌‍‍‌‍‌‍‍‌ X and Z axes have been fitted with high-stiffness linear guides that make use of an optimally designed rail span. They offer low friction, very high positioning accuracy, and fast travel speeds of up to 22m/min, which significantly increases machining efficiency and reduces cycle ‍‌‍‍‌‍‌‍‍‌times.

1. Professional Manufacturing Strength

2. Technological Innovation

3. Efficient Production & Stable Delivery

4. Authoritative Certifications

5. Global Layout

6. Full-Cycle After-Sales Service

• 2007：The company was founded and focused on research and development, manufacturing, sales, and after-sales service of turning and milling machine tools.

• 2009：Created China's first 4+4 live turning and milling machine tool.

• 2014：Successfully reached the technical capability of an interpolated Y-axis turning and milling machine tool.

• 2022：Introduced a turning and milling composite machine tool with dual spindles and a dual turret.

• Today：With more than 15 years of experience in the industry, having the certified manufacturing capability, and providing services to nuclear energy, aerospace, automotive, home appliances sectors, and others, we are looking for global partners to help introduce top-quality Chinese CNC machine tools to customers around the ‍‌‍‍‌‍‌‍‍‌world.

Premium CNC Machinery

The‍‌‍‍‌‍‌‍‍‌ display here includes our advanced CNC machining tools such as large-format gantry machining centers, Okuma high-precision milling heads, and 5-axis linkage machining systems. These sophisticated machines embody excellent rigidity, stability, and ultra-high machining accuracy, thus facilitating the effective production of large and intricate parts with stringent tolerance requirements. They come with globally famous control systems and smart user interfaces that make these machines perfect for aerospace, automotive, mold, and heavy machinery manufacturing. They can guarantee dependable performance and top production efficiency for various industrial ‍‌‍‍‌‍‌‍‍‌applications.

Laser Interferometer

Accuracy Compensation

CMM

Accuracy Detection

Quality Inspection & Precision Assurance

Accuracy Detection

Our‍‌‍‍‌‍‌‍‍‌ CNC machine tools utilize state-of-the-art laser interferometer technology for precise accuracy correction. By high-precision measurement and data analytics, we efficaciously adjust the positioning, geometric, and thermal errors to maintain stable and dependable machining accuracy even after prolonged operation.

LBIE implements comprehensive quality control from start to finish, with expert teams carrying out thorough inspections of each part, system, and process. Our CNC machine tools are compliant with worldwide quality standards and provide steady precision and trustworthy performance for your ‍‌‍‍‌‍‌‍‍‌production.

CIMT 2025

LBIE CNC Lathe Exhibition

Two Spindle Lathe

Customers visited our booth.

CIMT 2025 LBIE Exhibition Review

METALLOOBRABOTKA 2025

"Metalworking" Minsk, Belarus

Overseas Exhibitions

We‍‌‍‍‌‍‌‍‍‌ joined overseas CNC machine tool fairs in Russia, Belarus, Malaysia, Uzbekistan, and some other countries, which led to a lot of attention from worldwide ‍‌‍‍‌‍‌‍‍‌customers.

1.Stretch Wrapping

2.Vacuum packaging

3.Strong Plywood Packing

4.Waterproof Top

5.Client's goods package

6.Client's good package

CNC Lathe Packaging Instructions

Here‍‌‍‍‌‍‌‍‍‌ is the whole process of packing the CNC lathe with a multi-layer protective method to ensure safety during transportation：

1.When the lathe is first placed, it is totally covered by the use of stretch film, which keeps the dust and scratches away.

1. 2.After that, it is put in a vacuum pack to keep it away from moisture throughout transportation.

2. 3.The lathe is then tied firmly with straps after vacuum packaging to restrain it from moving.

3. 4.At last, it is put into a very strong plywood box.

The waterproof film is used to cover the top of the plywood box so that rain and moisture cannot get in, which means the machine will be delivered in flawless condition.

Quality Assurance & Global Certifications

• ISO 9001 (International Quality Management System)

• CE Certification (European Conformity)

• EAC (Eurasian Conformity)

Welcome to the Consulting Section.These certifications ensure every machine complies with strict global safety and performance standards.
