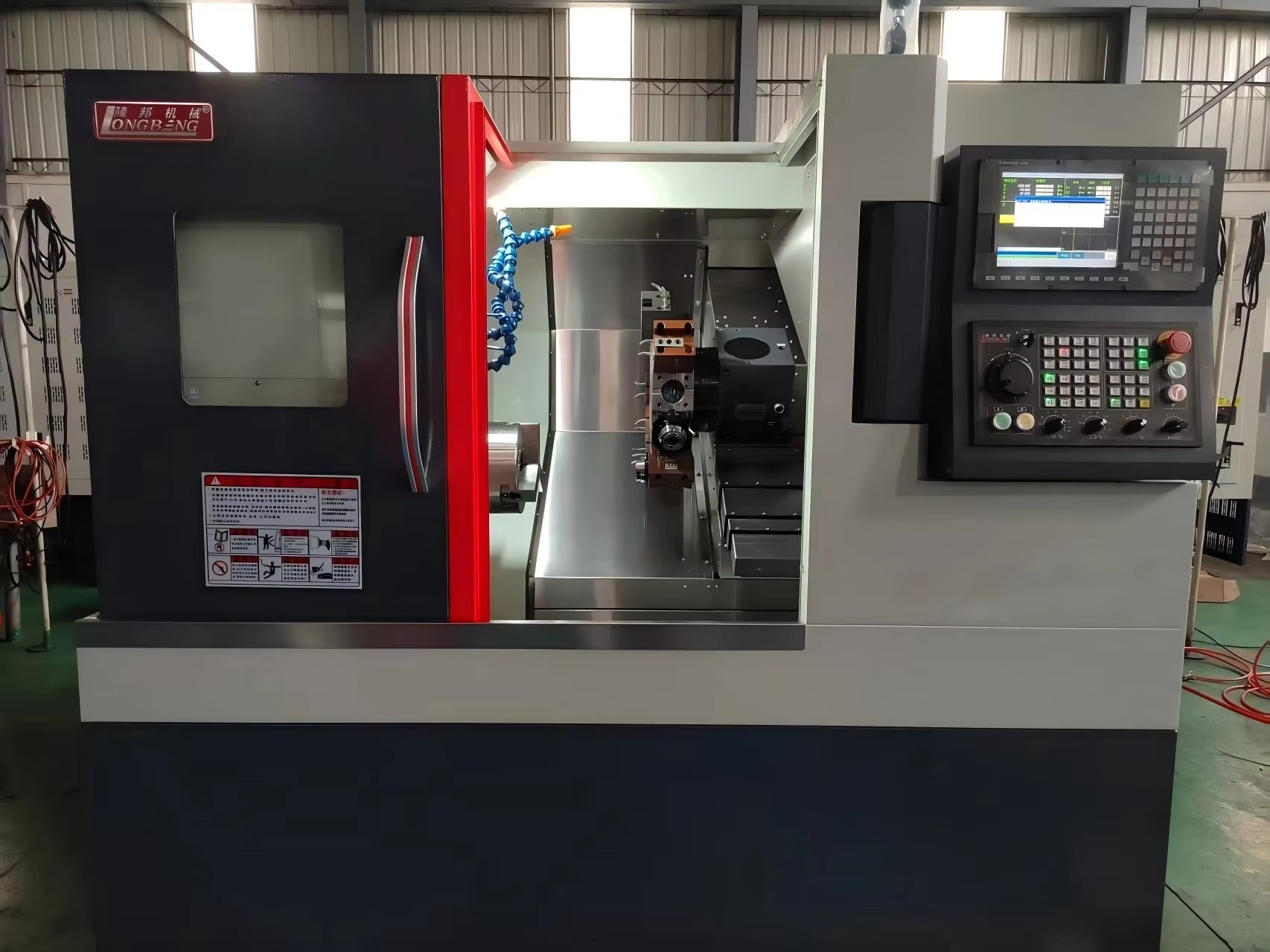

XL2-6D Slant Bed CNC Lathe with Live Tooling, C Axis BMT55 Turret CNC Turning Milling Machine

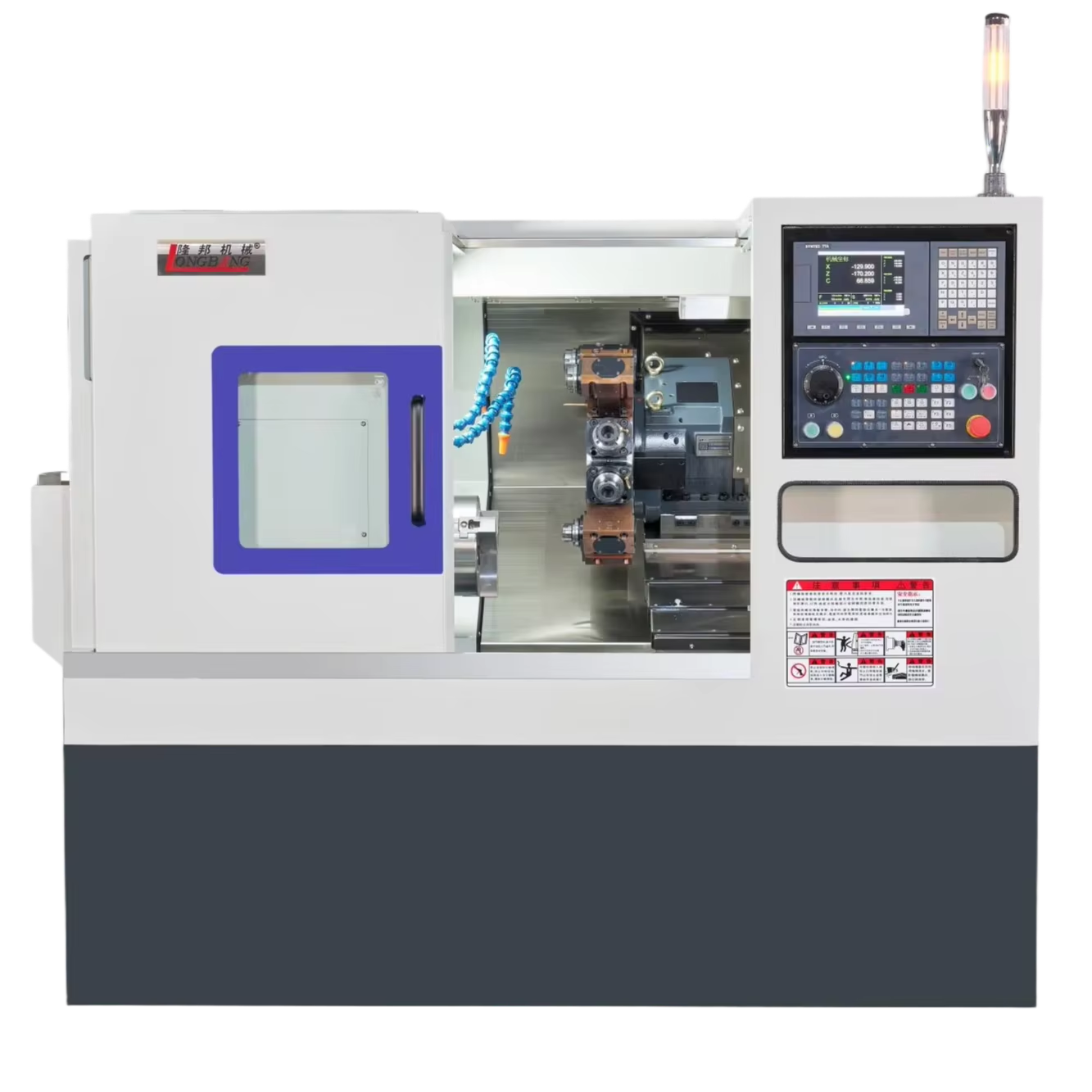

XL2-6D Slant Bed CNC Lathe with Live Tooling, C Axis BMT55 Turret CNC Turning Milling Machine is a high-performance Precision CNC lathe for the machining of complex parts. Doing one setup, turning and milling, it is not only an efficient Automatic CNC lathe that is stable in accuracy and versatile in production of batches.
Parameter Table
| # | Parameter | Unit | XL2-6D CNC Driven Tool Turret Lathe | |||
| 1 | Max. Turning Diameter | mm | Φ420 | |||
| 2 | Max. Machining Length | mm | 300 | |||
| 3 | Max. Swing Diameter over bed | mm | Φ560 | |||
| 4 | Max. Swing Diameter Over slide | mm | Φ220 | |||
| 5 | Bar Feeding Diameter | mm | <Φ46 | |||
| 6 | Spindle Bore | mm | Φ56 | |||
| 7 | Max. Spindle Speed | RPM | 5000 | |||
| 8 | X-axis Travel | mm | 240 | |||
| 9 | Z-axis Travel | mm | 300 | |||
| 10 | Tailstock Travel | mm | \ | |||
| 11 | Rapid Feedrate | m / min | 22 | |||
| 12 | Max. Driven Tool Speed | RPM | 4000 | |||
| 13 | Voltage (3phase) | V | 380±10% | |||
| 14 | Frequency | Hz | 50 | |||
| 15 | Power | kW | 15 | |||
| 16 | Weight | kg | 3000 | |||
| 17 | Size (Length × Width × Height) | mm | 1980 × 1500 × 1680 (Excluding Chip Conveyor) | |||
| # | Configuration Table | |||||
| 1 | CNC | ☐ FANUC 0I-TF PLUS (3B) | ☐ Siemens 828D (Shop Turn Programming) | ☐ SYNTEC 22TA | ||
| Spindle Rated Power / Torque of the Servo Motor | ☐ 11kW / 52Nm (Standard) ☐ 15kW / 71Nm (Optional) | 11kW / 57Nm | ☐ 7.5kW / 49Nm (Standard) ☐ 11kW / 72Nm (Optional) | |||
| X-axis Rated Power / Torque of the Servo Motor | 1.2kW / 7Nm | 2.2kW / 12Nm | 1.3kW / 8.3Nm | |||
| Z-axis Rated Power / Torque of the Servo Motor | 1.2kW / 7Nm | 2.2kW / 12Nm | 1.3kW / 8.3Nm | |||
| Driven Tool Rated Power / Torque of the Servo Motor | 2.7kW / 12Nm | 2.2kW / 12Nm | 3.1kW / 15Nm | |||
| 2 | \ | Brand | Type / Spec | |||
| Spindle | ☐ LBIE Belt Spindle (OEM by HAOZHI) (Standard) ☐ Guangzhou HAOZHI Motor Spindle (Optional) ☐ Taiwan KENTURN Belt Spindle (Optional) | A2-5 | ||||
| 3 | X-axis | Linear Guide Rail | Rexroth | 35 Roller Guide | ||
| Lead Screw | NSK | 32 | ||||
| Bearing | NSK | 20TAC | ||||
| Z-axis | Linear Guide Rail | Rexroth | 35 Roller Guide | |||
| Lead Screw | NSK | 32 | ||||
| Bearing | NSK | 20TAC | ||||
| 4 | Tool Carrier Form | Brand | Longbang | |||
| Driving Type | Servo Motor | |||||
| Locking Type | Hydraulic Locking | |||||
| Model / Station | BMT45-12 | |||||
Key Features
✅ Integrated cnc lathe with live tooling for one-stop turning, milling, drilling & tapping
✅ Rigid slant bed cnc lathe structure for stable, vibration-free machining
✅ High-efficiency Automatic CNC lathe with servo turret for continuous mass production
✅ Optimized as a CNC lathe for brass fittings, delivering precise threading & surface finishing
✅ Premium Precision CNC lathe with imported core components for long-term micron-level accuracy
Details Display

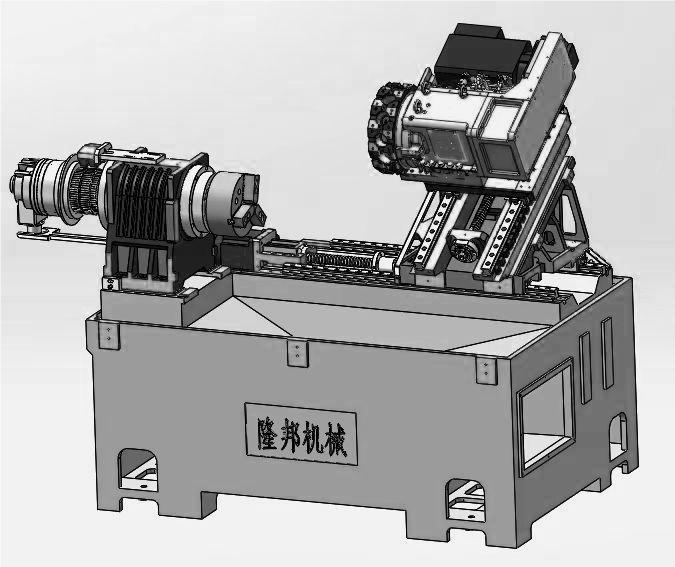

Constructed from HT300 cast iron, the slant bed of this CNC lathe is combined with high-low guideways to give it remarkable structural stiffness and the ability to absorb vibrations. Heavy, long-hour machining with this sturdy CNC lathe design will keep the machine stable and accurate.
It also makes a very effective automatic CNC lathe for brass fittings. To put it another way, a high-performance CNC lathe for brass fittings is what this one could be used as, amongst other things.
The XL2-6D runs off a super-powerful A2-5 belt spindle (standard: LBIE HAOZHI OEM, optional: Guangzhou HAOZHI motor spindle / Taiwan KENTURN belt spindle), which can reach a max speed of 5000RPM and has a Φ56mm spindle bore. This robust, quiet spindle is capable of high torque and rotational precision that will keep your cutting operation steady and efficient when brass fittings and other metal parts are carried out, making it a perfect match for automatic slant bed CNC lathe production.

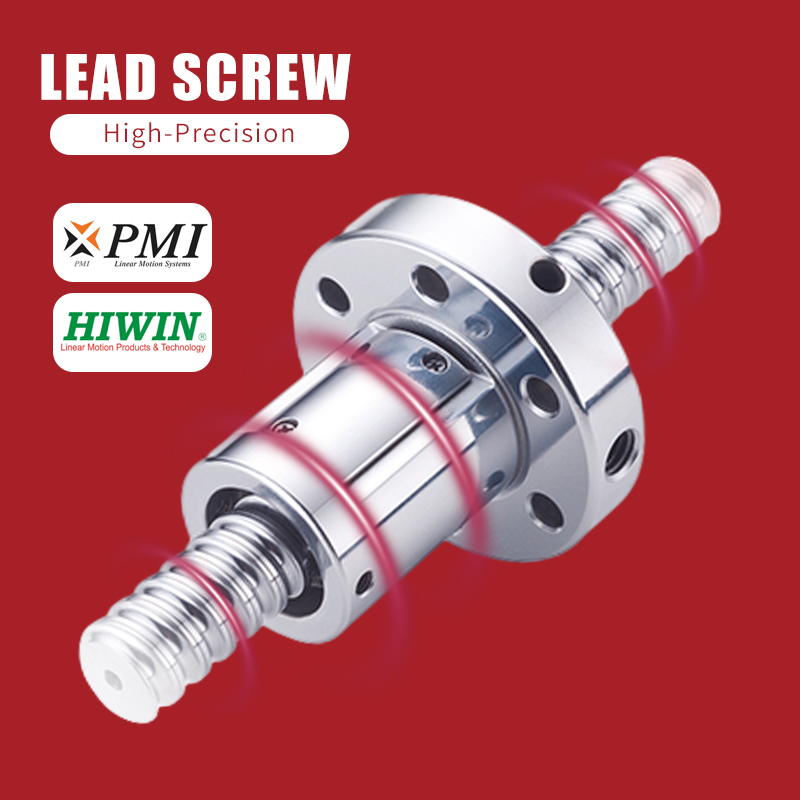

Equipped with ultra-high precision NSK 32 ball screws in X/Z axes, this Automatic CNC lathe is capable of producing a perfectly smooth, nearly frictionless linear movement with a very low level of backlash. The lead screws of the highest quality ensure not only continuous positioning precision but also a long lifespan of the machine, which allows the effective, repeatable production of complicated brass parts.
Liner Guide Rail
Our XL2-6D slant bed CNC lathe comes with Rexroth 35 Roller Guide Rails on the X/Z axes. These heavy-duty linear guides provide great rigidity, load capacity, and vibration-damping capabilities. As a result, they facilitate ultra-stable, very precise linear motion, especially during high-speed turning and live tooling operations. Such stability and accuracy make these machines perfectly suitable for high-volume production of brass fittings.
Each axis is supported with NSK 20TAC high-precision angular contact bearings. These have been designed to carry heavy axial loads and completely eliminate runout. Being of the highest quality, such bearings contribute to the enhancement of the rigidity and stability of the lead screw system. This way, they provide continuous machining accuracy and performance reliability in production environments that operate around the clock.
System
The XL2-6D lathe is equipped with a flexible CNC system that you can choose from: Siemens 828D (standard), FANUC 0I-TF PLUS, or SYNTEC 22TA. These control systems are highly reliable and allow the machine to achieve high precision, leading to very efficient turning operations.
This CNC metal lathe is capable of fulfilling a wide range of industrial needs and is instrumental for leading sectors like aerospace, automotive, nuclear, and precision machining.
Equipped with state-of-the-art turning and milling capabilities, it effectively produces high-precision, intricate parts through a one-time clamping process. Especially for defense and military component manufacturing, it is a highly reliable solution, consistently delivering parts that meet stringent tolerances and high material integrity standards.
About Us
2007：We set up a company that is mainly engaged in the research and development, production, marketing, and after-sales service of turning and milling machine tools.
2009：Achieved the first 4+4 live tool turning and milling machine tool in China.
2014：Overcame the technical difficulties to produce a turning and milling machine tool with an interpolated Y-axis.
2022：Introduced a dual-spindle dual-turret turning and milling composite machine tool.
Today：After 15 years of being in the machine tool industry, obtaining a qualified certification of production, and our service scope covering areas such as nuclear energy, aerospace, automotive, home appliances, and more, we are looking for global agents to bring high-quality Chinese CNC machine tools to worldwide customers.
Premium CNC Machinery

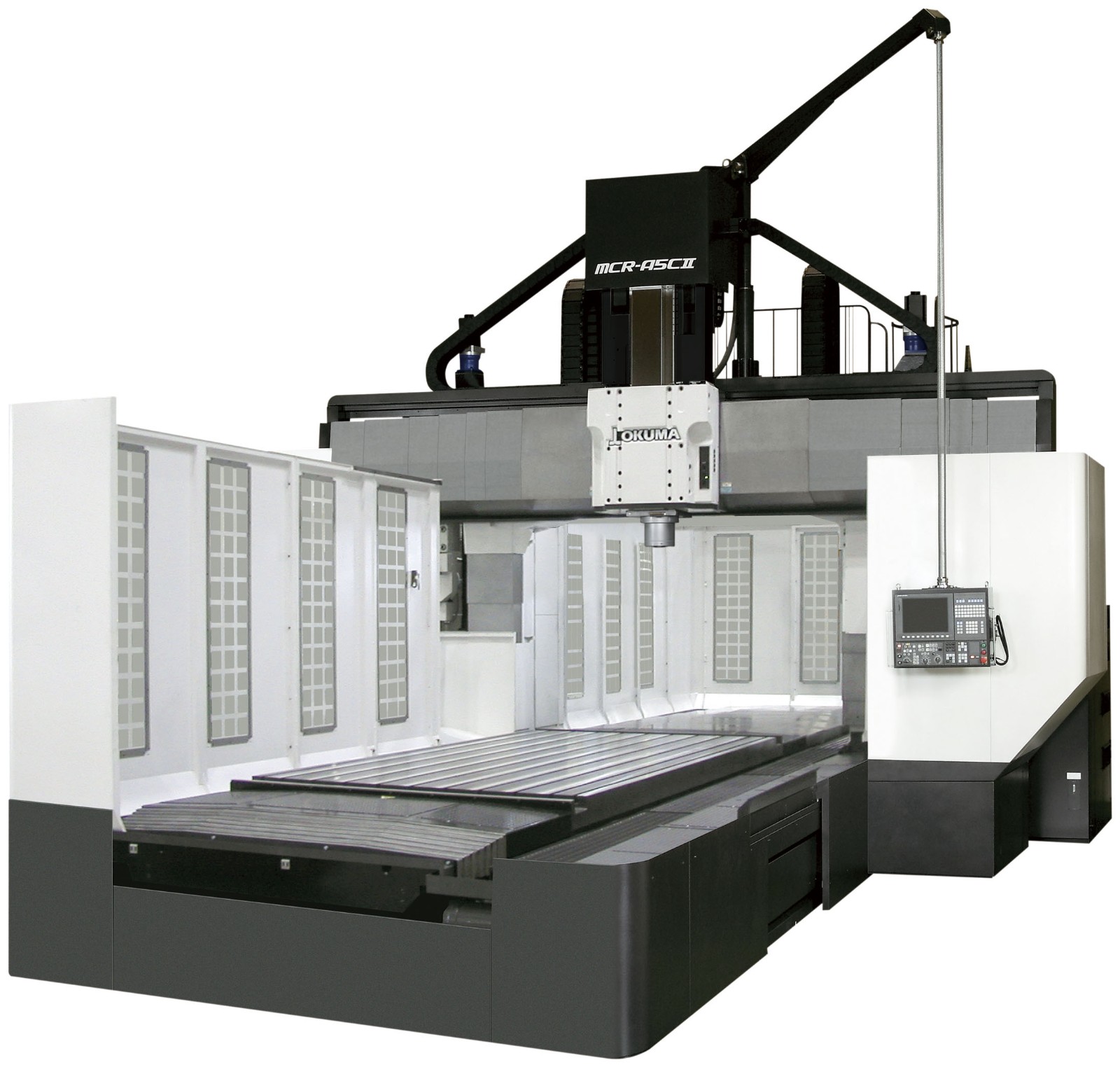

The exhibits feature our most modern CNC machining facilities, such as large-format gantry machining centers, Okuma high-precision milling heads, and 5-axis linkage machining systems. These cutting-edge machines provide excellent rigidity, stability, and ultra-high accuracy in machining. They make the processing of large and complicated workpieces with tight tolerance requirements very efficient. Produced with famous control systems and highly intuitive operation interfaces, the machines can be used in aerospace, automotive, mold, and heavy machinery manufacturing industries. They guarantee outstanding production efficiency and reliable performance in a variety of manufacturing environments at the same time.
Laser Interferometer
Accuracy Compensation
CMM
Accuracy Detection
Our CNC machine tools are equipped with state-of-the-art laser interferometer systems for highly accurate error compensation. By using extremely precise measurements and thorough data analyses, we are able to correct positioning, shape, and temperature-induced errors, making sure that production accuracy is both stable and reliable over a long period of time.
LBIE implements a comprehensive quality assurance program where specialized teams carry out detailed inspections of each part, system, and process.
We offer CNC machine tools that comply with international quality criteria, ensuring steady accuracy and trustworthy operation for your manufacturing.
CIMT 2025
LBIE CNC Lathe Exhibition
Two Spindle Lathe
Customers visited our booth.
CIMT 2025 LBIE Exhibition Review
METALLOOBRABOTKA 2025
"Metalworking" Minsk, Belarus
Overseas Exhibitions
We have attended overseas exhibitions of CNC machine tools in Russia, Belarus, Malaysia, Uzbekistan, and other countries, drawing wide attention from customers all over the world.
1.Stretch Wrapping
2.Vacuum packaging
3.Strong Plywood Packing
4.Waterproof Top
5.Client's goods package
6.Client's good package
In order to deliver machines safely, the following packaging procedure of multiple layers is applied to our CNC lathe:
1.The very first step is that the lathe is completely covered with a stretch film to protect it from dust and scratches.
2.It is then vacuum sealed to keep out the moisture and the humidity during transportation.
3.Subsequently to the vacuum packaging, the lathe is firmly tied with the straps to keep it still.
4.Finally, it is enclosed in a durable plywood case.
ISO 9001 (International Quality Management System)
CE Certification (European Conformity)
EAC (Eurasian Conformity)
