Efficiency 22m/Min Feedrate Milling And Turning Machine Slant Bed Lathe

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact Us
Packaging Details:	wooden box package
Delivery Time:	45-60 days
Payment Terms:	T/T
Supply Ability:	20 units/month

Contact Now

Detailed Product Description

Brand Name:	LBIE	Model Number:	W7-8/6D
Voltage:	380V	Cnc Control System:	FANUC\Syntec
Tool Post Stations:	12, 15	Weight (kg):	3800
Warranty:	1 Year	Coolant Pump Power:	700W
Max. Live Tool Speed:	4000rpm	Rapid Feedrate:	22m/min
Highlight:	Efficiency Milling And Turning Machine , Efficiency turn mill centre , 22m/Min Feedrate Milling And Turning Machine

Efficiency 22m/Min Feedrate Milling And Turning Machine Slant Bed Lathe

Description

The W7-8/6D is a dual-spindle turning and milling composite machine designed for automatic workpiece docking, eliminating the potential accuracy issues associated with manual docking. This advanced feature ensures precise and reliable workpiece alignment, significantly improving machining efficiency and reducing the risk of errors. With its dual-spindle configuration, the W7-8/6D can perform both turning and milling operations in a single setup, enhancing productivity and versatility for a wide range of machining tasks.

Specification

Parameter	Unit	W7-8/6D Dual-Spindle Driven Tool Turret Lathe Without Y-axis
Max. Turning Diameter	mm	Φ300
Max. Machining Length	mm	550
Max. Swing Diameter	mm	1st Spindle: Φ500; 2nd Spindle: Φ220
Bar Feeding Diameter	mm	1st Spindle: <Φ52; 2nd Spindle: <Φ46
Spindle Bore	mm	1st Spindle: Φ66; 2nd Spindle: Φ56
Max. Spindle Speed	RPM	1st Spindle: 3500; 2nd Spindle: 4000
X-axis Travel	mm	220
Z-axis Travel	mm	600
B-axis (Tailstock) Travel	mm	610

Other information

CNC or not	slant bed or not	Hydraulic System
CNC	slant	Channels

Products Description

Details Display

The X-axis and Z-axis feature high-rigidity linear slides with anoptimally calculated track span,offering low resistance,highprecision,and speeds up to 22m/min.This enhances workefficiency and reduces processing time.

The machine's transmission system employs high-precision ball screws and high-rigidity,high-speed roller guides.

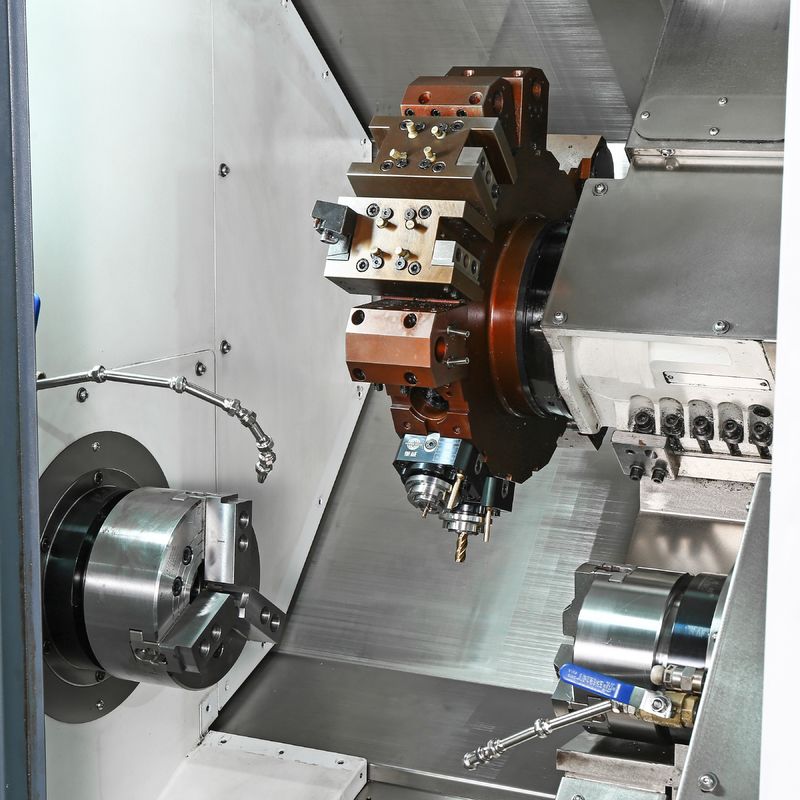

The Driven Tool Turret can perform various machining operations such as drilling,milling,and tapping,which meansthat a single machine can complete more types of tasks,enhancing the flexibility and range of the machine.Overall,thelathe Driven Tool Turret significantly improves the efficiencyand quality of lathe machining by providing multi-functionalmachining capabilities,quick tool changes,high precision,andautomated operations.It is an indispensable and importantcomponent in modern precision manufacturing.

Our CNC turret lathes are equipped with avariety of mechanicalspindles to choose from.These spindles are notable for theirhigh rigidity,minimal noise and vibration,and,crucially,theirability to perform high-precision operations.The precisionof movement and the robustness of the spindle componentsplay a pivotal role in defining the quality of processing and theefficiency of cutting operations.
NSK super-precision bearings,featuring high running accuracy,rapid speed capabilities,and exceptional precision,are ideallysuited for spindle units in machine tools.These bearings arespecifically engineered to reduce noise,vibration,and heatgeneration,enhancing overall performance.
In addition,the eletric spindle can be selected.The advantagesof an electric spindle include high speed,high precision,widerange of speed variation,high rigidity,precise control,energysaving and environmental protection,and low maintenancecosts.Overall,the machine tool electric spindle has significantadvantages in improving processing efficiency,precision,and quality,and therefore,it is widely used in modernmanufacturing.
