4 Axis Cnc Milling And Turning Machine With 700W Coolant Pump Power

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact Us
Packaging Details:	wooden box package
Delivery Time:	45-60 days
Payment Terms:	T/T
Supply Ability:	20 units/month

Chat Now

Detailed Product Description

Min. Time Of Tool Change(s):	0.3	Feed Speed(mm/min):	0 - 22 Mm/min
Spindle Taper:	A2-6	Rapid Feed Speed(mm/min):	0 - 22 Mm/min
Turret Driven Type:	Servo ,Motor	Number Of Axes:	3
Rapid Feedrate:	22m\min	Machinery Test Report:	Please Consult
Hydraulic System:	5 Channels	Coolant Pump Power:	700W
Highlight:	4 Axis Milling And Turning Machine , 4 Axis mill turn machine , Cnc Milling And Turning Machine

4 Axis Cnc Milling And Turning Machine With 700W Coolant Pump Power

Description

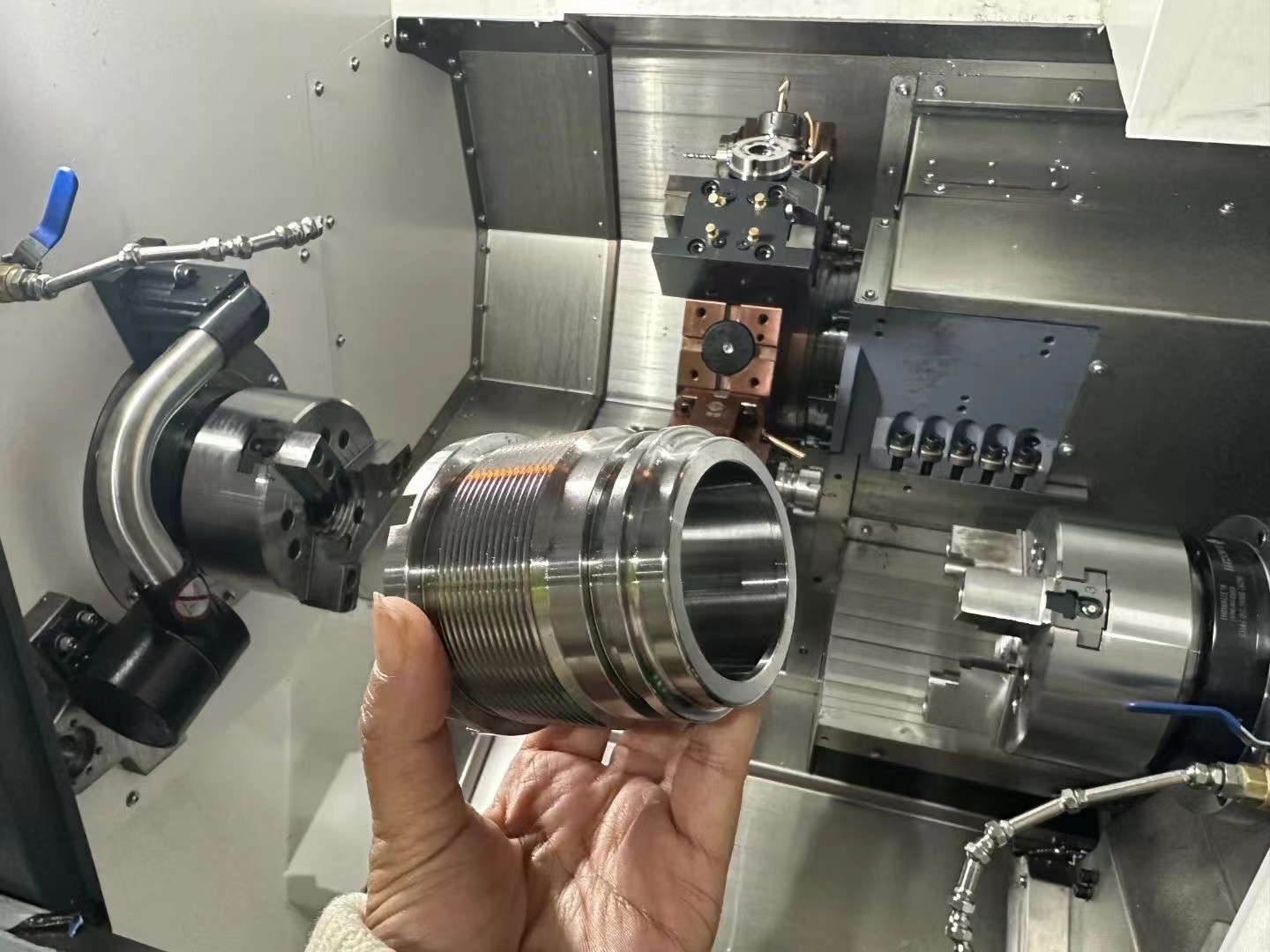

Featuring a dual-spindle design and Y-axis, the W7-8/6CYD turning and milling machine enables complete workpiece processing in one setup. The automatic workpiece transfer between spindles minimizes manual intervention, improving efficiency and precision. Its Y-axis capability enhances machining flexibility, allowing for the production of complex components. This machine helps manufacturers increase productivity and accept a broader range of machining tasks.

Specification

Parameter	Unit	W7-8/6CYD Double Spindle Interpolated Y-axis Turning and Milling Machine Tool
Max. Turning Diameter	mm	Φ300
Max. Machining Length	mm	550
Max. Swing Diameter	mm	1st Spindle: Φ500; 2nd Spindle: Φ220
Bar Feeding Diameter	mm	1st Spindle: <Φ52; 2nd Spindle: <Φ46
Spindle Bore	mm	1st Spindle: Φ66; 2nd Spindle: Φ56
Max. Spindle Speed	RPM	1st Spindle: 3500; 2nd Spindle: 4000
X-axis Travel	mm	220
Y-axis Travel	mm	110
Z-axis Travel	mm	600
B-axis (Tailstock) Travel	mm	610

Other information

CNC or not	slant bed or not	Hydraulic System
CNC	slant	Channels

Products Description

Details Display

The X-axis and Z-axis feature high-rigidity linear slides with anoptimally calculated track span,offering low resistance,highprecision,and speeds up to 22m/min.This enhances workefficiency and reduces processing time. 4 Axis Cnc Milling And Turning Machine With 700W Coolant Pump Power 2

The machine's transmission system employs high-precision ball screws and high-rigidity,high-speed roller guides. 4 Axis Cnc Milling And Turning Machine With 700W Coolant Pump Power 3

The Driven Tool Turret can perform various machining operations such as drilling,milling,and tapping,which meansthat a single machine can complete more types of tasks,enhancing the flexibility and range of the machine.Overall,thelathe Driven Tool Turret significantly improves the efficiencyand quality of lathe machining by providing multi-functionalmachining capabilities,quick tool changes,high precision,andautomated operations.It is an indispensable and importantcomponent in modern precision manufacturing. 4 Axis Cnc Milling And Turning Machine With 700W Coolant Pump Power 4

Our CNC turret lathes are equipped with avariety of mechanicalspindles to choose from.These spindles are notable for theirhigh rigidity,minimal noise and vibration,and,crucially,theirability to perform high-precision operations.The precisionof movement and the robustness of the spindle componentsplay a pivotal role in defining the quality of processing and theefficiency of cutting operations.
NSK super-precision bearings,featuring high running accuracy,rapid speed capabilities,and exceptional precision,are ideallysuited for spindle units in machine tools.These bearings arespecifically engineered to reduce noise,vibration,and heatgeneration,enhancing overall performance.
In addition,the eletric spindle can be selected.The advantagesof an electric spindle include high speed,high precision,widerange of speed variation,high rigidity,precise control,energysaving and environmental protection,and low maintenancecosts.Overall,the machine tool electric spindle has significantadvantages in improving processing efficiency,precision,and quality,and therefore,it is widely used in modernmanufacturing.

Equipment Display

Details Display 4 Axis Cnc Milling And Turning Machine With 700W Coolant Pump Power 9

The machine's transmission system employs high-precision ball screws and high-rigidity,high-speed roller guides. 4 Axis Cnc Milling And Turning Machine With 700W Coolant Pump Power 3
