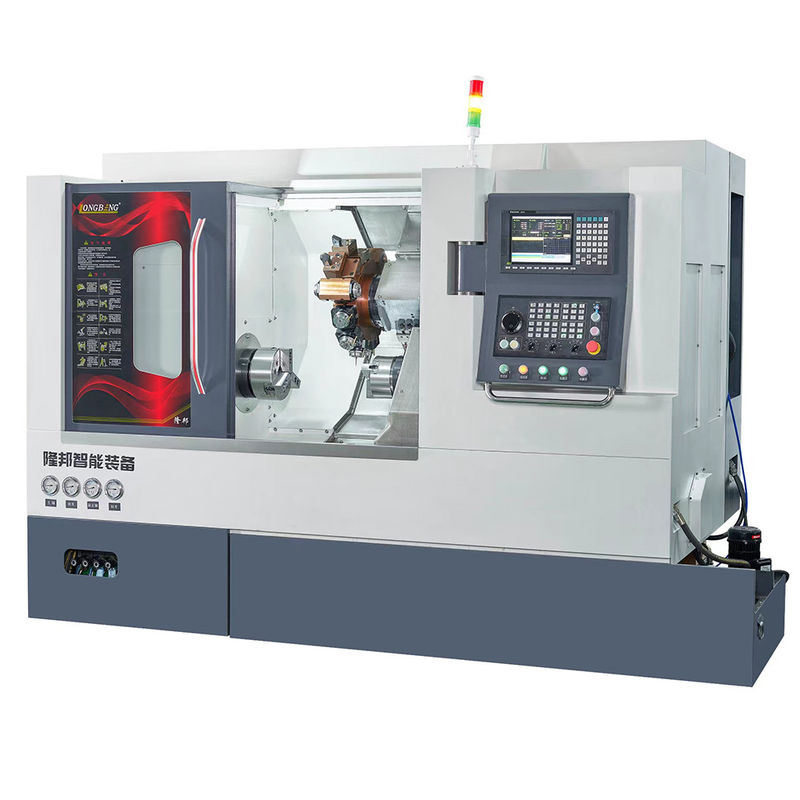

FANUC Syntec Milling And Turning Machine Interpolated Y Axis

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact Us
Packaging Details:	wooden box package
Delivery Time:	45-60 days
Payment Terms:	T/T
Supply Ability:	20 units/month

Contact Now

Detailed Product Description

Brand Name:	LBIE	Model Number:	W7-8/6CYD
Voltage:	380 V	Cnc Control System:	FANUC\Syntec
Tool Post Stations:	12, 15	Weight (kg):	4500
Warranty:	1 Year	Key Selling Points:	Interpolated Y-axis
Machinery Test Report:	Consult Us	Fixture:	Hydraulic Chuck
Lubrication Form:	Grease Lubrication	Hydraulic System:	5 Channels
Warranty Of Core Components:	1 Year	Year:	Latest Date
Max. Spindle Speed (r.p.m):	4000 R.p.m
Highlight:	FANUC cnc metal lathe , FANUC Milling And Turning Machine , Syntec Milling And Turning Machine

FANUC Syntec Milling And Turning Machine Interpolated Y Axis

Description

The W7-8/6CYD is a high-performance turning and milling machine equipped with a Y-axis. Its dual-spindle configuration allows for seamless automatic workpiece docking, completing the entire machining process without the need for multiple setups. The Y-axis enhances the machine’s ability to handle more complicated parts, significantly increasing its versatility. This enables customers to diversify their order portfolio and tackle a wider variety of projects with ease.

Specification

Parameter	Unit	W7-8/6CYD Double Spindle Interpolated Y-axis Turning and Milling Machine Tool
Max. Turning Diameter	mm	Φ300
Max. Machining Length	mm	550
Max. Swing Diameter	mm	1st Spindle: Φ500; 2nd Spindle: Φ220
Bar Feeding Diameter	mm	1st Spindle: <Φ52; 2nd Spindle: <Φ46
Spindle Bore	mm	1st Spindle: Φ66; 2nd Spindle: Φ56
Max. Spindle Speed	RPM	1st Spindle: 3500; 2nd Spindle: 4000
X-axis Travel	mm	220
Y-axis Travel	mm	110
Z-axis Travel	mm	600
B-axis (Tailstock) Travel	mm	610

Other information

CNC or not	slant bed or not	Hydraulic System
CNC	slant	Channels

Products Description

Details Display

The X-axis and Z-axis feature high-rigidity linear slides with anoptimally calculated track span,offering low resistance,highprecision,and speeds up to 22m/min.This enhances workefficiency and reduces processing time.

The machine's transmission system employs high-precision ball screws and high-rigidity,high-speed roller guides.

The Driven Tool Turret can perform various machining operations such as drilling,milling,and tapping,which meansthat a single machine can complete more types of tasks,enhancing the flexibility and range of the machine.Overall,thelathe Driven Tool Turret significantly improves the efficiencyand quality of lathe machining by providing multi-functionalmachining capabilities,quick tool changes,high precision,andautomated operations.It is an indispensable and importantcomponent in modern precision manufacturing.

Our CNC turret lathes are equipped with avariety of mechanicalspindles to choose from.These spindles are notable for theirhigh rigidity,minimal noise and vibration,and,crucially,theirability to perform high-precision operations.The precisionof movement and the robustness of the spindle componentsplay a pivotal role in defining the quality of processing and theefficiency of cutting operations.
NSK super-precision bearings,featuring high running accuracy,rapid speed capabilities,and exceptional precision,are ideallysuited for spindle units in machine tools.These bearings arespecifically engineered to reduce noise,vibration,and heatgeneration,enhancing overall performance.
In addition,the eletric spindle can be selected.The advantagesof an electric spindle include high speed,high precision,widerange of speed variation,high rigidity,precise control,energysaving and environmental protection,and low maintenancecosts.Overall,the machine tool electric spindle has significantadvantages in improving processing efficiency,precision,and quality,and therefore,it is widely used in modernmanufacturing.
