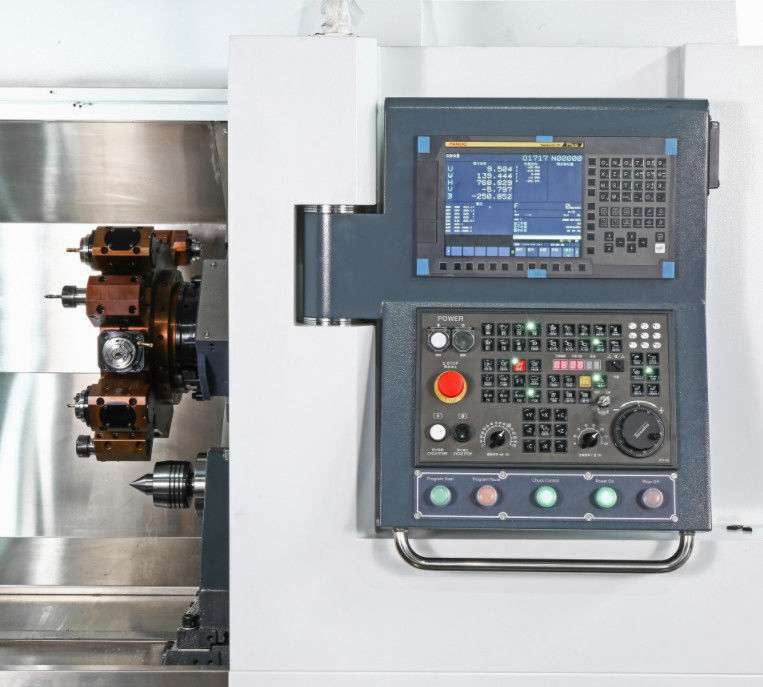

Industrial Torno Milling And Turning Machine Fanuc Siemens GSK Cnc Control System
Description
The W7-8TWI is a two-axis lathe equipped with X and Z axes, designed for precise metal cutting. It features an 8-inch hydraulic chuck and a hydraulic tailstock, providing excellent support and clamping power for a wide range of workpieces. This machine is ideal for high-precision turning operations, ensuring optimal cutting performance and stability during machining. The W7-8TWI is well-suited for various metalworking tasks, offering reliability and efficiency in production environments.
Specification
| Parameter |
Unit |
W7-8TW
Turret Tailstock Lathe Without Y-axis (Hydraulic Tailstock Version) |
| Max. Turning Diameter |
mm |
Φ300 |
| Max. Machining Length |
mm |
550 |
| Max. Swing Diameter |
mm |
1st Spindle: Φ500; |
| Bar Feeding Diameter |
mm |
1st Spindle: <Φ52; |
| Spindle Bore |
mm |
1st Spindle: Φ66; |
| Max. Spindle Speed |
RPM |
1st Spindle: 3500; |
| X-axis Travel |
mm |
220 |
| Z-axis Travel |
mm |
600 |
| B-axis (Tailstock) Travel |
mm |
610 |
Details Display
The X-axis and Z-axis feature high-rigidity linear slides with anoptimally calculated track span,offering low resistance,highprecision,and speeds up to 22m/min.This enhances workefficiency and reduces processing time.
The machine's transmission system employs high-precision ball screws and high-rigidity,high-speed roller guides.
The Driven Tool Turret can perform various machining operations such as drilling,milling,and tapping,which meansthat a single machine can complete more types of tasks,enhancing the flexibility and range of the machine.Overall,thelathe Driven Tool Turret significantly improves the efficiencyand quality of lathe machining by providing multi-functionalmachining capabilities,quick tool changes,high precision,andautomated operations.It is an indispensable and importantcomponent in modern precision manufacturing.
Our CNC turret lathes are equipped with avariety of mechanicalspindles to choose from.These spindles are notable for theirhigh rigidity,minimal noise and vibration,and,crucially,theirability to perform high-precision operations.The precisionof movement and the robustness of the spindle componentsplay a pivotal role in defining the quality of processing and theefficiency of cutting operations.
NSK super-precision bearings,featuring high running accuracy,rapid speed capabilities,and exceptional precision,are ideallysuited for spindle units in machine tools.These bearings arespecifically engineered to reduce noise,vibration,and heatgeneration,enhancing overall performance.
In addition,the eletric spindle can be selected.The advantagesof an electric spindle include high speed,high precision,widerange of speed variation,high rigidity,precise control,energysaving and environmental protection,and low maintenancecosts.Overall,the machine tool electric spindle has significantadvantages in improving processing efficiency,precision,and quality,and therefore,it is widely used in modernmanufacturing.
Equipment Display
