Versatility Horizontal Cnc Turn Mill Center Machine Compact Cnc Lathe

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact Us
Packaging Details:	wooden box package
Delivery Time:	45-60 days
Payment Terms:	T/T
Supply Ability:	20 units/month

Contact Now

Detailed Product Description

Type:	TURNING CENTER	Max. Length Of Workpiece (mm):	1000
Machining Capacity:	Heavy Duty	Max. Weight Of Workpiece(kg):	Cnc Lathe
Width Of Bed (mm):	35 Mm	No. Of Spindles:	Single
Number Of Axes:	4	Travel (x Axis)(mm):	260 Mm
Travel (z Axis)(mm):	1005 Mm	Dimension(lwh):	510020502150
Highlight:	Versatility Cnc Turn Mill Center , Versatility Machine Compact Cnc Lathe , Horizontal Cnc Turn Mill Center

High Speed Machine Tool CNC Machinery Horizontal Machining Tool Center Heavy Turning Milling Lathe Machine

Versatility Horizontal Cnc Turn Mill Center Machine Compact Cnc Lathe

High Speed Machine Tool CNC Machinery Horizontal Machining Tool Center Heavy Turning Milling Lathe Machine

Description

High-Travel Turning and Milling Composite CNC Lathe

Our high-travel turning and milling composite CNC lathe features an inclined bed for efficient chip removal. Based on the W7 model, this machine offers extended travel and swing diameters of 1 meter, 1.5 meters, 2 meters, and 3 meters. Optional configurations include the addition of a Y-axis and center support, as well as larger spindle options to meet diverse manufacturing needs.

Specification

Parameter	Unit	BG1000-10ZYDW Orthogonal Y-axis Turning and Milling Machine Tool
Max. Turning Diameter	mm	Φ520
Max. Machining Length	mm	1000
Max. Swing Diameter	mm	Φ600
Bar Feeding Diameter	mm	<Φ75
Spindle Bore	mm	Φ86
Max. Spindle Speed	RPM	2500
X-axis Travel	mm	260
Y-axis Travel	mm	±50
Z-axis Travel	mm	1005
Tailstock Travel	mm	900
Morse Taper	mm	65(5#)
Rapid Feedrate	m / min	22
Max. Driven Tool Speed	RPM	4000
Voltage (3phase)	V	380±10%
Frequency	Hz	50
Power	kW	29
Weight	kg	4800
Size (Length × Width × Height)	mm	5100 × 2050 × 2150

Other information

CNC or not	slant bed or not	Hydraulic System
CNC	slant	7 Channels

Recommend Products

Products Description

Details Display

The machine's transmission system employs high-precision ball screws and high-rigidity,high-speed roller guides.

The X-axis and Z-axis feature high-rigidity linear slides with anoptimally calculated track span,offering low resistance,highprecision,and speeds up to 22m/min.This enhances workefficiency and reduces processing time.

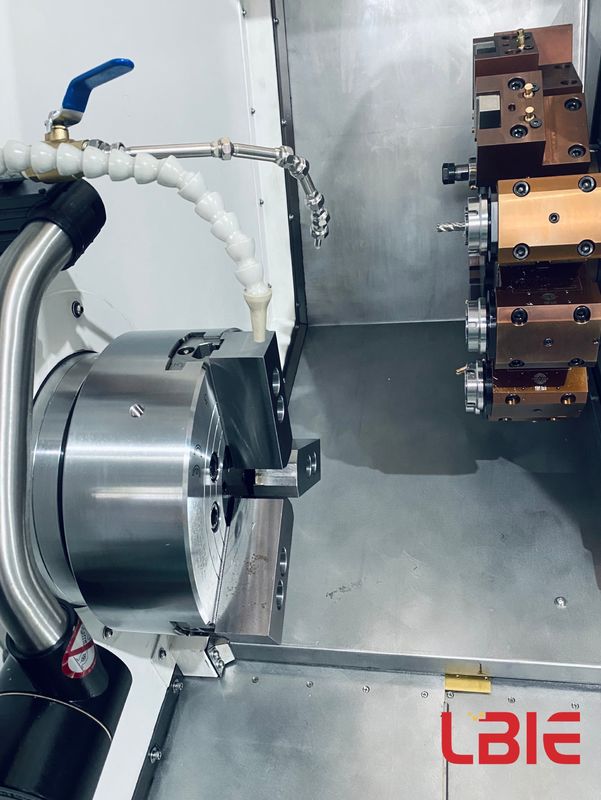

The Driven Tool Turret can perform various machining operations such as drilling,milling,and tapping,which meansthat a single machine can complete more types of tasks,enhancing the flexibility and range of the machine.Overall,thelathe Driven Tool Turret significantly improves the efficiencyand quality of lathe machining by providing multi-functionalmachining capabilities,quick tool changes,high precision,andautomated operations.It is an indispensable and importantcomponent in modern precision manufacturing.

Our CNC turret lathes are equipped with avariety of mechanicalspindles to choose from.These spindles are notable for theirhigh rigidity,minimal noise and vibration,and,crucially,theirability to perform high-precision operations.The precisionof movement and the robustness of the spindle componentsplay a pivotal role in defining the quality of processing and theefficiency of cutting operations.
NSK super-precision bearings,featuring high running accuracy,rapid speed capabilities,and exceptional precision,are ideallysuited for spindle units in machine tools.These bearings arespecifically engineered to reduce noise,vibration,and heatgeneration,enhancing overall performance.
In addition,the eletric spindle can be selected.The advantagesof an electric spindle include high speed,high precision,widerange of speed variation,high rigidity,precise control,energysaving and environmental protection,and low maintenancecosts.Overall,the machine tool electric spindle has significantadvantages in improving processing efficiency,precision,and quality,and therefore,it is widely used in modernmanufacturing.
