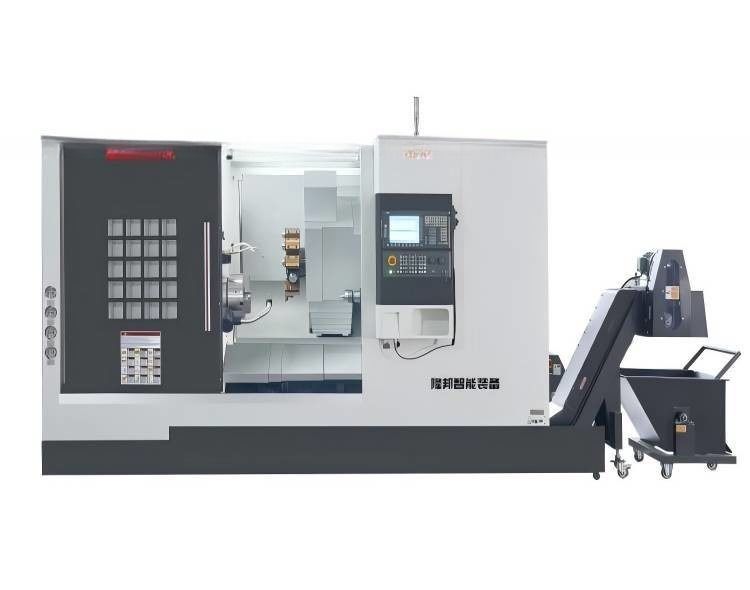

Metal Slant Bed Millturn Precision Machine With Syntec Cnc Control System

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact Us
Packaging Details:	wooden box package
Delivery Time:	45-60 days
Payment Terms:	T/T
Supply Ability:	20 units/month

Contact Now

Detailed Product Description

No. Of Spindles:	Single	Number Of Axes:	5
Width Of Bed (mm):	35 Mm	Type:	TURNING CENTER
Max. Length Of Workpiece (mm):	1000	Machining Capacity:	Heavy Duty
Travel (x Axis)(mm):	260 Mm	Travel (z Axis)(mm):	1005 Mm
Dimension(lwh):	510020502150	Brand Name:	LBIE
Cnc Control System:	FANUC\Syntec
Highlight:	Metal Millturn Precision Machine , Metal compact cnc lathe , Slant Bed Millturn Precision Machine

Universal New CNC Turning Metal Lathe Machine Price Horizontal Slant Bed Lathe Cnc Lathe Machine

Metal Slant Bed Millturn Precision Machine With Syntec Cnc Control System

precisely torno lathe sale for cnc bed slant bmt driven tool turning machin metal lathes

Description

Advanced High-Travel CNC Lathe with Enhanced Capabilities

This advanced high-travel turning and milling composite CNC lathe is designed with an inclined bed to facilitate efficient chip evacuation. Building on the W7 model, it provides extended travel and swing diameters ranging from 1 meter to 3 meters. Customizable options include the integration of a Y-axis for enhanced machining flexibility and center supports for added stability. Larger spindle sizes are also available upon request, making this machine highly adaptable to various production requirements.

Specification

Parameter	Unit	W7-8/6CYD Double Spindle Interpolated Y-axis Turning and Milling Machine Tool
Max. Turning Diameter	mm	Φ300
Max. Machining Length	mm	550
Max. Swing Diameter	mm	1st Spindle: Φ500; 2nd Spindle: Φ220
Bar Feeding Diameter	mm	1st Spindle: <Φ52; 2nd Spindle: <Φ46
Spindle Bore	mm	1st Spindle: Φ66; 2nd Spindle: Φ56
Max. Spindle Speed	RPM	1st Spindle: 3500; 2nd Spindle: 4000
X-axis Travel	mm	220
Y-axis Travel	mm	110
Z-axis Travel	mm	600
B-axis (Tailstock) Travel	mm	610

Other information

CNC or not	slant bed or not	Hydraulic System
CNC	slant	Channels

Recommend Products

Products Description

Product Paramenters

Details Display

The machine's transmission system employs high-precision ball screws and high-rigidity,high-speed roller guides.

The X-axis and Z-axis feature high-rigidity linear slides with anoptimally calculated track span,offering low resistance,highprecision,and speeds up to 22m/min.This enhances workefficiency and reduces processing time.

The Driven Tool Turret can perform various machining operations such as drilling,milling,and tapping,which meansthat a single machine can complete more types of tasks,enhancing the flexibility and range of the machine.Overall,thelathe Driven Tool Turret significantly improves the efficiencyand quality of lathe machining by providing multi-functionalmachining capabilities,quick tool changes,high precision,andautomated operations.It is an indispensable and importantcomponent in modern precision manufacturing.

Our CNC turret lathes are equipped with avariety of mechanicalspindles to choose from.These spindles are notable for theirhigh rigidity,minimal noise and vibration,and,crucially,theirability to perform high-precision operations.The precisionof movement and the robustness of the spindle componentsplay a pivotal role in defining the quality of processing and theefficiency of cutting operations.
NSK super-precision bearings,featuring high running accuracy,rapid speed capabilities,and exceptional precision,are ideallysuited for spindle units in machine tools.These bearings arespecifically engineered to reduce noise,vibration,and heatgeneration,enhancing overall performance.
In addition,the eletric spindle can be selected.The advantagesof an electric spindle include high speed,high precision,widerange of speed variation,high rigidity,precise control,energysaving and environmental protection,and low maintenancecosts.Overall,the machine tool electric spindle has significantadvantages in improving processing efficiency,precision,and quality,and therefore,it is widely used in modernmanufacturing.
