CNC 3 Axis Lathe Turning Center Dual Turret Cnc Lathe 3 Channels Hydraulic System

CNC 3 Axis Lathe Turning Center Dual Turret Cnc Lathe 3 Channels Hydraulic System

  • CNC 3 Axis Lathe Turning Center Dual Turret Cnc Lathe 3 Channels Hydraulic System
  • CNC 3 Axis Lathe Turning Center Dual Turret Cnc Lathe 3 Channels Hydraulic System
  • CNC 3 Axis Lathe Turning Center Dual Turret Cnc Lathe 3 Channels Hydraulic System
  • CNC 3 Axis Lathe Turning Center Dual Turret Cnc Lathe 3 Channels Hydraulic System
  • CNC 3 Axis Lathe Turning Center Dual Turret Cnc Lathe 3 Channels Hydraulic System
  • CNC 3 Axis Lathe Turning Center Dual Turret Cnc Lathe 3 Channels Hydraulic System
CNC 3 Axis Lathe Turning Center Dual Turret Cnc Lathe 3 Channels Hydraulic System
Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Contact Us
Packaging Details: wooden box package
Delivery Time: 45-60 days
Payment Terms: T/T
Supply Ability: 20 units/month
Contact Now
Detailed Product Description
Type: TURNING CENTER Max. Length Of Workpiece (mm): 350
Machining Capacity: Heavy Duty Max. Weight Of Workpiece(kg): Cnc Lathe
Width Of Bed (mm): 35 Mm No. Of Spindles: Single
Number Of Axes: 3 Travel (x Axis)(mm): 250 Mm
Travel (z Axis)(mm): 350 Mm Positioning Accuracy (mm): ±0.003
Repeatability (x/y/z) (mm): ±0.003 Place Of Origin: Guangdong, China
Dimension(l*w*h): 2350*1500*1850 Brand Name: LBIE
Model Number: L3C-8TW Voltage: 380V
Cnc Control System: Symtec Tool Post Stations: 12, 8
Weight (kg): 3000 Warranty: 1 Year
Key Selling Points: High Cost-effectiveness Machinery Test Report: Please Consult
Video Outgoing-inspection: Please Consult Range Of Spindle Speed(r.p.m): 0 - 4000 R.p.m
Cutting Torque: 86 N.m Turret Driven Type: Servo Motor
Turret Locking Type: Hydraulic Frequency: 50
Rapid Feedrate: 22m/min Lubrication Form: Oil Lubrication
Hydraulic System: 3 Channels Fixture: Hydraulic Chuck
Coolant Pump Power: 370W Spindle Bore(mm): 51
Max. Spindle Speed (r.p.m): 3500 Warranty Of Core Components: 1 Year
Highlight:

CNC Lathe Turning Center

,

3 Axis Lathe Turning Center

,

3 Axis Dual Turret Cnc Lathe

High Precision Slant Bed Torno CNC 3 Axis Turning Milling Composite Center Automatic CNC Lathes Machine


High Precision Slant Bed Torno CNC 3 Axis Turning Milling Composite Center Automatic CNC Lathes Machine

DECRIBE

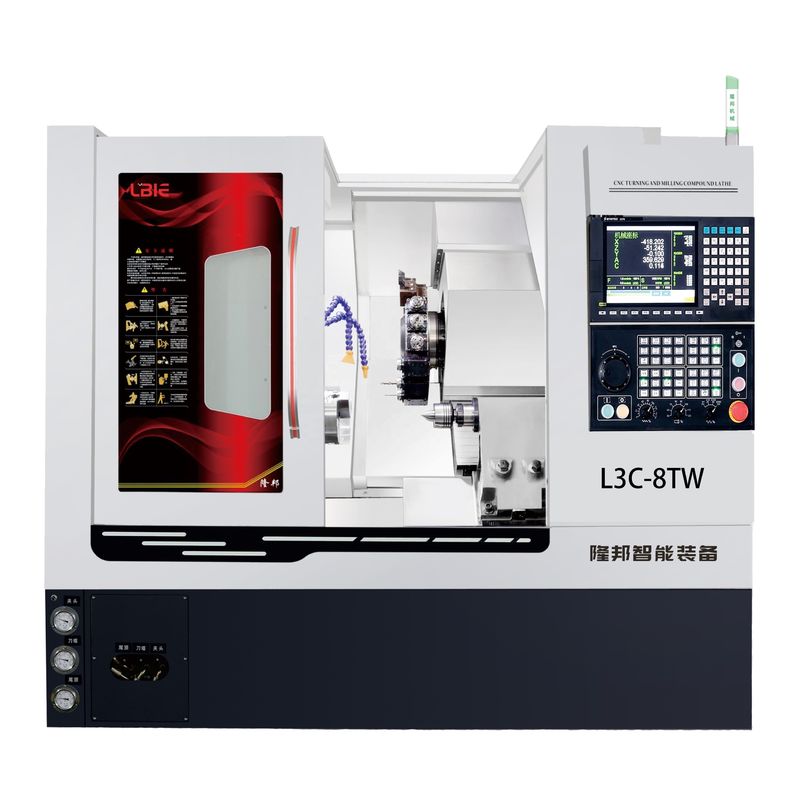

The L3C-8TW is a precision-engineered turning-milling compound machine designed to deliver exceptional performance and versatility. Featuring a high-speed servo turret and an adjustable tailstock, this machine is ideal for complex machining tasks that require high accuracy, efficiency, and flexibility.

Recommend Products

Other information
CNC or not
slant bed or not
Hydraulic System
CNC
slant
3Channels
Products Description
CNC 3 Axis Lathe Turning Center Dual Turret Cnc Lathe 3 Channels Hydraulic System 0
CNC 3 Axis Lathe Turning Center Dual Turret Cnc Lathe 3 Channels Hydraulic System 1
CNC 3 Axis Lathe Turning Center Dual Turret Cnc Lathe 3 Channels Hydraulic System 2
CNC 3 Axis Lathe Turning Center Dual Turret Cnc Lathe 3 Channels Hydraulic System 3
CNC 3 Axis Lathe Turning Center Dual Turret Cnc Lathe 3 Channels Hydraulic System 4

CNC 3 Axis Lathe Turning Center Dual Turret Cnc Lathe 3 Channels Hydraulic System 5
CNC 3 Axis Lathe Turning Center Dual Turret Cnc Lathe 3 Channels Hydraulic System 6
