8 Station 4 Axis Mill Turn Machining Center Automatic Cnc Lathe Machine

8 Station 4 Axis Mill Turn Machining Center Automatic Cnc Lathe Machine

  • 8 Station 4 Axis Mill Turn Machining Center Automatic Cnc Lathe Machine
  • 8 Station 4 Axis Mill Turn Machining Center Automatic Cnc Lathe Machine
  • 8 Station 4 Axis Mill Turn Machining Center Automatic Cnc Lathe Machine
  • 8 Station 4 Axis Mill Turn Machining Center Automatic Cnc Lathe Machine
  • 8 Station 4 Axis Mill Turn Machining Center Automatic Cnc Lathe Machine
  • 8 Station 4 Axis Mill Turn Machining Center Automatic Cnc Lathe Machine
8 Station 4 Axis Mill Turn Machining Center Automatic Cnc Lathe Machine
Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Contact Us
Packaging Details: wooden box package
Delivery Time: 45-60 days
Payment Terms: T/T
Supply Ability: 20 units/month
Chat Now
Detailed Product Description
Type: TURNING CENTER Max. Length Of Workpiece (mm): 200
Machining Capacity: Heavy Duty Max. Weight Of Workpiece(kg): Cnc Lathe
Width Of Bed (mm): 35 Mm No. Of Spindles: Single
Number Of Axes: 5 Travel (x Axis)(mm): 800 Mm
Travel (z Axis)(mm): 300 Mm Positioning Accuracy (mm): ±0.003
Repeatability (x/y/z) (mm): ±0.003 Place Of Origin: Guangdong, China
Dimension(l*w*h): 2230*1687*1900 Brand Name: LEIE
Model Number: L2-6ZYDT Voltage: 380
Cnc Control System: FANUC\Syntec Tool Post Stations: 12, 8
Weight (kg): 2500 Warranty: 1 Year
Key Selling Points: Four Plus Four Live Tool Machinery Test Report: Please Consult
Video Outgoing-inspection: Please Consult Range Of Spindle Speed(r.p.m): 0 - 4000 R.p.m
Cutting Torque: 105 N.m Tool Carrier Form: 4+4 Live Tool And Normal Turret
Turret Locking Type: Hydraulic Turret Driven Type: Servo Motor
Lubrication Form: Oil Lubrication Hydraulic System: 3 Channels
Fixture: Hydraulic Chuck Max. Live Tool Speed: 4000 Rpm
Rapid Feedrate: 22 M/min Spindle Bore(mm): 45
Max. Spindle Speed (r.p.m): 4500 Warranty Of Core Components: 1 Year
Highlight:

8 Station automatic cnc lathe machine

,

8 Station Mill Turn Machining Center

,

4 Axis automatic cnc lathe machine

Horizontal 8 Station 4 axis Power Turret Turn Milling Compound Machine with Live Tooling CNC Lathe


Describe

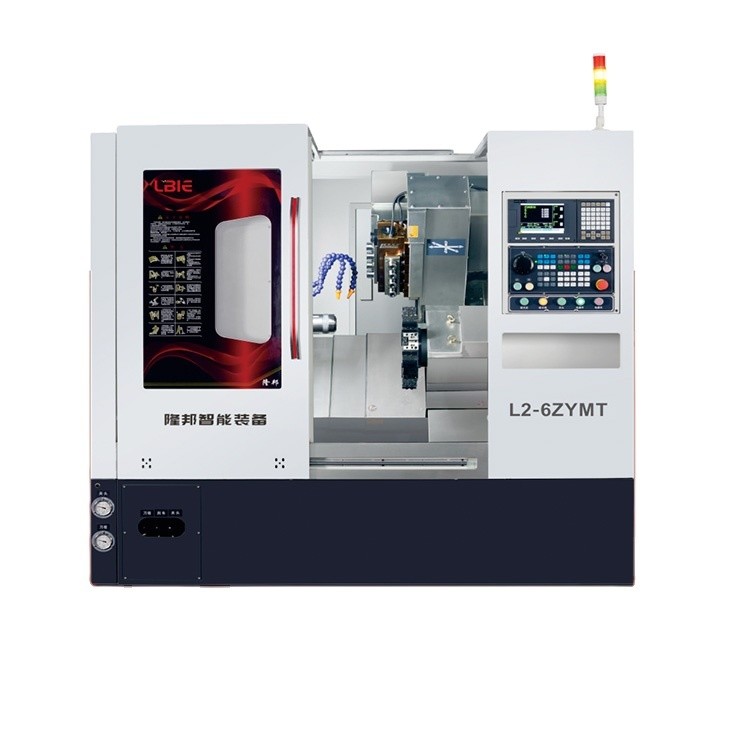

The L2-6ZYMT is an advanced CNC machine featuring a 4+4 configuration, combining four main spindles with four stations on a servo-driven tool turret, designed for efficient and precise turning and milling operations. This model excels in performing complex machining tasks by integrating both turning and milling capabilities into one unit, thereby reducing setup times and increasing productivity.


Other information
CNC or not
slant bed or not
Hydraulic System
CNC
slant
Channels
