Home Products CNC Turning And Milling Machine

12 Stations Multifunctional Cnc Horizontal Lathe Machine Horizontal Turning Lathe

12 Stations Multifunctional Cnc Horizontal Lathe Machine Horizontal Turning Lathe

12 Stations Multifunctional Cnc Horizontal Lathe Machine Horizontal Turning Lathe

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact Us

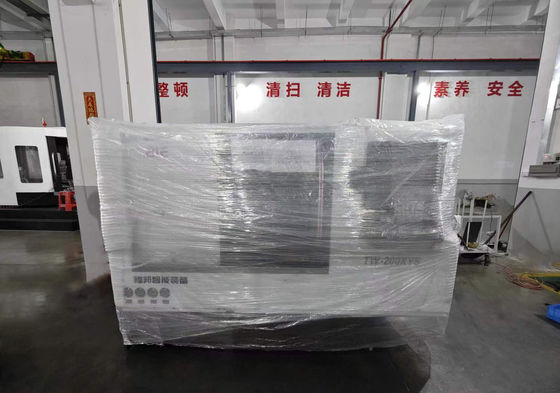

Packaging Details:	wooden box package
Delivery Time:	45-60 days
Payment Terms:	T/T
Supply Ability:	20 units/month

Contact Now

Detailed Product Description

Type:	TURNING CENTER	Max. Length Of Workpiece (mm):	200
Machining Capacity:	Heavy Duty	Max. Weight Of Workpiece(kg):	Cnc Lathe
Width Of Bed (mm):	35 Mm	No. Of Spindles:	Single
Number Of Axes:	5	Travel (x Axis)(mm):	800 Mm
Travel (z Axis)(mm):	300 Mm	Positioning Accuracy (mm):	±0.003
Repeatability (x/y/z) (mm):	±0.003	Place Of Origin:	Guangdong, China
Dimension(lwh):	223016871900	Brand Name:	LEIE
Model Number:	L2-6ZYDT	Voltage:	380

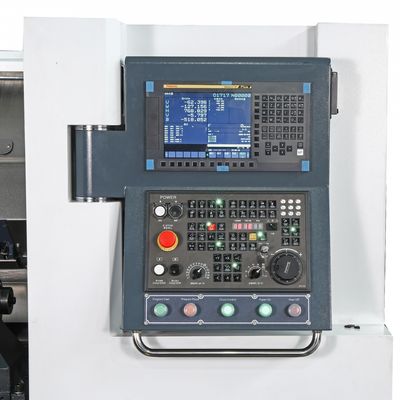

Cnc Control System:	FANUC\Syntec	Tool Post Stations:	12, 8
Weight (kg):	2500	Warranty:	1 Year
Key Selling Points:	Four Plus Four Live Tool	Machinery Test Report:	Please Consult
Video Outgoing-inspection:	Please Consult	Range Of Spindle Speed(r.p.m):	0 - 4000 R.p.m
Cutting Torque:	105 N.m	Tool Carrier Form:	4+4 Live Tool And Normal Turret
Turret Locking Type:	Hydraulic	Turret Driven Type:	Servo Motor
Lubrication Form:	Oil Lubrication	Hydraulic System:	3 Channels
Fixture:	Hydraulic Chuck	Max. Live Tool Speed:	4000 Rpm
Rapid Feedrate:	22 M/min	Spindle Bore(mm):	45
Max. Spindle Speed (r.p.m):	4500	Warranty Of Core Components:	1 Year
Highlight:	Multifunctional Cnc Horizontal Lathe Machine , Multifunctional Horizontal Turning Lathe , 12 Stations horizontal turning lathe

Horizontal 12 Stations Driven Tool Turret Multifunctional Metal Processing Slant Bed 4 Axis Cnc Lathe Machine

Description

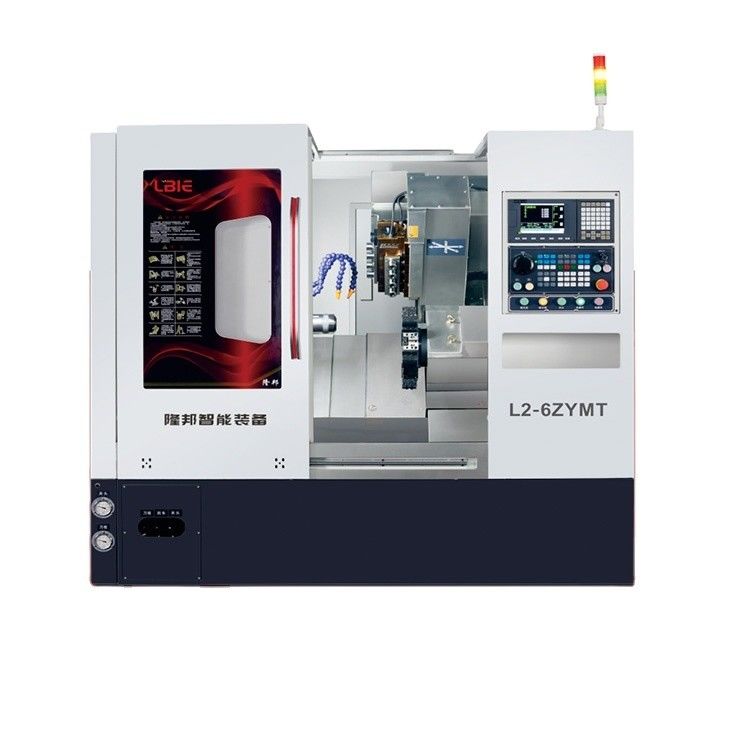

The L2-6ZYMT is a highly advanced CNC machining center featuring a unique 4+4 spindle head and turret configuration. This innovative design combines the capabilities of four independent spindle heads with a four-station turret, offering unparalleled machining flexibility and efficiency. The machine's multi-functional architecture enables simultaneous multi-axis operations, significantly reducing production cycle times while maintaining exceptional precision. With its robust construction and advanced control system, the L2-6ZYMT is engineered to handle complex machining tasks across a wide range of materials, making it an ideal solution for high-precision manufacturing in demanding industrial applications.

Other information

CNC or not	slant bed or not	Hydraulic System
CNC	slant	Channels

Products Description

12 Stations Multifunctional Cnc Horizontal Lathe Machine Horizontal Turning Lathe 0

12 Stations Multifunctional Cnc Horizontal Lathe Machine Horizontal Turning Lathe 1

12 Stations Multifunctional Cnc Horizontal Lathe Machine Horizontal Turning Lathe 2

12 Stations Multifunctional Cnc Horizontal Lathe Machine Horizontal Turning Lathe 3

12 Stations Multifunctional Cnc Horizontal Lathe Machine Horizontal Turning Lathe 4

12 Stations Multifunctional Cnc Horizontal Lathe Machine Horizontal Turning Lathe 5
