4 Axis C Axis Turn And Mill Machine Horizontal Slant Bed Lathe

4 Axis C Axis Turn And Mill Machine Horizontal Slant Bed Lathe

  • 4 Axis C Axis Turn And Mill Machine Horizontal Slant Bed Lathe
  • 4 Axis C Axis Turn And Mill Machine Horizontal Slant Bed Lathe
  • 4 Axis C Axis Turn And Mill Machine Horizontal Slant Bed Lathe
  • 4 Axis C Axis Turn And Mill Machine Horizontal Slant Bed Lathe
  • 4 Axis C Axis Turn And Mill Machine Horizontal Slant Bed Lathe
  • 4 Axis C Axis Turn And Mill Machine Horizontal Slant Bed Lathe
4 Axis C Axis Turn And Mill Machine Horizontal Slant Bed Lathe
Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Contact Us

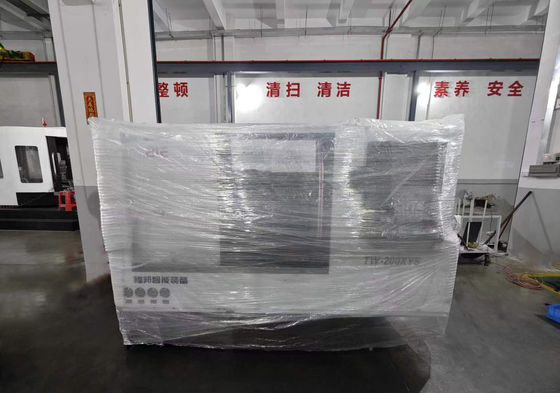

Packaging Details: wooden box package
Delivery Time: 45-60 days
Payment Terms: T/T
Supply Ability: 20 units/month
Contact Now
Detailed Product Description
Type: TURNING CENTER Max. Length Of Workpiece (mm): 200
Machining Capacity: Heavy Duty Max. Weight Of Workpiece(kg): CNC LATHE
Width Of Bed (mm): 35 Mm No. Of Spindles: Single
Number Of Axes: 5 Travel (x Axis)(mm): 800 Mm
Travel (z Axis)(mm): 300 Mm Positioning Accuracy (mm): ±0.003
Repeatability (x/y/z) (mm): ±0.003 Place Of Origin: Guangdong, China
Dimension(l*w*h): 2200*1750*2000 Brand Name: LBIE
Model Number: L5-6ZYDP Voltage: 380v
Cnc Control System: FANUC\Syntec Tool Post Stations: 12, 15
Weight (kg): 3000 Warranty: 1 Year
Key Selling Points: High Cost-effectiveness Machinery Test Report: Please Consult
Video Outgoing-inspection: Please Consult Range Of Spindle Speed(r.p.m): 0 - 22 R.p.m
Cutting Torque: 105 N.m Lubrication Form: Oil Lubrication
Fixture: Hydraulic Chuck Hydraulic System: 3 Channels

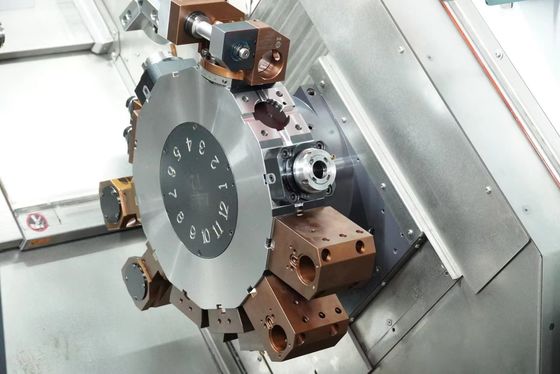

Coolant Pump Power: 370W Tool Carrier Form: Live Tool Turret
Rapid Feedrate: 22 M/min Spindle Bore(mm): 45
Max. Spindle Speed (r.p.m): 4500 Feed Speed(mm/min): 0 - 0.3 Mm/min
Rapid Feed Speed(mm/min): 0 - 22 Mm/min Warranty Of Core Components: 1 Year
Highlight:

4 Axis Horizontal Slant Bed Lathe

,

4 Axis Turn And Mill Machine

,

C Axis Turn And Mill Machine

Slant Bed Metal 4 Axis CNC Lathe Machine With Y axis And C Axis Cnc Turning Parts Machinery Lathes Machine



Description

The L5-6ZYD's heavy-duty construction delivers consistent machining stability, excelling in both precision turning operations and sophisticated milling tasks. Equipped with an advanced thermal compensation mechanism and reinforced bed structure, the machine maintains micron-level accuracy throughout continuous production cycles. Its smart chip evacuation system, combined with automated tool wear compensation, significantly boosts production efficiency and reduces downtime. These superior features make the L5-6ZYD an ideal choice for manufacturing intricate, high-tolerance parts across demanding sectors including automotive engineering, aerospace components, and precision medical instruments.


Other information
CNC or not
slant bed or not
Hydraulic System
CNC
slant
3 Channels
Products Description

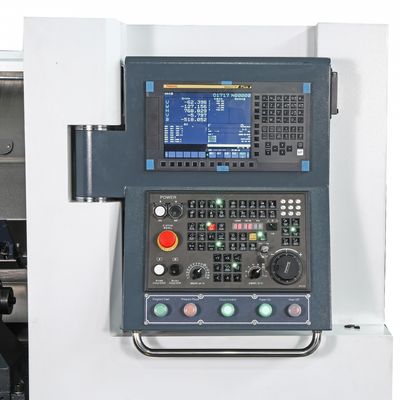

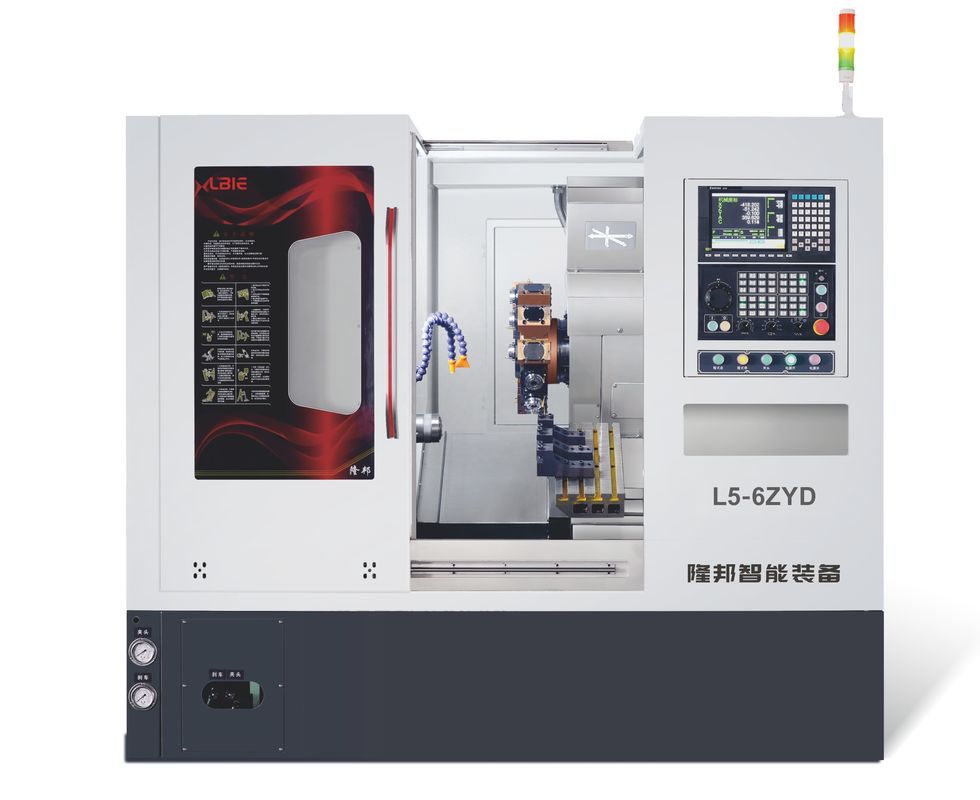

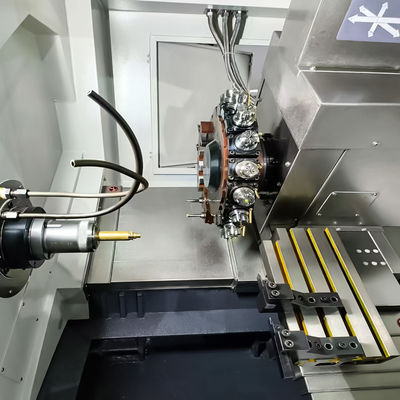

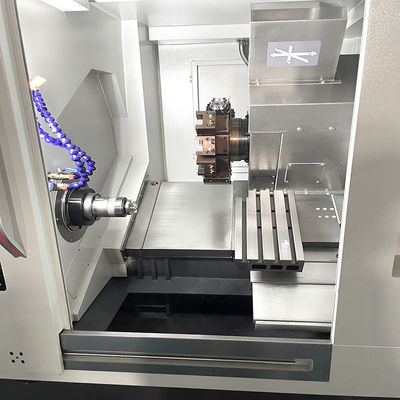

4 Axis C Axis Turn And Mill Machine Horizontal Slant Bed Lathe 0
4 Axis C Axis Turn And Mill Machine Horizontal Slant Bed Lathe 1


4 Axis C Axis Turn And Mill Machine Horizontal Slant Bed Lathe 2
4 Axis C Axis Turn And Mill Machine Horizontal Slant Bed Lathe 3
4 Axis C Axis Turn And Mill Machine Horizontal Slant Bed Lathe 4
4 Axis C Axis Turn And Mill Machine Horizontal Slant Bed Lathe 5
