Metal Mold Manufacturing Machinery High Precision CNC Lathe with 24 Tool Post Stations and 0-4000 RPM Spindle Speed Range

Metal Mold Manufacturing Machinery High Precision CNC Lathe with 24 Tool Post Stations and 0-4000 RPM Spindle Speed Range

  • Metal Mold Manufacturing Machinery High Precision CNC Lathe with 24 Tool Post Stations and 0-4000 RPM Spindle Speed Range
  • Metal Mold Manufacturing Machinery High Precision CNC Lathe with 24 Tool Post Stations and 0-4000 RPM Spindle Speed Range
  • Metal Mold Manufacturing Machinery High Precision CNC Lathe with 24 Tool Post Stations and 0-4000 RPM Spindle Speed Range
  • Metal Mold Manufacturing Machinery High Precision CNC Lathe with 24 Tool Post Stations and 0-4000 RPM Spindle Speed Range
  • Metal Mold Manufacturing Machinery High Precision CNC Lathe with 24 Tool Post Stations and 0-4000 RPM Spindle Speed Range
  • Metal Mold Manufacturing Machinery High Precision CNC Lathe with 24 Tool Post Stations and 0-4000 RPM Spindle Speed Range
  • Metal Mold Manufacturing Machinery High Precision CNC Lathe with 24 Tool Post Stations and 0-4000 RPM Spindle Speed Range
  • Metal Mold Manufacturing Machinery High Precision CNC Lathe with 24 Tool Post Stations and 0-4000 RPM Spindle Speed Range
  • Metal Mold Manufacturing Machinery High Precision CNC Lathe with 24 Tool Post Stations and 0-4000 RPM Spindle Speed Range
  • Metal Mold Manufacturing Machinery High Precision CNC Lathe with 24 Tool Post Stations and 0-4000 RPM Spindle Speed Range
  • Metal Mold Manufacturing Machinery High Precision CNC Lathe with 24 Tool Post Stations and 0-4000 RPM Spindle Speed Range
  • Metal Mold Manufacturing Machinery High Precision CNC Lathe with 24 Tool Post Stations and 0-4000 RPM Spindle Speed Range
Metal Mold Manufacturing Machinery High Precision CNC Lathe with 24 Tool Post Stations and 0-4000 RPM Spindle Speed Range
Product Details:
Payment & Shipping Terms:
Price: $108,000.00/sets 1-9 sets
Contact Now
Detailed Product Description
Type: TURNING CENTER Max. Length Of Workpiece (mm): 300
Machining Capacity: Heavy Duty Max. Weight Of Workpiece(kg): Cnc Lathe
Width Of Bed (mm): 35 Mm No. Of Spindles: Twin
Number Of Axes: 8 Travel (x Axis)(mm): 250 Mm
Travel (z Axis)(mm): 300 Mm Positioning Accuracy (mm): ±0.003
Repeatability (x/y/z) (mm): ±0.003 Place Of Origin: Guangdong, China
Dimension(l*w*h): 3000 *2300 *2100 Brand Name: LBIE
Model Number: FT-6/6ZYD/D Voltage: 380V
Cnc Control System: FANUC\Syntec Tool Post Stations: 24
Weight (kg): 6000 Warranty: 1 Year
Key Selling Points: High-performance Machinery Test Report: Please Consult
Video Outgoing-inspection: Please Consult Range Of Spindle Speed(r.p.m): 0 - 4000 R.p.m
Cutting Torque: 52 N.m Turret Driven Type: Servo Motor
Turret Locking Type: Hydraulic Rapid Feedrate: 22m/min
No.of Tool Stations: 2*12 Tailstock Form: Sub-spindle
Tool Carrier Form: Live Tool Turret Hydraulic System: 10 Channels
Coolant Pump Power: 700W Spindle Bore(mm): 56
Max. Spindle Speed (r.p.m): 4000 Warranty Of Core Components: 1 Year

Other information
CNC or not
slant bed or not
Hydraulic System
CNC
slant
Channels
Products Description
Metal Mold Manufacturing Machinery High Precision CNC Lathe with 24 Tool Post Stations and 0-4000 RPM Spindle Speed Range 0
Metal Mold Manufacturing Machinery High Precision CNC Lathe with 24 Tool Post Stations and 0-4000 RPM Spindle Speed Range 1
Company Profile
Metal Mold Manufacturing Machinery High Precision CNC Lathe with 24 Tool Post Stations and 0-4000 RPM Spindle Speed Range 2
Guangdong Longbang Intelligent Equipment Industry Co., Ltd
Longbang is a Chinese factory focusing on researching, manufacturing, selling, and serving of the turning and milling machine tool. The company was established in 2007. In 2009, it successfully developed the first 4+4 live tool turning and milling machine tool in China. In 2014, it broke the technical barrier of the interpolated Y-axis turning and milling machine tool. In 2022, it developed a dual spindle dual turret turning and milling composite machine tool. The company has a history of 15 years, so we have sufficient experience to provide customers with efficient and stable products. It is important that we have the certification of the Chinese standard management qualification system , so we have the qualification to produce general equipment. In addition, we also serve industries such as nuclear energy, aerospace, automotive parts, home appliances, and more. It is worth mentioning that we are looking for global agents to collaborate with, so that more customers can enjoy China's good products and services.
Metal Mold Manufacturing Machinery High Precision CNC Lathe with 24 Tool Post Stations and 0-4000 RPM Spindle Speed Range 3

Production workshop


Metal Mold Manufacturing Machinery High Precision CNC Lathe with 24 Tool Post Stations and 0-4000 RPM Spindle Speed Range 4

Finished product shop

Metal Mold Manufacturing Machinery High Precision CNC Lathe with 24 Tool Post Stations and 0-4000 RPM Spindle Speed Range 5

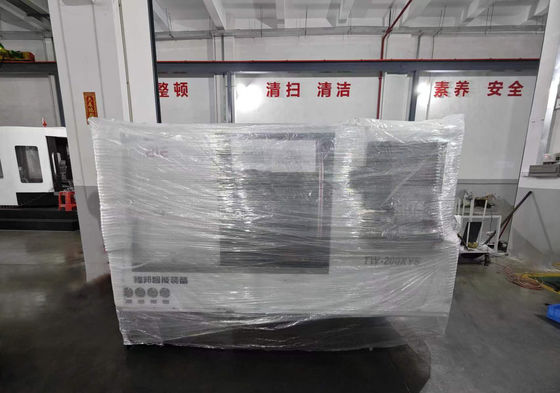

Inner packing

Metal Mold Manufacturing Machinery High Precision CNC Lathe with 24 Tool Post Stations and 0-4000 RPM Spindle Speed Range 6

Outer packing

Certifications
Metal Mold Manufacturing Machinery High Precision CNC Lathe with 24 Tool Post Stations and 0-4000 RPM Spindle Speed Range 7
Partners
Metal Mold Manufacturing Machinery High Precision CNC Lathe with 24 Tool Post Stations and 0-4000 RPM Spindle Speed Range 8
FAQ
Q：Where is our factory located?
A：We have two factories.One is located in Xingtan Town, Shunde District, Foshan City,
Guangdong Province and the other one is located in Dagang Town, Nansha District, Guangzhou City, Guangdong Province

Q：Can we visit your factory before order?
A：Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick you up at the station or airport if needed.

Q：Can you provide customized machines?
A：Yes, we can design and manufacture according to your specific requirements.

Q：Do you have professional engineers?
A：Yes, we have professional engineers and designers.

Q：Does your company provide professional training？
A：Yes, we provide training and teaching or use video teaching.

Q：How can I choose the most suitable machines?
A：You can contact our customer service, and please provide your product details and requirements, then we will help you choose the most suitable machine based on your information.

Q：What is your terms of delivery?
A：FOB

Q：What is your terms of payment.
A：TIT 30% as deposit, and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.

Q：How about your delivery time?
A：Generally, it will take 30 to 60 days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.

Q：Do you test all your goods before delivery?
A：Yes, we have 100% test before delivery.

Q：Can you provide product samples?
A：Yes, we can provide samples according to the drawings, but the customer needs to pay for the cost of the samples.

Q：What industry are your machines used in?
A：Automobile parts industry, Electronic Equipment Industry, Home appliance industry, and so on.

Q：Do you have a stock?
A：Yes, we have a small amount of inventory, but we can also produce according to customer requirements.
