Multifunction Digital Cnc Vertical Lathe Machine Servo Motor 10 Channels Hydraulic System

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact Us
Packaging Details:	wooden box package
Delivery Time:	45-60 days
Payment Terms:	T/T
Supply Ability:	20 units/month

Contact Now

Detailed Product Description

Positioning Accuracy (mm):	±0.003	Repeatability (x/y/z) (mm):	±0.003
Dimension(lwh):	300023002100	Brand Name:	LBIE
Model Number:	TS-8/6ZYD/D	Voltage:	380V
Cnc Control System:	FANUC\Syntec	Tool Post Stations:	24
Weight (kg):	6000	Warranty:	1 Year
Fixture:	Hydraulic Chuck
Highlight:	Multifunction cnc vertical turning lathe , Multifunction Cnc Vertical Lathe Machine , Digital Cnc Vertical Lathe Machine

Multifunction Digital Cnc Vertical Lathe Machine Servo Motor 10 Channels Hydraulic System

Description

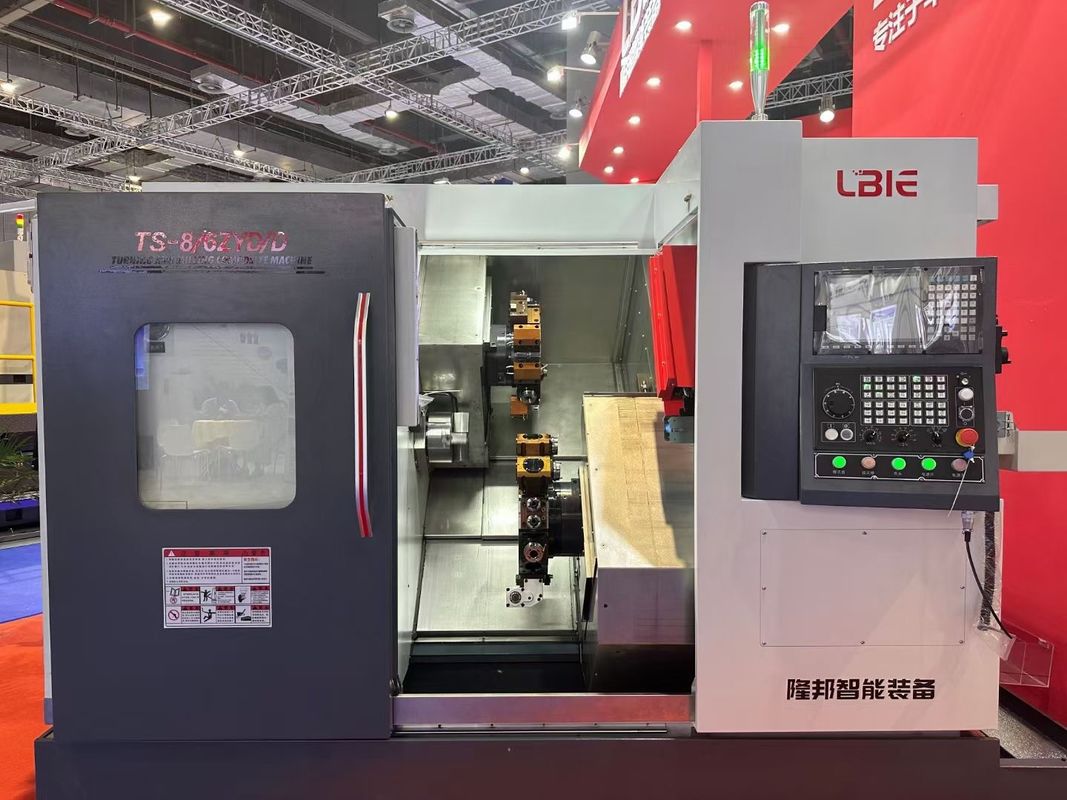

The TS-8/6ZYD/D CNC machine is a high-precision, high-efficiency solution equipped with dual spindles, dual turrets, and dual Y-axes. This versatile system enables both single-turret and dual-turret machining, supporting simultaneous processing of two workpieces. With its robust HT300 cast iron bed, the machine provides exceptional rigidity and damping characteristics, making it ideal for complex, high-accuracy machining tasks.

Specification

Parameter	Unit	TS-8/6ZYD/D Dual-spindle Dual-turret Turning and Milling Machine Tool
Max. Turning Diameter	mm	Φ200
Max. Machining Length	mm	550
Max. Swing Diameter	mm	Φ200
Bar Feeding Diameter	mm	<Φ52
Spindle Bore	mm	1st Spindle: Φ66; 2nd Spindle: Φ56
Max. Spindle Speed	RPM	1st Spindle: 3500; 2nd Spindle: 4000
X-axis Travel	mm	X1: 250 ; X2: 250
Y-axis Travel	mm	Y1:90 ; Y2:90
Z-axis Travel	mm	Z1:600; Z2:600
B-axis (Tailstock) Travel	mm	550

Other information

CNC or not	slant bed or not	Hydraulic System
CNC	slant	Channels

Products Description

Details Display

The X-axis and Z-axis feature high-rigidity linear slides with anoptimally calculated track span,offering low resistance,highprecision,and speeds up to 22m/min.This enhances workefficiency and reduces processing time.

The machine's transmission system employs high-precision ball screws and high-rigidity,high-speed roller guides.

The Driven Tool Turret can perform various machining operations such as drilling,milling,and tapping,which meansthat a single machine can complete more types of tasks,enhancing the flexibility and range of the machine.Overall,thelathe Driven Tool Turret significantly improves the efficiencyand quality of lathe machining by providing multi-functionalmachining capabilities,quick tool changes,high precision,andautomated operations.It is an indispensable and importantcomponent in modern precision manufacturing.

Our CNC turret lathes are equipped with avariety of mechanicalspindles to choose from.These spindles are notable for theirhigh rigidity,minimal noise and vibration,and,crucially,theirability to perform high-precision operations.The precisionof movement and the robustness of the spindle componentsplay a pivotal role in defining the quality of processing and theefficiency of cutting operations.
NSK super-precision bearings,featuring high running accuracy,rapid speed capabilities,and exceptional precision,are ideallysuited for spindle units in machine tools.These bearings arespecifically engineered to reduce noise,vibration,and heatgeneration,enhancing overall performance.
In addition,the eletric spindle can be selected.The advantagesof an electric spindle include high speed,high precision,widerange of speed variation,high rigidity,precise control,energysaving and environmental protection,and low maintenancecosts.Overall,the machine tool electric spindle has significantadvantages in improving processing efficiency,precision,and quality,and therefore,it is widely used in modernmanufacturing.
