Universal Horizontal Cnc Turret Lathe Machine Medium Duty 350mm Length Of Workpiece

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact Us
Packaging Details:	wooden box package
Delivery Time:	45-60 days
Payment Terms:	T/T
Supply Ability:	20 units/month

Contact Now

Detailed Product Description

Type:	TURNING CENTER	Max. Length Of Workpiece (mm):	350
Machining Capacity:	Medium Duty	Max. Weight Of Workpiece(kg):	Cnc Lathe
Width Of Bed (mm):	35 Mm	No. Of Spindles:	Single
Number Of Axes:	2	Travel (x Axis)(mm):	240 Mm
Travel (z Axis)(mm):	300 Mm	Positioning Accuracy (mm):	±0.003
Repeatability (x/y/z) (mm):	±0.003	Place Of Origin:	Guangdong, China
Dimension(lwh):	1980 1500 1680	Brand Name:	LBIE
Model Number:	XL2-8D	Voltage:	380v
Cnc Control System:	FANUC\Syntec	Tool Post Stations:	12
Weight (kg):	3000	Warranty:	1 Year
Key Selling Points:	Classical Turning Machine	Machinery Test Report:	Please Consult
Video Outgoing-inspection:	Please Consult	Range Of Spindle Speed(r.p.m):	0 - 22 R.p.m
Cutting Torque:	26.4 N.m	Lubrication Form:	Oil Lubrication
Hydraulic System:	1 Channels	Fixture:	Hydraulic Chuck
Coolant Pump Power:	370W	Condition:	New
Year:	Latest Date	Spindle Bore(mm):	66
Max. Turned Length (mm):	200	Max. Spindle Speed (r.p.m):	4000
CNC Control System:	FANUC / SYNTEC	Warranty Of Core Components:	1 Year
Highlight:	Universal Cnc Turret Lathe Machine , Universal double turret cnc lathe , Horizontal Cnc Turret Lathe Machine

Universal New CNC Turning Metal Lathe Machine Horizontal Slant Bed Lathe CNC Turret Lathe Machine Price

Description

Affordable Precision at Its Best

Discover unmatched value with our cost-effective yet high-performance machine, designed to deliver superior rigidity and a higher than average travel range. Tailored specifically to your needs with a customized tool turret, this machine offers the precision and flexibility required for complex manufacturing tasks.

Specification

Parameter	Unit	XL2-8D CNC Turret Lathe
Max. Turning Diameter	mm	Φ420
Max. Machining Length	mm	300
Max. Swing Diameter	mm	Φ560
Bar Feeding Diameter	mm	<Φ52
Spindle Bore	mm	Φ66
Max. Spindle Speed	RPM	3500
X-axis Travel	mm	240
Z-axis Travel	mm	300
B-axis (Tailstock) Travel	mm

Products Description

Details Display

Universal Horizontal Cnc Turret Lathe Machine Medium Duty 350mm Length Of Workpiece 4

The X-axis and Z-axis feature high-rigidity linear slides with anoptimally calculated track span,offering low resistance,highprecision,and speeds up to 22m/min.This enhances workefficiency and reduces processing time.

Universal Horizontal Cnc Turret Lathe Machine Medium Duty 350mm Length Of Workpiece 5

The machine's transmission system employs high-precision ball screws and high-rigidity,high-speed roller guides.

Universal Horizontal Cnc Turret Lathe Machine Medium Duty 350mm Length Of Workpiece 6

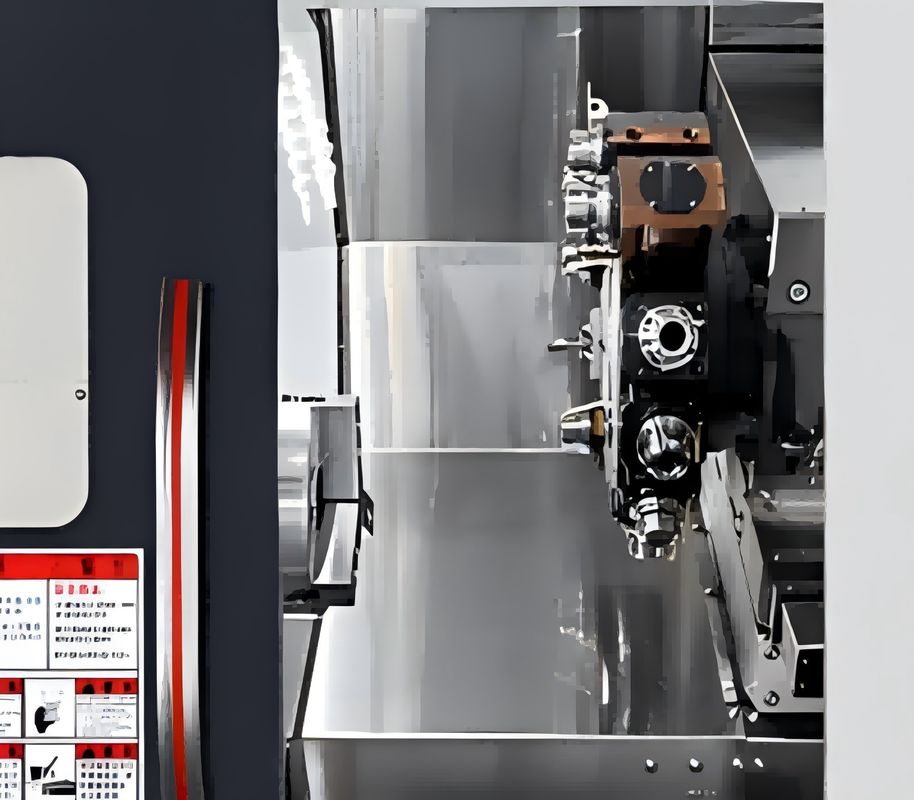

The Driven Tool Turret can perform various machining operations such as drilling,milling,and tapping,which meansthat a single machine can complete more types of tasks,enhancing the flexibility and range of the machine.Overall,thelathe Driven Tool Turret significantly improves the efficiencyand quality of lathe machining by providing multi-functionalmachining capabilities,quick tool changes,high precision,andautomated operations.It is an indispensable and importantcomponent in modern precision manufacturing.

Universal Horizontal Cnc Turret Lathe Machine Medium Duty 350mm Length Of Workpiece 7

Our CNC turret lathes are equipped with avariety of mechanicalspindles to choose from.These spindles are notable for theirhigh rigidity,minimal noise and vibration,and,crucially,theirability to perform high-precision operations.The precisionof movement and the robustness of the spindle componentsplay a pivotal role in defining the quality of processing and theefficiency of cutting operations.
NSK super-precision bearings,featuring high running accuracy,rapid speed capabilities,and exceptional precision,are ideallysuited for spindle units in machine tools.These bearings arespecifically engineered to reduce noise,vibration,and heatgeneration,enhancing overall performance.
In addition,the eletric spindle can be selected.The advantagesof an electric spindle include high speed,high precision,widerange of speed variation,high rigidity,precise control,energysaving and environmental protection,and low maintenancecosts.Overall,the machine tool electric spindle has significantadvantages in improving processing efficiency,precision,and quality,and therefore,it is widely used in modernmanufacturing.

Universal Horizontal Cnc Turret Lathe Machine Medium Duty 350mm Length Of Workpiece 8
